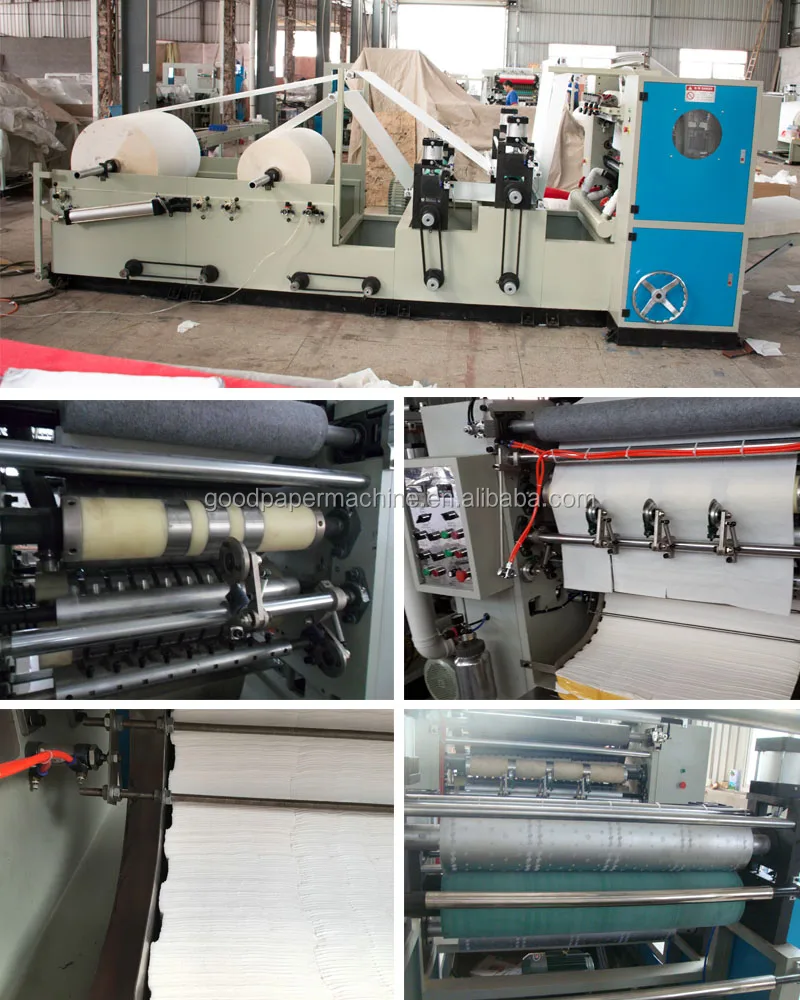

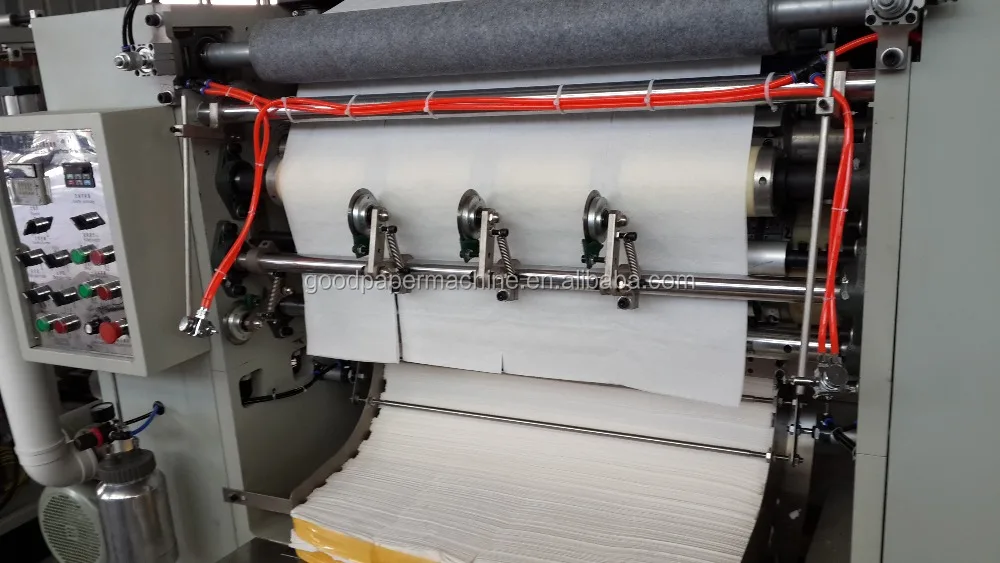

Automatic embossing facial tissue V folded face tissue paper cutting making machine

Function and Features:
1. Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. Electricty control, easy to operate.

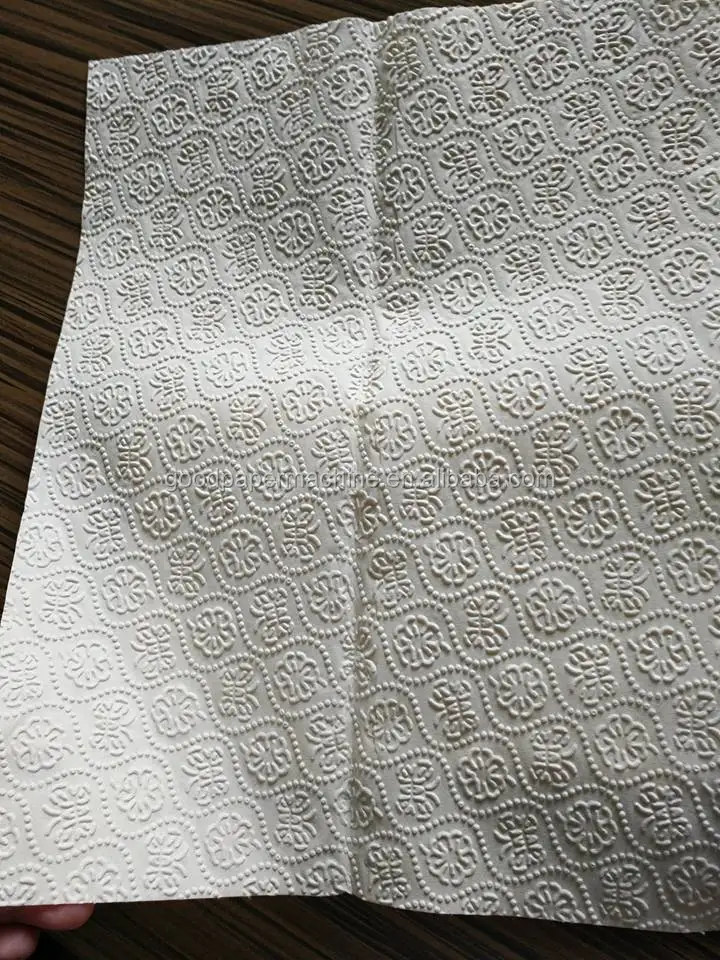

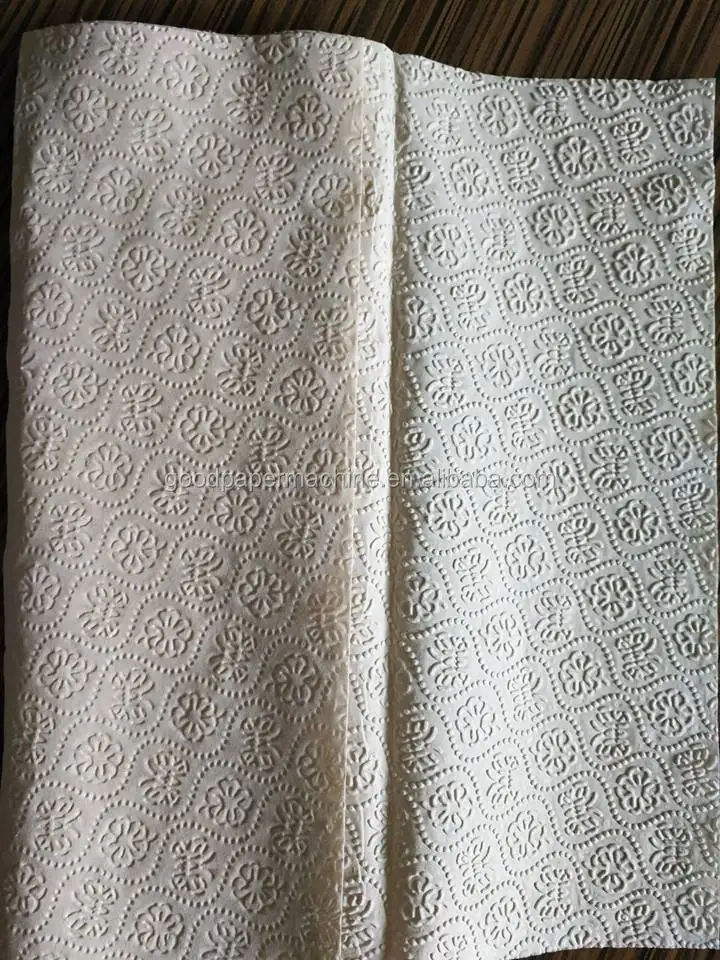

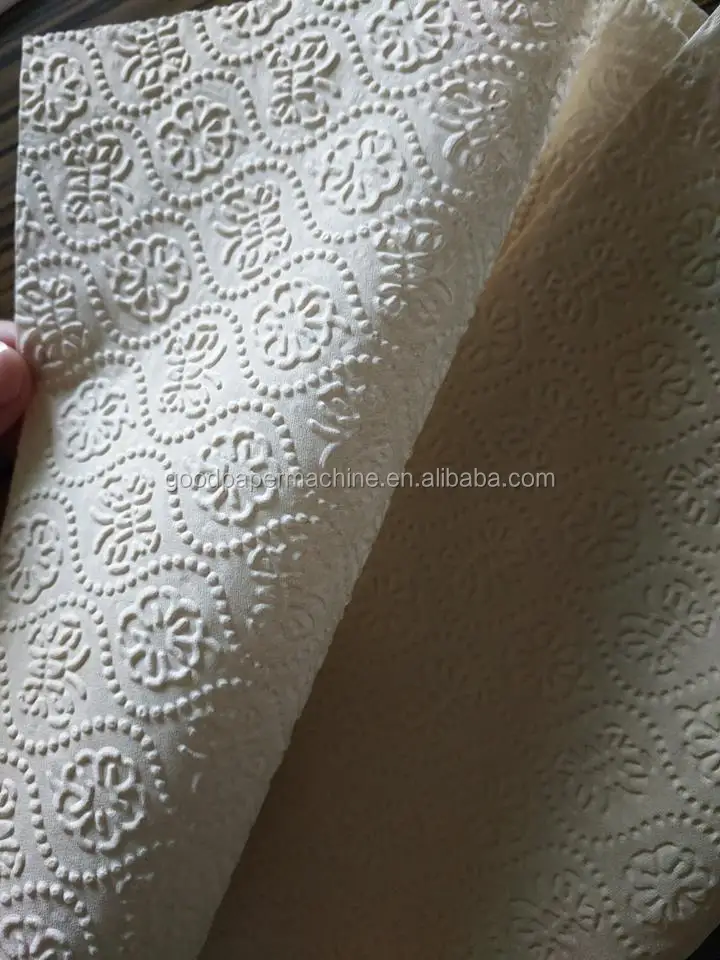

5. This equipment can have embossing unit.
6. Wide range of production width for selection.
7. The machine can equipped with PLC according to requirement.
8. This machine can equip with single color and double color printing unit,the embossing pattern have very vivid designs and beautiful colors.

Technical data:
1. Production speed:60-100m/min, about 1000pcs/min
2. Production open size(mm)200(L)x140-210 W(order by customer)
3. Production folded size(mm)100(L)x140-210 W(order by customer)
4. Power:5.5Kw (380V 50Hz)
5. Overall size(m):4.1x1.3x2.1(LxWxH)
6. Weight: About 3.5T

Specification of raw material:
1. Width of raw paper:400mm-1600mm.
2. Diameter of raw paper:1200mm (order by customer)
3. Thickness of raw paper:14g/ m²-18g/ m²
4. Diameter of paper core: 76.2mm (order by customer)
