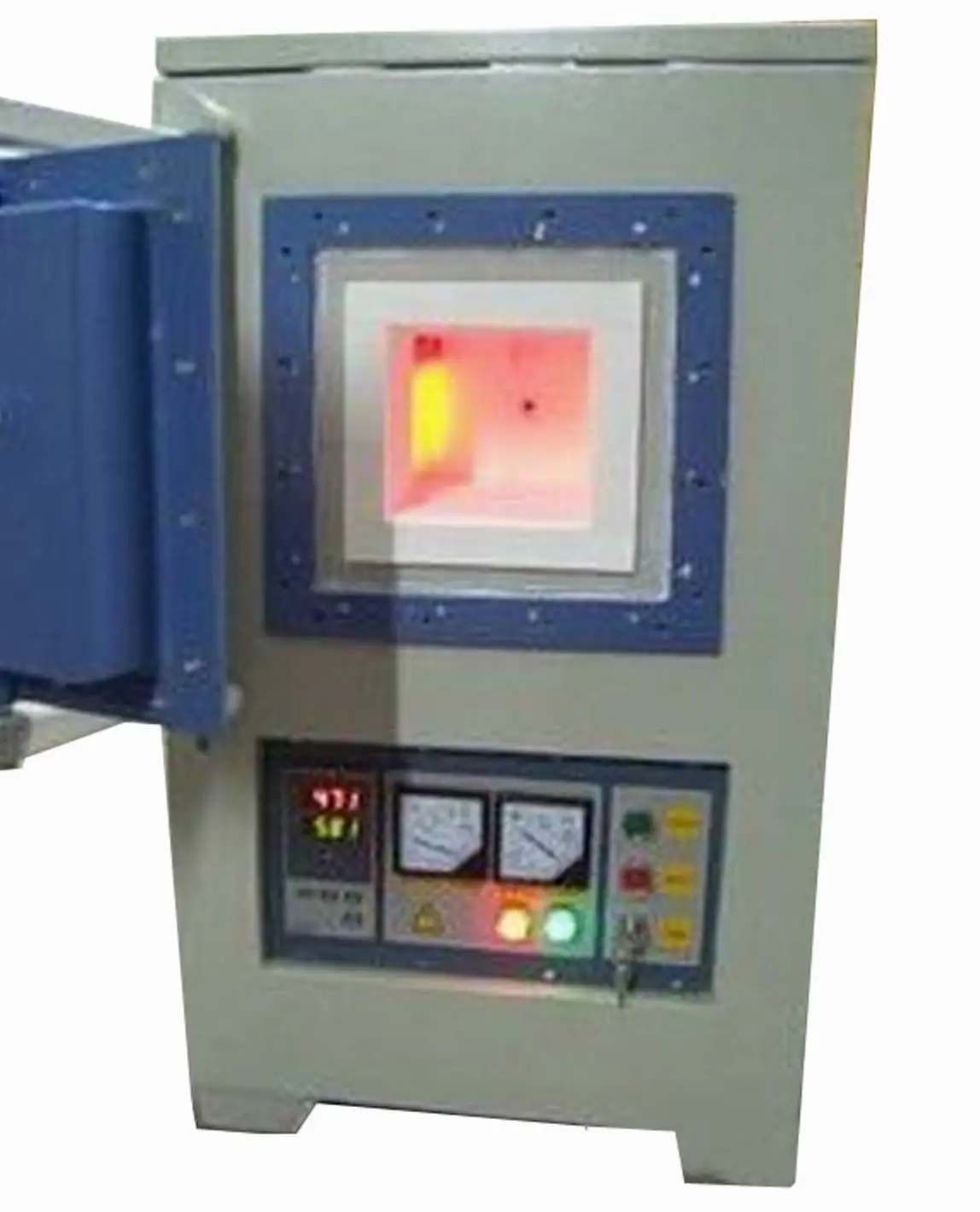

1600.C lab controllable atmosphere muffle furnace with volume 216L

Product Overview

Description

1600.C lab vacuum atmosphere muffle furnace with volume 216L



1600C vacuum atmosphere muffle furnace introduction:

1.We can offer you the furnace max temperature from 1200C to 1800C .

2.We can supply vacuum atmosphere furnace chamber size from 100*100*100mm to 600*600*600mm .

3.All the furnaces can be customised according to your requirement .

4.We also can supply you OEM service ,if you need.

1600C vacuum atmosphere muffle furnace advantages :

Sutong series atmosphere muffle furnace can protect materials from oxidation and decarburization with

flowing Nitrogen,argon and other inert gas.It is an ideal furnace for sintering ,reducting under inert -

atmosphere in labs of university ,research institution and industrial company .

1.Double shells with fan cooling .the furnace surface temperature is low

2.30 segments programmable and PID auto control.it can make furnace more intelligent for people use.

3.High quality alumina ceramic fibers as the furnace liner .The heat resistance is better .

4.It has multi-function such as metal annealing ,quenching atmosphere,surface cream ,light treatment

1600C vacuum atmosphere muffle furnace parameters :

Product name	ST-1600MVA-X vacuum atmosphere furnace
Chamber size	600*600*600mm (24"*24"*24")
Volume	216L
Working temperature	1500C ( continuously )
Maximum temperature	1600C ( <3hrs )
Furnace atmosphere	Nitrogen ,Argon and other inert gases
Temperature control	30 segments programmable and PID auto control
Heating rate	0-10C/min (suggestion ≤10C)
Thermocouple	B type
Working voltage	AC 380V three-phases 50/60 Hz
Max voltage	-0.1Mpa

1600C vacuum atmosphere muffle furnace standard accessories :

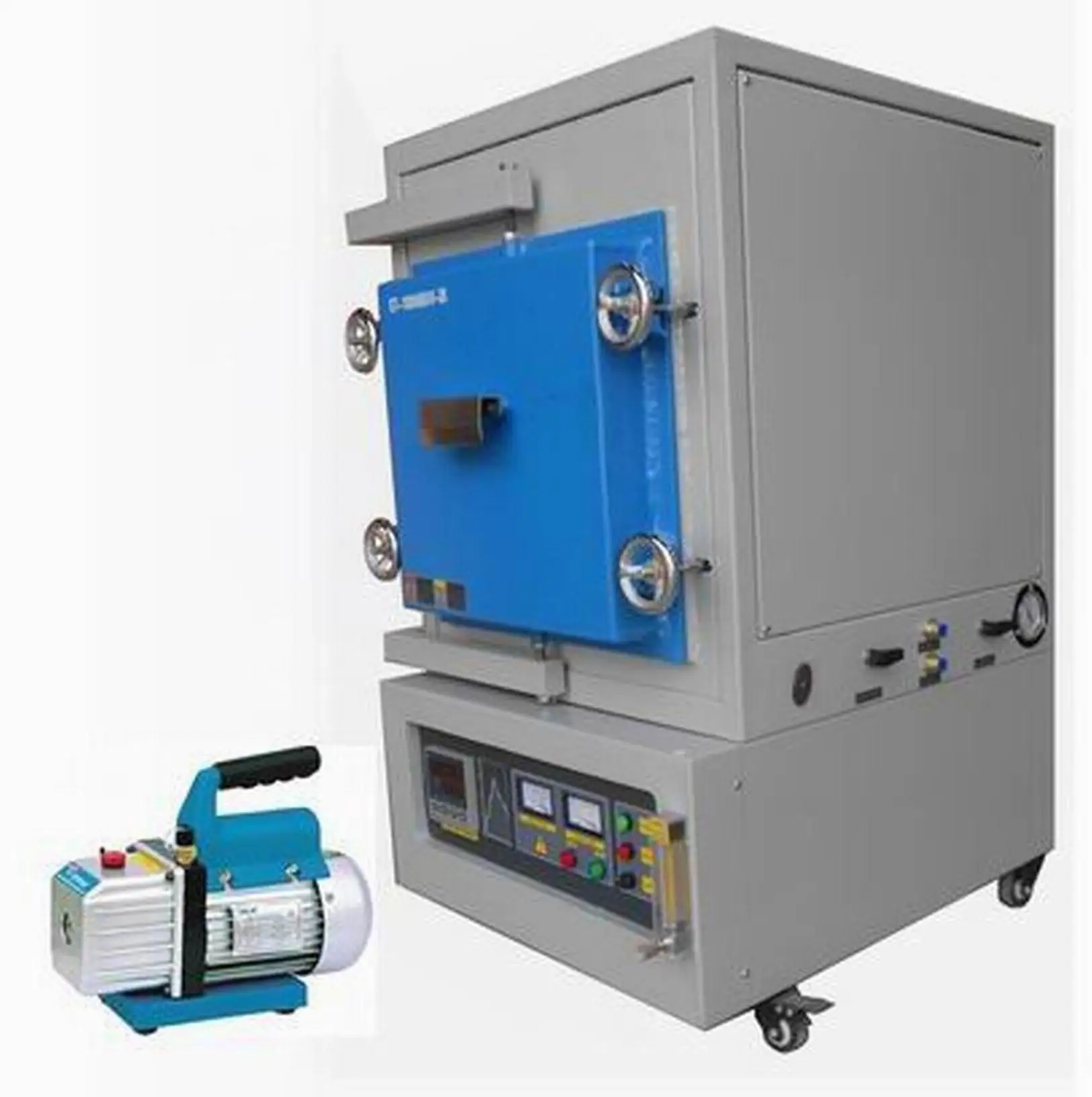

Door block 1pc,thermocouple 1pc, inlet/outlet, valves, flowmeter ,vacuum gauge,vacuum pump  1pc

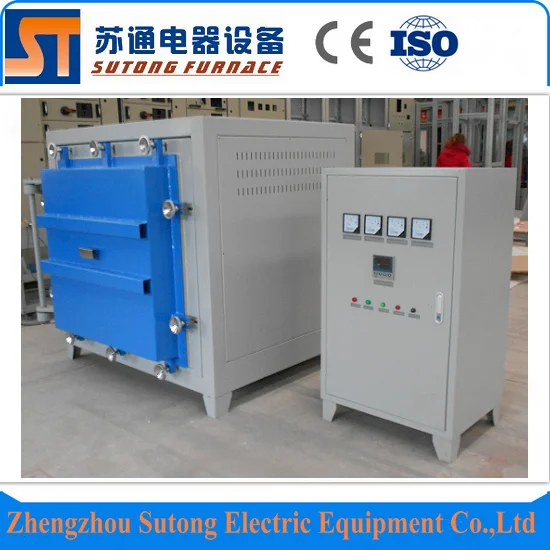

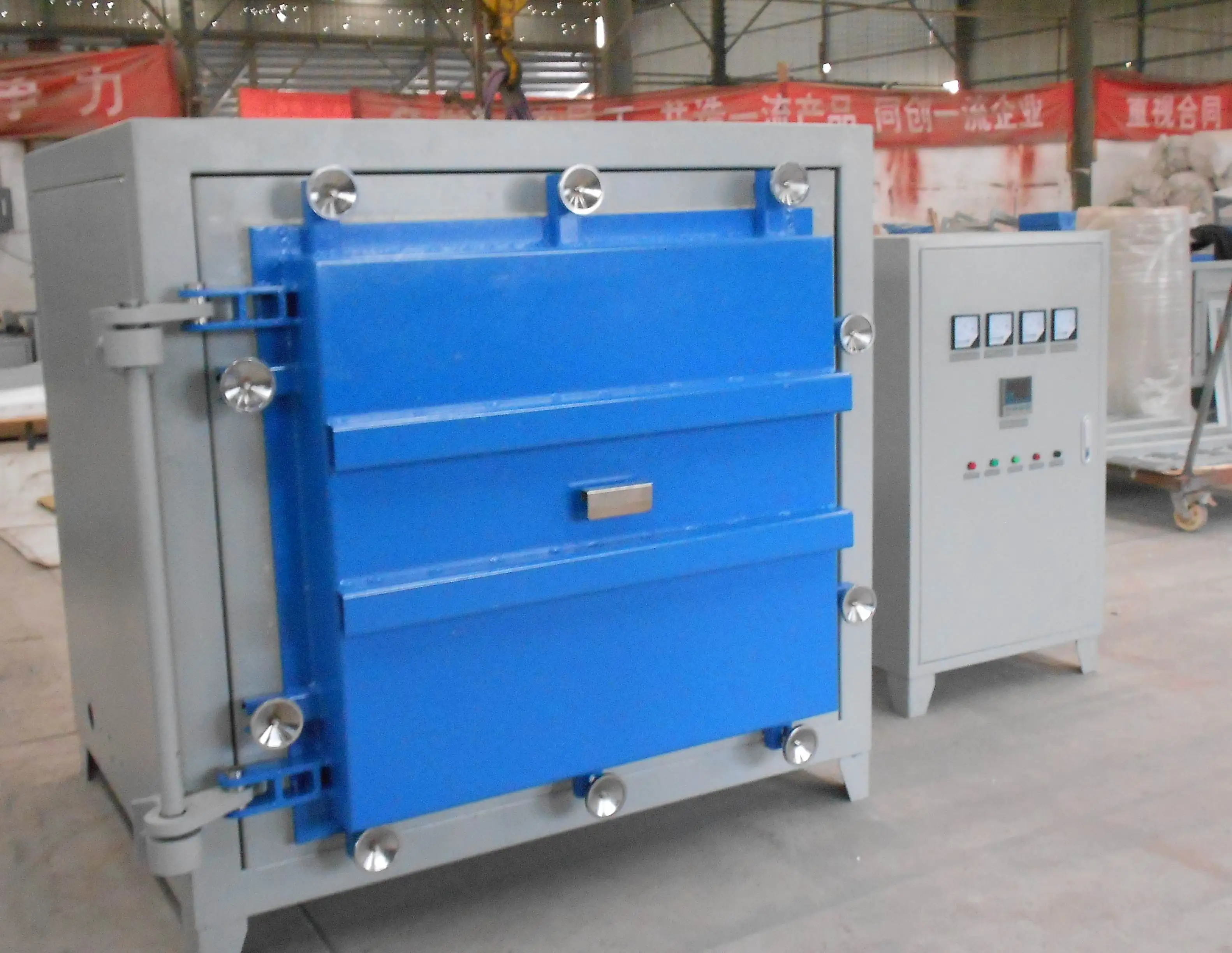

The vacuum atmosphere muffle furnace side view

The heating elements layout of 1600C vacuum atmosphere muffle furnace

The internal structure of 1600C vacuum atmosphere muffle furnace :

1600C series vacuum atmosphere muffle furnace standard models :

Model	Chamber size(WxHXYmm)	Rated power
ST-1600MX-M	100x100x100mm(4"x4"x4")	1.5KW
ST-1600MX-I	150x150x150mm(6"x6"x6")	3.5KW
ST-1600MX-II	150x150x200mm(6"x6"x8")	4.5KW
ST-1600MX-III	200x200x200mm(8"x8"x8")	6KW
ST-1600MX-IV	200x200x300mm(8"x8"x12")	8KW
ST-1600MX-V	250x250x300mm(10"x10"x12")	11KW
ST-1600MX-VI	300x300x400mm(12"x12"x16")	16KW
ST-1600MX-VII	350x350x400mm(14"x14"x16")	21KW
ST-1600MX-VIII	400x400x400mm(16"x16"x16")	24KW
ST-1600MX-IX	500x500x500mm(20"x20"x20")	36KW
ST-1600MX-X	600x600x600mm(24"x24"x24")	48KW

If you need oher sizes ,the furnaces also can be customised for you .

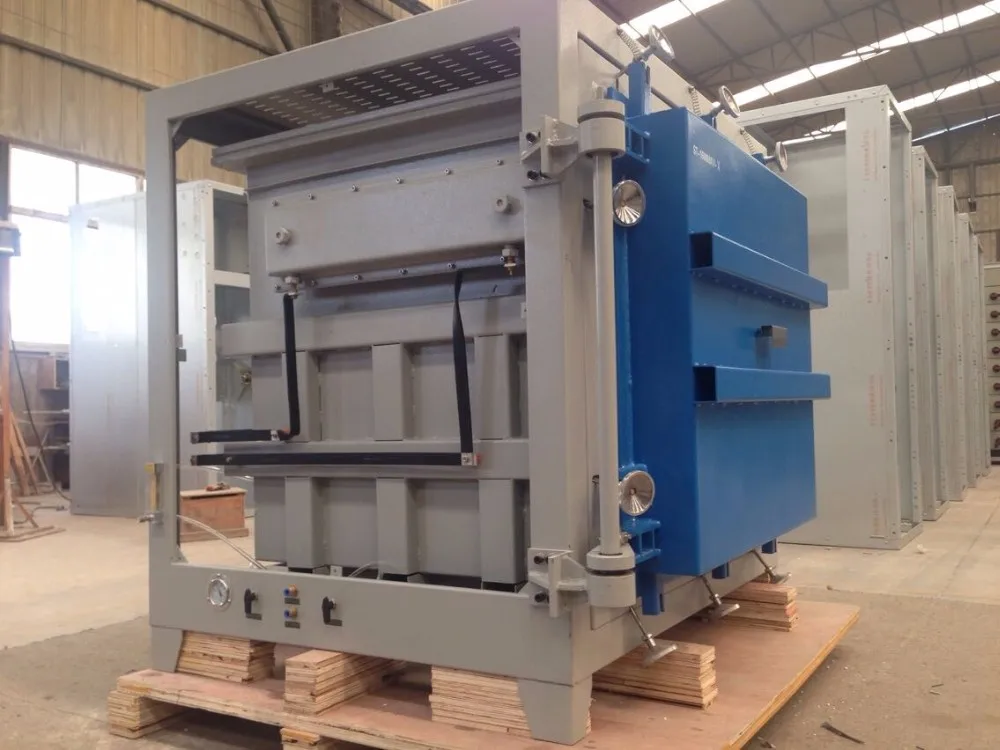

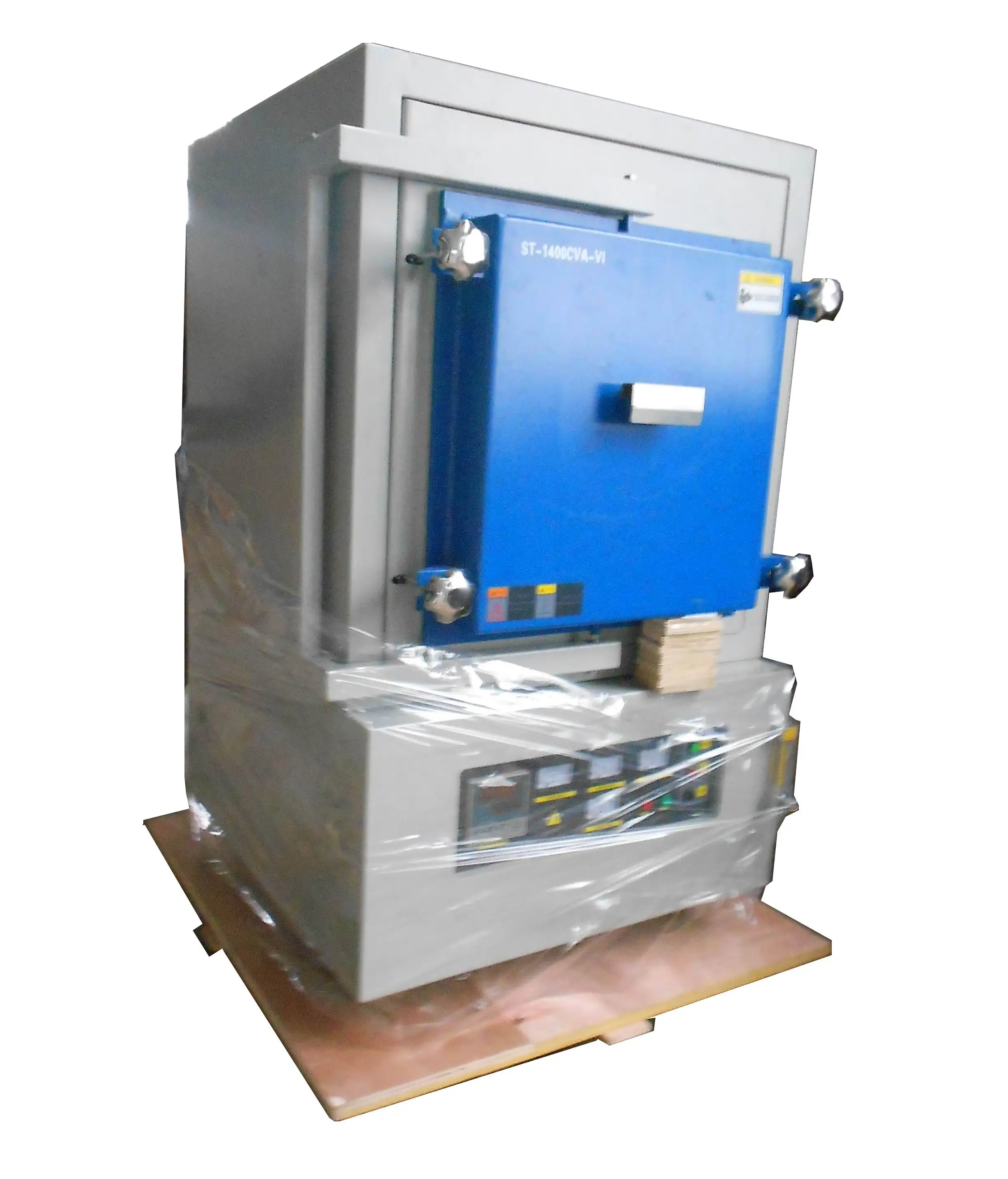

Packaging pictures :

Canton Fair :

The supply of technical information:

1.Furnace operation manual

2.The maintenance solution of the common problems .

3.Electrical control schematic drawing

Technical support and after sale service :

1.Prompt technical consulation and support will be offered .

2.Provide consumable parts with favorable price

3.A whole year warranty and lifetime maintenance .
