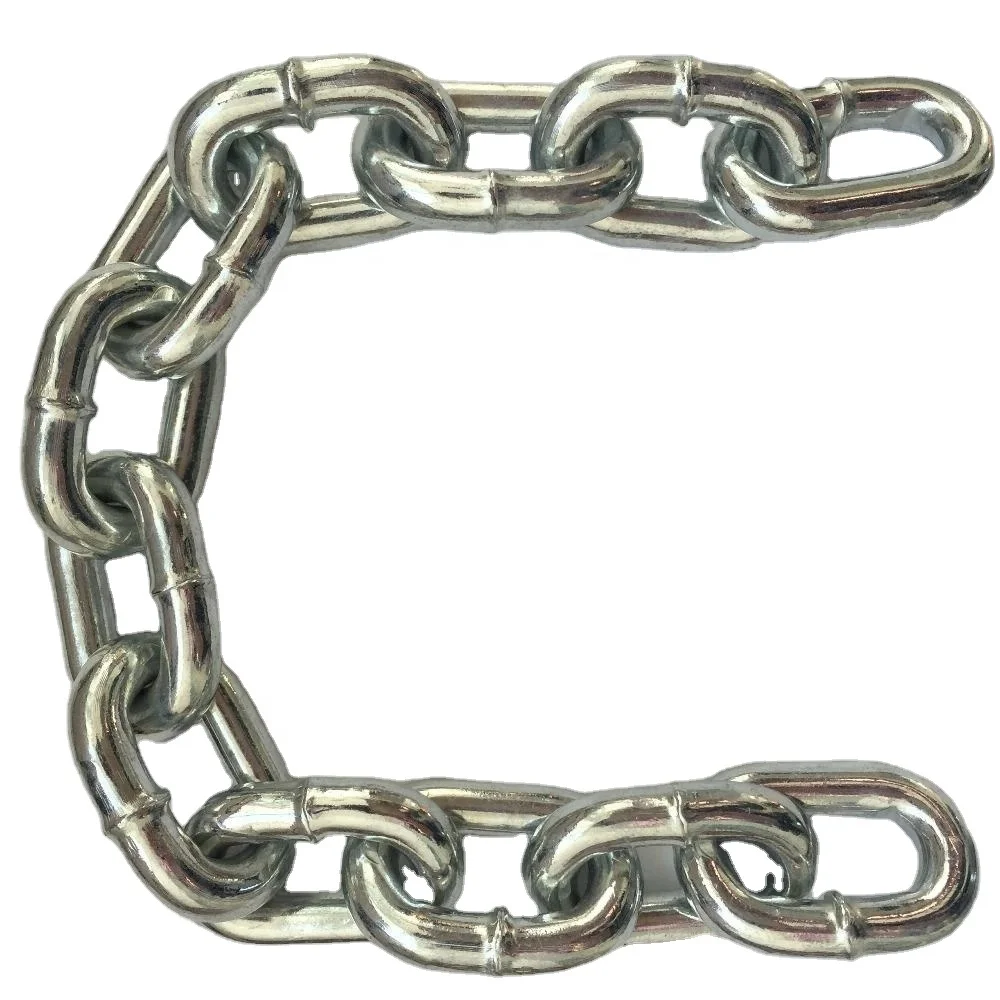

Electro Galvanized G3 Commercial Short Link Chain DIN766

Product Overview

Description



                            Electro Galvanized G3 Commercial Short Link Chain DIN766

Size		Inside Length			Inside Width	Outside Width	Length Per 11 Links			Weight Per M
MM	±MM	MM	+MM	-MM	MM	MM	MM	+MM	-MM	KG
2	0.2	12	0.2	0.2	3.5	7.5	132	1.0	0.5	0.07
3	0.2	16	0.2	0.2	4.2	11	176	1.4	0.7	0.16
4	0.2	16	0.3	0.2	5	13.7	176	2.1	1.1	0.32
5	0.2	18.5	0.4	0.2	6	17	203.5	2.4	1.2	0.5
6	0.2	18.5	0.4	0.2	7.2	20.2	203.5	2.4	1.2	0.8
7	0.3	22	0.4	0.2	8.4	23.8	242	3.0	1.4	1.1
8	0.3	24	0.4	0.2	9.6	27.2	264	3.2	1.5	1.4
9	0.4	27	0.5	0.3	10.8	30.6	297	3.6	1.8	1.8
10	0.4	28	0.5	0.3	12	34	308	3.7	1.9	2.2
11	0.4	31	0.5	0.3	13.2	37.4	341	4.0	2.0	2.7
12	0.3	36	0.6	0.3	14.4	40.8	396	4.4	2.2	3.10
13	0.5	36	0.6	0.3	15.6	44.2	396	4.6	2.4	3.8
14	0.6	41	0.7	0.4	16.8	47.6	451	5.4	2.7	4.4
16	0.6	45	0.8	0.4	19.2	54.4	495	6.0	3.0	5.7
18	0.9	50	0.8	0.4	21.6	61.2	550	6.6	3.3	7.3
19	0.4	53	0.9	0.4	22.8	64.6	583	7.0	3.7	7.97
20	1.0	56	1.0	0.5	24.0	68.0	616	7.4	3.7	9.0
22	1.2	62	1.1	0.5	26.4	75.0	682	8.0	4.0	11.0
23	1.2	64	1.1	0.5	27.6	78.2	704	8.4	4.2	12
26	1.3	73	1.2	0.6	31.2	88.4	803	9.6	4.8	15

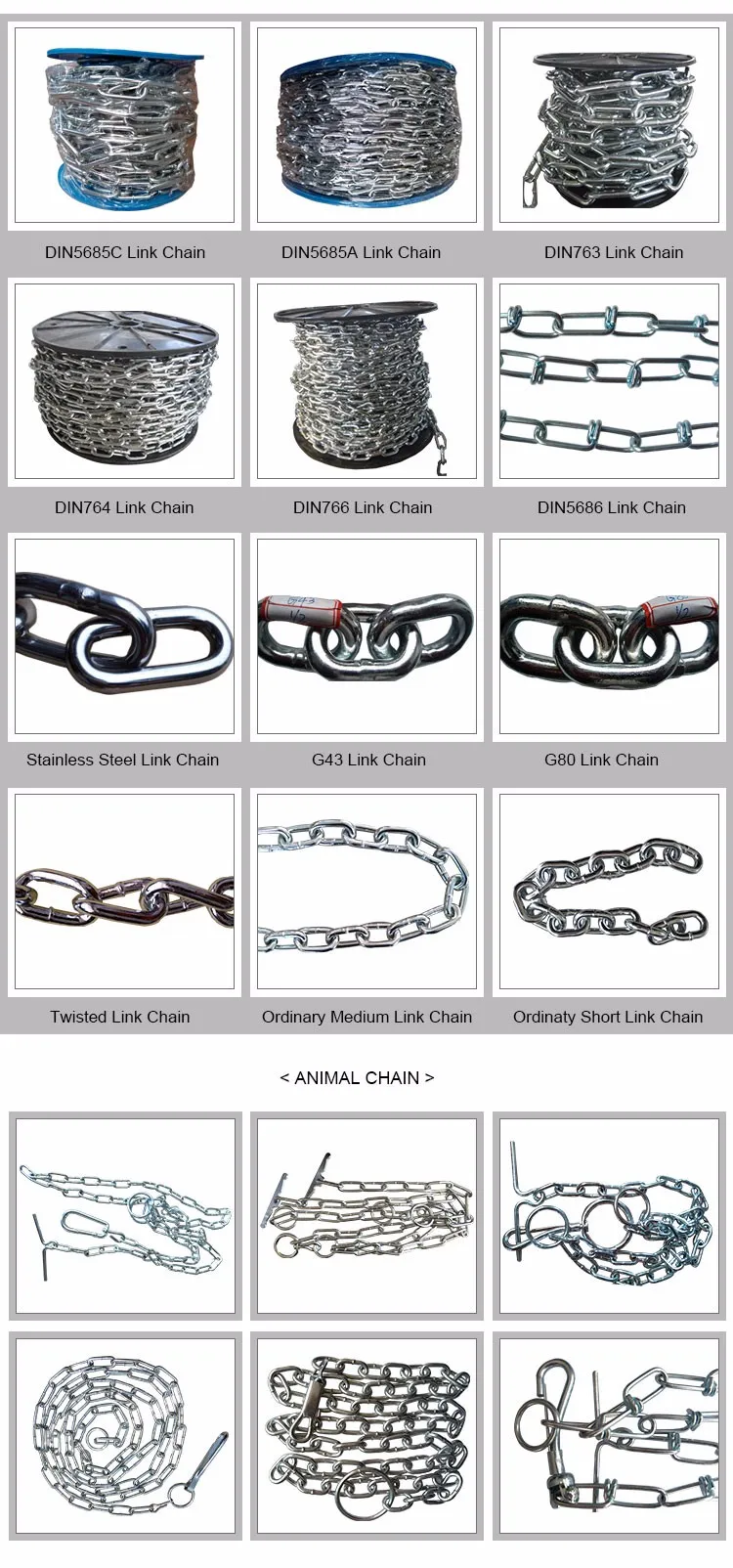

We can offer u all kinds of link chain:

1)DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link Chain

2)Ordinary Short,Medium Link Chain

3)Korean Standard Link Chain

4)ASTM80 Standard Link Chain

5)Norwegian Standard Link Chain

6)Australian Standard Link Chain

7)NACM1990 Standard Link Chain

8)NACM1996/2003 Standard Link Chain

9)Animal Link Chain

10)Stainless Steel Link Chain

11)Weldless Link Chain

12)G80 Link Chain

13)G43 Link Chain
