Professional 12/16 varitex and muller needle loom swivel fabric weaving machine
- Category: >>>
- Supplier: Guangzhou Yong Jin Machinery Co. Ltd.
Share on (60749133368):
Product Overview
Description

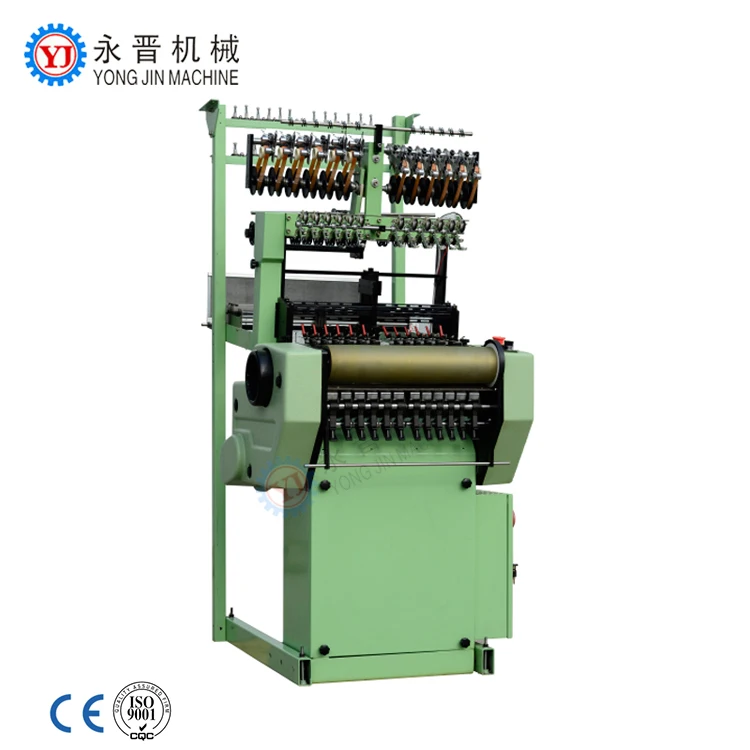

Professional 12/16 varitex and muller needle loom+swivel fabric weaving machine
* The world's top 500 appointed manufacturer, specializes in needle loom for more than 20 years.
Product Description
This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link

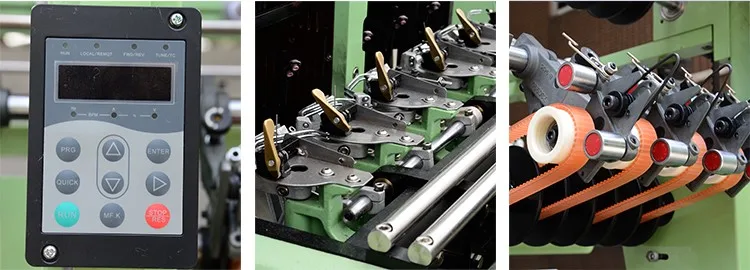

Detail images
Parameters
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
Number of tapes | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
Main Features
| Main Features |
1.It is small in size and good-looking in appearance. |
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
