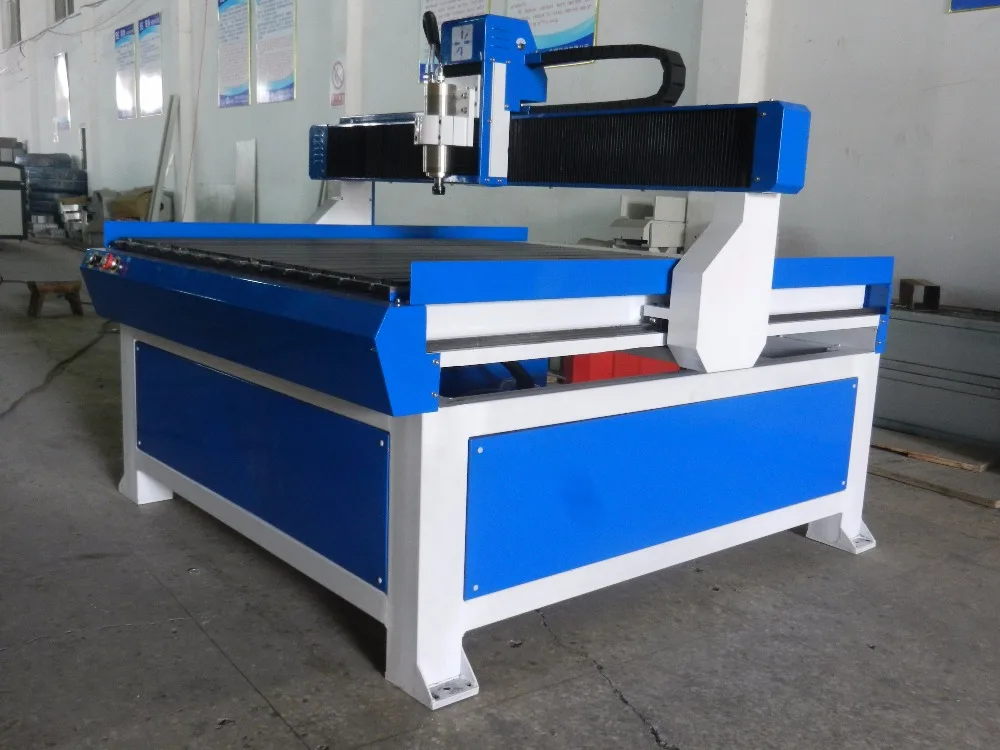

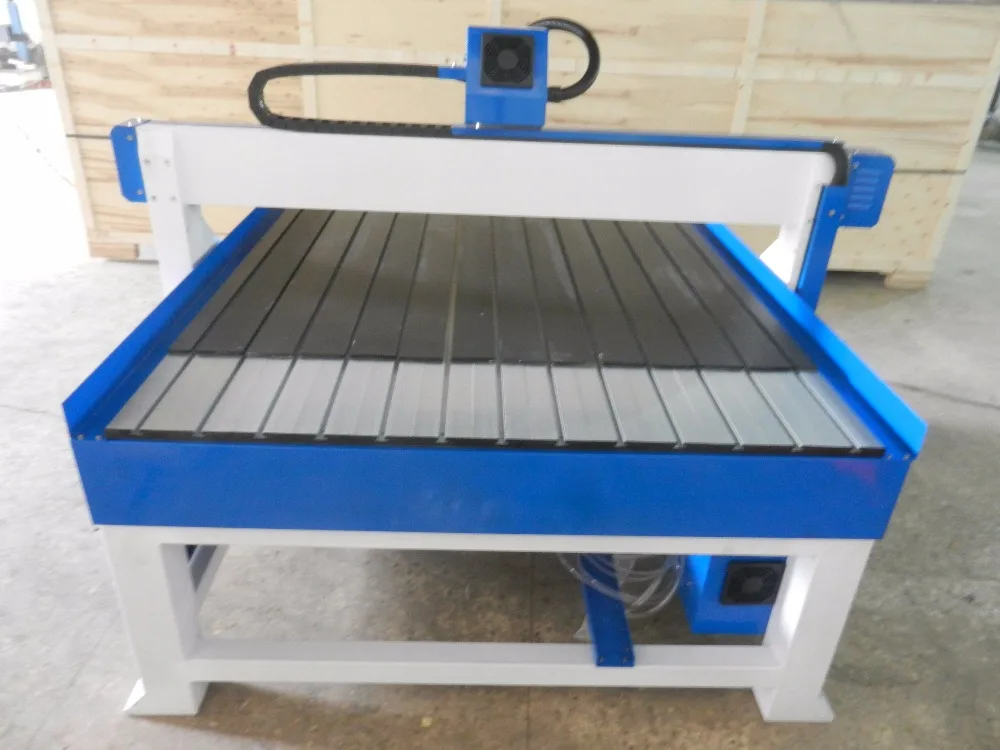

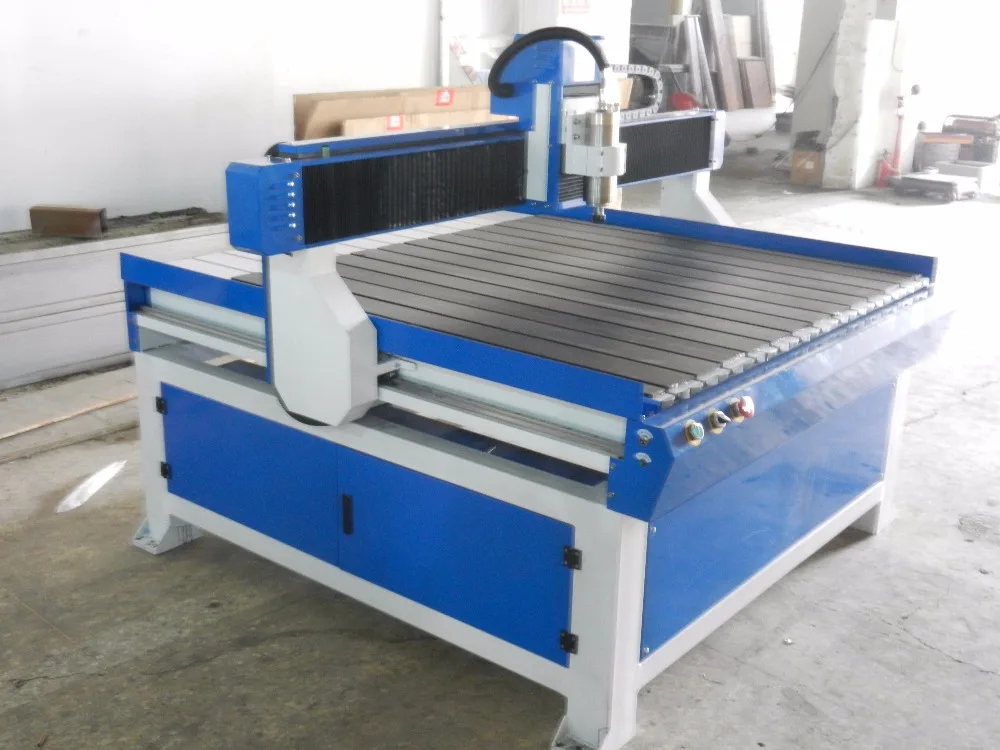

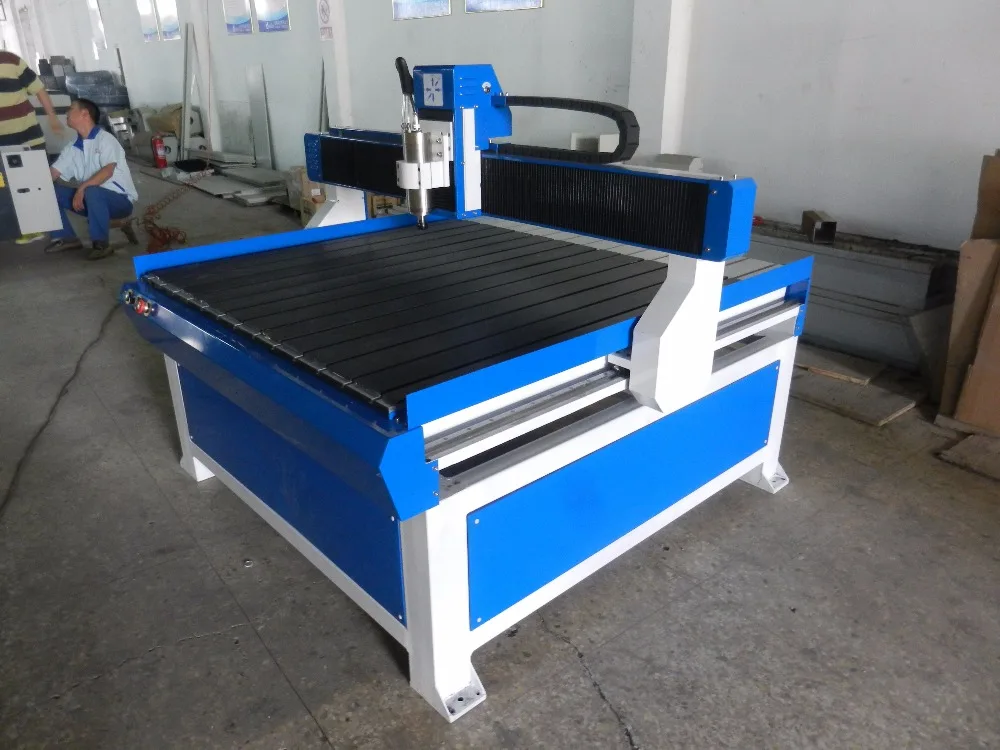

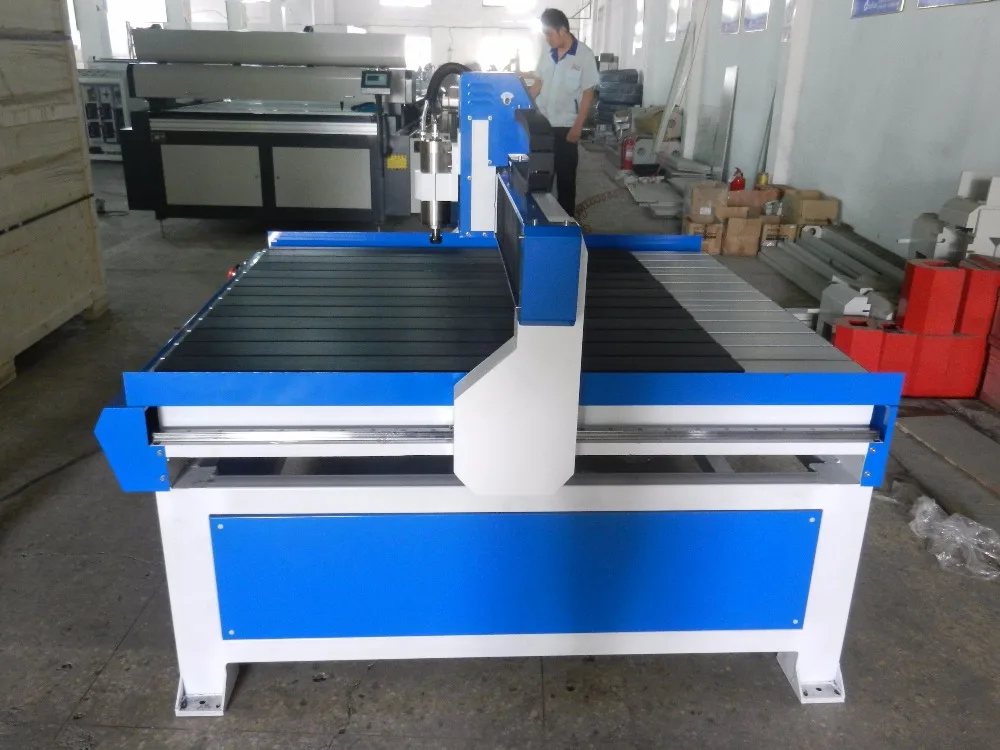

Factory Price Ball Screw 1.5kw Water Spindle 1212 1225 CNC Router

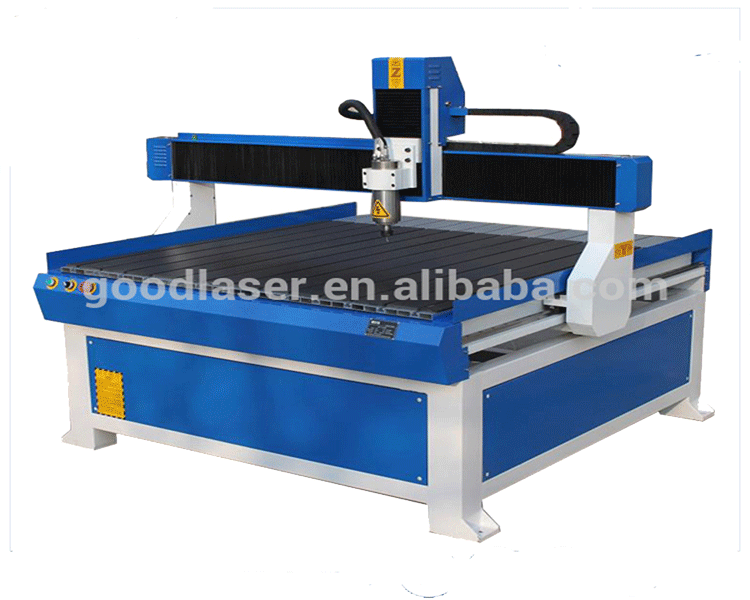

JD1212  High Efficiency CNC Router

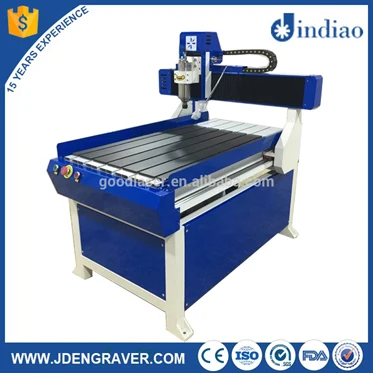

JD6090 Speedy High Precision CNC Engraver

1. lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high.

2. They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.

3. Vacuum table and air cooled vacuum pump

4. It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.

5.JDM25 is upgraded to meet the requirements of users. It will be faster and more efficient. The traveling speed can reach 35m/m.

Model

JD1212

X-Y-Z axis working area

1200*1200*150mm

Machine Size

1300*1420*1500mm

Resolution

0.0025mm

Z axis height

200mm, (300mm, 400mm optional)

X.Y movement

Rack and pinion, gear driver/Taiwan

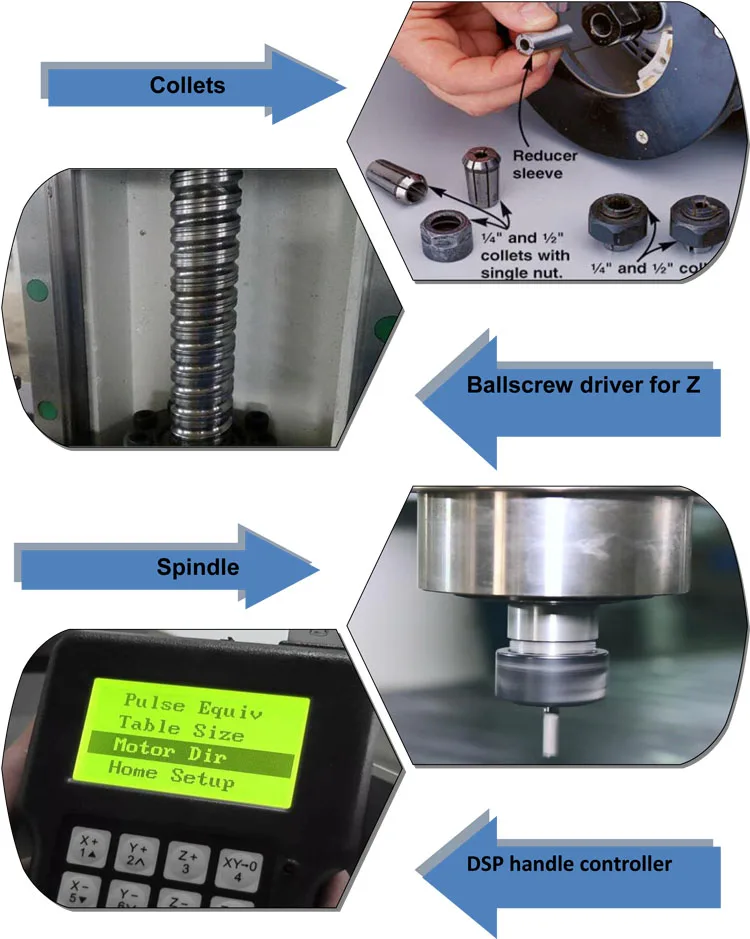

Z movement

Ball screw driver/Germany

Guide

Linearø20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle

1.5KW (water cooling)/ China Qiancheng brand

Spindle speed

24000rpm

Driver motors

Stepper

Inverter power

7.5KW /Sunfar

Rotary axis (Optional)

Working length 1500mm, diameter 100mm

Working voltage

AC380V, 50/60HZ 3 phase

Command code

USB 2.2

Collect

ER25-12.7mm,6MM, 3.175MM

Software

Router software/France

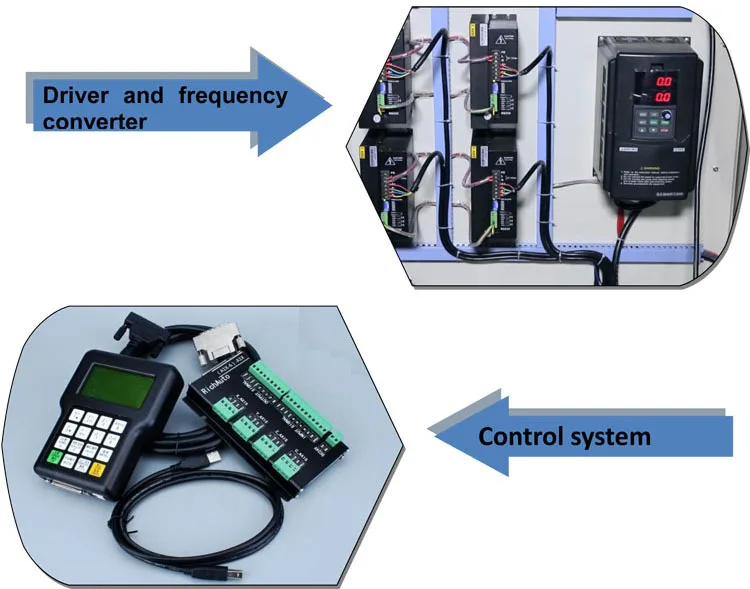

Controls

DSP A 11(Digital signal Processor)

Packing dimensions

2260x3250x1960mm, 1350KGS

Certificate

CE

Warranty

24 month for whole machine

Delivery time

7 days

Application Industries:

Advertising, decoration, arts and crafts, electronics, electric appliances, ect.

Application Materials

Acrylic, wood planks, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, ect.

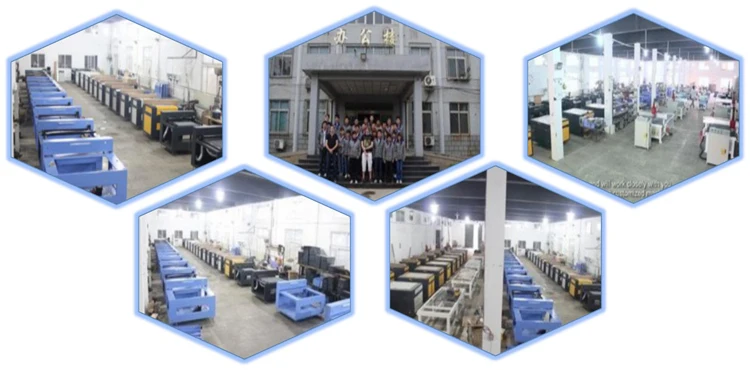

Jindiao Technology Co., Ltd. is located at the Hi-Tech Develop Area of Jinan, Shandong Province, P. R. China. On the basis of absorbing the international advanced CNC technology, our company has developed many laser engraving machines, laser cutting machines, laser-marking machines, CNC Routers and cutting plotters etc .As a professional company in advertising products field, we have a specialized research and development team and a production base. We have established long stable relationships with many famous universities and technology institutes in Beijing so that we can always improve our products and meet the demands of many customers. Because we serve well and the quality is reliable, the products are sold to the Taiwan region, Russia, Europe, North-America and South-America. Obtain user's favorable comment.

1. 2 year quality guaranty for whole machine expect consumables.

2. .Engineers available to service machinery overseas.

3. 24 hours online service & Lifetime maintenance for free .

4. Free training course at our plant.

Q: How to choose the machine?

A: It depends on your material’s maximum working size and processing materials such as Natural wood Acrylic Glass Double color plate Bamboo MDF Cloth Leather Marble Matte boards Stone . For example, your max cutting/engraving size is 880*1200mm, then our JD90125 (working area is 900*1250mm) is suit for you. Here we have 300*400mm, 400*600mm, 600*900mm, 900*1250mm, 1600*1200mm, 1300*2000mm, 1300*2500mm, 1600*3000mm…

Q: How to pay to you?

A: T/T, L/C, Western Union, Paypal, Alibaba Escrow (alibaba online payment can 100% protect your money’s safety)

Q: How long is the delivery time?

A: Usually 3-5 working days after receiving your advanced payment.

Q: Is it easy to operate for the new user?

A: Yes, it is easy to operate.
