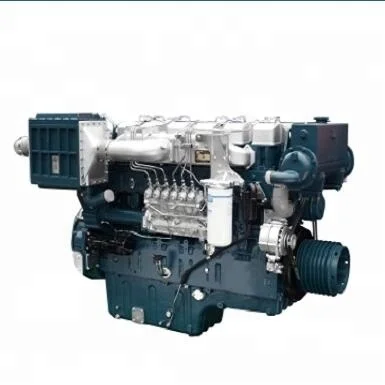

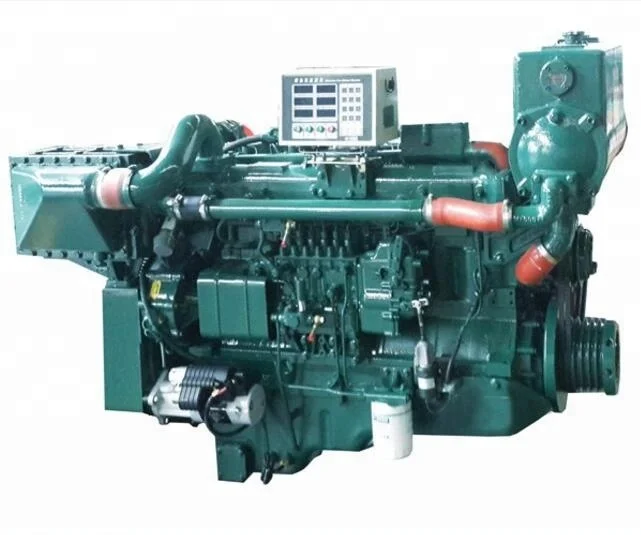

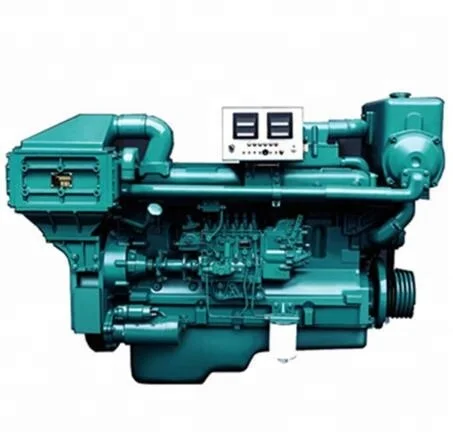

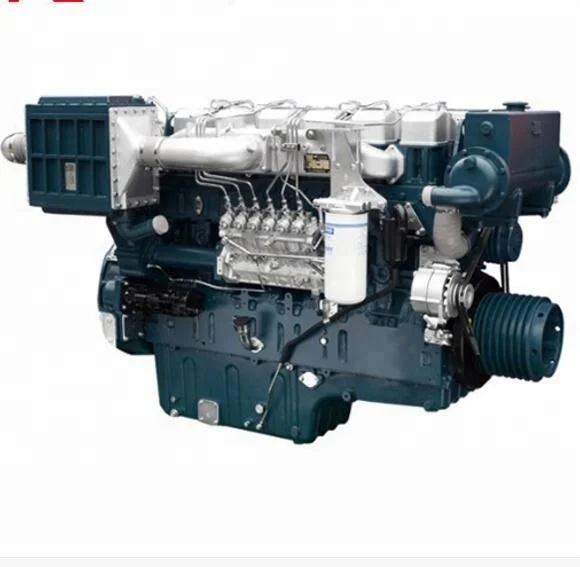

CCS Certificate Yuchai YC4D Series Marine Diesel Inboard Engine for Boat/Ship/Yacht/Barge/Towboat/Tugboat/Fishingboat
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60749186066):
Product Overview
Description

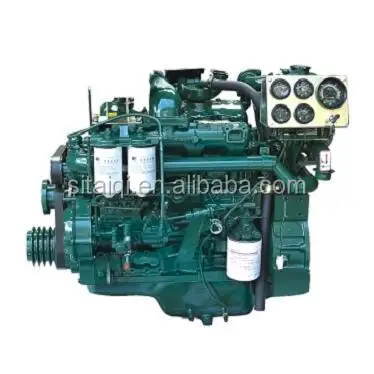

Yuchai YC4D Series of Marine Diesel Engine for Ship
Features & Benefits
1. High performance combustion chamber and intake swirl contribute to lower fuel consumption.
2. Yuchai sealing technology in piston ring and valve oil seal reduces the lube oil consumption.
3. High fuel efficiency and low maintenance cost.
4. Compact size facilitates installation, maintenance and repair
5. Operator and nature friendly with low noise, rapid start ability and low emissions
6. Major overhaul period is more than 10000 hours
7. Good for small size cargo ships and fishing vessels
Main Technical Data
Model | YC4108CA | YC4108C | YC4D55C | YC4D80-C20 |
Type | Vertical, in-line, water-cooled, four stroke | |||
Intake way | Natural aspirated | |||
No. of cylinders - Bore × Stroke (mm) | 4-108×115 | |||
Displacement (L) | 4.214 | |||
Compression ratio | 17:01 | |||
Continuous power /speed (kW (Ps)/r/min) | 32 (45)/1500 | 40 (55)/1500 | 40 (55)/1800 | 58 (80)/2400 |
One-hour power/speed (kW (Ps)/r/min) | 35.2 (50)/1548 | 44 (60)/1548 | 44 (60)/1858 | 63.8 (85)/2478 |
Min. specific fuel consumption(g/kW·h) | ≤200 | |||
Specific oil consumption(g/kW·h) | ≤0.8 | |||
Crankshaft rotation direction (seen from power output end) | Anticlockwise | |||
Starting way | Electrical | |||
Net weight (kg) | 370 | |||
Overall dimensions (LxWxH) (mm) | 986×730×948 | |||
Certificate | ZC,CCS | |||
Model | YC4108ZC | YC4D75C | YC4D100Z-C20 | YC4D120Z-C20 |
Type | Vertical, in-line, water-cooled, four stroke | |||
Intake way | Turbo charged | |||
No. of cylinders - Bore × Stroke (mm) | 4-108×115 | |||
Displacement (L) | 4.214 | |||
Compression ratio | 17:01 | |||
Continuous power /speed (kW (Ps)/r/min) | 50 (70)/1500 | 55 (75)/1800 | 75 (100)/2400 | 90 (120)/3000 |
One-hour power/speed (kW (Ps)/r/min) | 55 (75)/1548 | 60.5 (80)/1858 | 82.5 (110)/2478 | 99 (135)/3096 |
Min. specific fuel consumption (g/kW·h) | ≤198 | |||
Specific oil consumption (g/kW·h) | ≤0.8 | |||
Crankshaft rotation direction (seen from power output end) | Anticlockwise | |||
Starting way | Electrical | |||
Net weight (kg) | 390 | |||
Overall dimensions (L*W*H) (mm) | 986×730×1254 | |||
Certificate | ZC,CCS | |||
Packaging & Shipping
Related Products
Click me for more information!!!!!!!!!!!!!!!!!!
 |  |  |

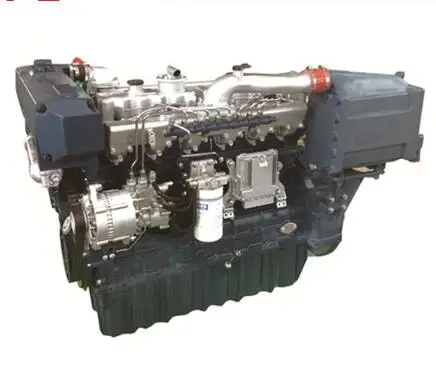

| YC6A Marine Diesel Engine | YC6B Diesel Engine for Generator | YC6MJ/MK Marine Diesel Engine |
