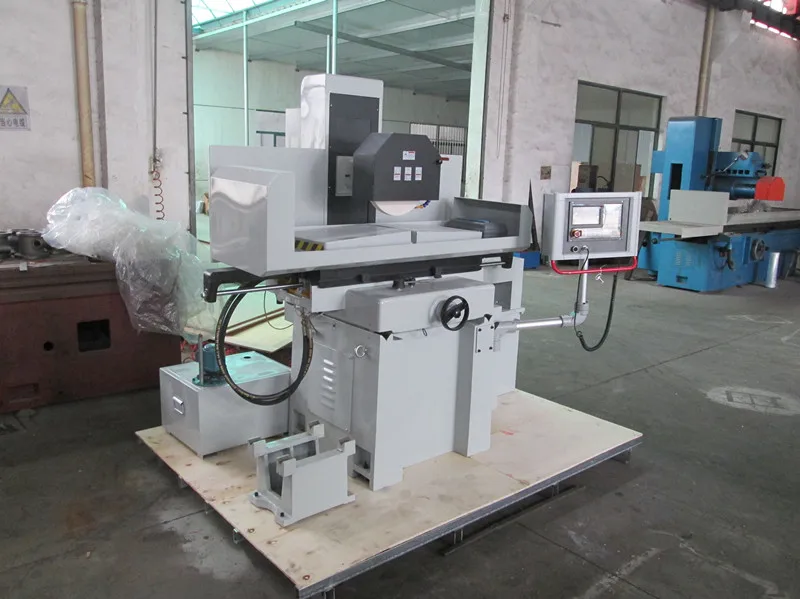

MYK1224 Automatic surface grinder CNC mini surface grinder
- Category: Grinding Machine >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60749189947):
Product Overview
Description
Products Description
The main performance characteristics：
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

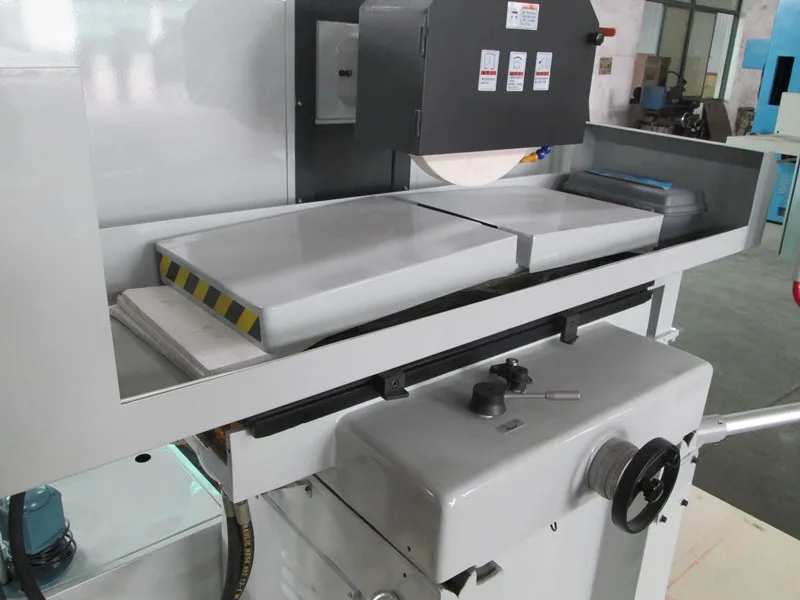

2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

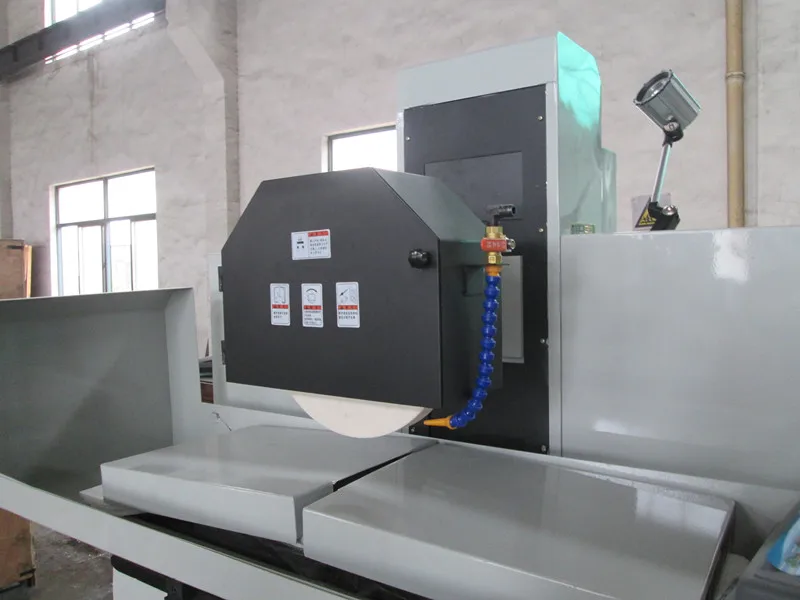

4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

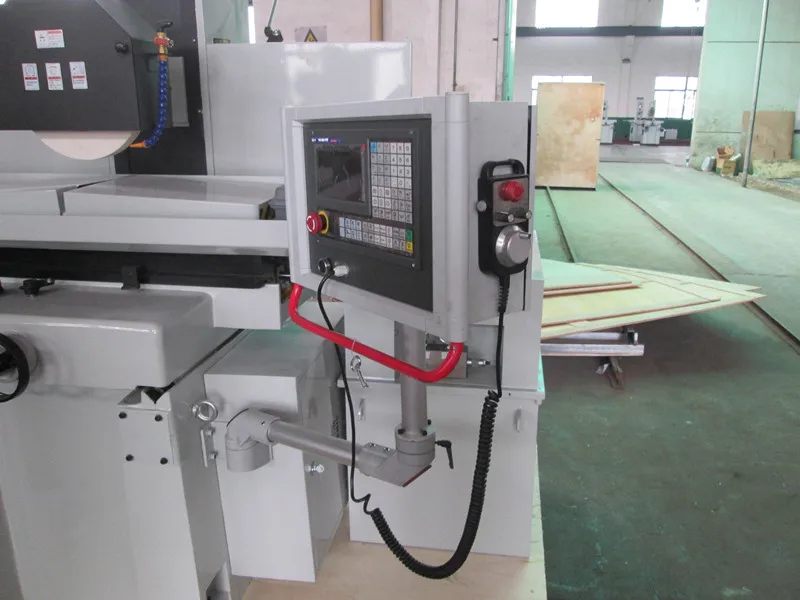

5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.
6. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.
6. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.
Specifications | Units | MYK1224 | ||
workbench | Worktable size (L * W) | mm | 600x300 | |
Max. travel of table | mm | 650x320 | ||
Table T slot (slot number x slot width) | mm | 1x14 | ||
Grinding head | Special grinding wheel size (o. d * w * i. d.) | mm | Ø300×30×Ø76.2 | |
Distance spindle center line to working table | mm | 520 | ||
Grinding wheel speed | r/min | 1450 | ||
The amount of feed | Table longitudinal (left and right) speed | m/min | 3-25 | |
Table transverse (front and rear) feed handwheel feed | m/min | 0.5-15 | ||
Grinding head(up and down)automatic feed | mm | 0.005-0.05 | ||
Grinding head up and down is fast lifting speed (approximate value) | m/min | 0.6 | ||

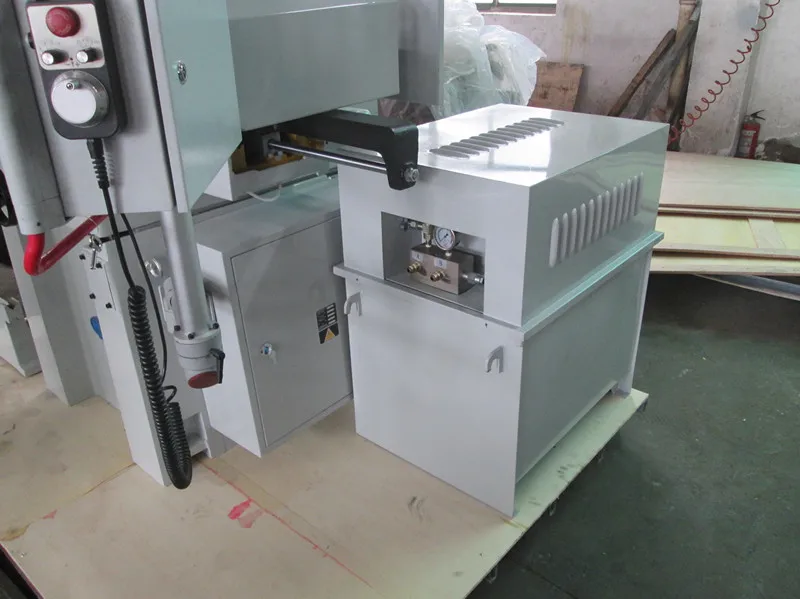

Hydraulic system | Hydraulic motor | KW | 2.2 | |
working pressure | MPa | 4 | ||
Fuel tank capacity | L | 100 | ||
Maximum flow rate | L/min | 20 | ||
Motor power | Spindle motor | kw | 3 | |
Cooling motor | W | 90 | ||
Elevator servo motor | kw | 1.0 | ||
Front and rear servo motor | kw | 1.0 | ||
working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |
Surface roughness | μm | Ra0.32 | ||
Machine weight | Net weight | kg | 1500 | |
Gross weight | kg | 1600 | ||
Suction cup specification | mm | 600x300 | ||
External size (L * w * h) | mm | 2800×1600×1800 | ||
Packing size (L * w * h) | mm | 2900×1700×2000 | ||
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
