Plastic modular belt drive conveyor sprocket
- Category: >>>
- Supplier: Yangzhou Weldon Transmission Equipment Co. Ltd.
Share on (60749198544):
Product Overview
Description
Product Description
Plastic modular belt drive conveyor sprocket

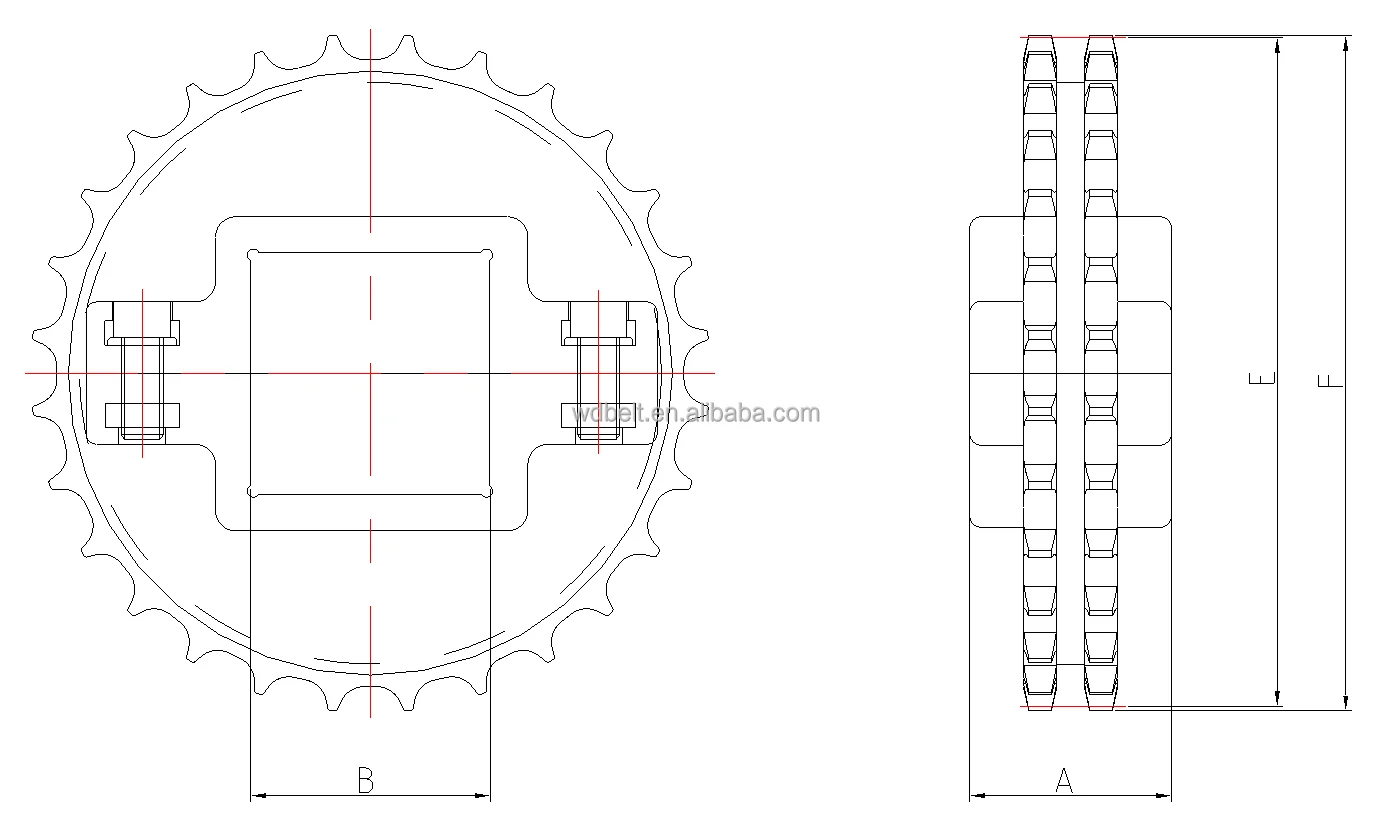

| SQUARE | Name | Model no. | No.of teeth | Bore (mm) | Pitch diameter (mm) | Out diameter (mm) | Hub width(mm) |
2200 series sprocket | SS2200-28-S40 | 28 | 40 | 115.4 | 113.4 | 49 | |
| SS2200-38-S40 | 38 | 40 | 155.8 | 153.8 |

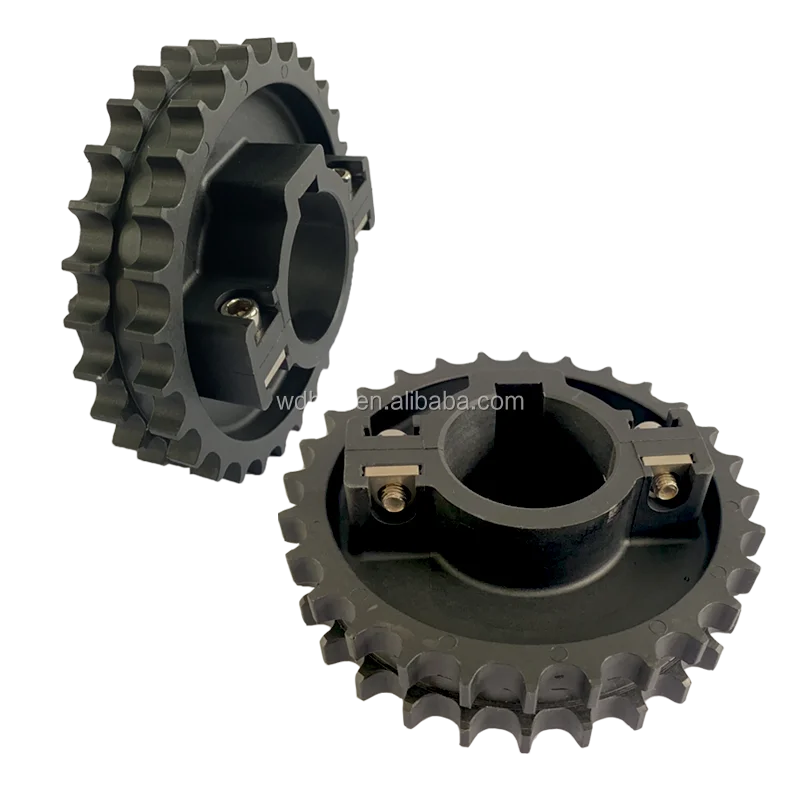

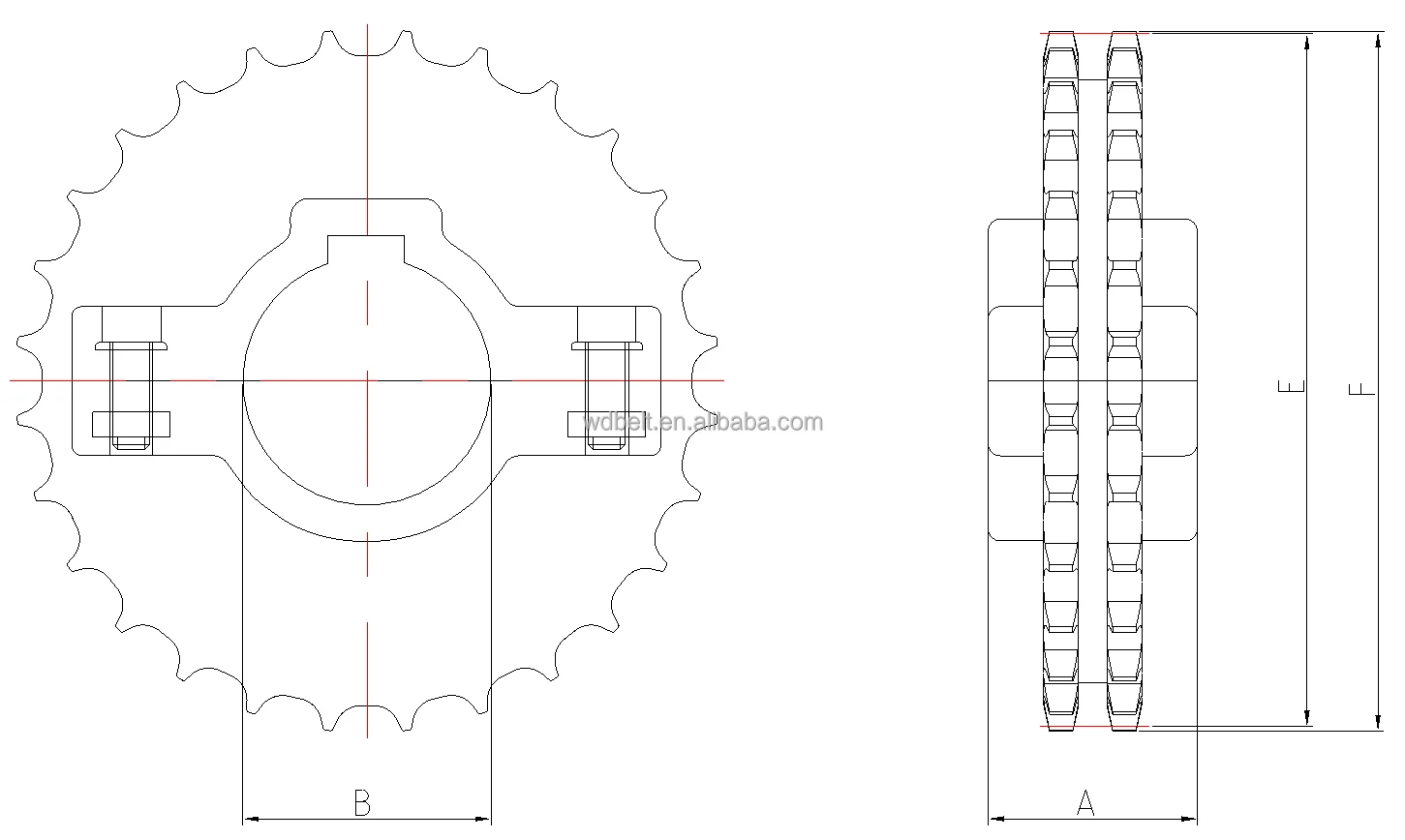

| ROUND | Name | Model no. | No.of teeth | Bore (mm) | Pitch diameter (mm) | Out diameter (mm) | Hub width (mm) |
2200 series sprocket | SS2200-28-R40 | 28 | 40 | 115.4 | 113.4 | 49 | |
| SS2200-38-R40 | 38 | 40 | 155.8 | 153.8 |
