low factory price mineral water Cola PET preform bottle making mold mould injection molding machine

low factory price mineral water Cola PET preform bottle making mold mould injection molding machine

Category: >>>
Supplier: Zhangjiagang Ostar Machinery Co. Ltd.

Price:$19,000.00 - $20,000.00

Quantity:

Product Overview

Description

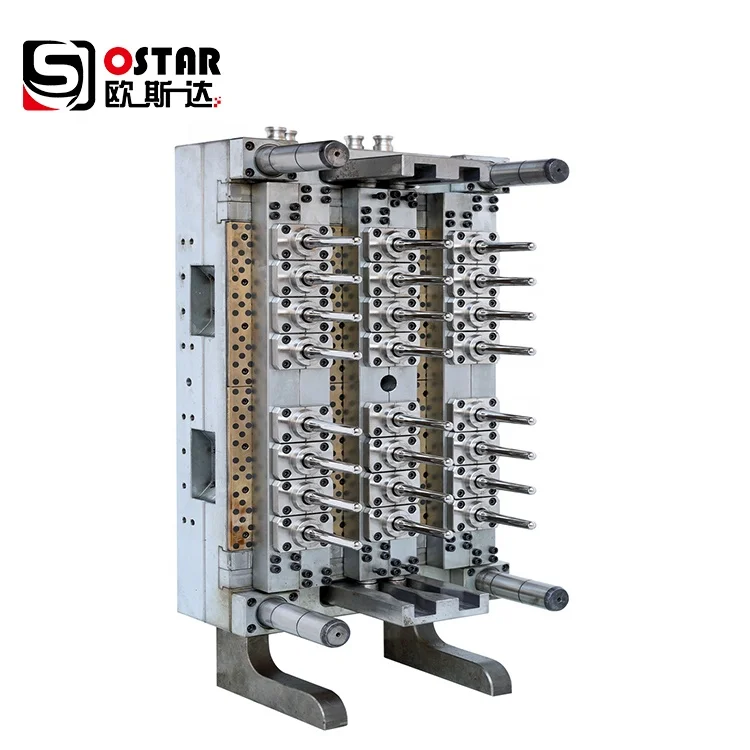

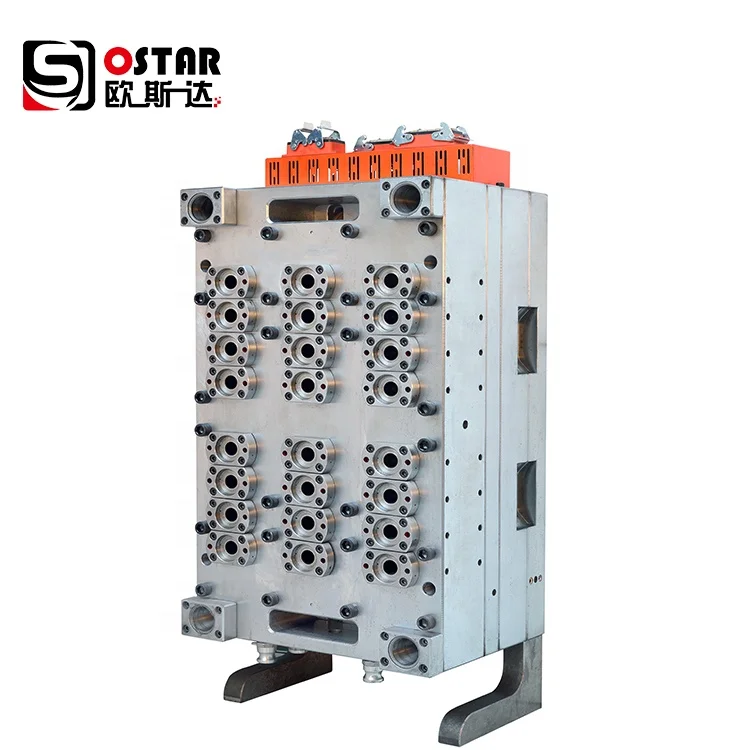

Plastic mineral water Cola PET bottle preform mold Mould injection molding machine

Machine Features:

Modularized enery conservation High response oil-way system

Modularized enery conservation high response oil-way system could improve the speed of the complete machine and also save enery consumption

High-capacity injection system

Much more bigger capacity of the charging barrel , more reasonable for the screw diameter ratio .

Optimal design of high -strength precision clamping structure

It adopts finite element design with higher strength and more precise operation

Machine Parameter:

MACHINE MODEL	UNIT	OSTP -2300
INJECTION DEVICE
SCREW DIAMETER	MM	62
SCREW DOAMETER RATIO	L/D	24:1
THEORETICAL SHOT VOLUME	CM3	814
INJECTION WEIGHT ( PET )	G	830
INJECTION STROKE	MM	270
INJECTION PRESSURE	MPA	131
CLAMPING UNIT
CLAMPING FORCE	KN	2300
TOGGLE STROKE	MM	500
SPACE BETWEEN TIE-BARS	MM	520X520
MIN-MAX MOULD THICKNESS	MM	220-550
EJETION STROKE	MM	170
EJECTING FORCE	KN	102
OTHER
MAXIMUM SYSTEM PRESSURE	MPA	16
OIL PUMP MOTOR POWER	KW	22
HEATER POWER	KW	24.1
OVERALL DIMENSION (ROUGH )	M	6.20X1.46X2.16
MACHINE WEIGHT ( ROUGH )	TONS	7.5

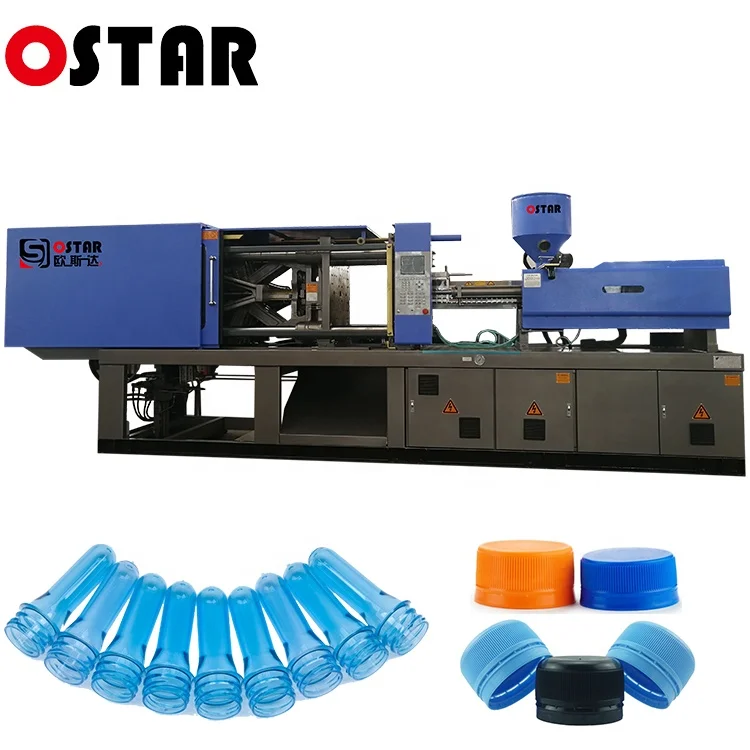

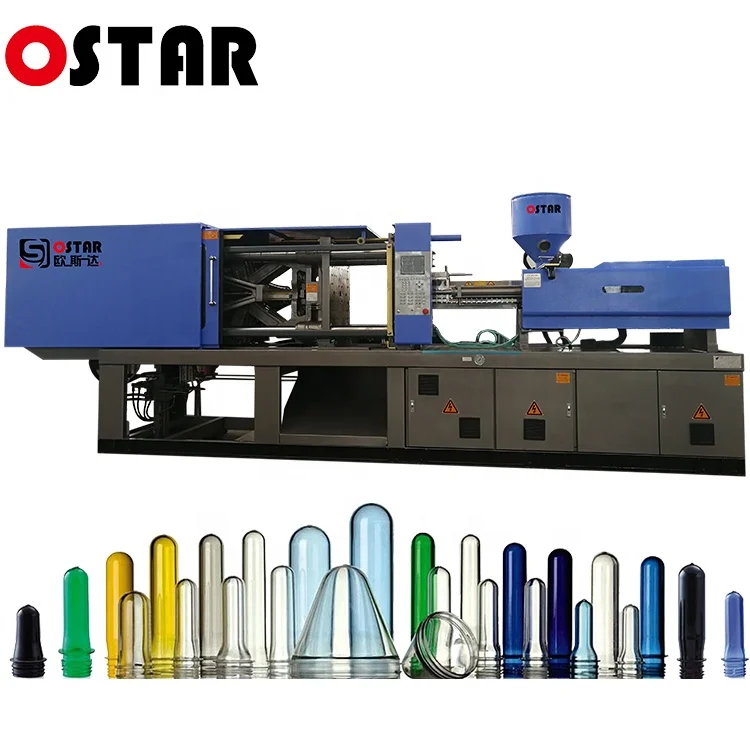

PETInjection Molding Machine Details:
