EDM Drill

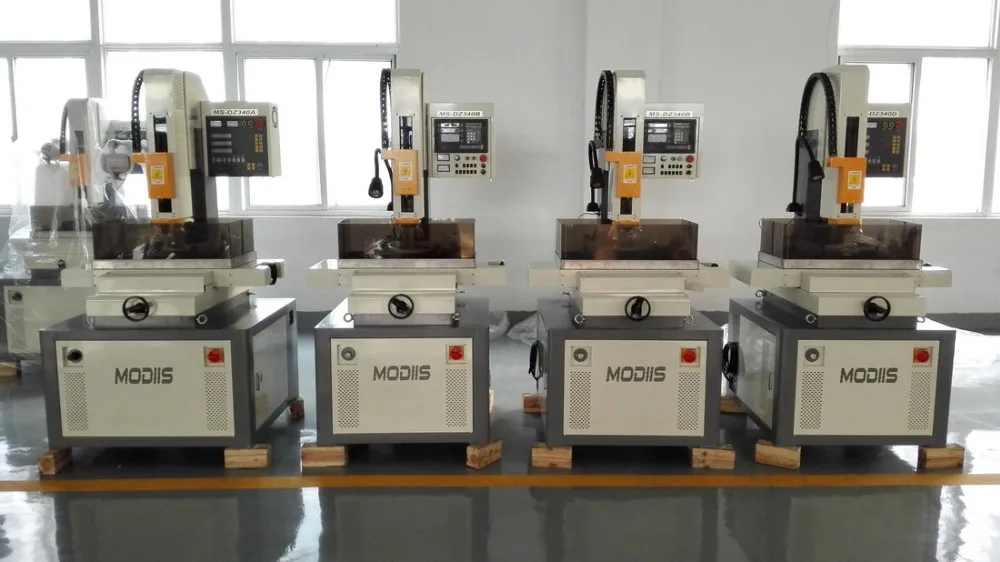

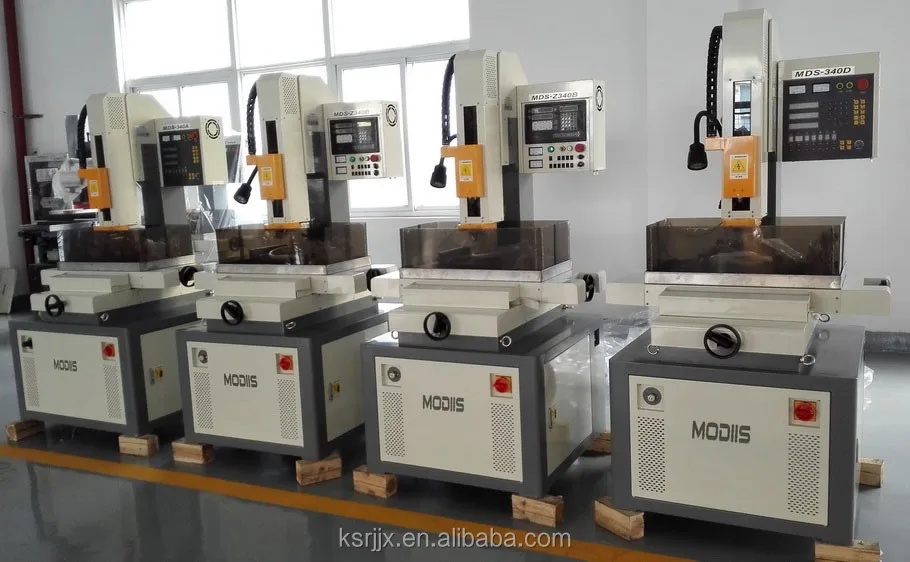

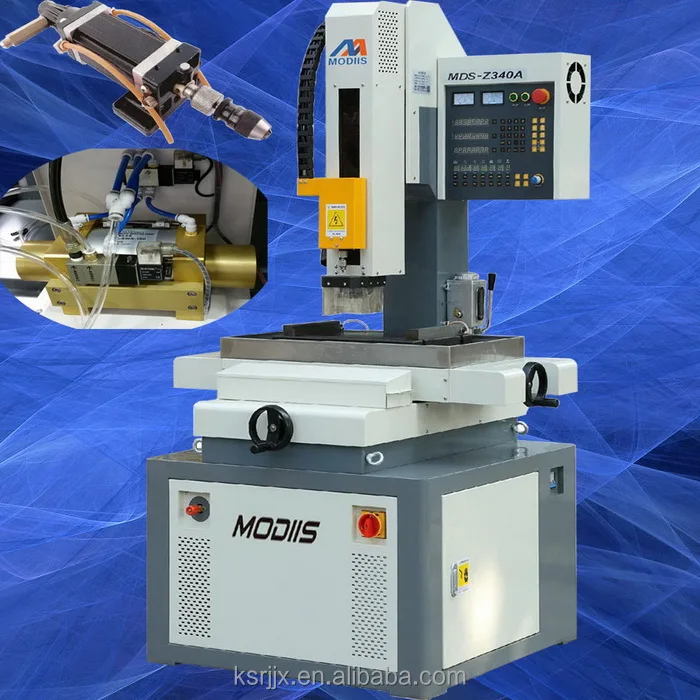

Small Size Micro Hole Drilling EDM Machine MDS-340A
1) Max Z axis travel is 380mm, can install max 500mm length brass tube.
2) Z axis move up and down very quick, travel from bottom to topside only need 10 second.
3) Max drilling speed is much faster.
4) Adopt air pump, which is better than BZ-103T and BZ-103A.
5) Brass tube consume is only 1/3 of normal brand machine.
6) Max distance between guide and work table is 320mm.

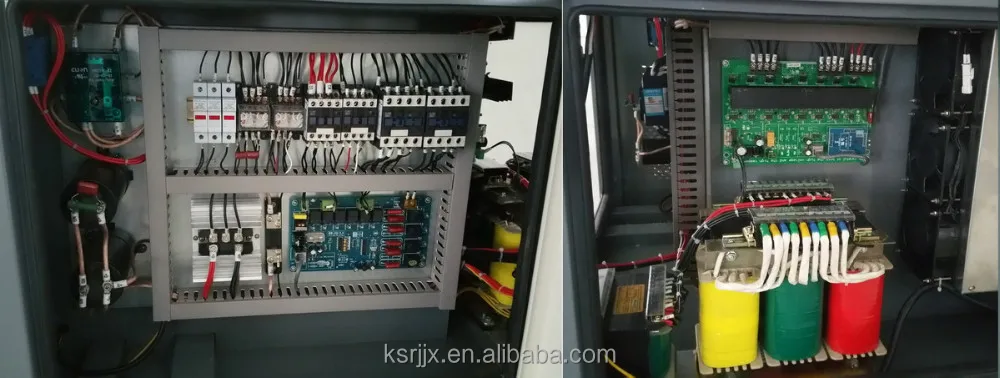

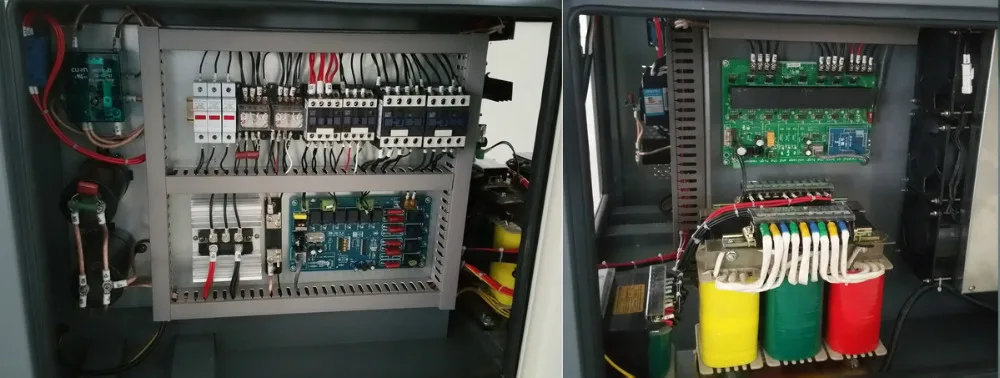

7) When you get the machine, you will find the design is better, cover and electric parts are stronger .
Electrode diameter | 0.2---3.0mm |
Max Drilling Speed | 100mm/min |
Z1 axis travel | 250mm |
Z2 axis travel(Servo Motor Travel) | 370mm |
Rotation speed of rotary head | 20~120rpm |
Working table size | 400×700mm |
Working table travel | 400×300 mm |
Max. distance between guide and working table | 320mm |
Height of working table above the ground | 900mm |
Max. processing current | 30A |
Max. power consumption | 4.0 KVA |
Power supply | 380V/50HZ |
Filter Type | Shallow Seam Type |
Max working solution pressure | 8 ( Mpa ) |
Max table load | 250 kg |
Method of working fluid filter | Thread gap |
Controller type | Automatic Z axis |
Capacity of working fluid tank | 30L |
Machine size | 1000×1000×2000 mm |
Digital Display | DRO for X,Y,Z-axis |
Machine weight | 700kg |
