mud pump casting pump body spare parts
- Category: >>>
- Supplier: Yuzhou City Shenlong Pump Co. Ltd. [Henan China]Yuzhou
Share on (60749249931):
Product Overview
Description
Product Description

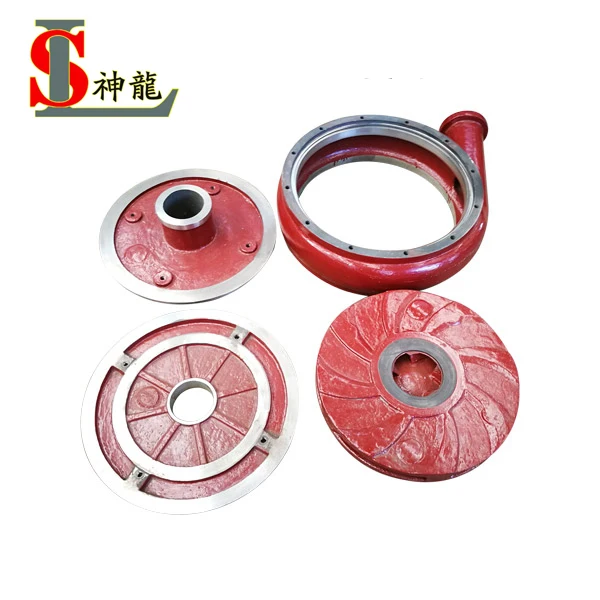

mud pump casting pump body spare parts
slurry pump impeller usage:
widely used in nonferrous metal mineral processing of mine,single volute, made of high chrome Cr26.
ZJ double casing slurry pump impeller ZJD single volute slurry pump impeller
ZJD type is a single-volute small slurry pump designed and developed by our factory,
there are following advantages compared with ZJ type double casing small slurry pump:
easy to dismantle and assemble |
Slurry leakage of pump is visible |
Same material with ZJ type inner volute,but we increase its thickness to prolong lifetime after changing double-casing pump to single-volute pump. |
Very convenient for old users to upgrading,their inlet,outlet,base,outer dimension of installation and performance are all same. |
| Model | rotate speeed r | flow m³/h | head m | power kw/vol |
| 150ZJD-A70 | 980 | 186 | 91.2 | 132/380,50hz |
| 285 | 87.1 | 160/380,50hz | ||
| 401 | 79.8 | 185/380,50hz | ||
| 730 | 139 | 50.6 | 55/380,50hz | |
| 212 | 48.3 | 75/380,50hz | ||
| 299 | 44.3 | 75/380,50hz | ||
| 150ZJD-A65 | 980 | 300 | 75.7 | 132/380,50HZ |
| 500 | 73 | 185/380,50HZ | ||
| 600 | 69.4 | 200/380,50HZ | ||
| 730 | 223 | 42 | 75/380,50HZ | |
| 372 | 40.5 | 75/380,50HZ | ||
| 447 | 38.5 | 90/380,50HZ | ||
| 150ZJD-A63 | 980 | 291 | 71.1 | 132/380,50HZ |
| 485 | 68.6 | 160/380,50HZ | ||
| 582 | 65.2 | 185/380,50HZ | ||
| 730 | 216 | 39.5 | 55/380,50HZ | |
| 361 | 38 | 75/380,50HZ | ||
| 433 | 36.2 | 75/380,50HZ | ||
| 150ZJD-A60 | 980 | 270 | 63.5 | 110/380,50HZ |
| 470 | 60.5 | 132/380,50HZ | ||
| 550 | 58.7 | 160/380,50HZ | ||
| 730 | 201 | 35.2 | 45/380,50HZ | |
| 350 | 33.6 | 55/380,50HZ | ||
| 410 | 32.6 | 75/380,50HZ | ||
| 150ZJD-A58 | 980 | 261 | 59.3 | 90/380,50HZ |
| 454 | 56.5 | 132/380,50HZ | ||
| 532 | 54.9 | 132/380,50HZ | ||
| 730 | 194 | 32.9 | 37/380,50HZ | |
| 338 | 31.4 | 55/380,50HZ | ||
| 396 | 30.5 | 55/380,50HZ | ||
| 150ZJD-A55 | 980 | 248 | 53.4 | 90/380,50HZ |
| 431 | 50.8 | 110/380,50HZ | ||
| 504 | 49.3 | 110/380,50HZ | ||
| 730 | 184 | 29.6 | 37/380,50HZ | |
| 321 | 28.2 | 45/380,50HZ | ||
| 376 | 27.4 | 55/380,50HZ | ||
| 150ZJD-C58 | 980 | 268 | 61 | 110/380,50HZ |
| 458 | 56 | 132/380,50HZ | ||
| 596 | 51.2 | 160/380,50HZ | ||
| 730 | 200 | 33.8 | 45/380,50HZ | |
| 341 | 31.1 | 55/380,50HZ | ||
| 444 | 28.4 | 75/380,50HZ | ||
| 150ZJD-A57 | 980 | 190 | 56.3 | 90/380,50HZ |
| 301 | 55.4 | 110/380,50HZ | ||
| 427 | 52.9 | 110/380,50HZ | ||
| 730 | 142 | 31.2 | 37/380,50HZ | |
| 224 | 30.7 | 45/380,50HZ | ||
| 318 | 29.4 | 55/380,50HZ | ||
| 150ZJD-A50 | 980 | 230 | 43.1 | 55/380,50HZ |
| 380 | 40 | 75/380,50HZ | ||
| 460 | 37.8 | 75/380,50HZ | ||
| 730 | 171 | 23.9 | 30/380,50HZ | |
| 283 | 22.2 | 30/380,50HZ | ||
| 343 | 21 | 37/380,50HZ | ||
| 150ZJD-A48 | 980 | 221 | 39.7 | 55/380,50HZ |
| 365 | 36.9 | 75/380,50HZ | ||
| 442 | 34.8 | 75/380,50HZ | ||
| 730 | 164 | 22 | 22/380,50HZ | |
| 272 | 20.5 | 30/380,50HZ | ||
| 329 | 19.4 | 30/380,50HZ | ||
| 150ZJD-C42 | 1480 | 300 | 62.8 | 110/380,50HZ |
| 450 | 58 | 132/380,50HZ | ||
| 550 | 54.3 | 132/380,50HZ | ||
| 980 | 199 | 27.5 | 30/380,50HZ | |
| 298 | 25.4 | 37/380,50HZ | ||
| 364 | 23.8 | 45/380,50HZ |
Company Information
company and product introduction
Packaging & Shipping
export wood carton
Our Services
1.processing with supplied drawing
2.processing with supplied samples
3.produce all kinds of anti abrasive spare parts except for pump
4.product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to repalce.
Buying Guides
please provide following technical data for our reference,then we will recommend proper model:
- slurry pump impeller is used for pumping what is kind of liquid,in what is kind of place
- conveying distance (m)
- conveying height (m)
- suction depth(m);sand layer (m)
- pipe size(inner diameter)
- fine sand,middle sand or rough sand? if is there stone or not,what is the biggest stone diameter?
- take some pictures of your working site
