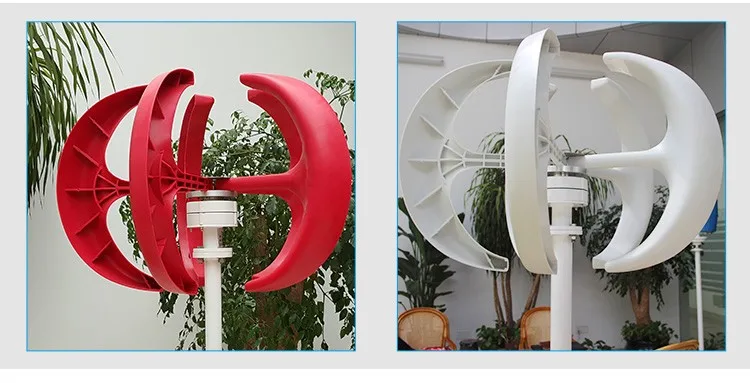

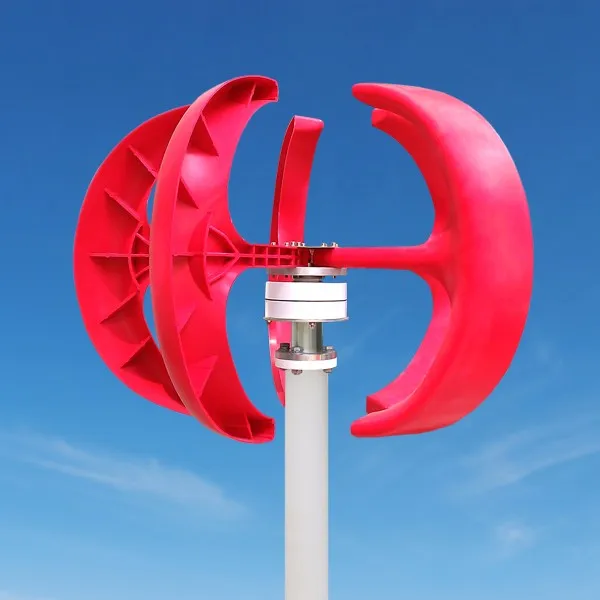

Vertical axis Wind turbine
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60749255744):
Product Overview
Description
Product Introduction
Features:
1. Low start up wind speed, compact, light with little vibration
2. Easy installation, flange connection

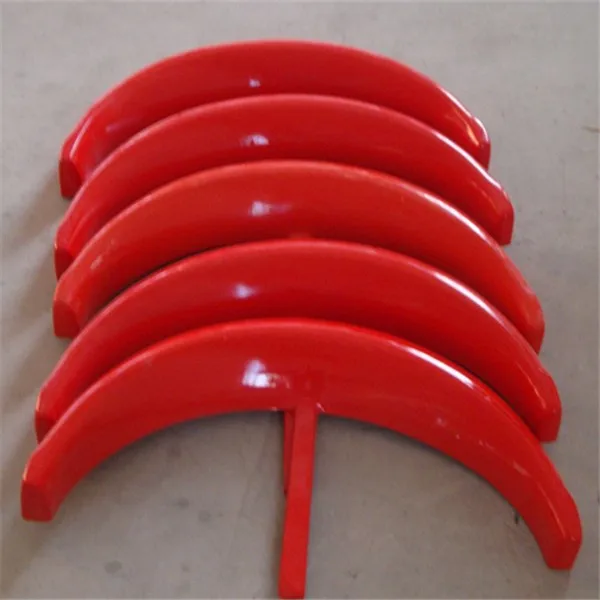

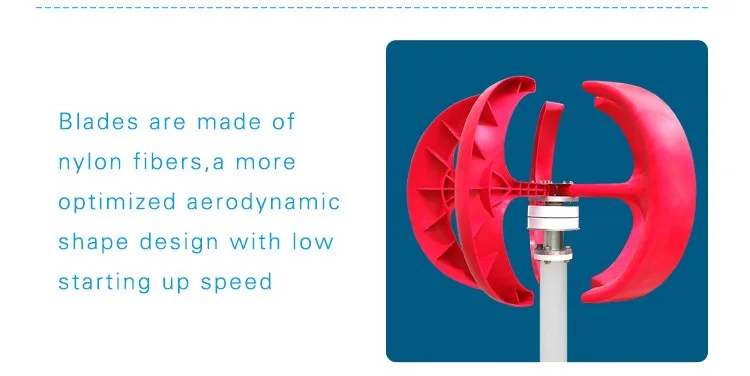

3. Blades using nylon fiber matched with optimized aerodynamic shape and structure, color optional
4. Patented permanent magnet AC generator with special stator (maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, ensure the performance of whole system
5. Adopting MPPT intelligent micro controller effectively adjusts current and voltage
Product Parameters
| Model | LS-100R |
| Rated power | 100W |
| Maximum power | 130W |
| Rated voltage | 12/24V |
| Start up wind speed | 2m/s |
| Rated wind speed | 11m/s |
| Survival wind speed | 45m/s |
| Top net weight | 11.0kg |
| Wheel diameter | 0.9m |
| Blades number | 5 |
| Blades material | Nylon fiber |
| Generator | Maglev generator |
| Control system | Electromagnet |
| Speed regulation | Automatically windward |
| Working temperature | -40 to 80°C |
| Design lifespan | 20 years |
| Certifications | CE, ISO 14001, ISO 9001 |
FAQ:
1) What are the major components of a standalone wind energy system?
Ans: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (eg pole fixed in position by guywires), a charge controller and a battery bank
If the loads demand AC supply, an inverter for converting DC to AC will be necessary
2) Are small wind turbines noisy?
Ans: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output
This causes a bit of noise when the wind is strong
Depending on the our special design, our turbines are quieter than the others
3)How can I connect small wind turbine to the AC distribution system of a building or a site?
Ans: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection
4)Do I have to lower a small wind turbine when typhoon is approaching?
Ans: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching
On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary
