Product Overview
Description

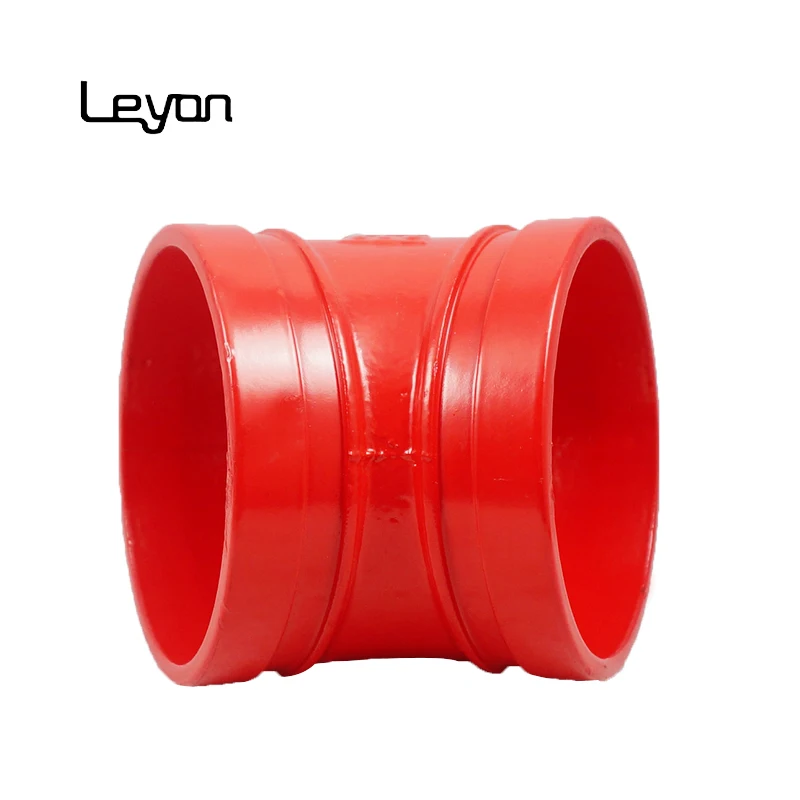

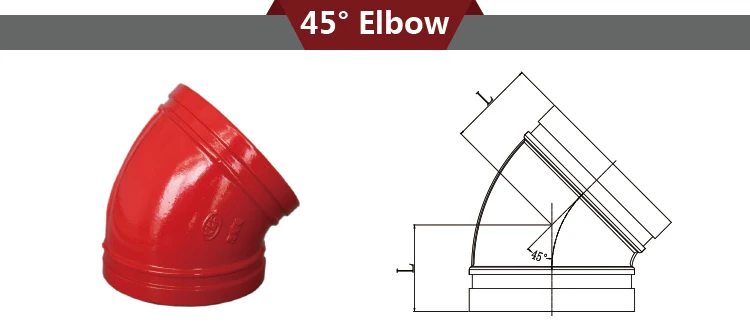

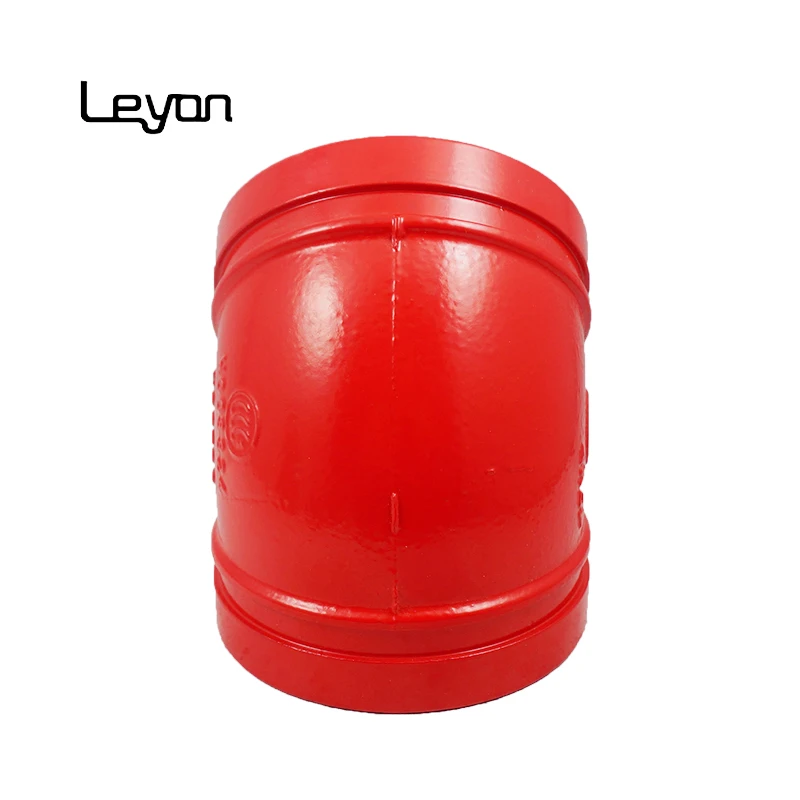

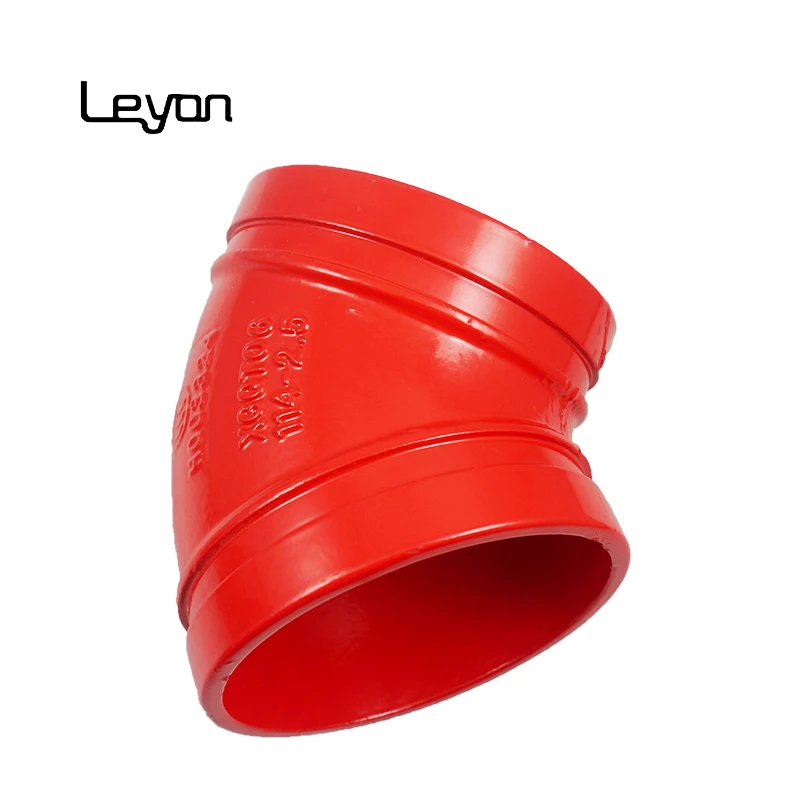

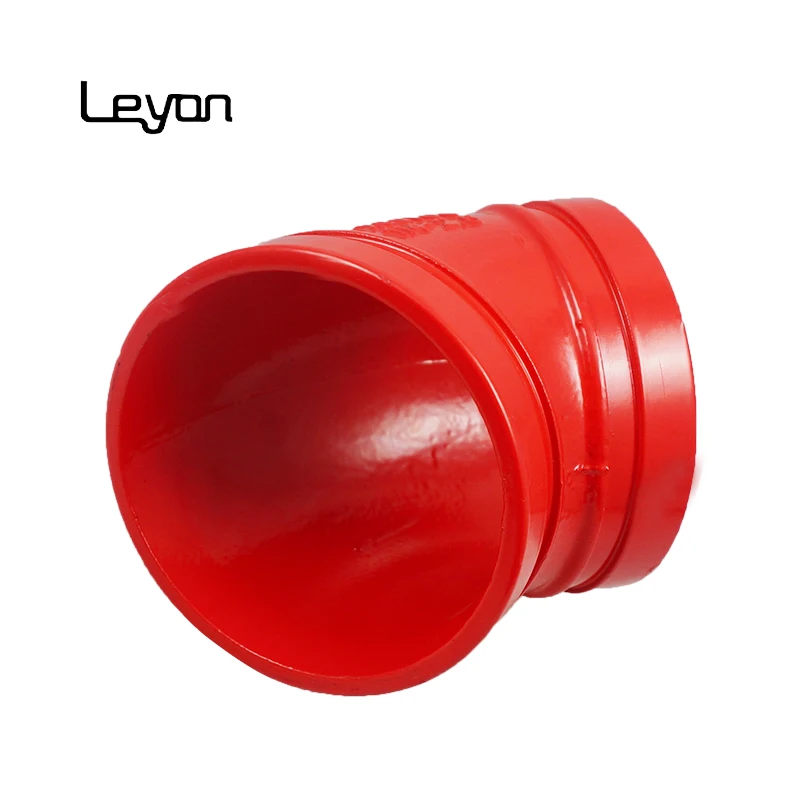

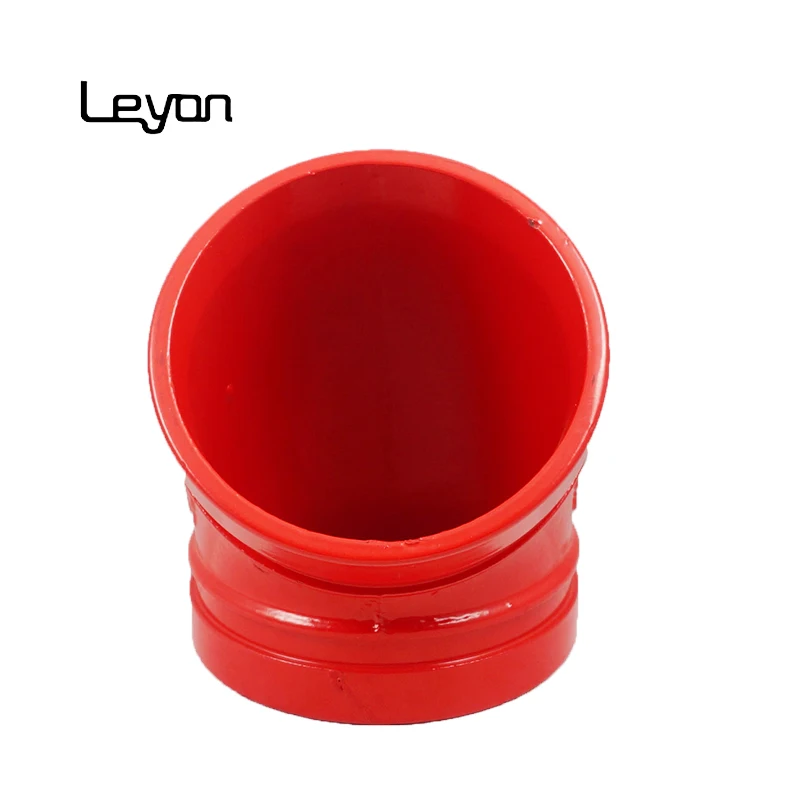

Ductile iron 45 degree grooved elbow and pipe fitting for fire fighting
| Material | Ductile lron |
| Size | 1",1-1/4",1-1/2",2",2-1/2",3",4",5",6",8",10",12",14" ,16" |
| Standard | ASTM A536 Gr.65—45—12 EN1563.JIS G5502 |
| Physical property | Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Surface | painted |
| Color | red, blue, white |
| Model | Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.) |
| Connection | Female, welding, flange |
| Shape | Equal, reducing |
| Certificate | FM,UL BSI,ANSI,ISO9001, 3C |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer's drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer's requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Leyon is always focusing on research and development of malleable iron fittings, grooved fittings,tubing and valves that are mainly applied in such industries as fire protection, water supply, construction industry, municipal engineering and petrochemical.
Our main products are galvanized or black malleable iron,ductile iron elbow,Tee,socket,union,bushing,nipple etc,for more options of Malleable iron,ductile iron,grey iron,or steel pipe fittings,please
