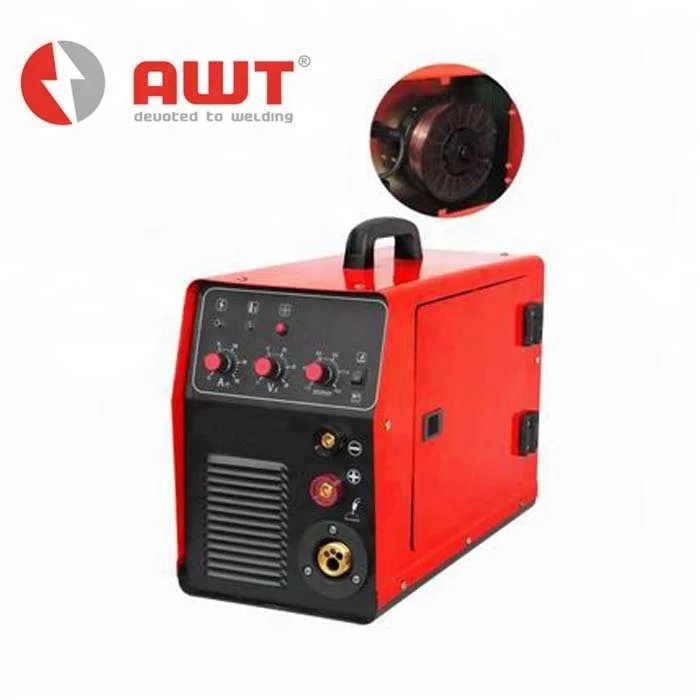

AWT MIG/MMA06-/160I/200/250I Electric Portable Inverter MIG Welder portable gas Welding Machine
TECHNICAL SPECIFICATIONS
Model:MIG/MMA06
160I
200I
250I
Input Power
AC-230V,50/60HZ
AC-230V,50/60HZ
AC-230V,50/60HZ
Rated Input Current (A)
26
36
48
Rated Input Power (KW)
7
5.6
7.8
MIG Output Current Range(A)
25-160
45-200
45-250
MMA Output Current Range(A)
10-160
20-200
20-250
MIG Rated Output Voltage(V)
11-26
15-27
15-29
DUTY CYCLE(%)@40°C
40
40
60
Feeding Speed Range (m/min)
1.5-16
1.5-16
1.5-16
Power Factor (COS)
0.7
0.7
0.7
No-load Voltage(V)
52
52
52
Insulation Class
F
F
F
Protection Class
IP21S
IP21S
IP21S
Efficiency(%)
85
85
85
Electrode(mm)
1.6-4.0
1.6-4.0
1.6-5.0
Wire(mm)
0.6-1.0
0.8-1.0
0.8-1.0
CAPTON SIZE(MM)
550*265*425
570*280*460
620*320*515
LOADING QTY(PCS)
512/1014/1182
436/873/995
293/602/690
Packaging & Shipping
Advantages
ADVANTAGES
Why choose us?
We have below ADVANTAGES, it's trustworthy to find AWT as your loyal supplier.
1.AWT welding machine insists on quality priority, we always follow strict quality control system and every piece of our goods is strictly tested one by one before packing.
2. We use imported chips from INFINEON or FAIRCHILD for IGBT, and TOSHIBA or FUJI for MOSFET for our welding machine. We keep our quality commitment to all our customers.
3. AWT sales team also provide after-sale service, we can supply spare parts for maintenance.
4. AWT products comply with CE, and Eurpean standards.
Company Information
Certifications
Q1:Are you a factory or a trading copany?
A1: We're a professional manufacturer which has been devoted in welding industry for more than 15yers.
Q2:What about the payment?
A2:We accept the T/T.L/C,Western union,Paypal ect.
Q3:How long is the production time for an order?
A3:Usually it takes about 10-20days which depends on the requirements and QTY of the order.Anytime we'll try the best to meat your on-time request.
Q4:Where's your factory located?How can I visi there?
A4:our factory AWT Machinery Co.,ltd is located in Weling,Zhejiang Province,China,which is near Shanghai and Ningbo .If you come, we can pick you up from the airport and the railway station.
