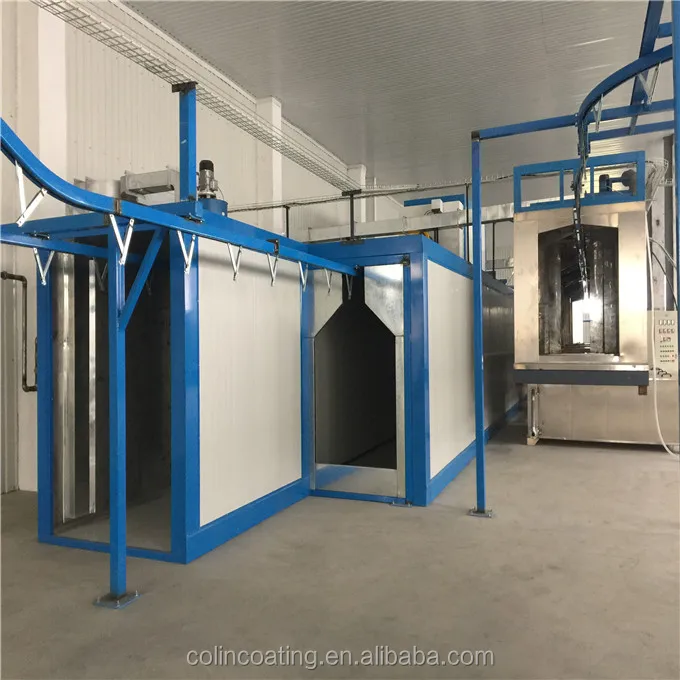

Car/Motorcycle/Electric Car Vehicle Powder Coating Assembly Line
- Category: >>>
- Supplier: Yantai Colin Coating Equipment Co. Ltd.
Share on (60749340481):
Product Overview
Description
Former Cases
Powder Coating Equipment Aluminum Profiles powder coating line powder coating line
Usually, the powder coating line includes:
Pre treatment - Water Dry Off Oven - Powder Coating Booth - Cure Off Oven, Control Panels, Heating System, Lighting System, etc.
Different Products require Different Designs.COLIN engineers analyze the requirements before developing equipment that can be incorporated into the overall automatic powder coating line.
Aluminum Profiles powder coating line powder coating line

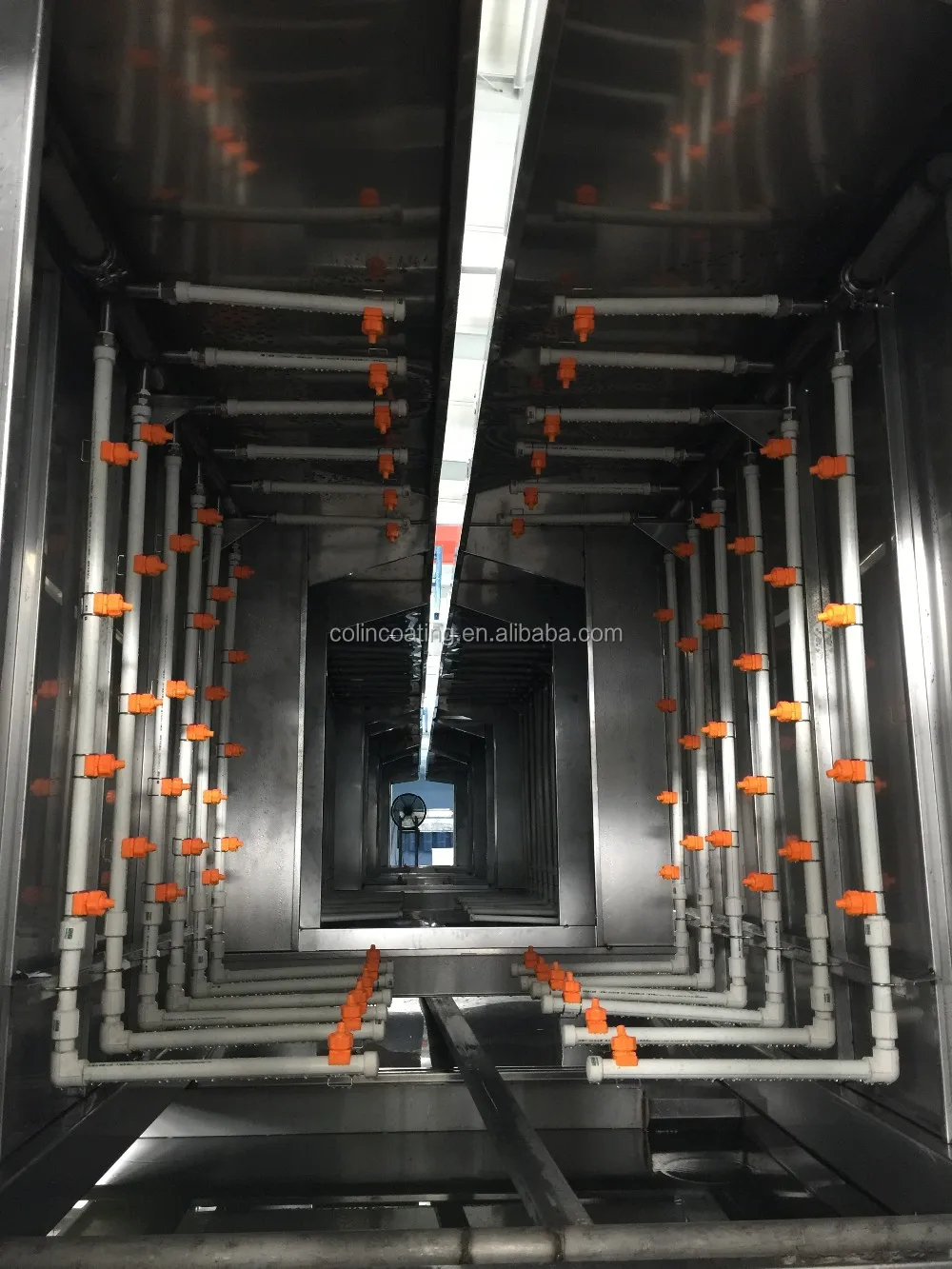

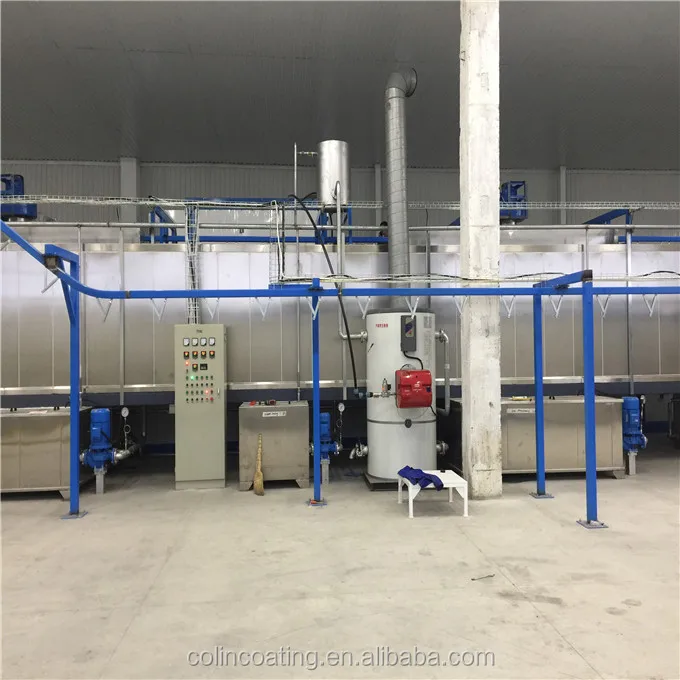

Pretreatment

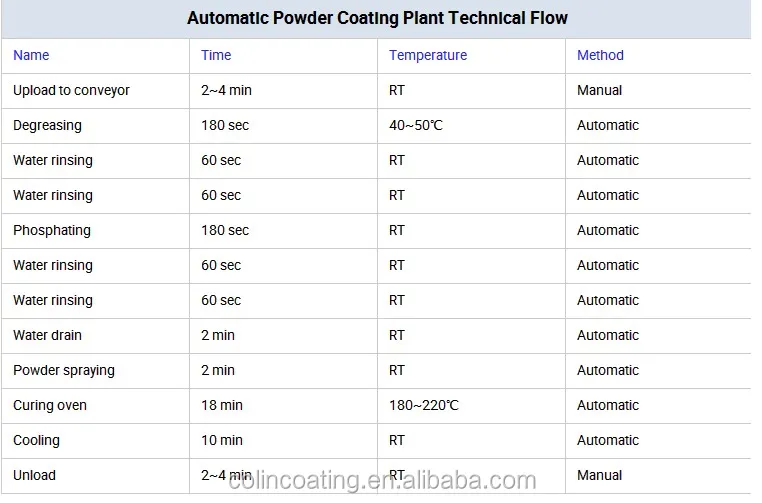

Processes of the pretreatment:
Degreasing - water rinsing - water rinsing - Derusting - water rinsing - water rinsing - iron phosphating / zinc phosphating - chromium - ......

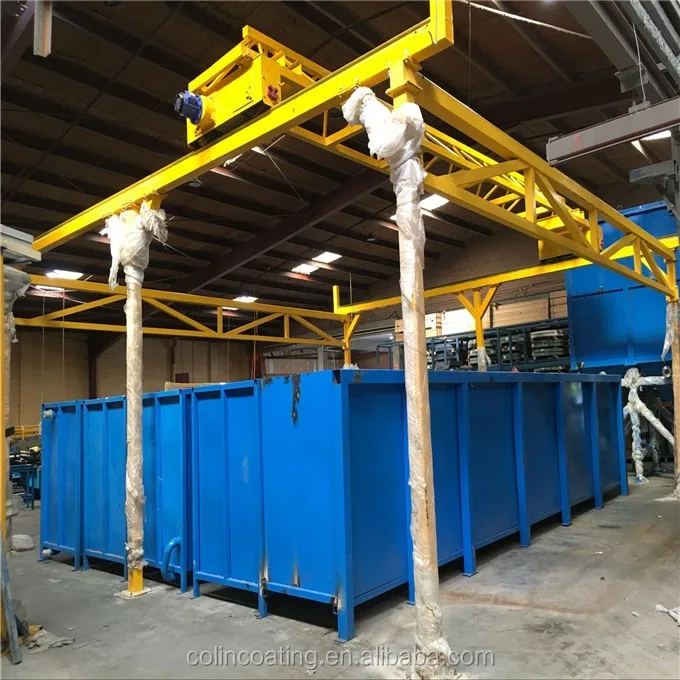

Stainless steel cabinet and tanks.
PP noozles;
Filters;
SUS304 stainless steel water tanks;
Water pump;
Pipe;
Other related parts.
Aluminum Profiles powder coating line powder coating line

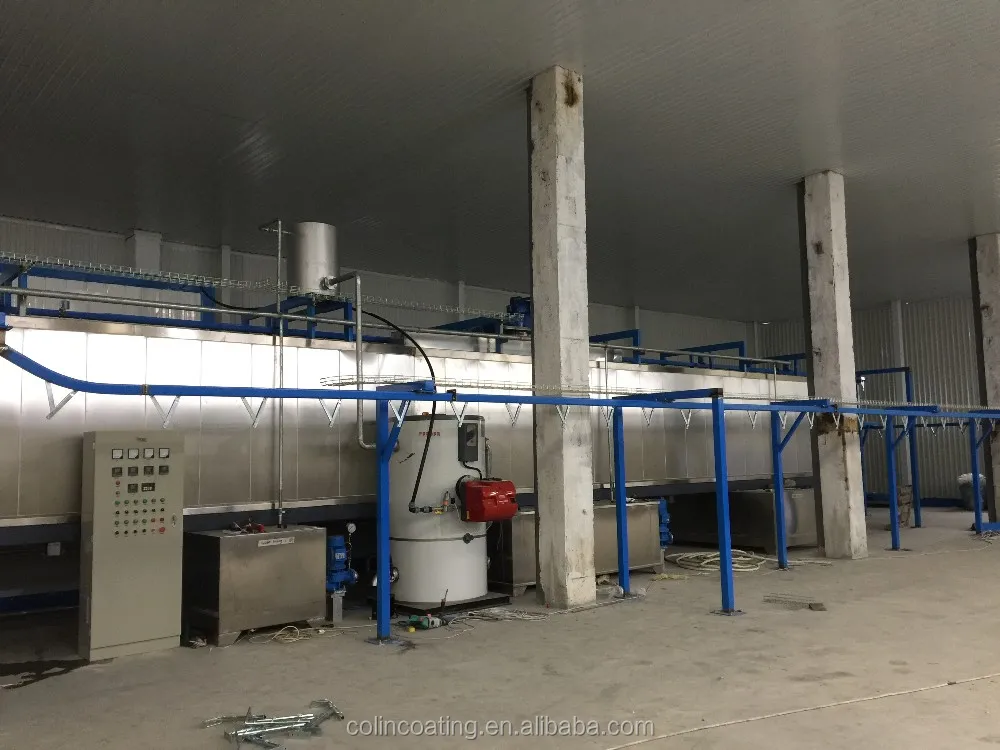

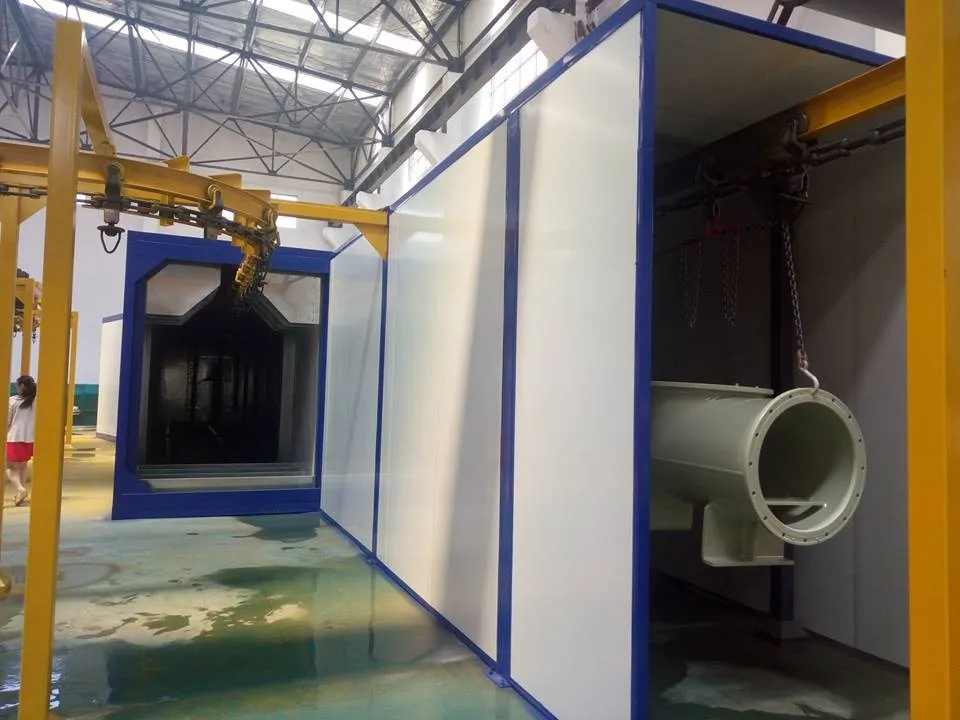

Water dry off oven

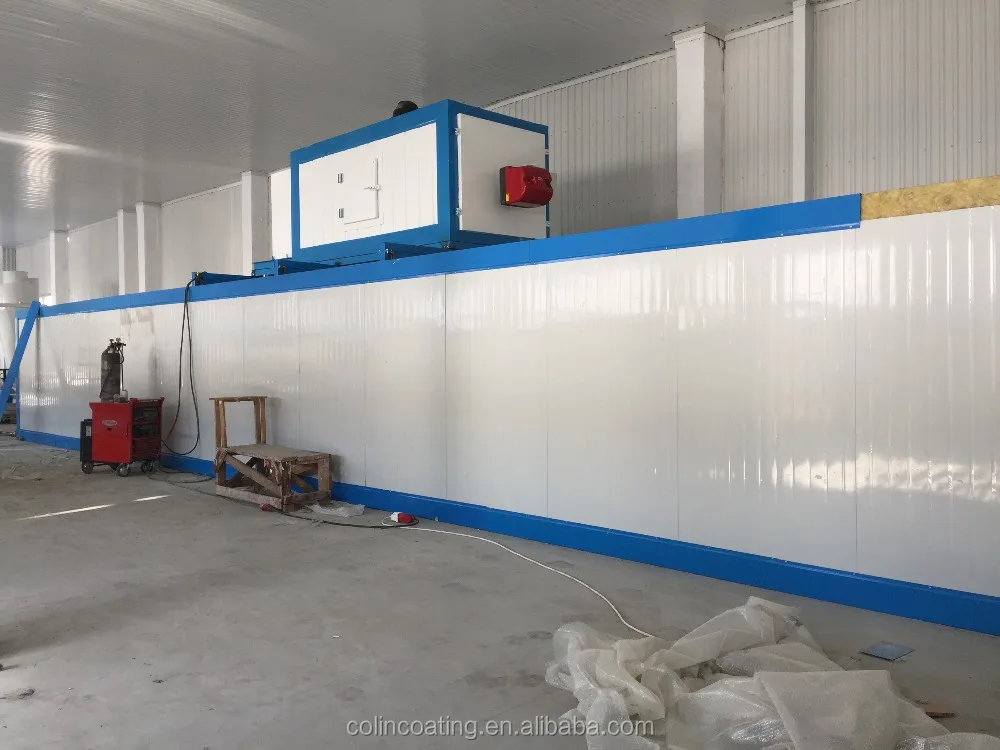

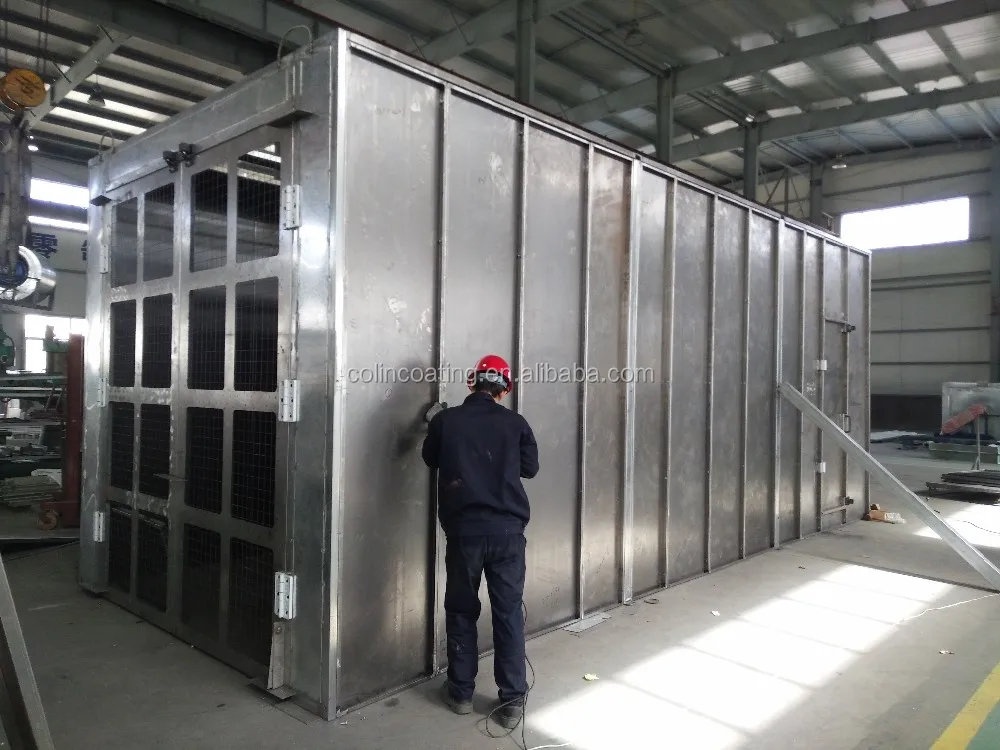

Bridge Structure Oven
Bridge structure oven has advantage in the saving energy because of its structure. Heater will be kept in the upper of the oven, and the air curtain at the both end of the oven helps to prevent the heated air from escaping.
Floor- Mounted Structure Oven
Easier space especially height needed;
Adjustable opening sizes helps to prevent the heaters escaping as most as they can.

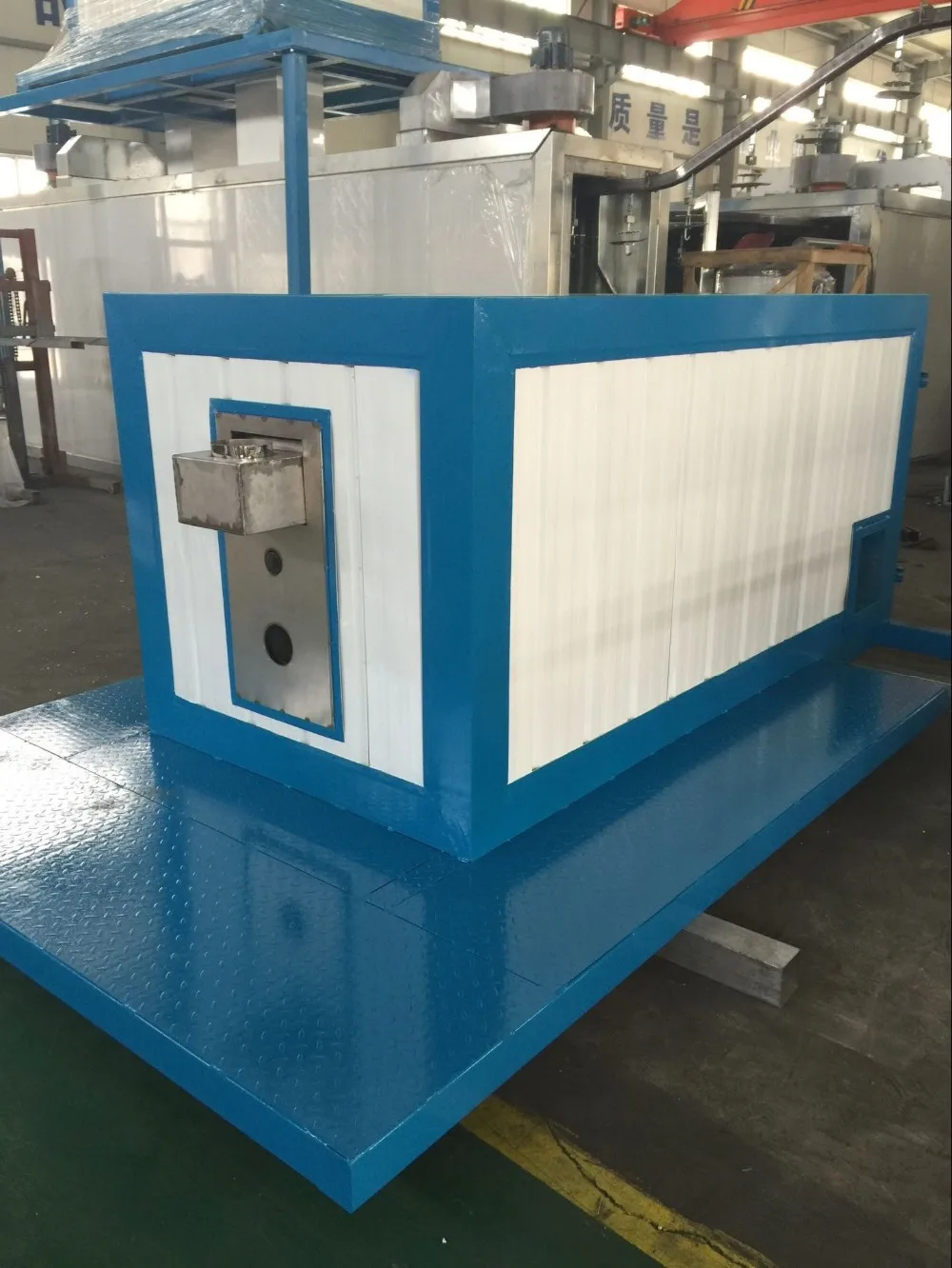

Various Heating Systems for options
Diesel, natural gas, LPG, Electric heating, and infrared catalytic heating are available.

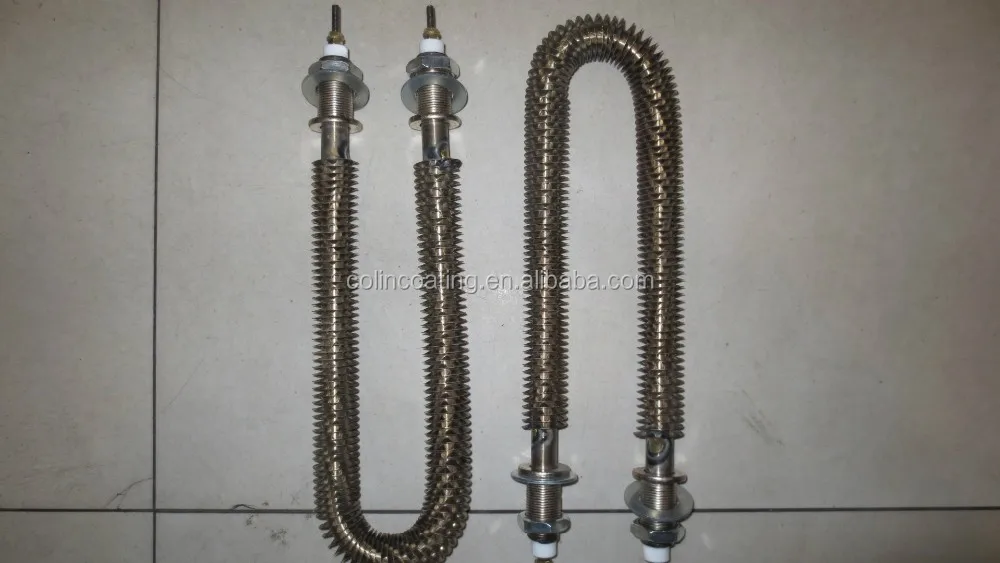

Stainless steel heater exchanger and high temperature resistance fan & motor make sure the safe operations and long life of the equipment.

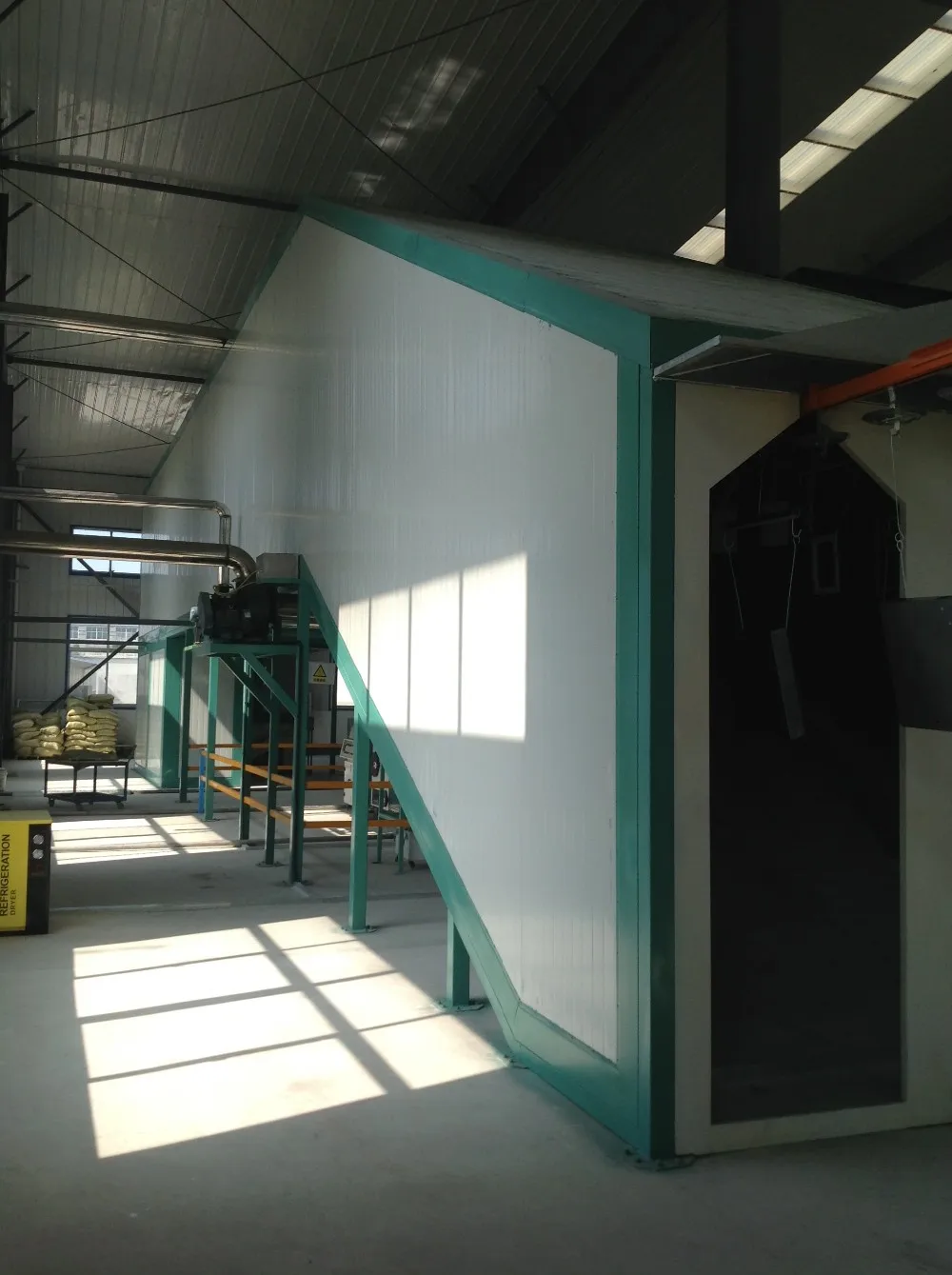

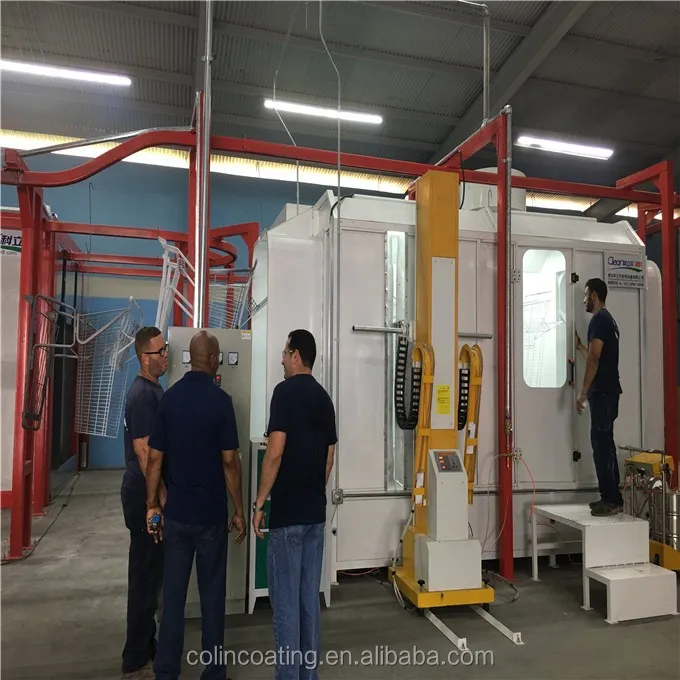

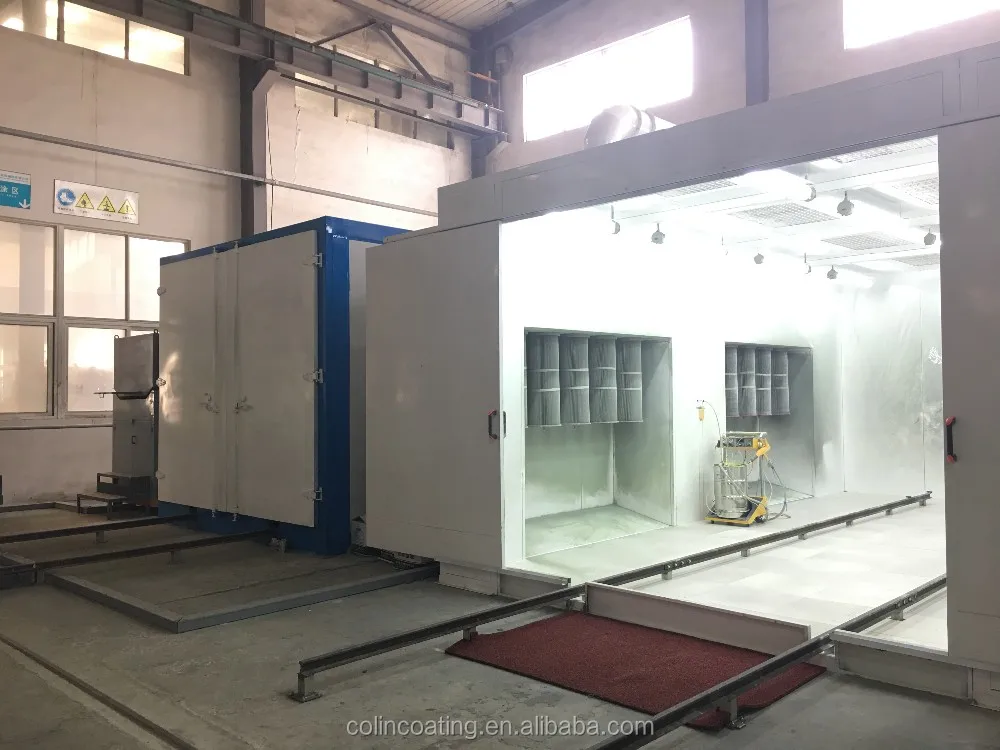

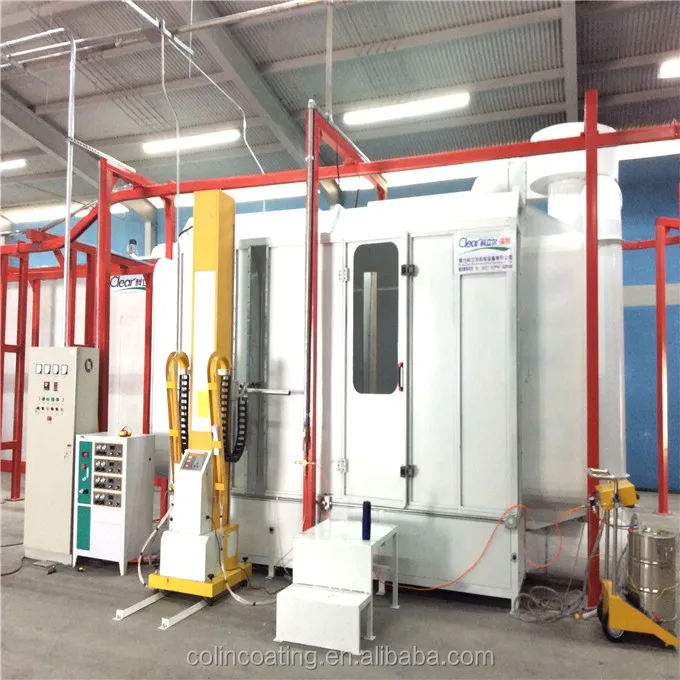

Powder Coating booth

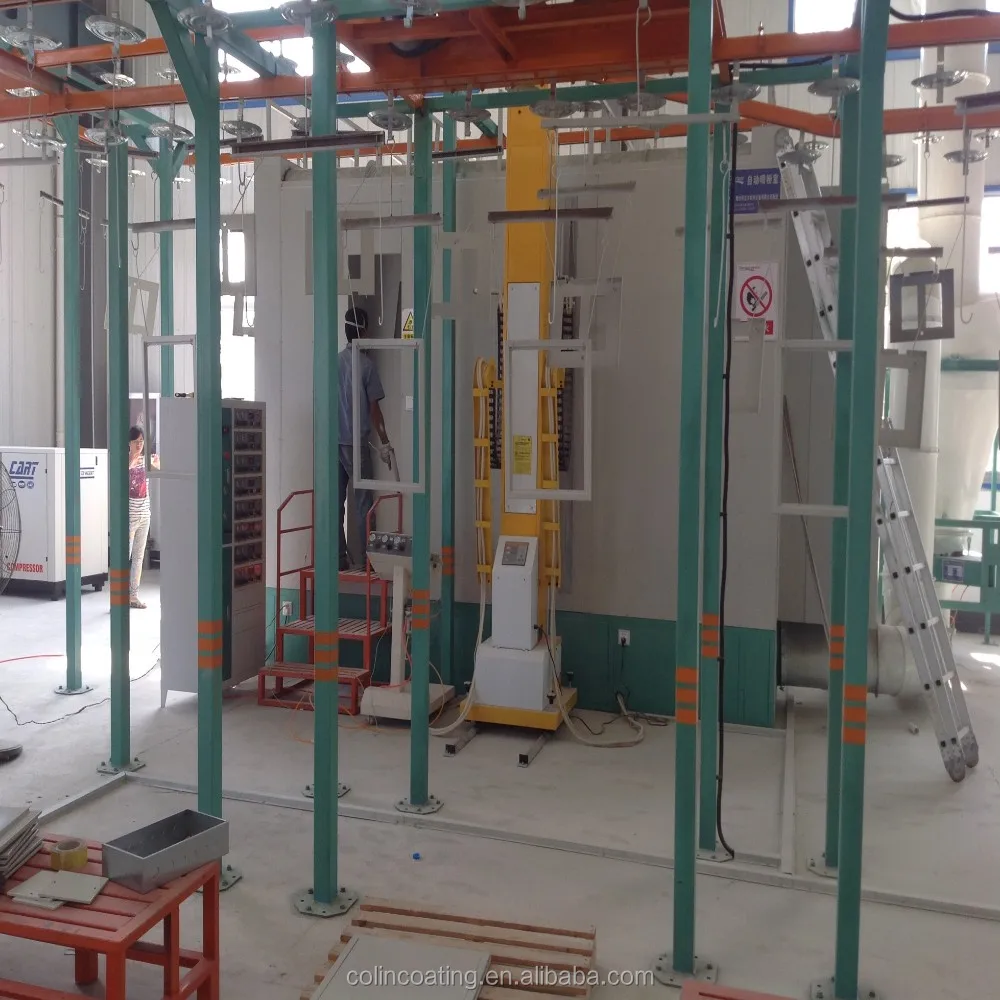

Automatic Coating

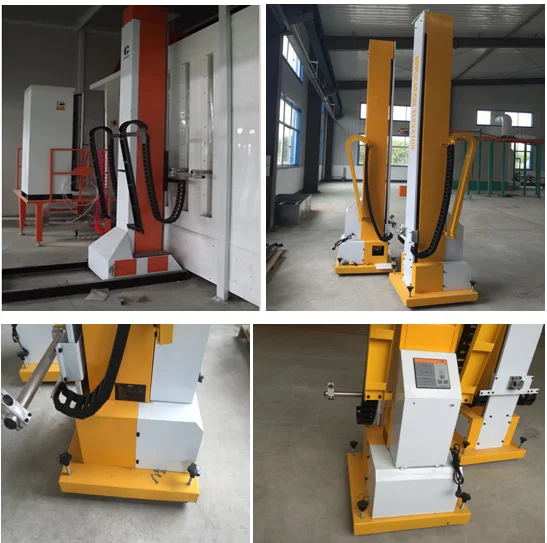

Reciprocator carries automatic gun up and down action, with inverter control panel, the stroke and speed can adjust according to customer requests.

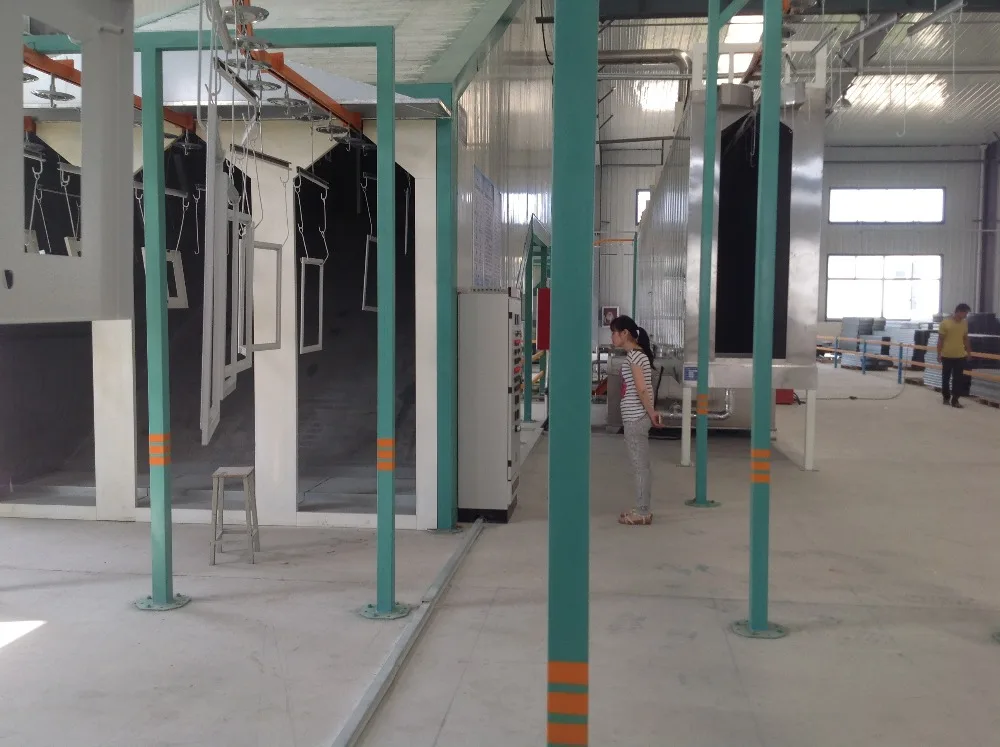

Manual Coating
manual coating stations are specially designed. And in this design, workers can check and recoat the profiles which may not be coated very perfectly by the reciprocators with guns.
Automatic coating + Manual Coating
This design can make sure all the work parts be coated perfectly and no missed.
Powder Recovery

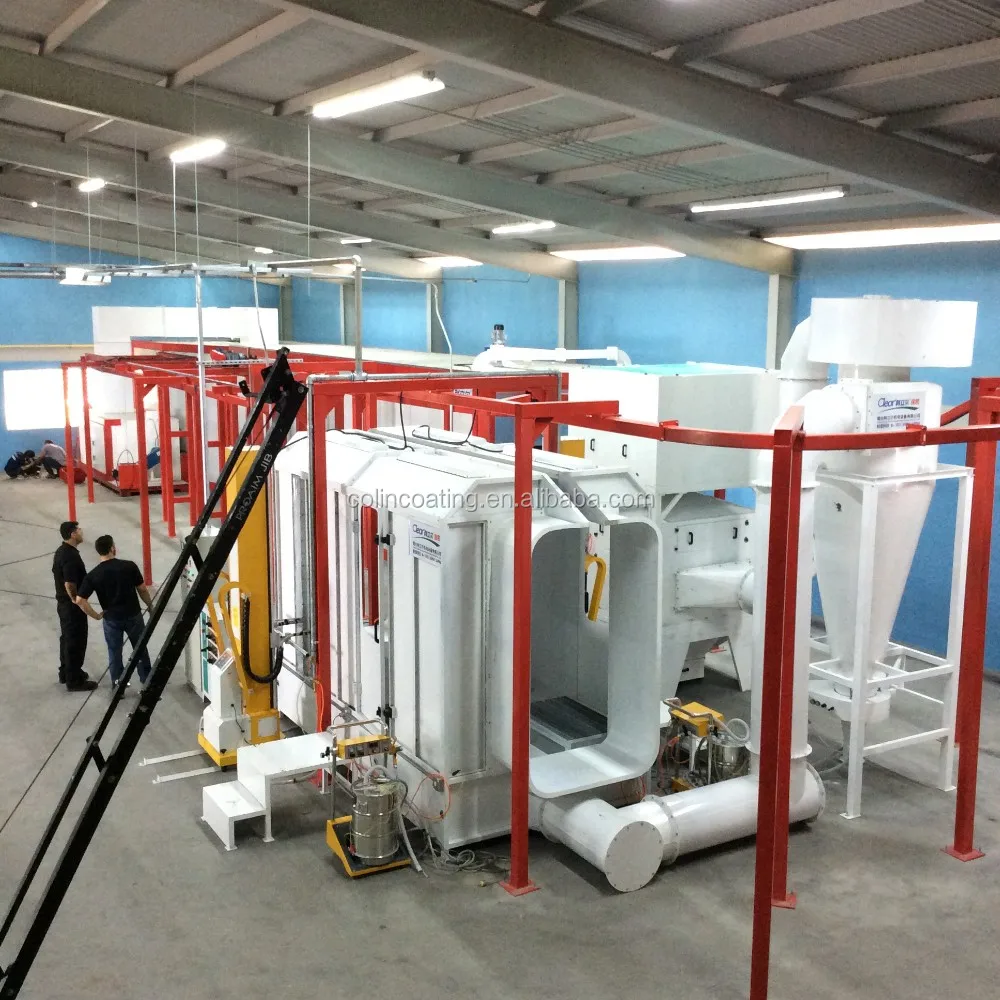

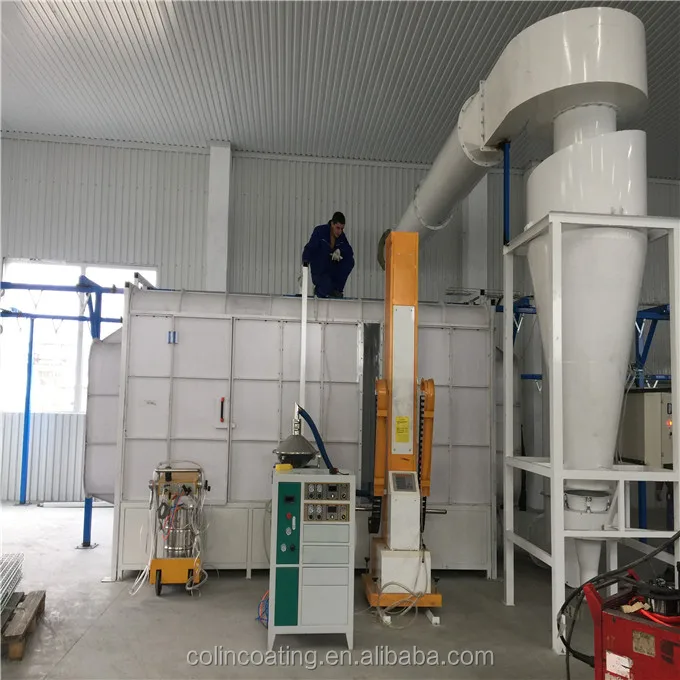

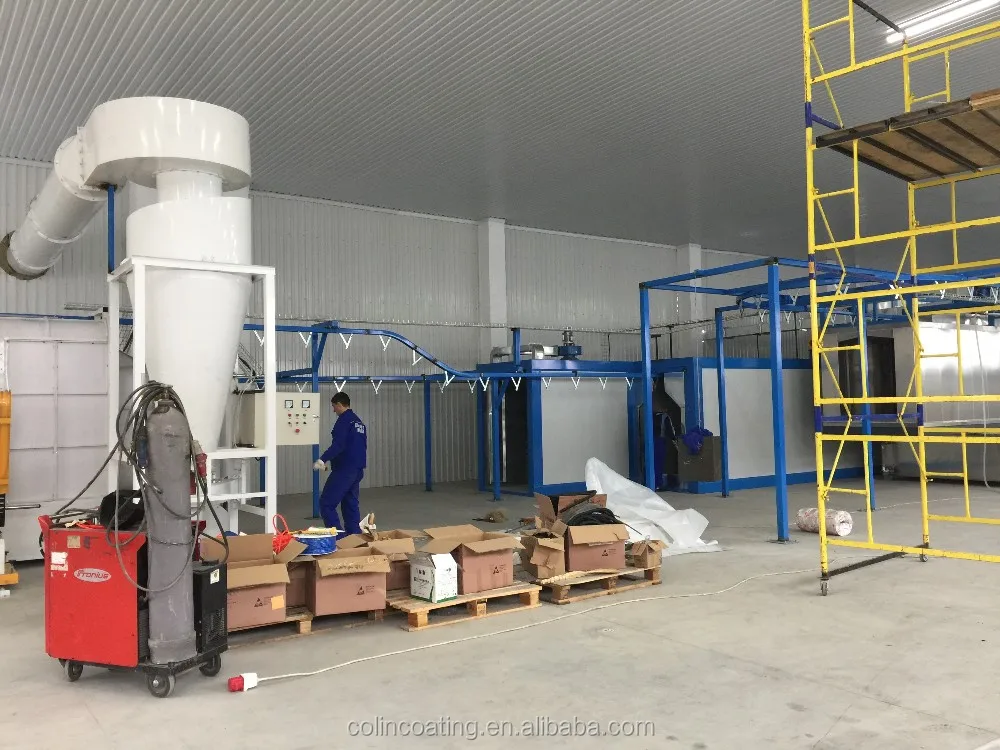

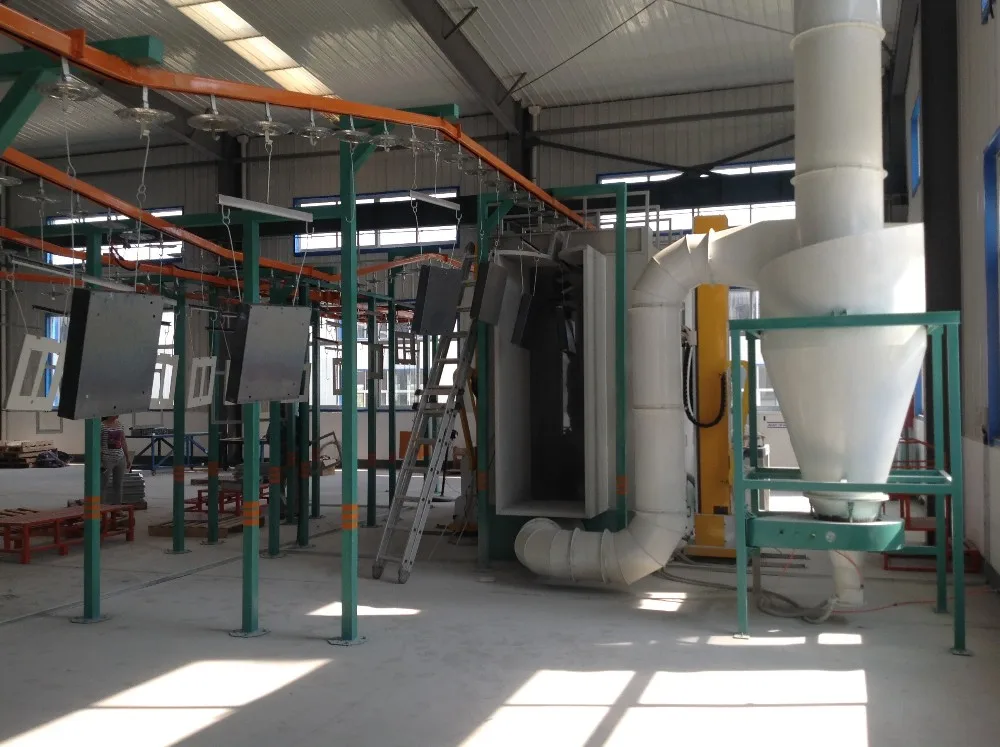

Mono Cyclone Powder Recovery System
Feature:
Rate of Recovery:≥98%
Suitable for multi color, quick-color change .
Min 30mins could change one color.
Powder suppler center.
Suitable for automatic coating.
Automatic booth floor cleaning system.

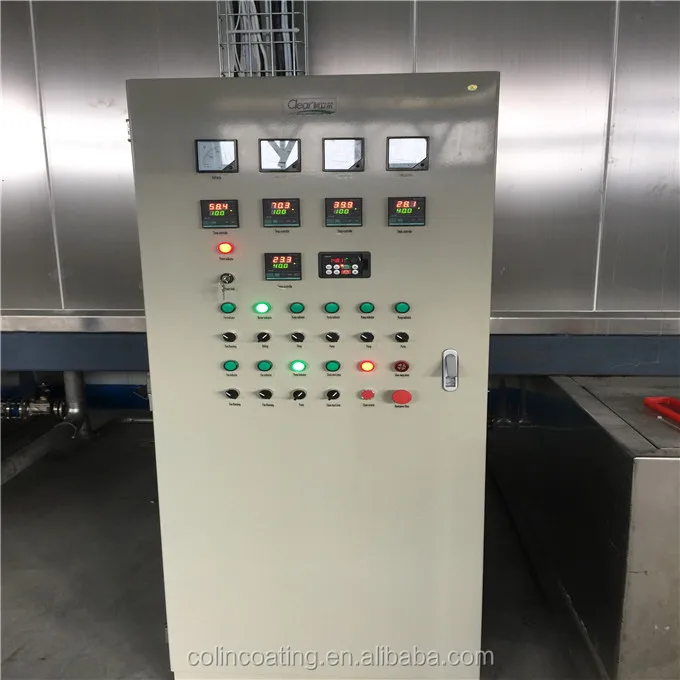

PLC and touch screen control system. Support multiple languages.

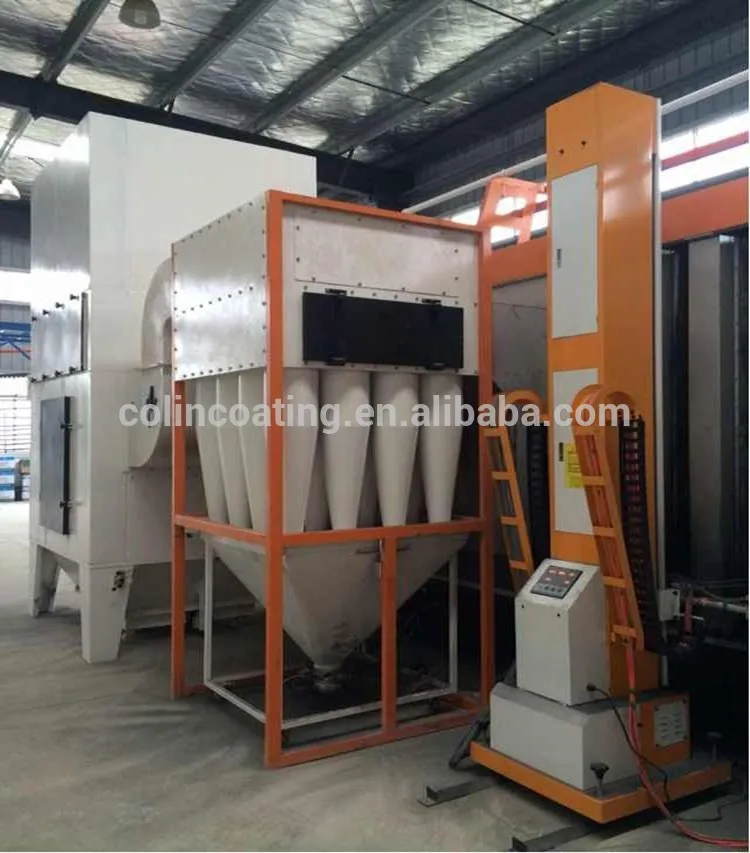

Multi Cyclone Powder Recovery System
Feature:
Rate Of Recovery: ≥98%.
Suitable for single color coating.
Powder supply center and solid filter system.
Suitable for automatic coating.
Automatic booth floor cleaning system.
PLC and Touch screen control system. support multiple languages.
Movable Bag Type Powder Coating Booth
Rate of Recovery:≥96%
Suitable for multi color, quick-color change .
One color need one movable bag.
Min 40mins could change one color.
Powder suppler center.
Suitable for automatic coating.
Automatic booth floor cleaning system.
PLC and touch screen control system. Support multiple languages.
| \t | |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | |
| \t | |
| \t | \t |
