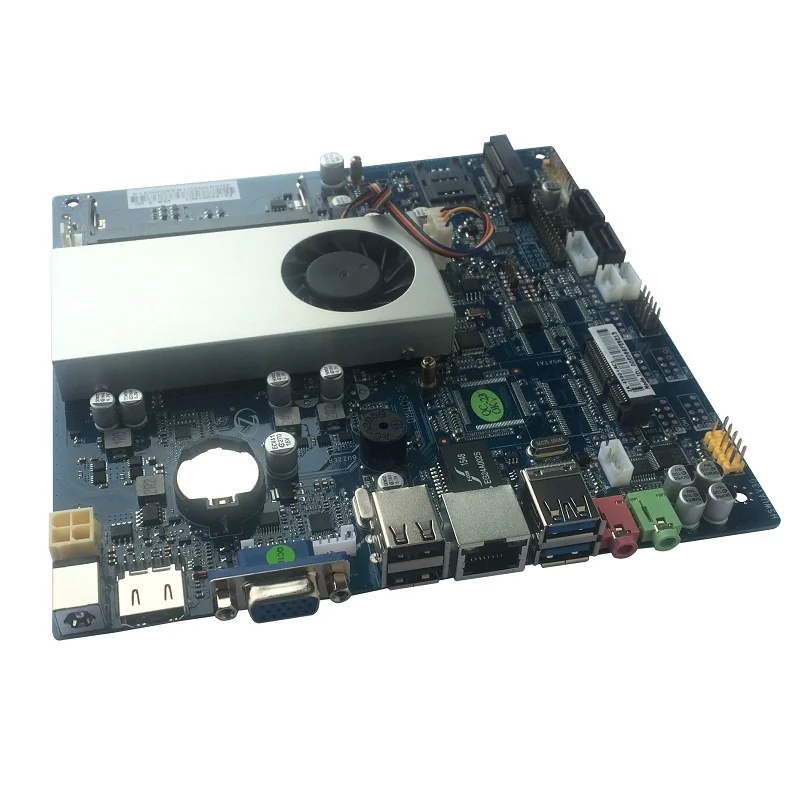

Embedded motherboard with onboard Intel Haswell 4gen I3/I5/I7 4005U/4010U/4030U/4200U/4210U/4500U/4510U/4600U CPU
- Category: >>>
- Supplier: Shenzhen Zeal-All Industry Co. Ltd.
Share on (60749361230):
Product Overview
Description
Product Description
Product Features:
-Support Intel Core i7-4500U Processor.
-Onboard Intel 4500U Chipset.
-Intel® HD Graphics
-Support VGA/HD/LVDS Display.
-DC_IN 12VC Input power.
Model NO. | ZA-4500AC1 |
Size | MINI-ITX 170mm x 170mm |
CPU | Intel ® Core i7-4500U Processor |
Memory | 1 DDR3 Slot ,1333/1600 MHz,Up to 16GB |
Graphics | Intel ® HD Graphics |
Chipset | Intel ® 4500U |

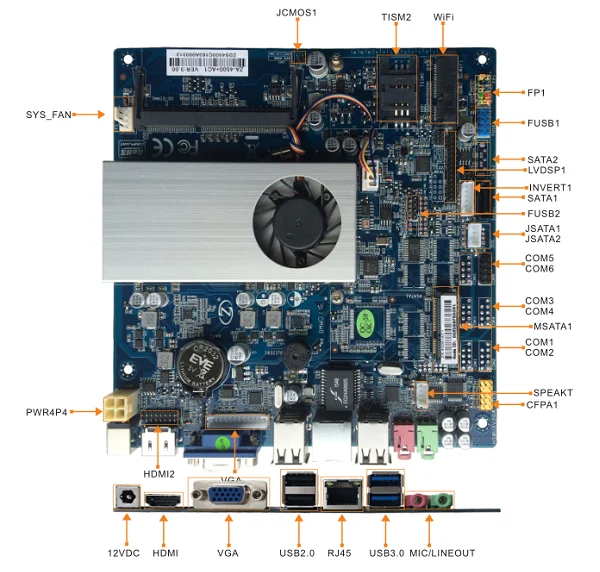

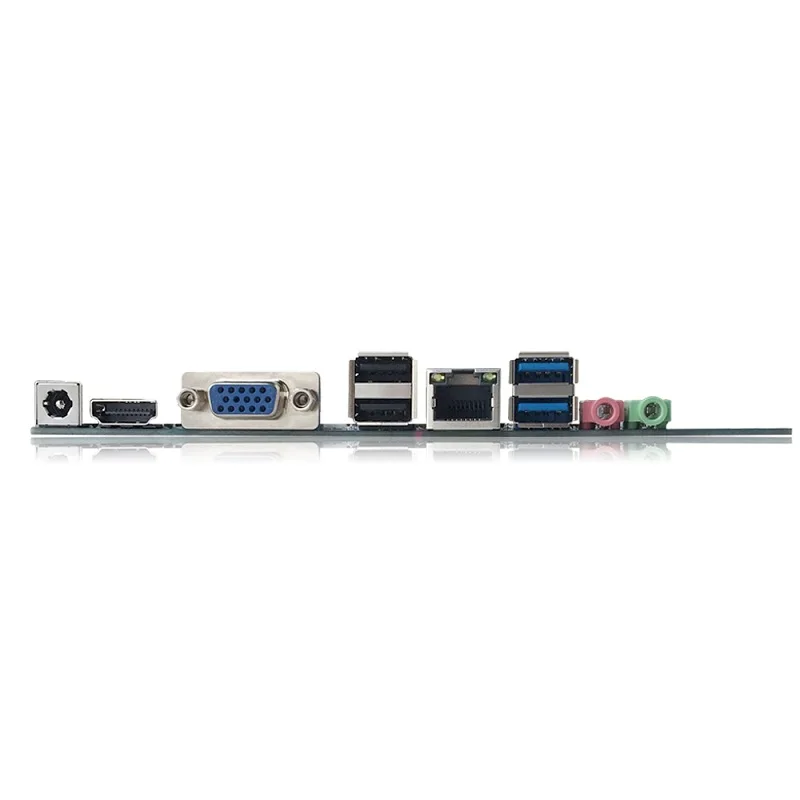

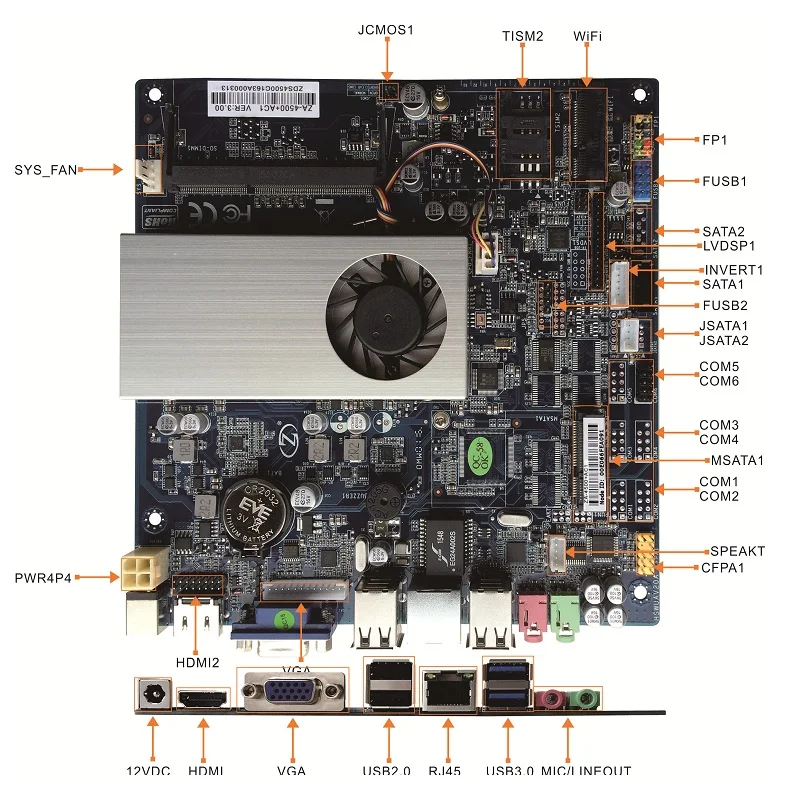

Rear I/O | 1* DC Power Supply (12V) |
1* HD | |
1* VGA | |
2*USB2.0, 2* USB 3.0 | |
1* LAN | |
1* Mic-in/Line-out | |
Internal I/O | 2* USB PIN,Support 3* USB2. 0 |
1* CPUFan | |
1* SYS Fan | |
1-6 Group Serial Port PIN | |
1*LVDS PIN Support Dual Channel 8 Bit | |
1*2*2 PIN Power Socket | |
1*LCD Inverter | |
1*LCD Backlight Control Port | |
1*12 VGA PIN Port | |
1*SATA | |
1*Front panel | |
1*Audio Pin Port(2W/CH) | |
Expansion slot | 1* MINI-PCIE(Support mSATA) ,1* MINI-PCIE(Support WIFI 3G) |
BIOS | AMIBIOS,64M bit Flash Memory |
LAN | 1* Realtek 8111E,10/100/1000 |
H/W Monitoring | Temperature Management ,Voltage Management ,System Power Management |
Audio | ALC662 Dual Channel Output |
Operating System | Windows7, Windows 8, Windows10, Linux |
Temp. | -10° C ~ 55° C |
Humidity | 0% ~ 95% (Relative Humidity,No Condensation) |

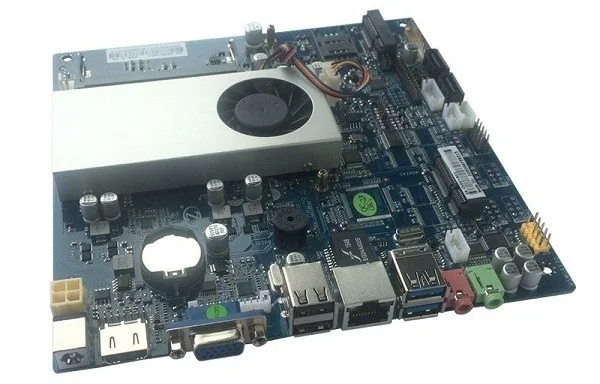

Product Showcase
Packaging & Shipping
Packing:
Original factory package
In anti-static bag + air bubble +paper box
Customized package
Delivery Time:
1 working day to confirm our stock.
3 working days for testing and shipping.
Customized product delivery negotiation via email.
Shipping Ways:
It will be shipped by DHL/Fedex/TNT/UPS/EMS or other ways.Please contact us and choose the best one.
All products will be strictly tested by QC department and shipped worldwide directly by sea,air and express.
We will provide all document you need to import.
