Product Overview
Description

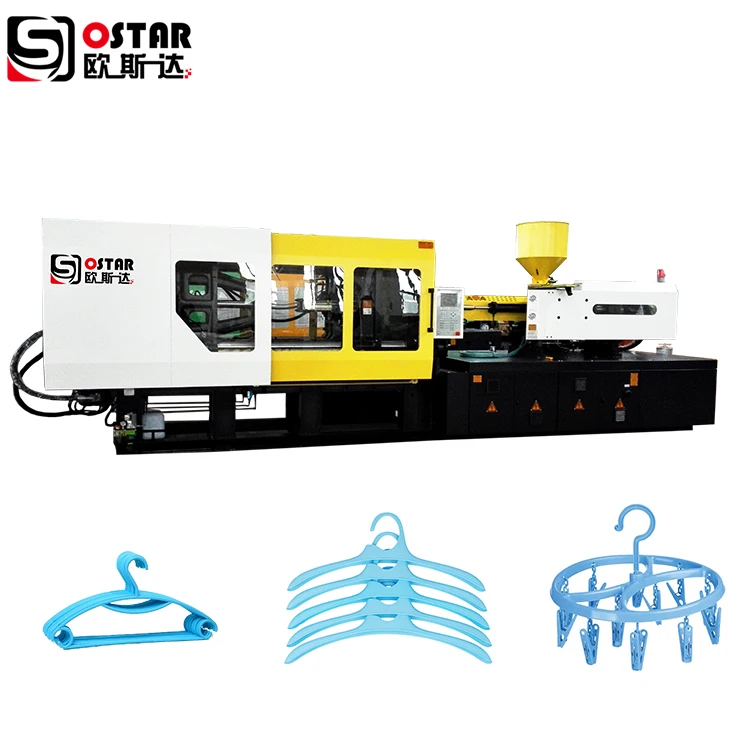

PET plastic injection molding machine
Machine advantage :
Modularized enery conservation High response oil-way system
Modularized enery conservation high response oil-way system could improve the speed of the complete machine and also save enery consumption
High-capacity injection system
Much more bigger capacity of the charging barrel , more reasonable for the screw diameter ratio .
Optimal design of high -strength precision clamping structure
It adopts finite element design with higher strength and more precise operation
Machine parameter :
MACHINE MODEL | UNIT | OSTP -200 |
INJECTION DEVICE |
| |
SCREW DIAMETER | MM | 62 |
SCREW DOAMETER RATIO | L/D | 24:1 |
THEORETICAL SHOT VOLUME | CM3 | 814 |
INJECTION WEIGHT ( PET ) | G | 830 |
INJECTION STROKE | MM | 270 |
INJECTION PRESSURE | MPA | 131 |
CLAMPING UNIT |
| |
CLAMPING FORCE | KN | 2000 |
TOGGLE STROKE | MM | 436 |
SPACE BETWEEN TIE-BARS | MM | 460X460 |
MIN-MAX MOULD THICKNESS | MM | 180-1500 |
EJETION STROKE | MM | 140 |
EJECTING FORCE | KN | 70 |
OTHER |
| |
MAXIMUM SYSTEM PRESSURE | MPA | 16 |
OIL PUMP MOTOR POWER | KW | 22 |
HEATER POWER | KW | 24.1 |
OVERALL DIMENSION (ROUGH ) | M | 6.04X1.46X2.04 |
MACHINE WEIGHT ( ROUGH ) | TONS | 6 |

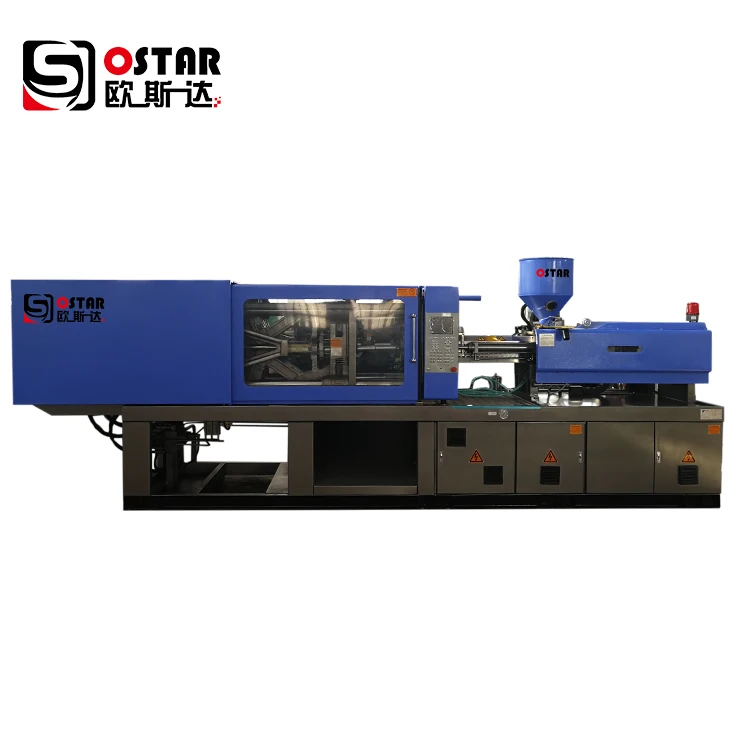

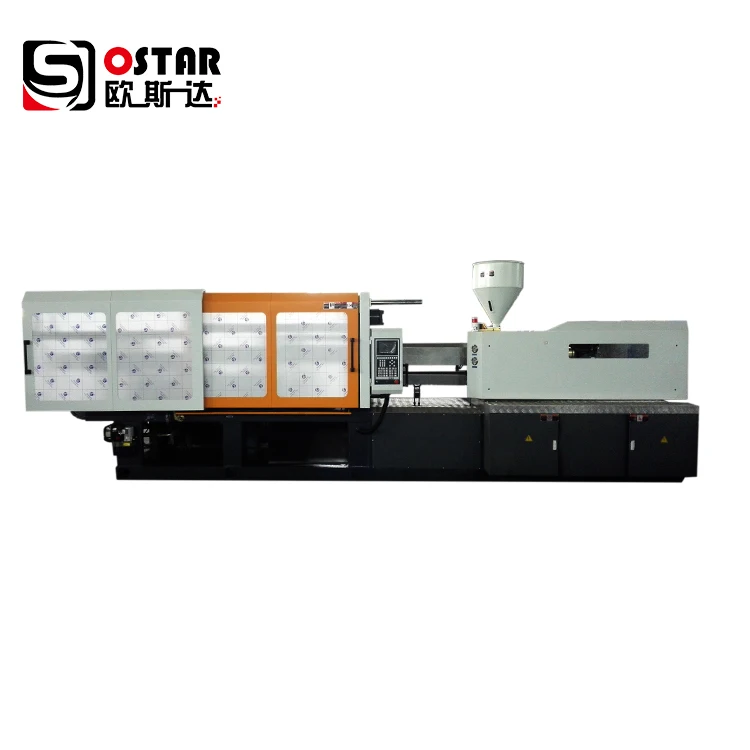

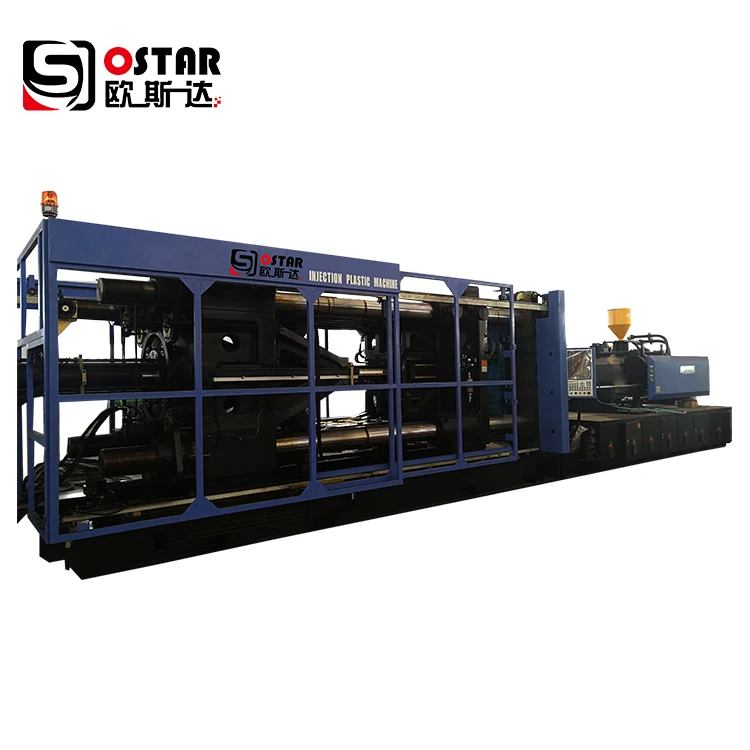

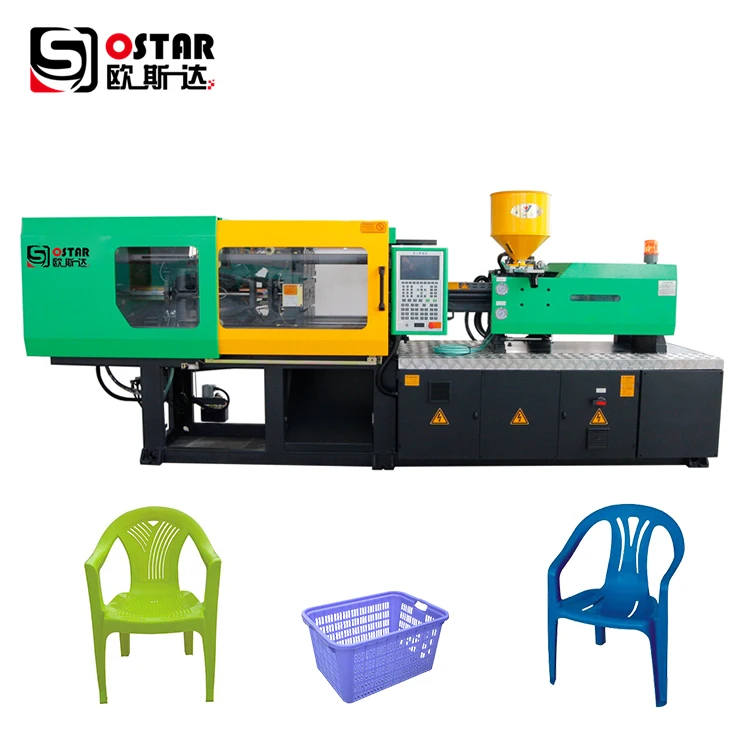

Machine details :
Mold details :

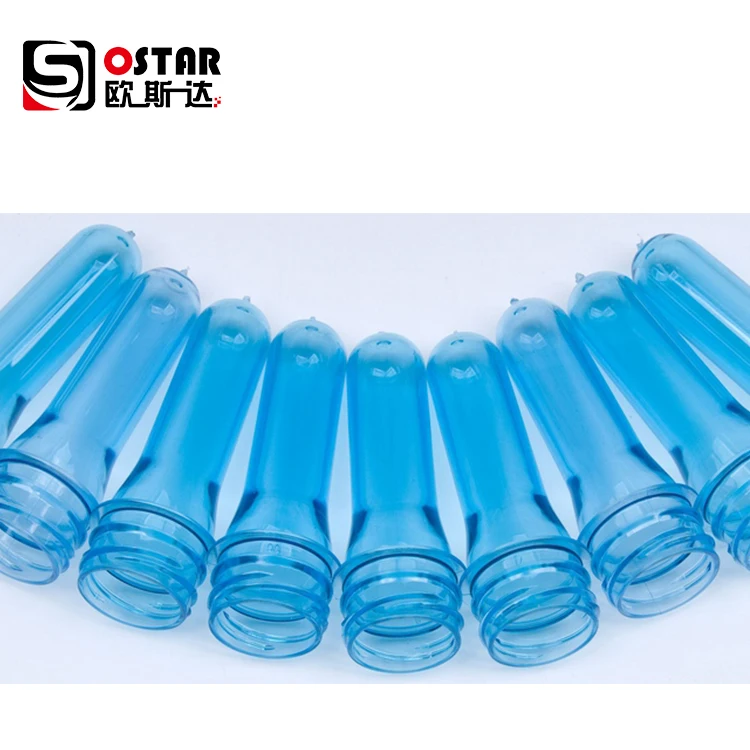

PET PREFORM :
production process
shipment
customer with machines
customer visit
certificate
