High Quality RS485 Modbus Doorbell with White Color Tempered Glass Frame

Product Overview

Description

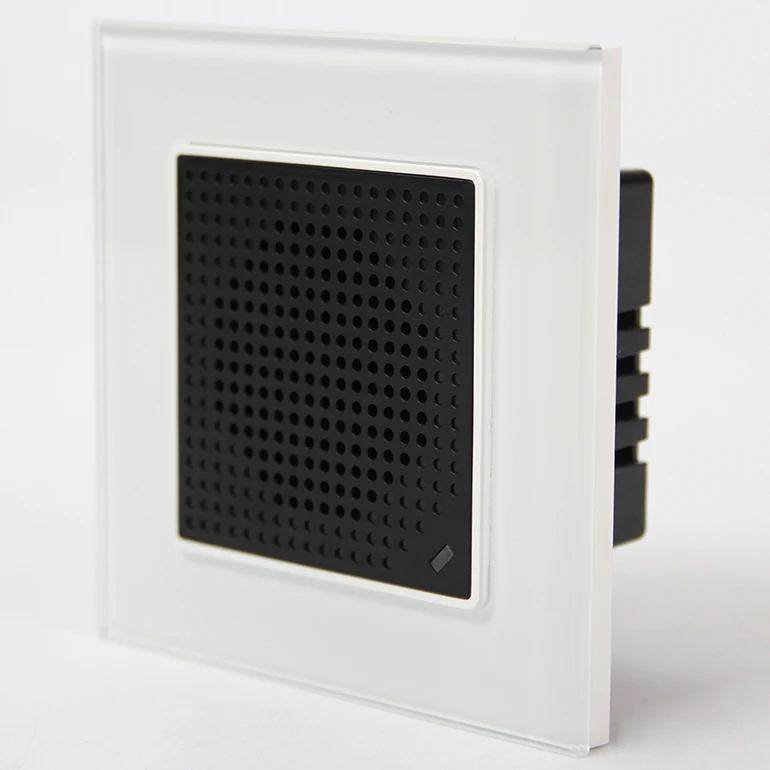

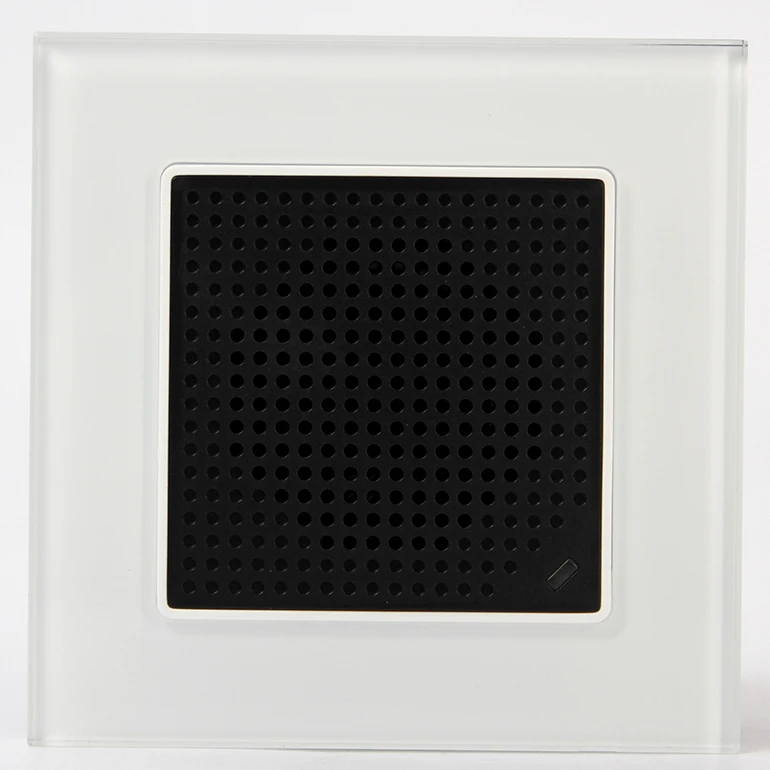

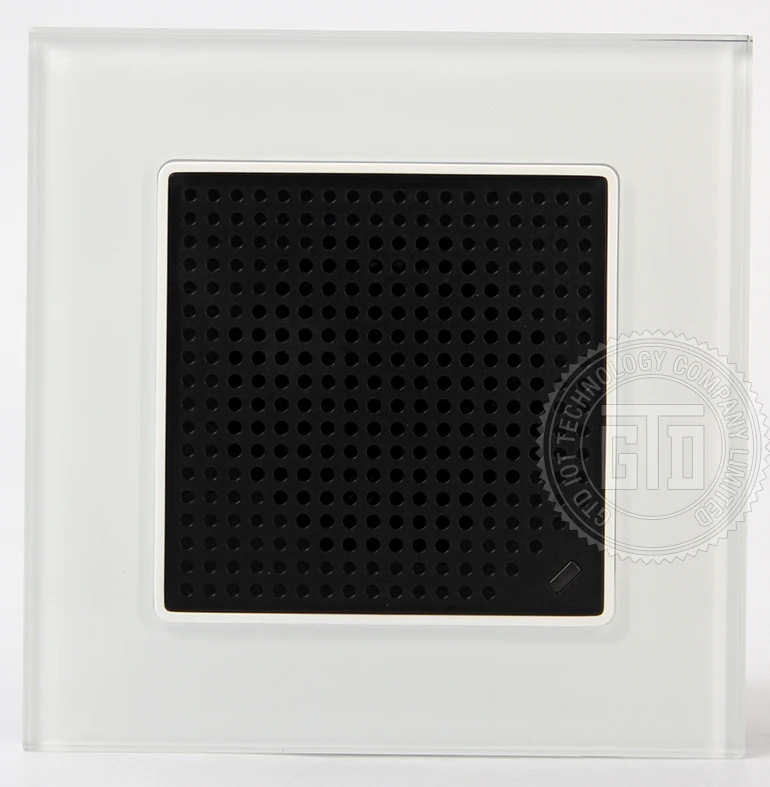

High Quality RS485 Modbus Doorbell with White Color Tempered Glass Frame





4mm Thickness Completely Black Tempered Glass Crystal Panel, Anti-scratch, Waterproof, Leak-proof, Easy to Clean.

4mm thickness exclusive design completely tempered glass panel, good crystal effect, it will give you good visual effect, well enhance the hotel level and attraction, will bring more guests and all guests satisfied with distinguished enjoy.

The glass surrounded chamfering processing and tempered processing ensure using safety, even broken, the fragment edges is round, not like ordinary glass broken with edges and corners fragments angular to hurt scratch your hand.

Meanwhile, the glass is anti-scratch, waterproof, leak-proof, easy to clean.



Flame Retardant Base

High quality PC (polycarbonate), impact resistance, heat resistance, flame retardant, mechanical properties, in line with international fire safety standards.

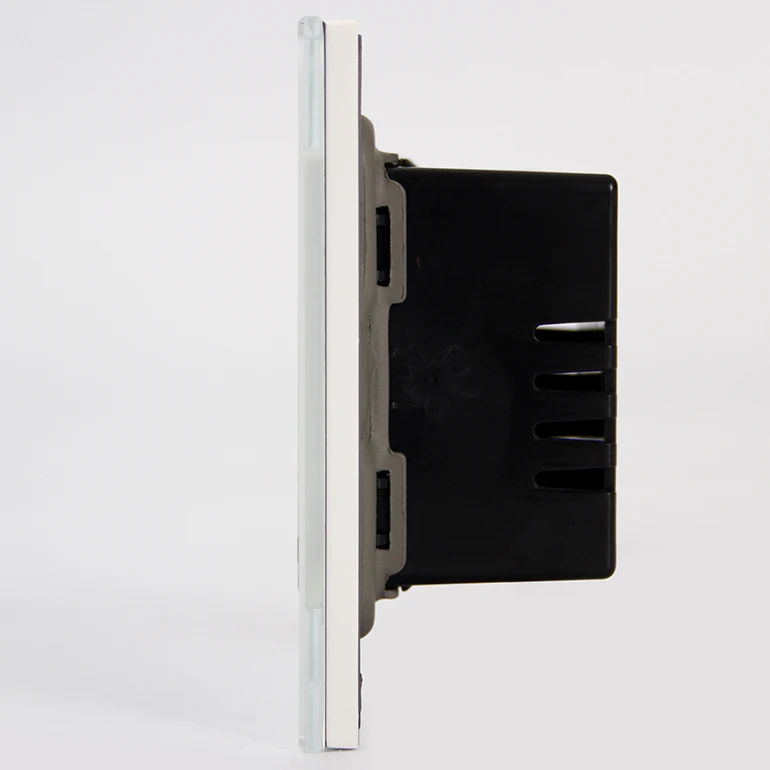

Seamless Installation

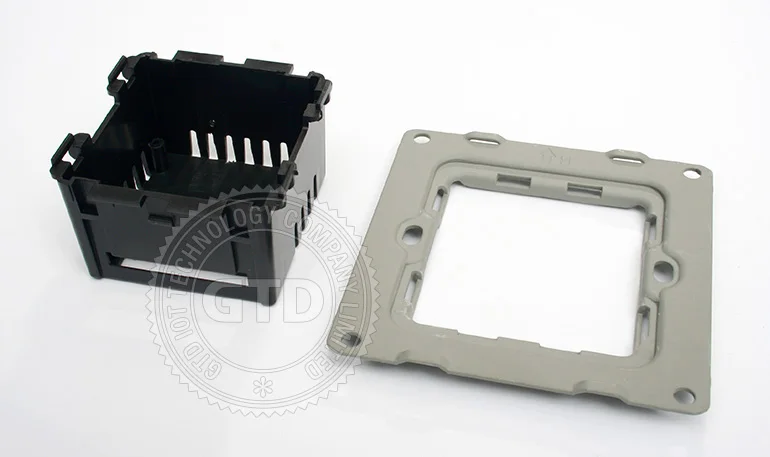

National standard 86 bottom box installation, and the wall seamless, stylish and beautiful, reliable and safe. High quality cold rolled steel plate bracket, through the insulation coating processing, with high strength, not easy to deformation, and convenient installation characteristics.

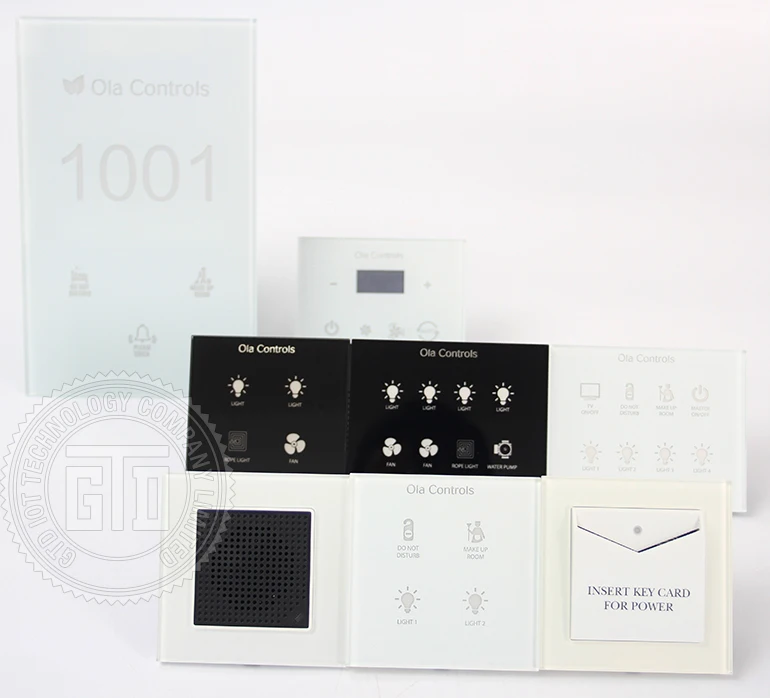

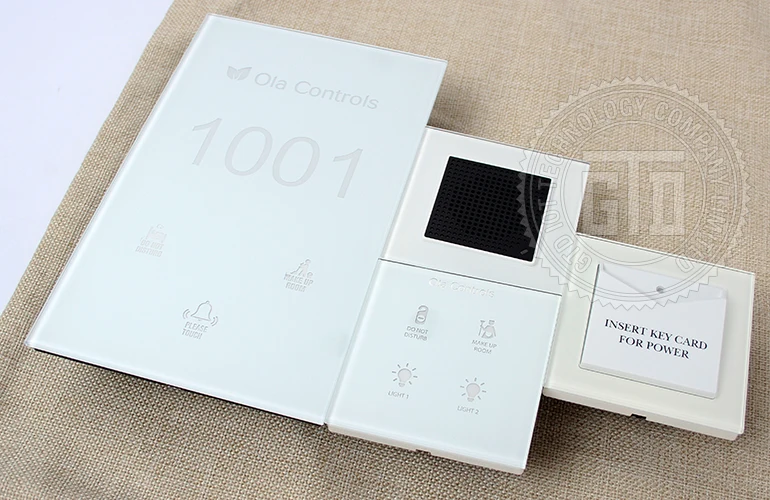

Color Optional, Can be Printed LOGO

A variety of colors (magnetic white, silver, champagne, gold) for choice, function keys can be customized according to different requirements of a unique icon.

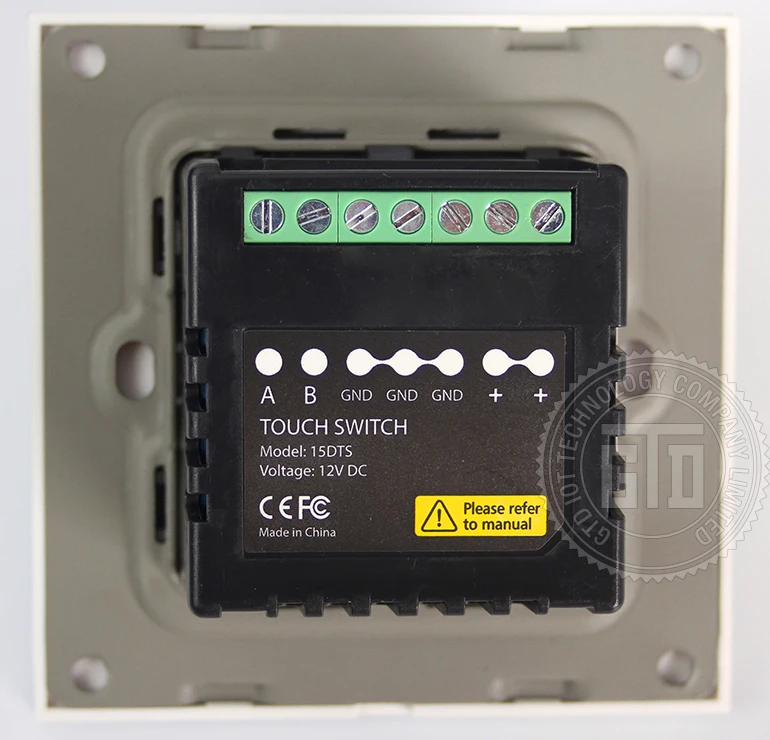

RS485 MODBUS Protocol Technology by International Standards, Support RCU Central Program Integrate and Control, Easy Wiring

All panels are based on RS485 Standard Modbus communication protocol, 9600/19200 baud rate, international popular, stable and flexible. It is compatible with most RCU. With it, the stars luxury intelligent hotels will achieve smart centralized mangement control easily and efficiently.

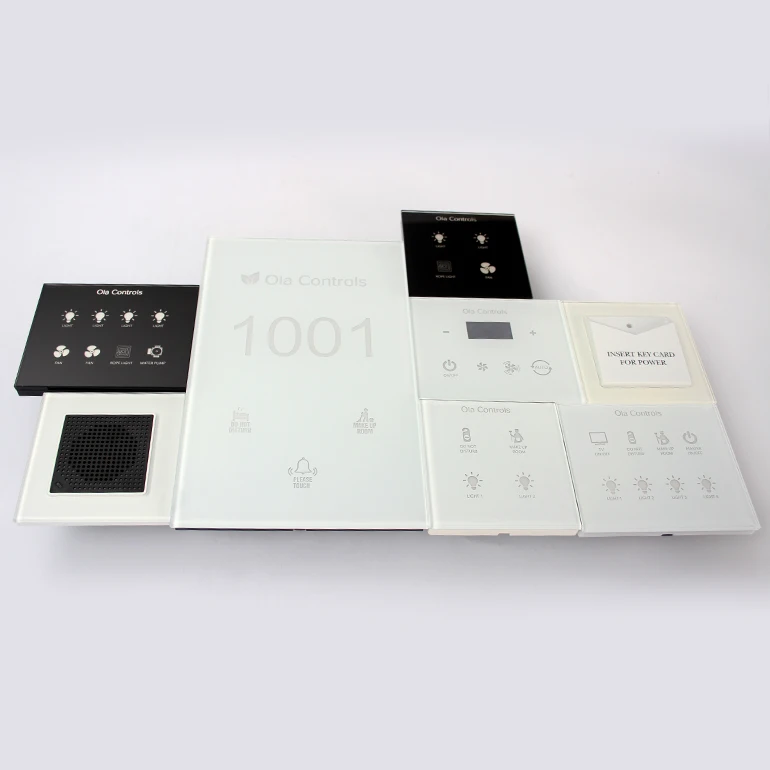

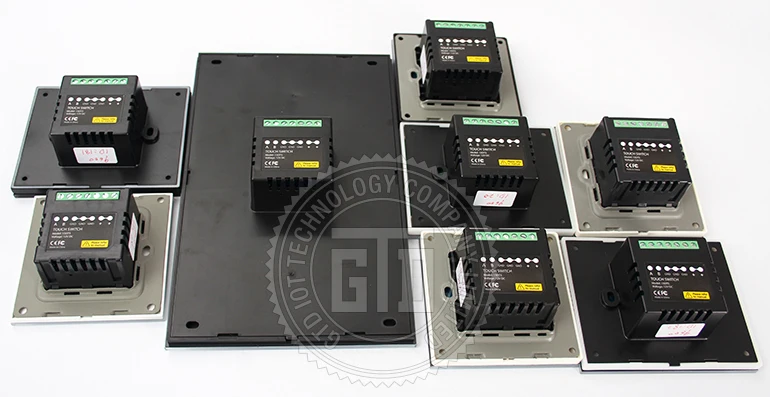

Variety of Products

We have variety of products, all modular design, easy installation and collocation. Except black, we can also special do white, silver, gold, champagne, etc. at request, you can choose as need.



Product Datesheet:

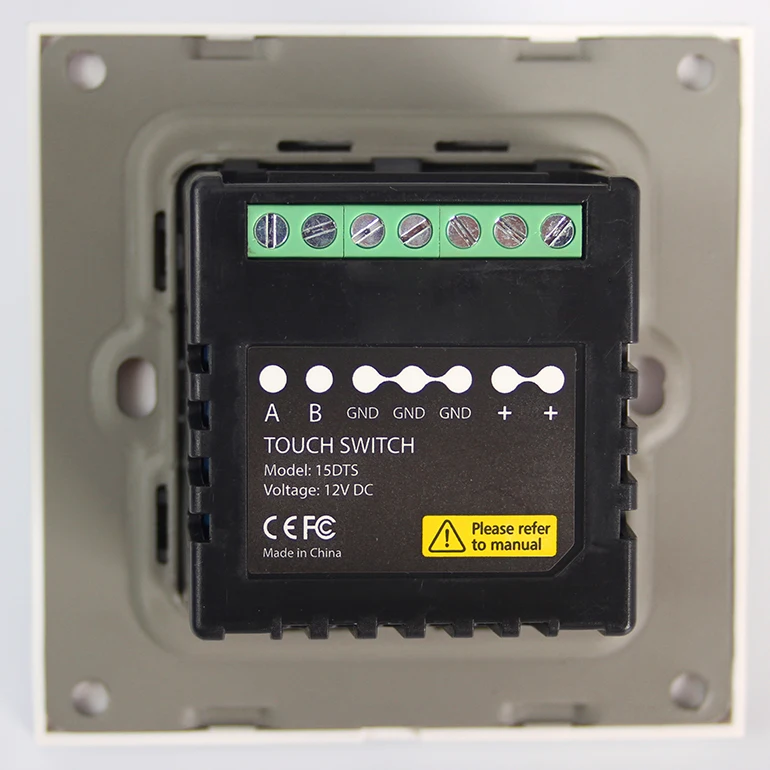

Input voltage: 12V

Communication protocol: RS485 Modbus

Baud rate: 9600/19200, 8 data bits, no parity, 1 stop bit

Product size: 86*86*45mm

Fixed screw center distance: 60mm (86mm button box)

Operating temperature: -10℃--60℃

Working humidity: 0 - 95%
