24V 20Ah li ion battery pack for Solar supply system
US $0.50-$280.00
48V 20Ah 25Ah 30Ah Lithium Battery Pack For Electric ATV Quad Bike Motor 48V 1500W
- Category: Battery Packs >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd
Share on (60749410978):
Product Overview
Description
Battery also can be customized according to your requests.
Product Description
- 48V 20Ah Lithium Ion Battery (LiNiMnCoO2 (NMC) Lithium-ion 18650 cell)
- Nominal Voltage: 48V
- Nominal Capacity: 20Ah
- Battery Energy: 960Wh (Approx.)
- 13 series 9 parallel = 117 18650 3.7v 2200mah cells

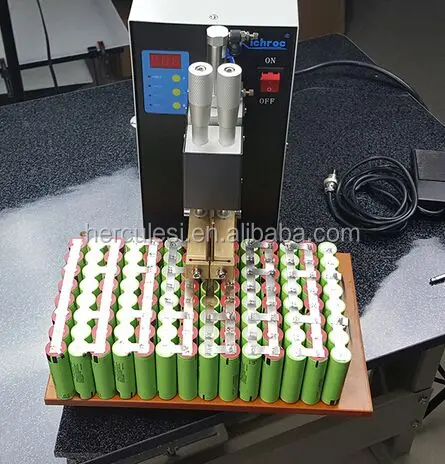

- Spot welded with pure nickel strips
- 30A max continuous balancing function built-in BMS
- 60A peak discharge
- Charging Model: CC /CV
- Charging Cut-off Voltage: 54.6V
- Discharge Cut-off Voltage: 36V +/- 1V
- Recommend for motor: 48V 1200W 1000W 750W 500W 350W
- Application: E-Bicycle, Tricycle, Motorcycle, Scooter...
- Dimension: 70*170*255mm
- Weight: about 6 kg
- Charging/ Discharge Temperature Range: 0~45°C / -20~65°C
- Cycle Life: 800~1000 times
- Passed ISO9001, UL 1642, CE, ROSH, UN38.3
- Battery Warranty: 13 Months
- Part Includes: 1× 48V 20Ah Lithium Ion Battery Pack
1× 54.6V 2A Charger
Detailed Images
Contact Us
Nancy Zheng
Email: sales03(at)herculesi.com
Whatsapp: 0086 1371 5144 685
Skype: sales03(at)herculesi.com at=@
- OEM order is welcome in our factory
- Core Competencies is “24V – 72V lithium ion battery ”
- Passed ISO9001, UL 1642, CE, ROSH, UN38.3
- Fully 13 months warranty with good after customer services
- Down tube/ Frame / MTB / Rear Carrier / Bottle / Frog / Folding / Under Saddle / Tube E-bike battery solution available
- www.herculesi.com
