Product Overview
Description
We could design and produce different machines for aluminum industry, including:
Aluminum lever machine
Aluminum Ingot Melting Furnace,
Aluminum Casters Mill,
Aluminum Cold Rolling Mill,
Aluminum Foils Rolling Mill,
Aluminum Foils Separator Mill,
Aluminum Foils Coating Line

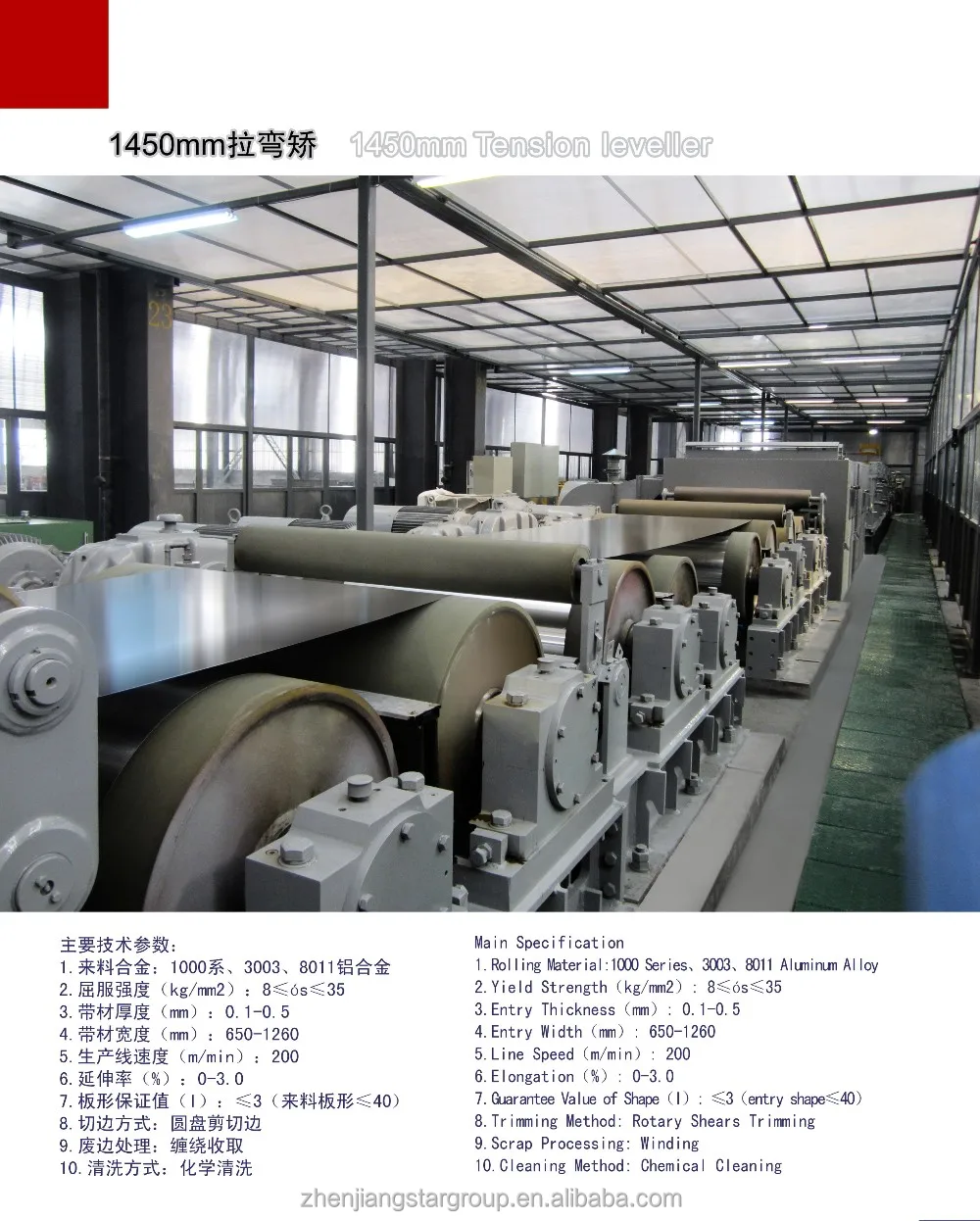

Aluminum lever machine, Aluminum tension leveling machine, automatic level machine, leveller machine
| specification | 1450mm Tension leveller |
| Main Specification | |
| Rolling Material | 1000Series,3003,8011 Aluminum Alloy |
| Yield Strenth(kg/mm²) | 8≤ós≤35 |
| Entry Thickness(mm) | 0.1-0.5 |
| Entry Width(mm) | 650-1260 |
| Line Speed(m/min) | 200 |
| Max.Rolling Force(T) | |
| Elongation(%) | 0-3.0 |
| Guarantee Value of Shape(l) | ≤3(entry shape≤40) |
| Trimming Method | Rotary Shears Trimming |
| Scrap Processing | Winding |
| Cleaning Method | Chemical Cleaning |
Aluminum Foils Coating Line
Aluminum Casters Mill
| specification | 960×1900mm Casters |
| Main Specification | |
| Casting Material | 1000Series,8011,3003,5052A |
| Roller Dimension(mm) | 960×1900 |
| Casting Dimension Of The Strip | (6.0-10.0)×1750 |
| Max. Rollig Force(T) | 2000 |
| Coil ID(mm) | 510 |
| COil OD(mm) | 2000 |
| Max.Coil Weight(kg) | 13000 |
| Max.Coil Tension(KN) | 180 |
Aluminum Cold Rolling Mill,
| specification | 420×1100×1900mm strip cold rolling mill |
| Main Specification | |
| Rolling Material | 1000,3000,5000,8000 Series Aluminum alloy |
| Roller Dimension(mm) | 420×1100×1900 |
| Entry Thickness(mm) | 6—8 |
| Entry Width(mm) | 1100-1750 |
| Entry OD(mm) | Max. 2500 |
| Max. Weight(kg) | Max. 22000 |
| Finished Product Thickness(mm) | Min. 0.2 |
| Finished Product Width(mm) | 1100-1700 |
| Line Speed(m/min) | 800 |
| Max.Rolling Force(T) | 1600 |

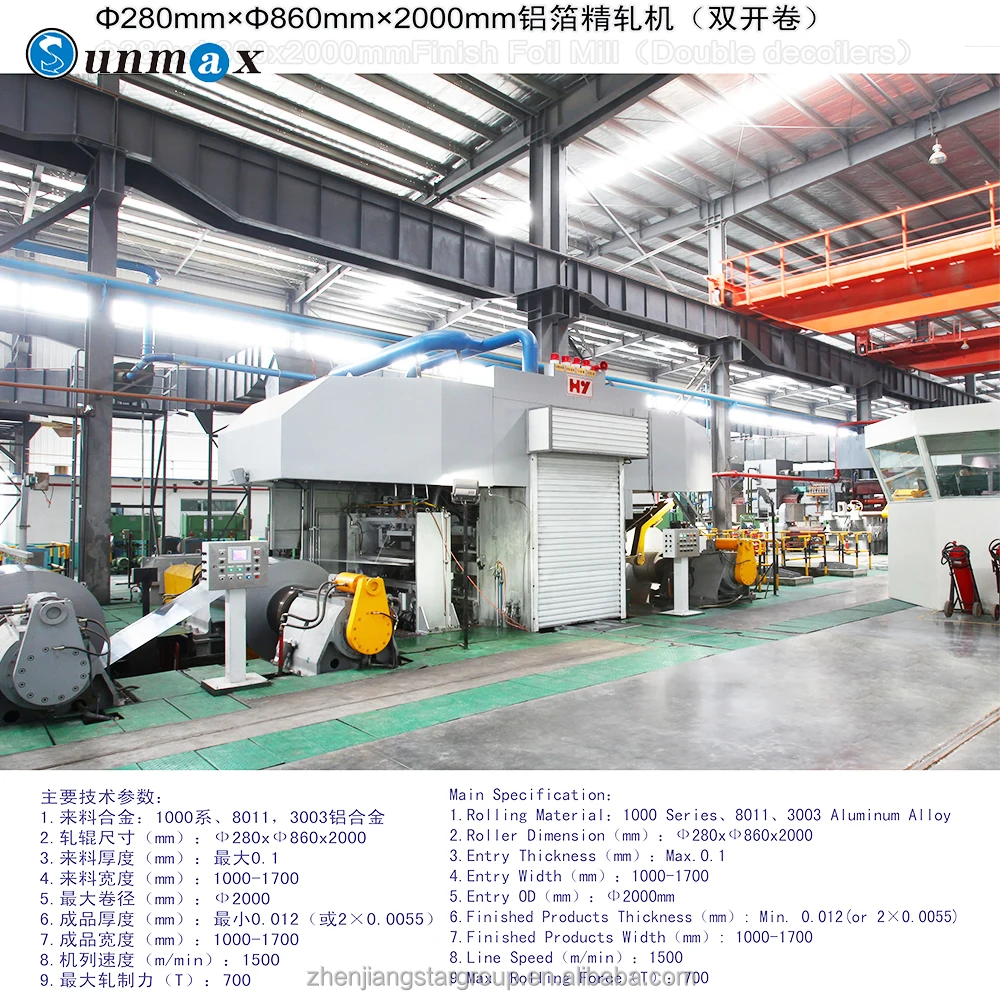

Aluminum Foils Rolling Mill,
| specification | 280×860×2000mmFinish Foil Mill(Double decoilers) |
| Main Specification | |
| Rolling Material | 1000 Series,8011,3003 Aluminum Alloy |
| Roller Dimension(mm) | 280×860×2000 |
| Entry Thickness(mm) | Max. 0.1 |
| Entry Width(mm) | 1000-1700 |
| Entry OD(mm) | 2000mm |
| Finished Product Thickness(mm) | Min 0.012(or 2×0.0055) |
| Finished Product Width(mm) | 1000-1700 |
| Line Speed(m/min) | 1500 |
| Max.Rolling Force(T) | 700 |
Aluminum Foils Separator Mill,
Company Information
Our Machine producing department
Professional, over 20 years aluminum exportation and importation
Reliable, over 10years certificate in alibaba
Qulified, SGS, Bureau Veritas, ISO9001, CIQS certificates
We are now supply to Italy, USA, MEXICO, YEMEN, SYRIA and Brazil market , could be used for the electricity industry, powerstation Industry, decoration and other industry usage.
Welcome to vist our factory to test the quality, service and reputation
