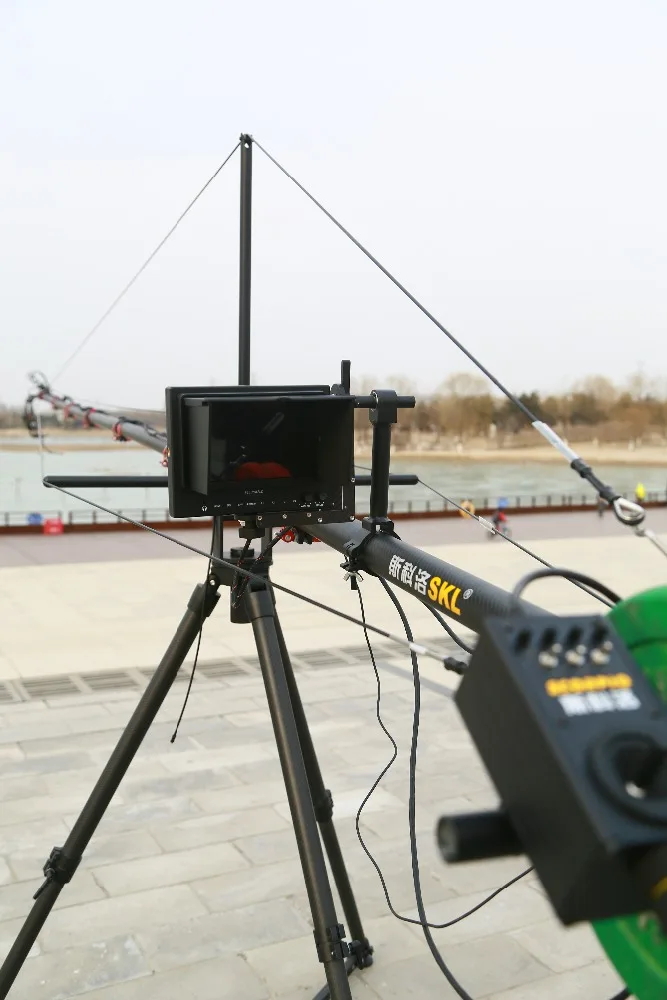

SKL carbon fiber film jib arm camera crane for DV and SLR cameras

Under the expectation of the new and old users, 2018 models of 7-meter carbon fiber portable rocker arm finally came to everyone! Revolutionary design concept, will bring you new shooting experience!



7m carbon fiber camera crane jib is also a type of DV camera rocker arm, which has below advantages:
1. Equipped with Germany original imported hollow cup motor on the cloud terrace.
2. Select original imported 3K carbon fiber as materials. Wall thickness is up to 2mm, it is the thickest of the same kind products in the market.
3. Arm, tripod and electric control cloud terrace all adopted carbon fiber as materials, it is the true sense of pure carbon fiber, which makes the product lightweight and portable.
4. Highly integrated electric control handle, cloud terrace direction, speed, resistance, forward and reverse direction, lithium battery together, no need to use external batteries.
5. Carbon fiber tripod, integrated design, stable, beautiful and lightweight.
6. Carbon fiber electric control cloud terrace, bearing weight up to 10kg, support for small high-definition, SLR and other cameras. Its control method is the same with the traditional camera jib crane electric control cloud terrace (But you should attention some other suppliers’ “similar camera jib crane” need to match the three-axis stabilizer cloud terrace, which will increase the costs, bearing weight is low, occurrence delay and inconvenient operation.)
7. Dedicated tripod cloud terrace, allows the rocker arms to move up and down, left and right more smoothly. (But some other suppliers’ “similar camera jib crane”, they are achieved by using a standard tripod ball shape cloud terrace, which is not ideal, not convenient to use, and costs too much.)
8. Packing with military level waterproof shockproof box, engineering plastics, safe and reliable.
9. Equip with sony280 camera on the jib, jib arm only need to add 30 kg to balance the weight. Equip with 5D SLR camera, jib arm only need to add 16 kg to balance the weight.
10. Super fast installation and disassembly, no need tools, no screws, just get in a few minutes.

Basic Configuration (Standard) | |
Imported 3K carbon fiber camera jib arm | 7m |
Carbon fiber tripod | 1set |

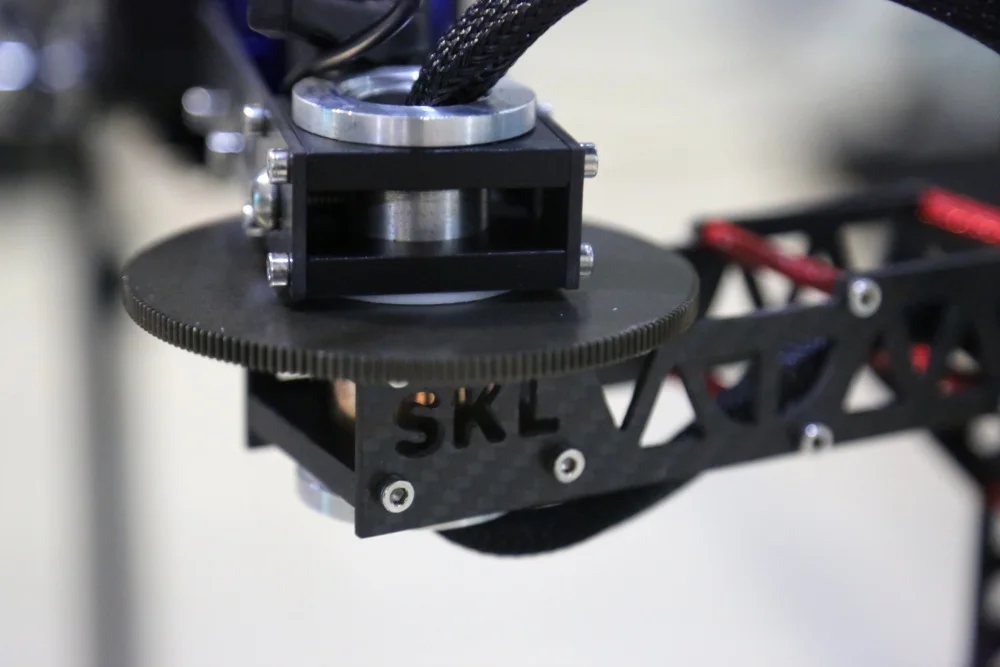

Carbon fiber electric control cloud terrace | L shape, bearing weight 10kg |

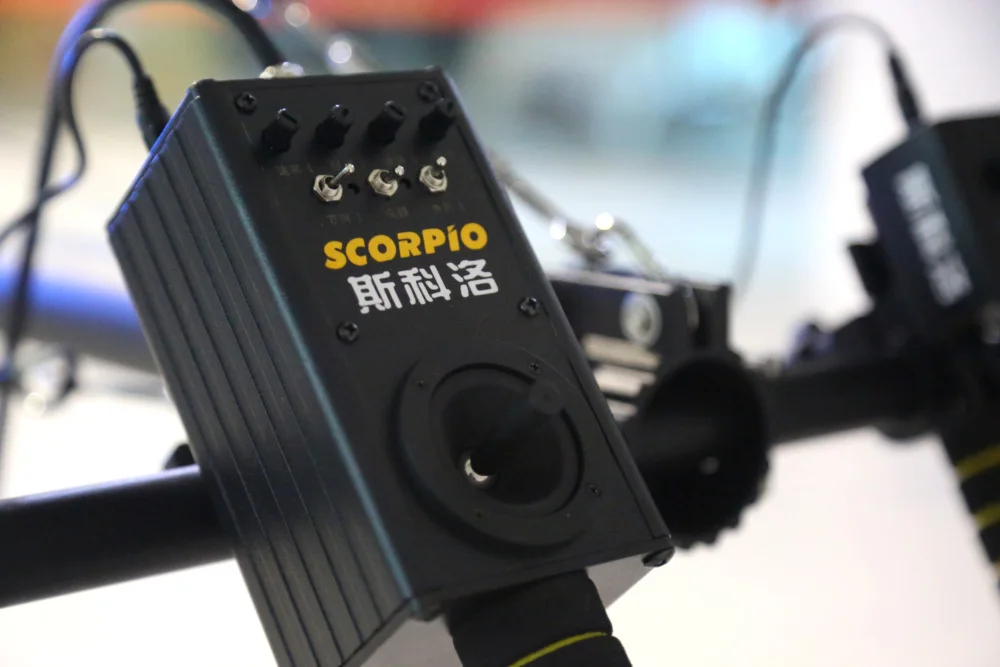

Servo integral handle | Control cloud terrace direction, central control servo and lithium system |
Camera servo control handle | Control Sony/Panasonic cameras |
Power adapter | 220V |
Steel wire pull rope | 7m, 6m, 5m, 4m |
Military level waterproof shockproof box | 2pcs |
Installation instruction video | 8G USB flash disk |
Warranty Card | 1pc |
Packing list | 1pc |
Optional | |
Triangle pulley | 1set |
SDI HD LCD monitor | 7” |
Dedicated servo controller | For Sony280 camera |
USB follow focus controller | For SLR camera |
Counterweight pieces | 2.5kg, 5kg, 7.5kg, 10kg, 15kg, 20kg six different kinds of specifications. |



7m carbon fiber camera crane jib is designed for small HD cameras, DV cameras and SLR cameras. Its rocker arm can apply to the camera of Panasonic and Sony brand. They are widely used in the wedding scene, sporting event and film festival ect.

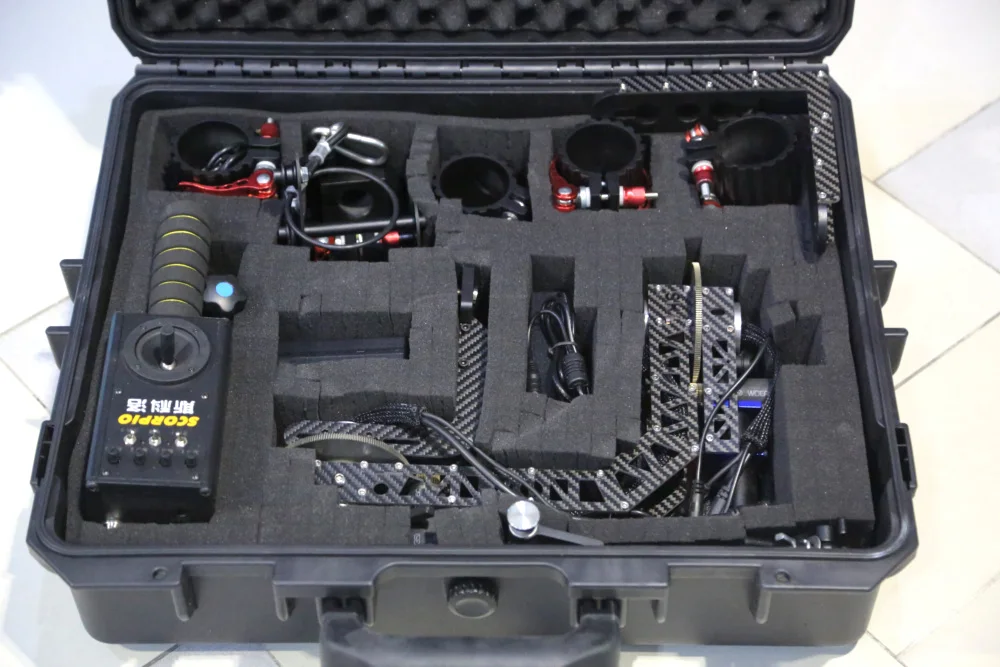

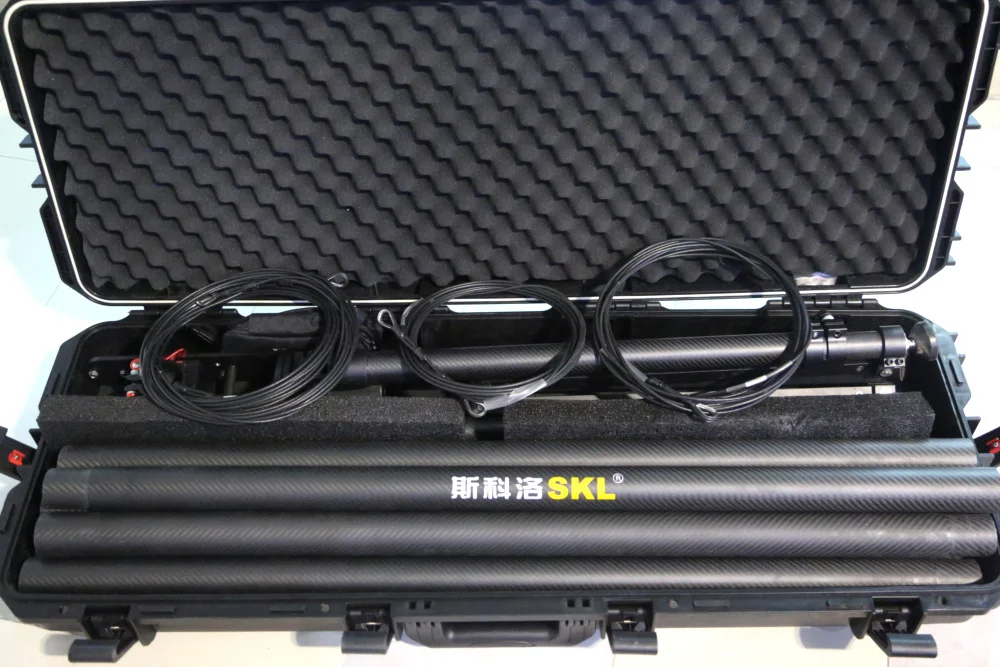

Packing: Military level waterproof shockproof box and carton.
Package | |
Packing List (2 cartons/set) | Arm and Tripod carton size:113x44x18cm Cloud Terrace carton size: 56x46x18cm G.W: 28KG |
Delivery Time | 1-7 days after payment |
Main Port | Tianjin, Shenzhen or customer designated port |
