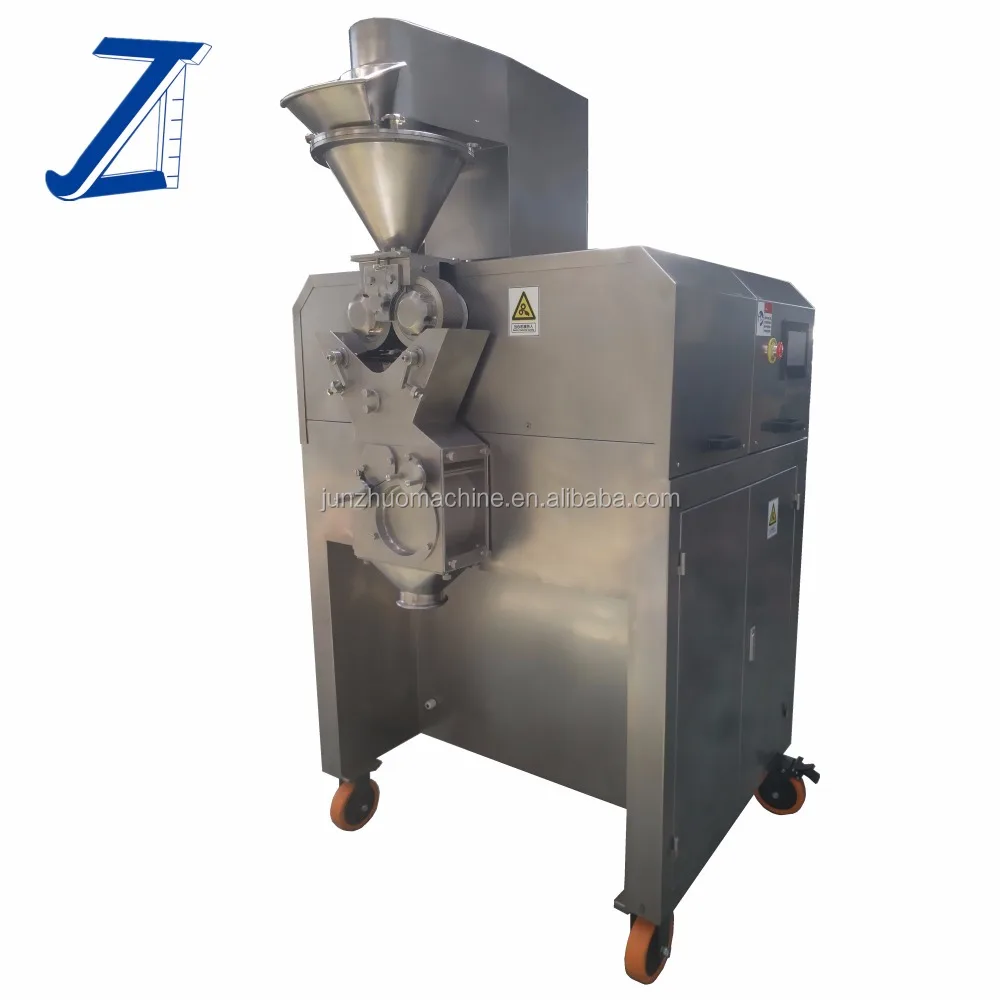

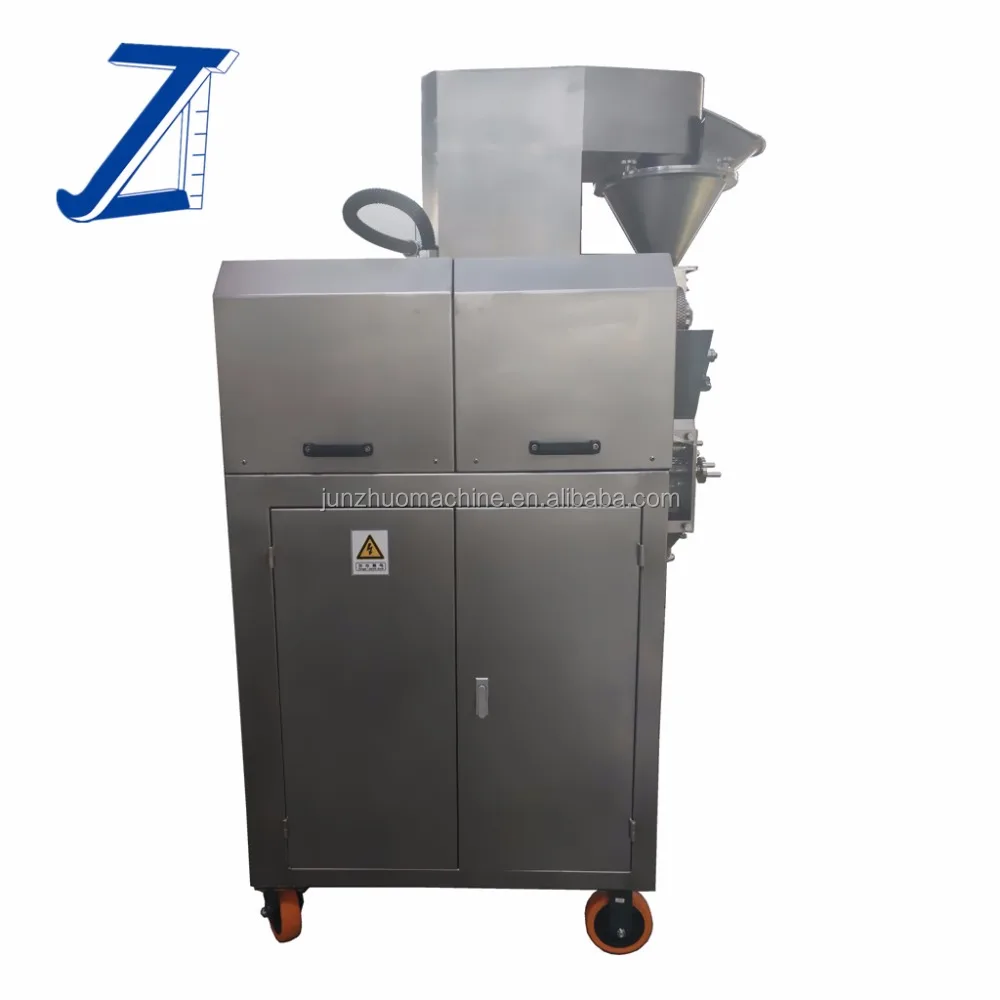

GK series dry granulator roll compactor with vibrating sifter
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (60749511519):
Product Overview
Description
Product Description
GK-60 Pharmaceutical Roller Compactor With Ultrasonic vibrating screen
In pharmaceutical industry, roller compaction has become the method of choice for dry granulation. Because of its reasonable design, the process technology can be almost completely disassembled without special tools. The movable design provides great flexibility during compaction feasibility studies and allows an easy maintenance.
The GK-60 dry powder granulator is a clean type, a vertical product flow system uses a tapered feed screw to deliver the material to the fully contained compaction zone of the cantilevered rolls, increasing product yields and minimizing product fines. Roll compactor utilizes a unique roll system to compact powders into sheets or briquettes. The compacted sheets are milled to produce granules of a specific size.

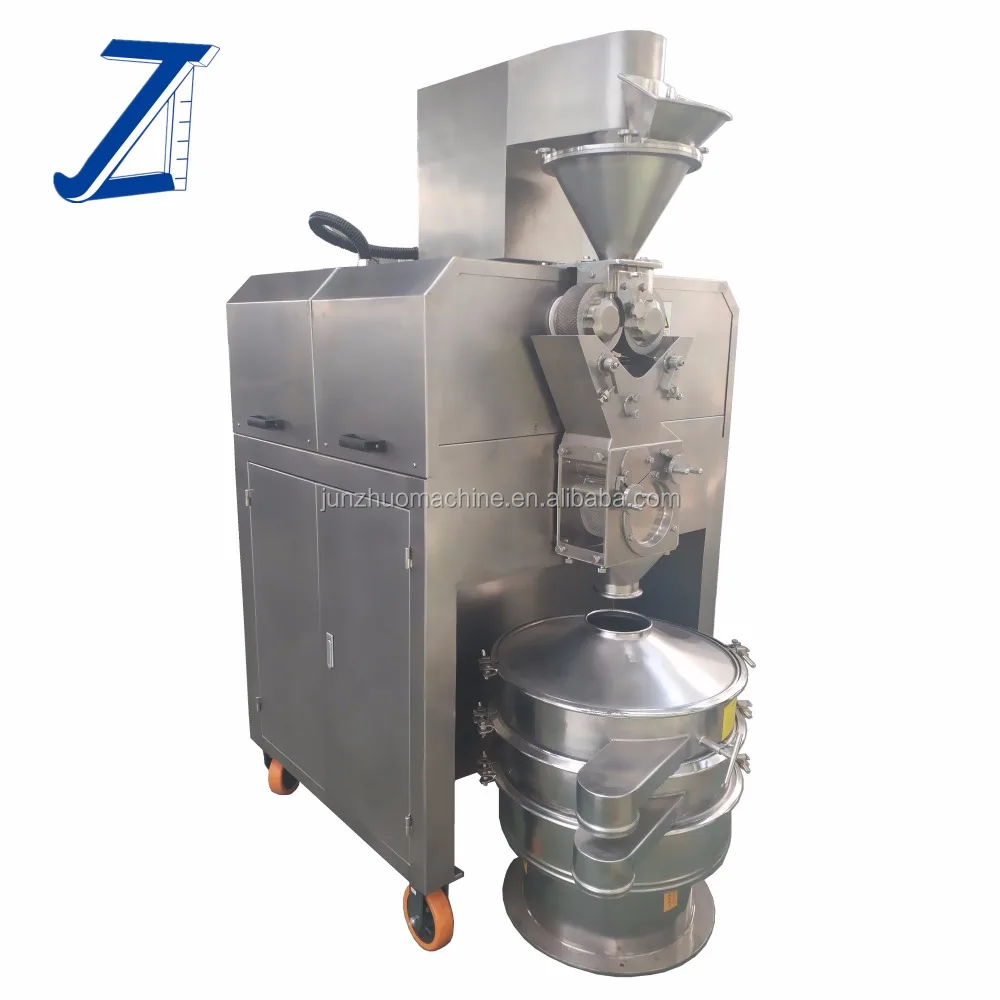

This unit has a ultrasonic vibrating sifter, so the total size will be larger than normal type. The overall size of GK-60 dry granulator is 1250*1150*2000mm.
Technical Parameter
Model | GK-30 | GK-60 | GK-100 | GK-200 |
Output of sheet(kg/h) | 3~10 | 20~100 | 120~200 | 250-500 |
Output of granule(kg/h) | 0.5~2 | 5~40 | 40~100 | 100-300 |
Granules diameter(mm) | 0.5~3 | 0.5~2.5 | 0.5~4 | 1-5 |
Total power(kw) | 2.5 | 5 | 12.5 | 24 |
Feed Screw Speed(r/min) | 6~33 | 6~65 | 6~60 | 5-50 |
Roll speed(r/min) | 4~25 | 4~25 | 4~25 | 5-22 |
Overall size(mm) | 880*550*1300 | 1750*1150*2000 | 1800*900*2300 | 2500*2150*2750 |
Approx. weight(kg) | 750 | 930 | 2000 | 6500 |
GK-60
1.Raw Material
The raw material is dry powder, which can be made into granules.In general, a major advantage of dry granulation over wet granulation is the absence of water or any organic solvents. Therefore, this methodology is especially attractive for drugs, which are moisture or heat sensitive.
2.Input Hole
Add raw material in this part. Some raw material have the characteristic of low specific gravity and bad flow ability. By using the dry granulation process, it will improve the above characteristics and result in a bigger bulk density, higher specific gravity and good flow ability of granules.
3.Feeding Screw
The screw performance exerts a significant influence upon the granulating capability of the roll compactor, which have materials intruded between the rolls to facilitate de-gassing.
4.Feeding Hopper
This unit conveys the powder to the compaction area between the rolls. Such as Pharmaceutical: Chinese Medicine, Western Drug, Antibiotic Chemical, Agriculture Product, and Food.

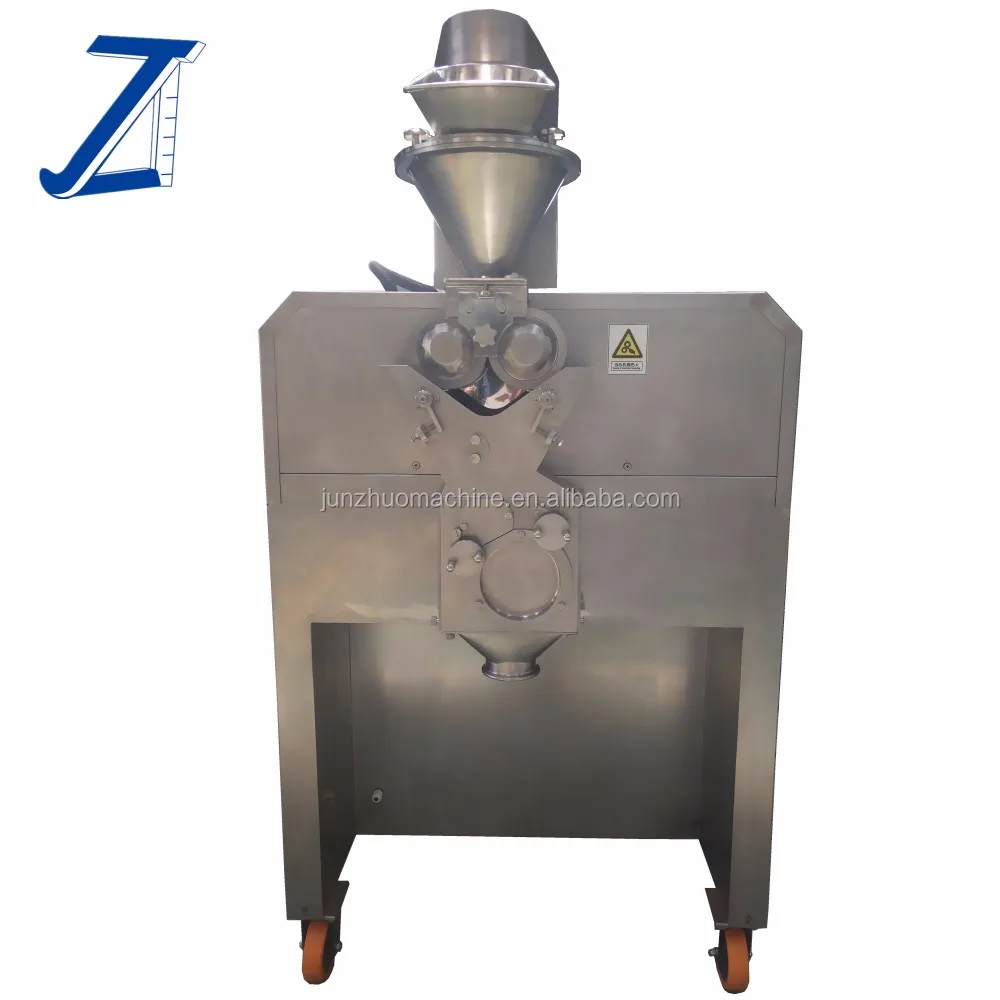

5.Roller Compaction
The rollers are made of stainless steel and are equipped with teeth to produce a powerful grinding action by forcing the material against a series of breaking combs.
6.Sheet or Flake
The powder will be compacted into ribbons or pellets between these pressured rolls which rotate in opposite direction.
7.Size Reduction
This results in sheets of compressed material, which are then milled into granules of exactly the agreed density, before being lubricated and compressed into the desired final form.
8.Oscillating Granulator
Granulators with screen, you can efficiently get a target particle size. Without water adding in the process, drying process is not required. Therefore, granulation process is easier.
9.Discharge
Option to equip a vibration sifter, it filtrates small or undersize granules for re-granulation purpose. The good flow ability of outcome granules can be easily filled into capsules.

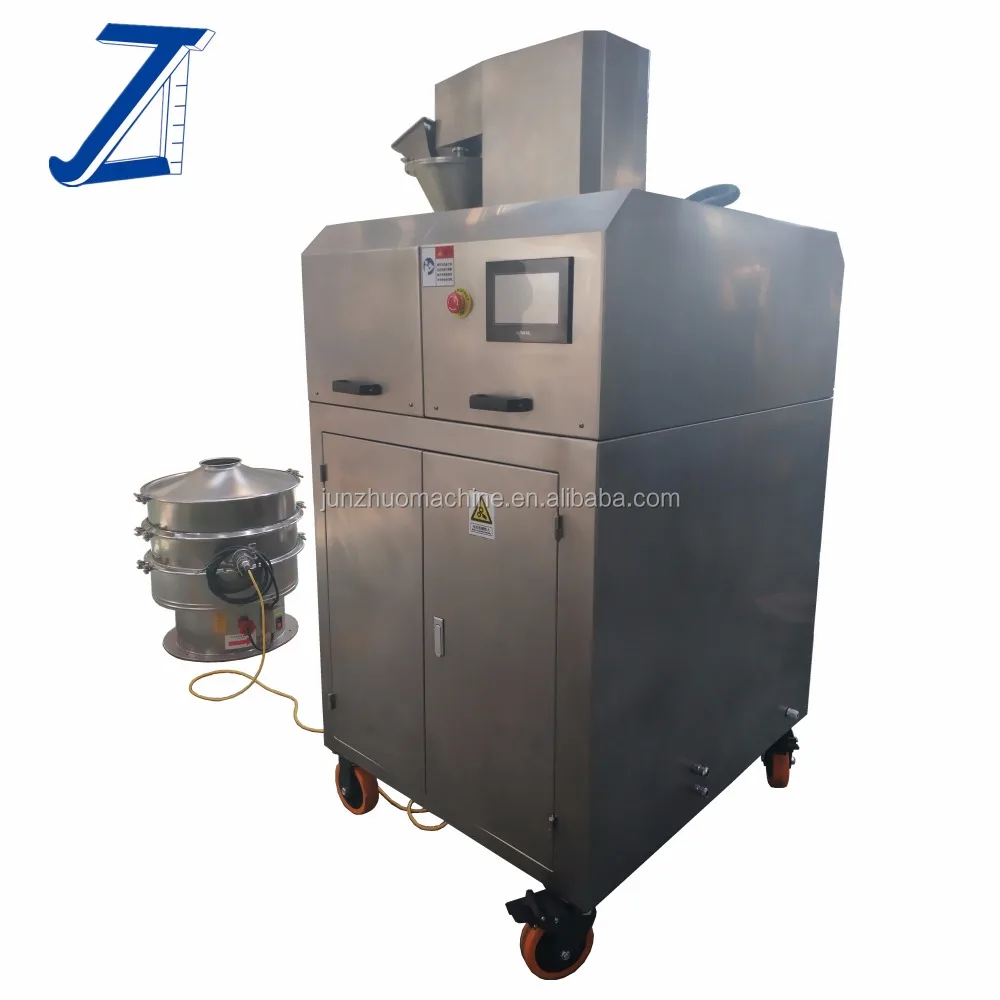

10.PLC Control
PLC control system with touch screen, which is easy to operate. It has both Chinese and English versions.
11. Hydraulic System
Since the operative pressure of the hydraulic cylinder can be easily adjusted, you are able to reduce the compression force for soft granulation.
12.Final Granule
The granule diameter is depended on screen sieve size, which can be exchanged.
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
