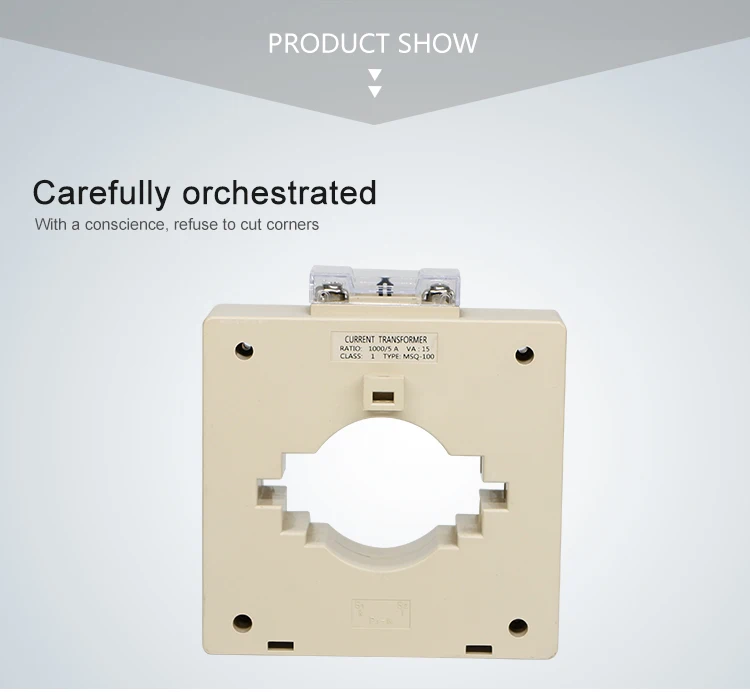

High Quality MSQ 100 Current Transformers 1000/5a
- Category: >>>
- Supplier: Yueqing Annai Electrical Co. Ltd.
Share on (60749516879):
Product Overview
Description
Features

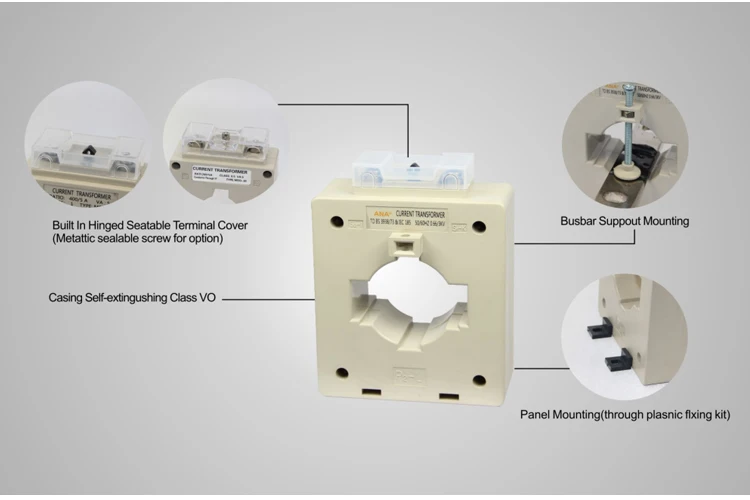

Two built in fixing methods: panel and busbar
Transparent terminal cover
Primary current up to 6000A
Descriptiona
A range of (7 Models)classice plastic case current transformer,low cost,rich range can match most requirements internationally
Specifications
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| MSQ-100 | 800/5 | 7.5 | 10 |
| MSQ-100 | 1000/5 | 10 | 10 |
| MSQ-100 | 1200/5 | 10 | 15 |
| MSQ-100 | 1250/5 | 10 | 15 |
| MSQ-100 | 1500/5 | 15 | 15 |
| MSQ-100 | 1600/5 | 15 | 15 |
| MSQ-100 | 2000/5 | 15 | 15 |
| MSQ-100 | 2500/5 | 15 | 15 |
| MSQ-100 | 3000/5 | 15 | 15 |
