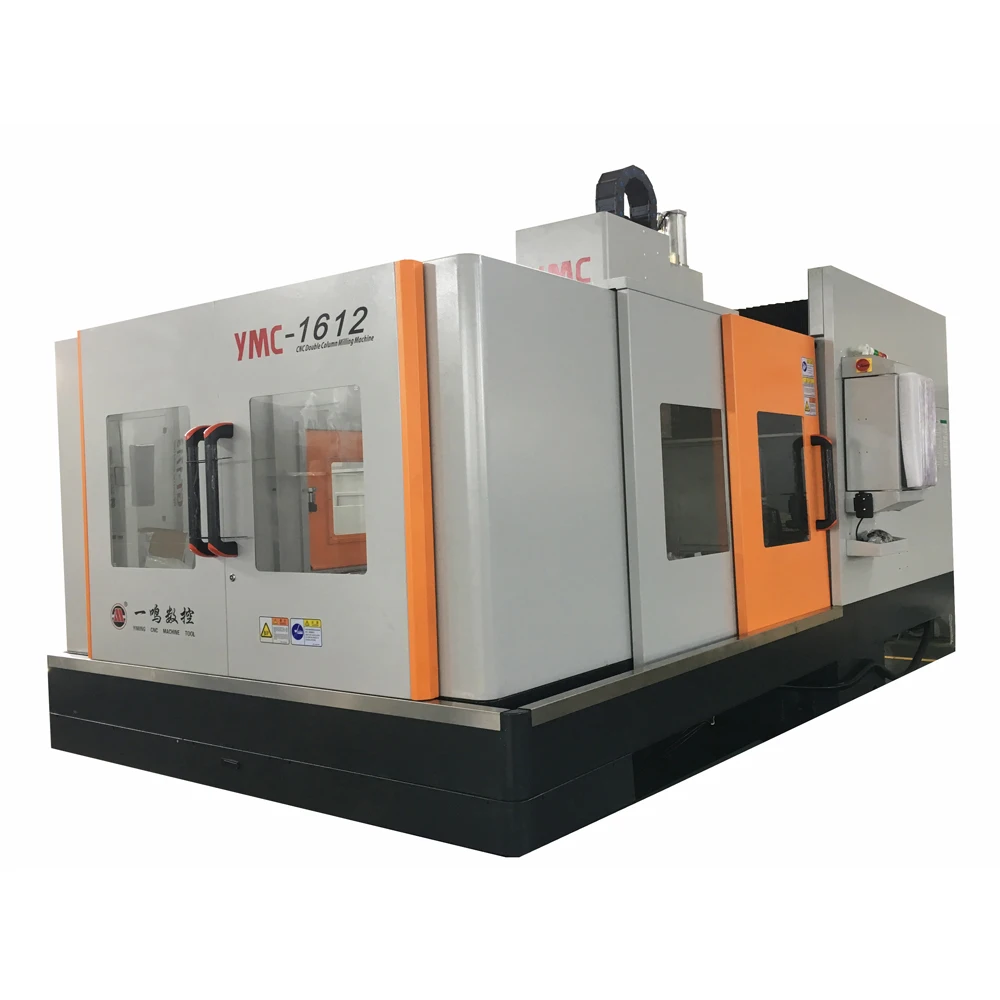

Maxtors Made in China Double Column type Portal VMC CNC Milling Boring Drilling Tapping Machine Center With good price YMC 1612

Product Overview

Description

Maxtors Made in China Double Column type Portal VMC CNC Milling Boring Drilling Tapping Machine Center With good price YMC-1612

Welcome Send us Inquiry

Item		Unit	YMC-1612
Travel	XYZ Travel	mm	1600/1200/550
	Distance from Spindle Nose to Table	mm	150~700
Worktable	Table Size	mm	1600×1200
	Max.Loading on Table	KG	2000
Spindle	Spindle Taper		7/24 Taper No.40
	Spindle Speed	rpm	10000
	Spindle Motor Power	KW	7.5/11
Feeding	Rapid Feedrate(X/Y/Z)	m/min	15/15/7.5
	Cutting Feedrate(X/Y/Z)	m/min	6/6/6
ATC/Tool Magazine	ATC Type		Arm type
	No.of Tools		24T
	Tools Size(Full Tools)	mm	Φ80/260
	Max.Tool Weight	KG	8
Accuracy	Positioning Accuracy	mm	±0.008/300
	Re-Positioning Accuracy	mm	±0.005/300
Others	Footprint	mm	4300×2400
	Machine Height	mm	3000
	G.W.	KG	10500

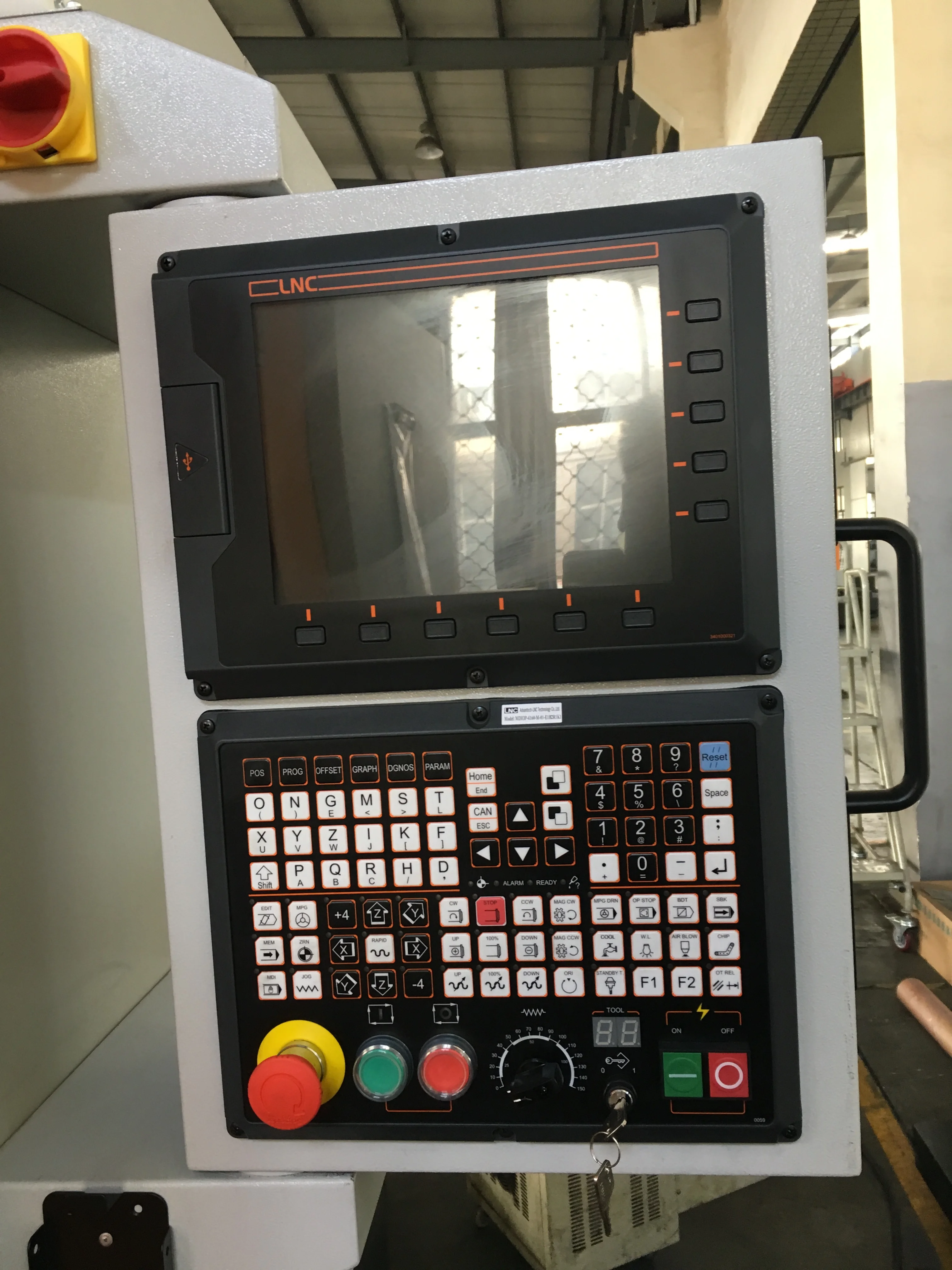

CNC Controller			SYNTEC 21MA

CNC Controller: KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain  (Optional)

>>Send Inquiry Get a Discount

1,Send Inquiry

2,In stock! Send out within 15 Working days, click "Start Order" and pay directly!

(Input quantity, choose your country, then you can see total price)

Please do write your Name, Address, Zip code and Phone number for delivery!

All Size Available (Others Size & Configuration will customize accordingly)

Item	Customize Model
X Travel(mm)	1200~20000
Y Travel(mm)	1000~12000
Z Travel(mm)	500~2000
Spindle	BT40/BT50/HSK-A63/HSK-A100
Spindle Speed(rpm)	2500~20000
CNC Controller	KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain

 Want The Best Price >> “ Send Inquiry ”

More Related CNC Machines Recommendation

Slant Bed CNC Turning Center/CNC Turn Mill	CNC Engraving & Milling Machine	Flat Bed CNC Lathe  Turning Machine
Bridge type 5 Axis	Double Column CNC Milling Machine	CNC Tapping Center
5 Axis VMC Vertical Machine Center	Double Column 5 Axis CNC Milling Machine	Built-in Table 5 Axis CNC Machine Center



MAXTORS CNC HOMEPAGE



Want to Get the Best Price

Direct Ask Supplier of One-Step Turning & Milling Solutions



FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is 1 set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .

Contact Supplier



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



If you still have any more FAQ, Please feel free to contact us directly.
