This is Dandong Hongde Candle Industrial Co., Ltd. We are a factory which major in candle products, candle making machine and candle accessories. We have 16 years' professional experience in this field and sell to many countries, such as Southeast Asia,Europe, USA, South America and Africa.
We are specialized in various kinds of candle machines, such as automatic tealight production line, half automatic filling line, asutomatic wick cutting machine, automatic wick dipping machine, spraying house, automatic temperature controlling and color mixing boiler, milling drum, instant melting machine, pillar candle machine, reeling & pressing machine for tealights and manual pouring machine. The company can also customize candle equipments according to customer's need.
The tealight production line is made up of 3 parts: tealight machine, aluminium cup leaching machine, and wick & cup assembling section.

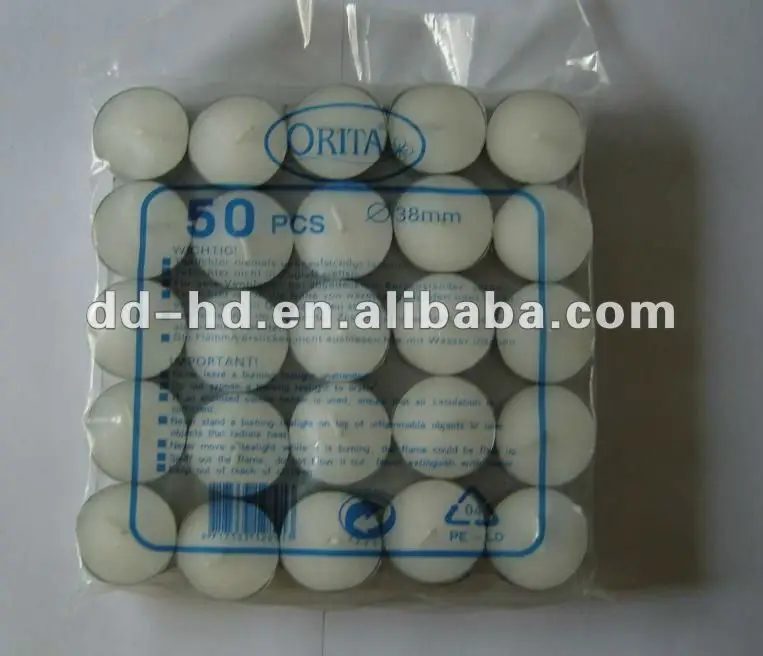

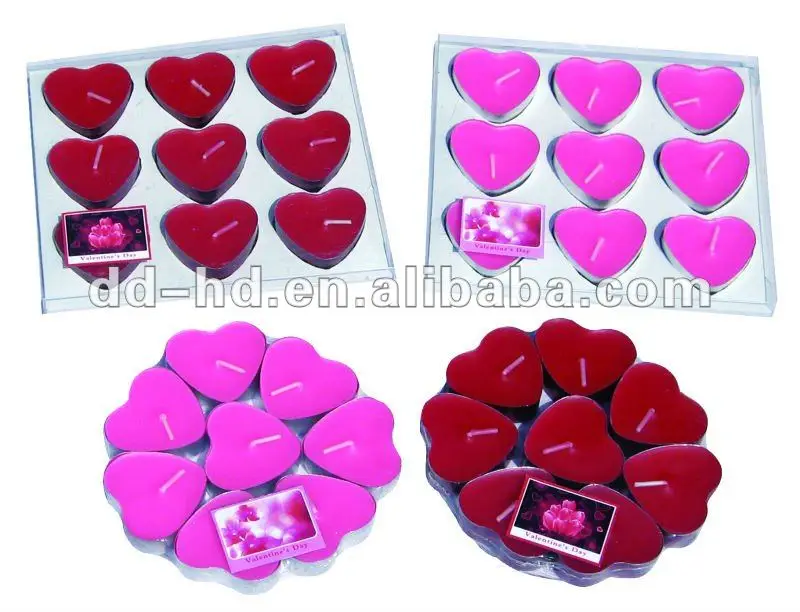

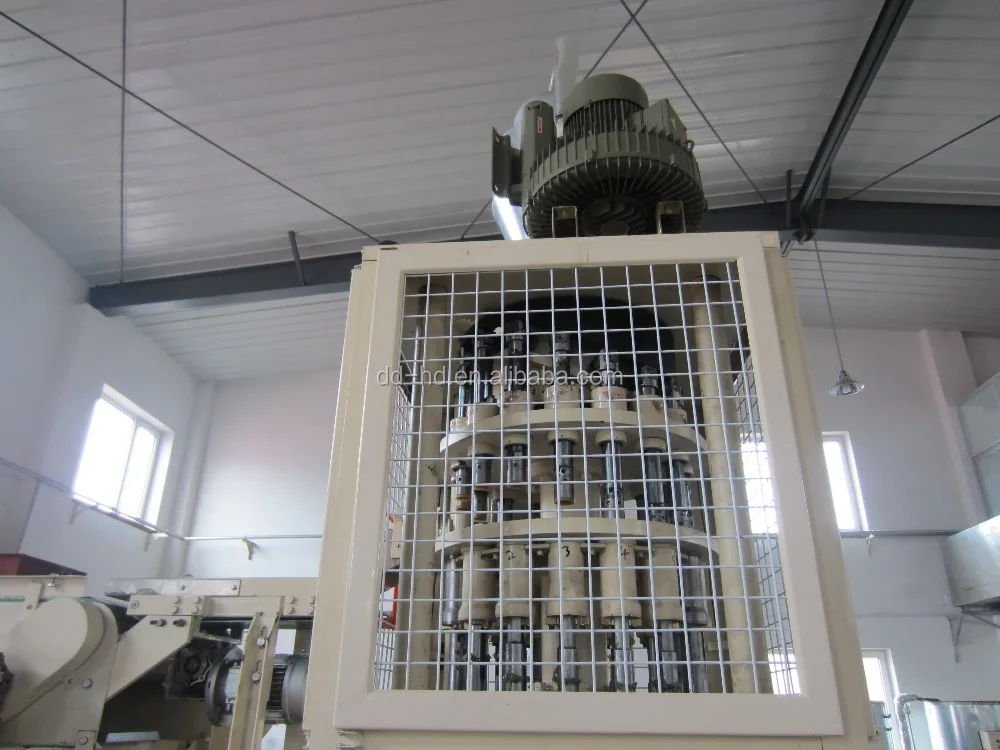

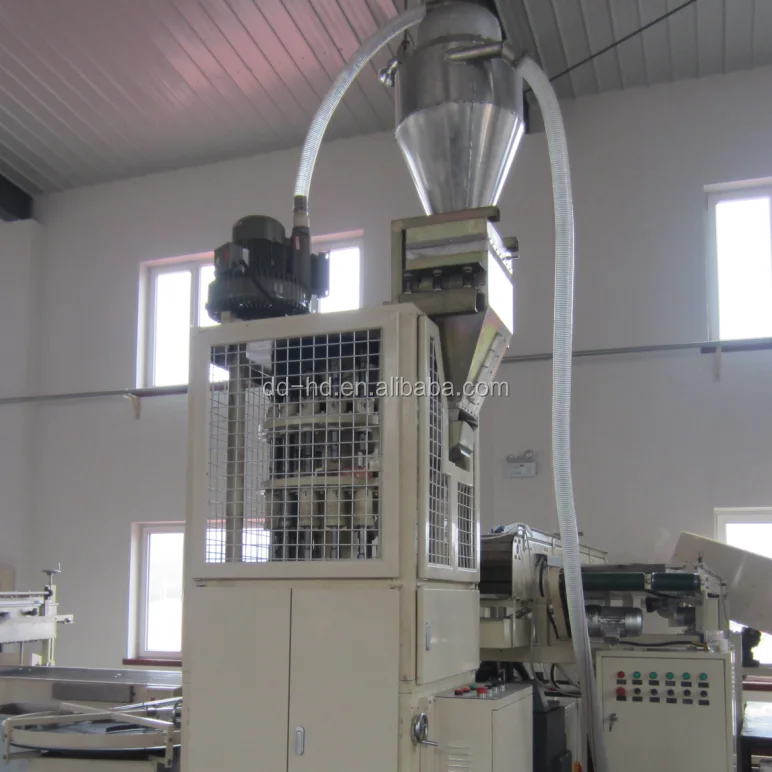

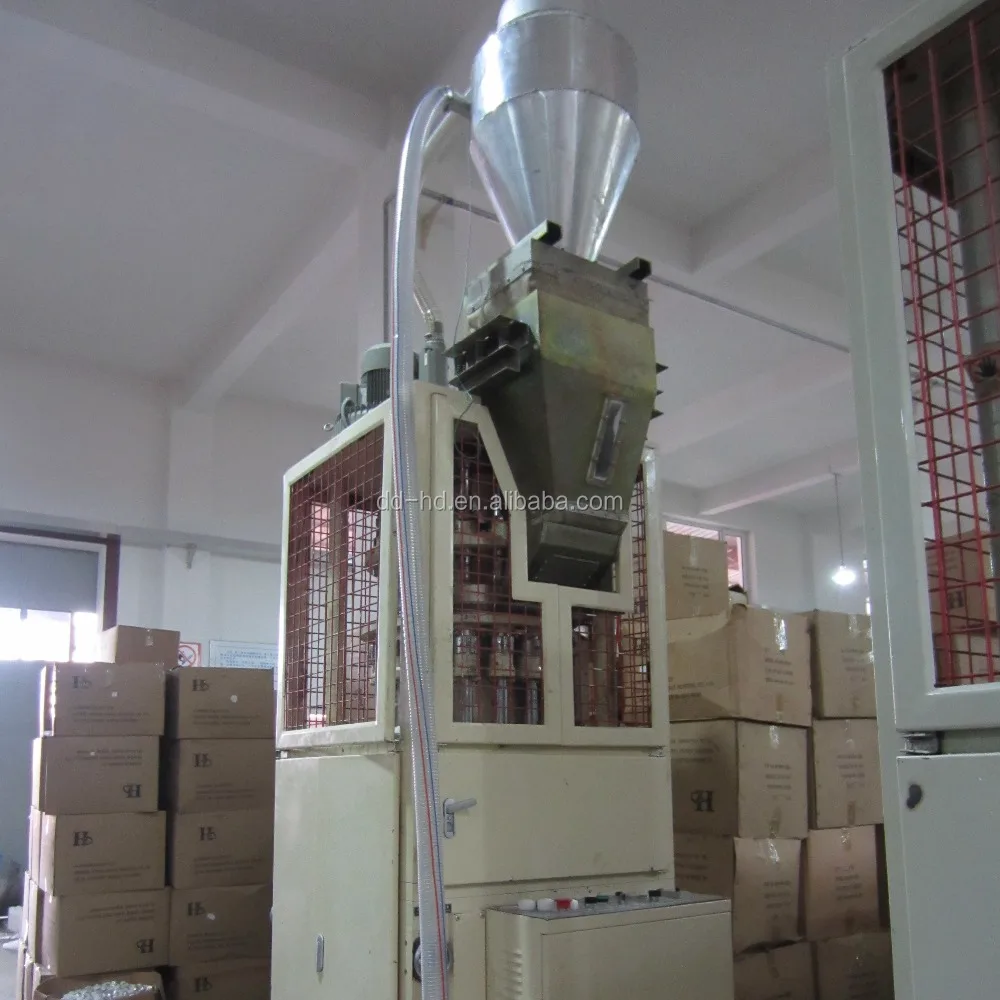

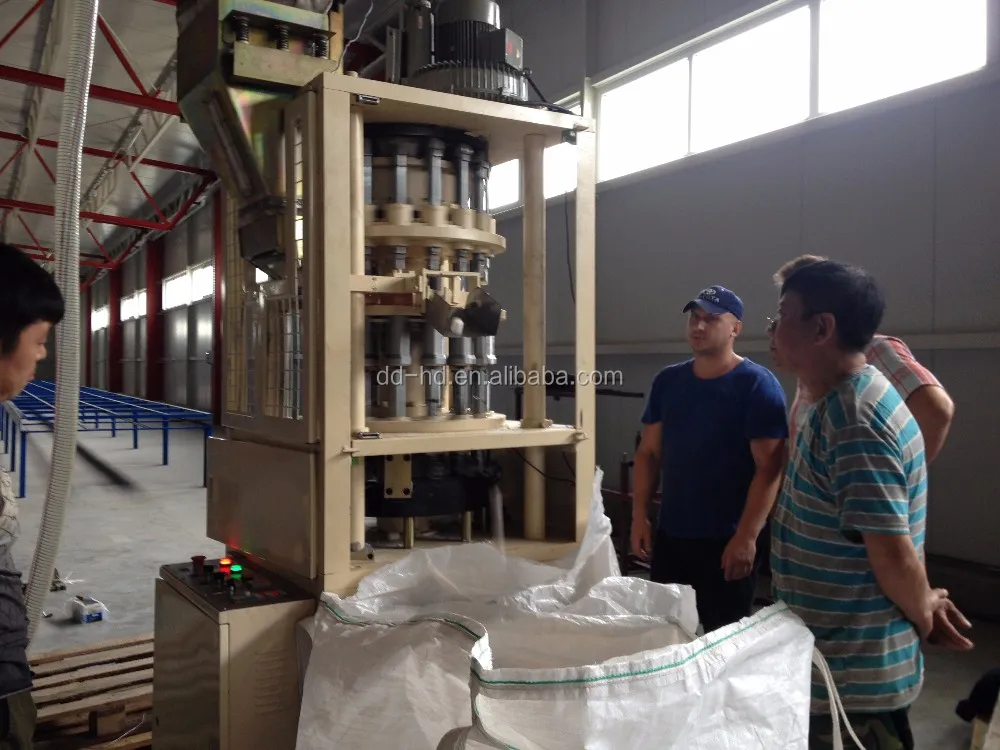

The tealight machine is made up of main transmission system, material supplying system, material feeding in system, pressing system, electrical system and so on, working way is rotary system and double direction pressing. Use wax powder as material accomplish the process of supplying material, feeding in material, pressing and candle going out. It can be used to produce tealight, water floating candle, votive, small pillar candle made by changing mould. Candle weight is stable, surface of the candle is smooth, the middle hole is straight and clear, safe and reliable producing process. It can be connected with production line of tealight in order to realize auto wick & cup assembling and so on, this will reduce labor cost greatly but increase output, save your time and cost. For those customers who use 100% palm wax or stearic acid wax as material, this product has heating system, so will expand choice on material.
The aluminium cup leaching machine is used to connect with tealight production line in order to realize producing automatically. Through shaker and air nozzles in turntable, aluminium cups are sent to turntable upside. Then they will reach to aluminium cup conveyor of tealight production line through a small conveyor.

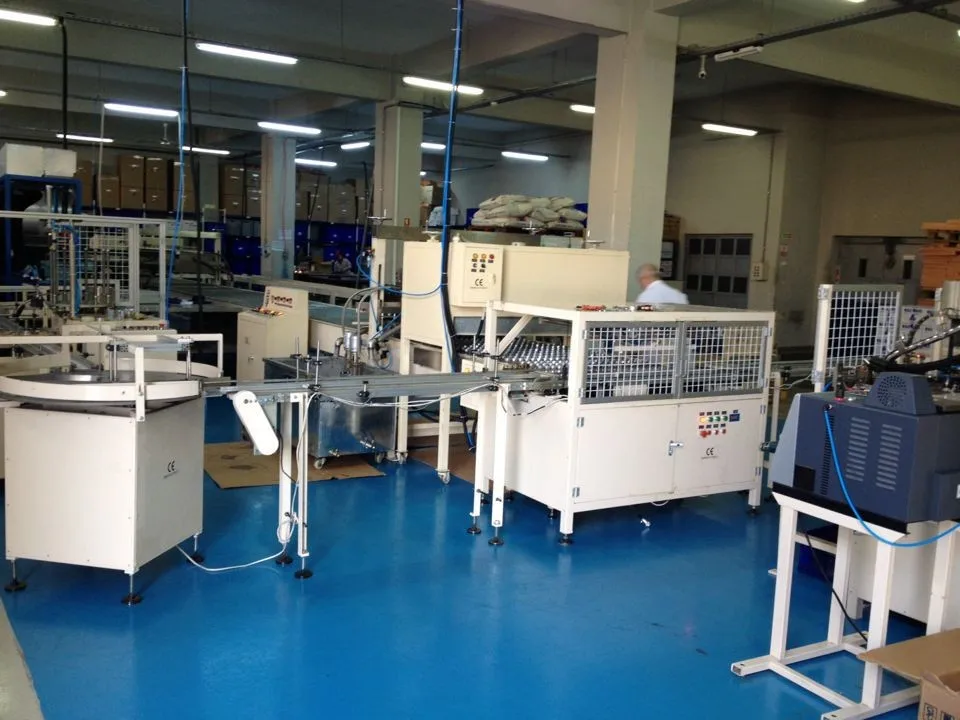

The wick& cup assembling sections is made up of 5 wick&cup assembling sections, 1 aluminium cup conveyor, 1 tealight conveyor, and 1 final production conveyor. It is used to assemble semi-finished products like tealight block, aluminium cup, wick sustainer and candle wick together. VFD on the machine is to adjust working speed, PLC control. Main electrical parts are famous brand. With detecting system, when no tealight block, no wick, no sustainer, no cup, any issues of these happen on one of those 5 sections, the one will stop automatically, at the same time dispaly light will shine, worker will know and can do necessary maintenance, save time. The machine design absorbs advantage of home and abroad, combines actually using condition in candle factory, in order to make it mostly reaching customer's require.

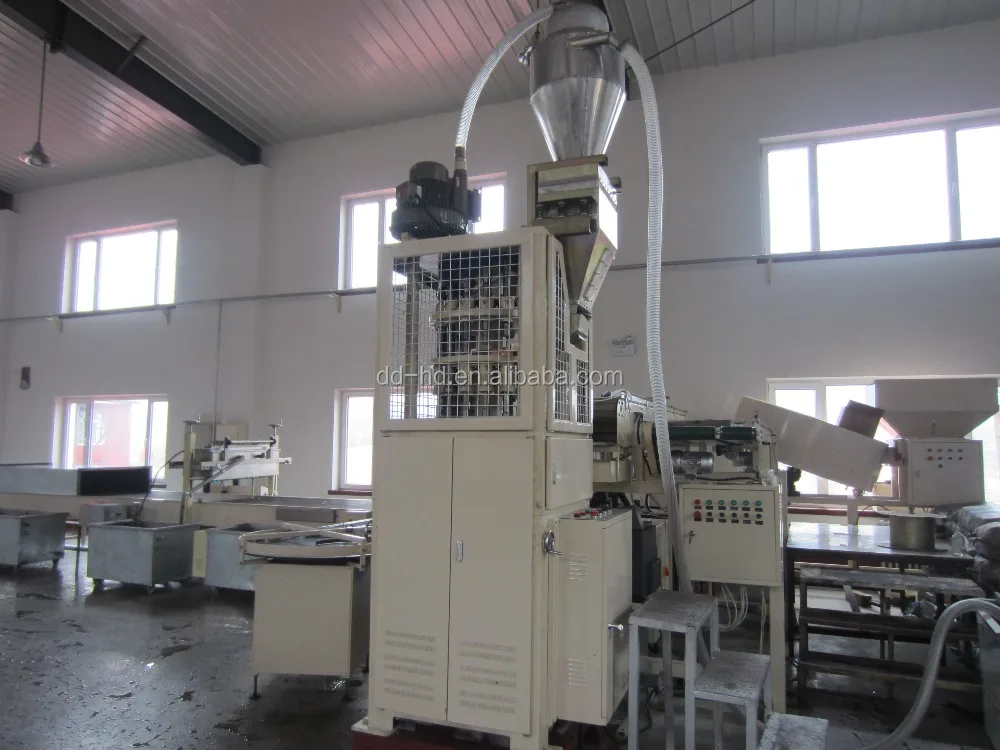

Picture of factory
Technical data:
Tealight machine section
Model type: HD-A16
Power supply: 380V
Gross weight: 1000KG
Dimension: 800x1100x3200mm
Aluminium cup leaching section
Model type: HD-050
Output: 32000pieces/hour
Voltage: 3 phase 380V 50Hz
Power: 1KW
Gross weight: 1000KG
Wick&cup assembling section
Model type: HD-7200
Output: 32000pieces/hour
Voltage: 3 phase 380V 50Hz
Power: 7.5KW (5 sections and 3 conveyer belt)
Gross weight: 1500KG
Dimension of wick & cup assembling section: 1200x600x1700mm(for one part)
Dimension of tealight block and aluminium cup conveyor: 4800x1500x1900mm
Dimension of final production conveyor: also can be made as customer's need
