15-20 km LOS long range UAV Radio Modems

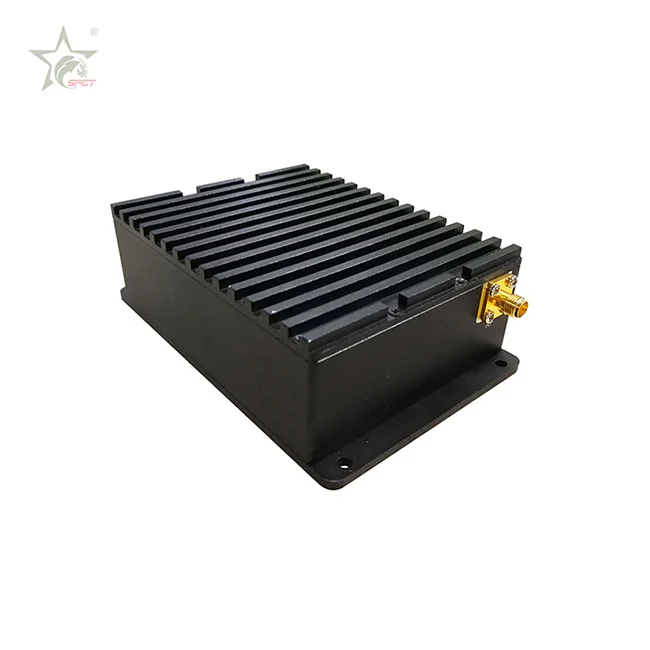

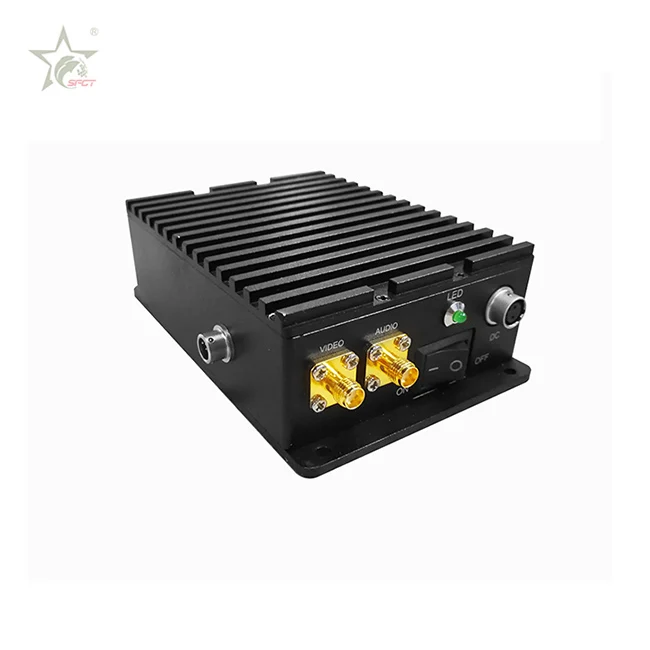

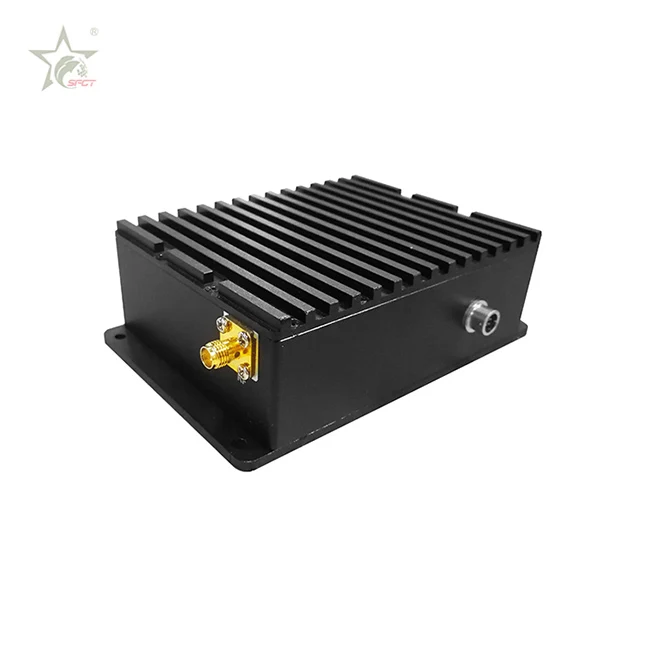

The model SFGT-RB102 is our exclusive rf digital video audio transmitter designed for Robot purpose.





COFDM wireless video transmitter adopts latest COFDM multi-carrier modulation and H.264 video compressed technology able to transfer standard video definition and one-way audio from composite camera as transmitting-end. This system has the advantages of high sensitivity, strong anti-interference ability and penetrating ability, high transmission rate and strong stability that provides an ideal solution for emergency surveillance in NLOS/NLOS fast moving environment such as robot command, rescue, reconnaissance and field combat.







cofdm applicaiton link.jpgWith years of export experience along with excellent quality, advanced services and competitive prices, SAFE GUARD has won numerous customers' trust and support.The product always accept of customized requirements,for example videolink+datalink PTZ control .See the below comparsion.  Video + Data serial port for video and PTZ control.






1. COFDM modulation, Stable transmission
2. MPEG-4/H.264 video compression, DVD video quality;
3. Modular design and highly integrated
4. NTSC/PAL automatically adapt ,support user adjustable;
5. Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;

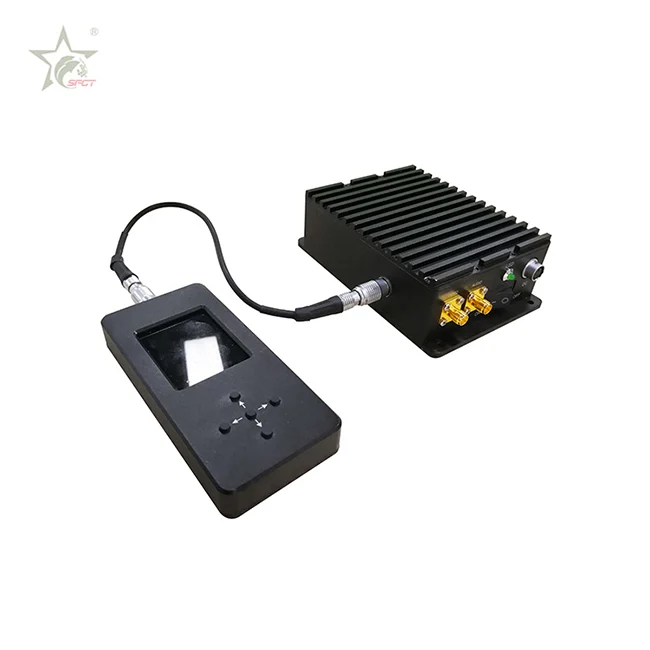

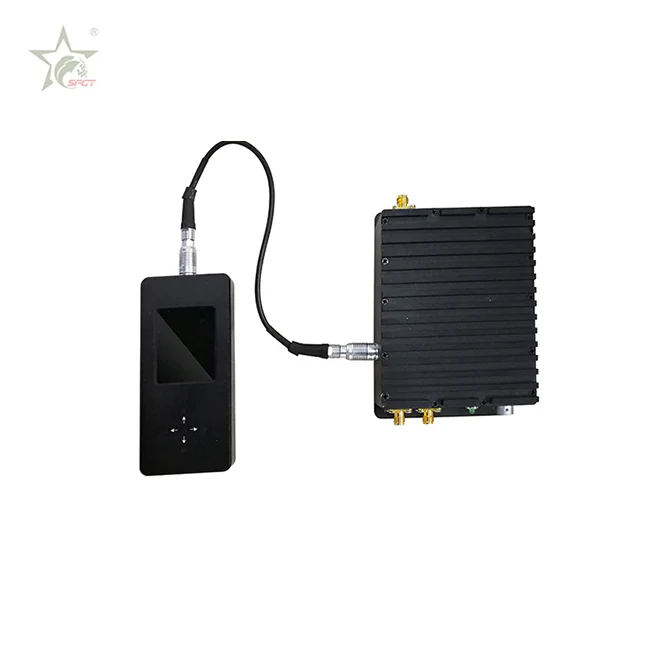

6. Parameters setting by external button device
7. AES128 bits or user-defined encryption
8. Good quality image without any mosaic;
9. Small in size,lighter and low consumption
10.Low delay









 Parameters of 15-20 km LOS long range UAV Radio Modems








































































































Modulation  COFDM,2K,QPSK
Power supplyDC12V/1A
Frequency300-900MHz /1.2GHz/2.4GHz
Bandwidth  2/2.5/4/8M
Power Output1-2W adjustable
Video inputFor composite video camera
Audio inputMono
Encryption  AES 128 bits / user-defined encryption
ConstellationQPSK,16QAM,64QAM,
FEC  1/2,2/3,3/4,5/6, 7/8
Guard Interval1/32,1/16,1/8,1/4
Flatness≤2dB(within full frequency range) , ≤0.5dB (within 8MHz)
CNR   ≥-30dB @ 30dBm power output
SHG   >52dBc
CBER  <2.0E-4
Video Signal1Vp-p@75Ω,NTSC/PAL analog adaptive
Resolution  1280*720
RF InterfaceN(type)
Video FormatPAL/NTSC(self-adaption)
Video CompressionMPEG-4/H.264
Operating Temperature-25℃~55℃
Transmit Distance500-1000m NLOS
Size100*100*50mm
Weight900g
