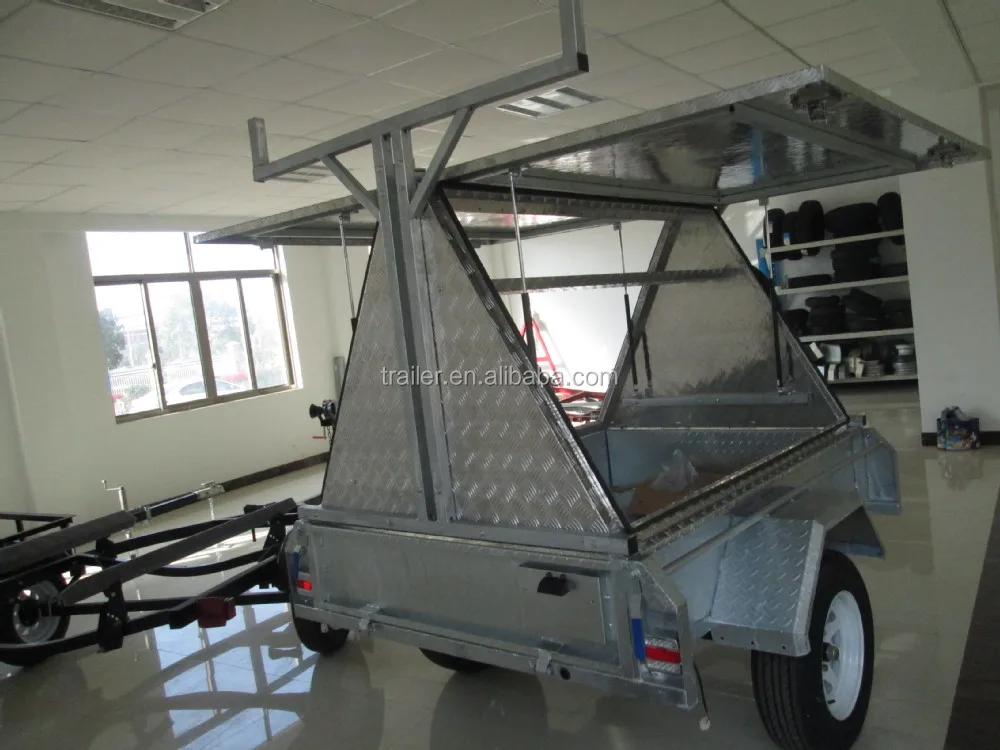

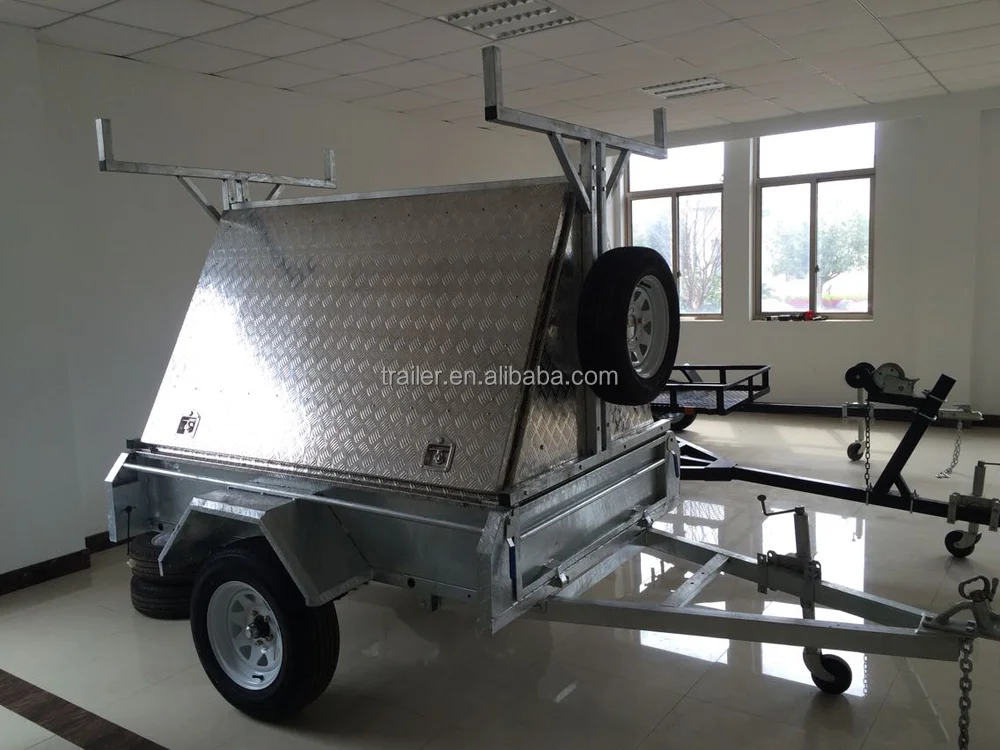

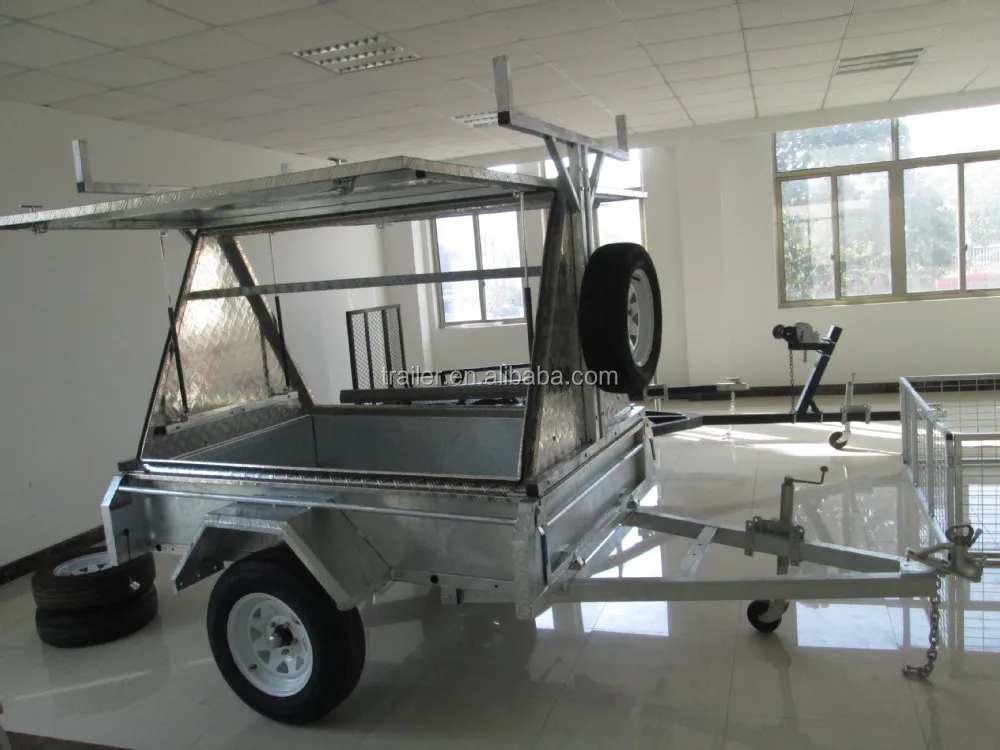

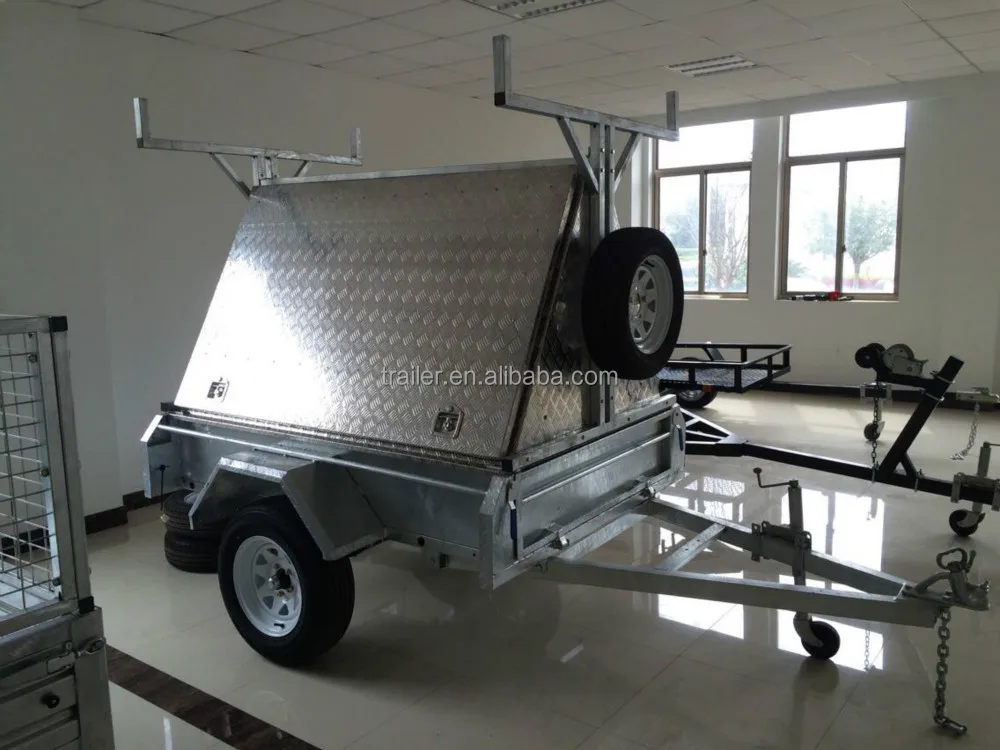

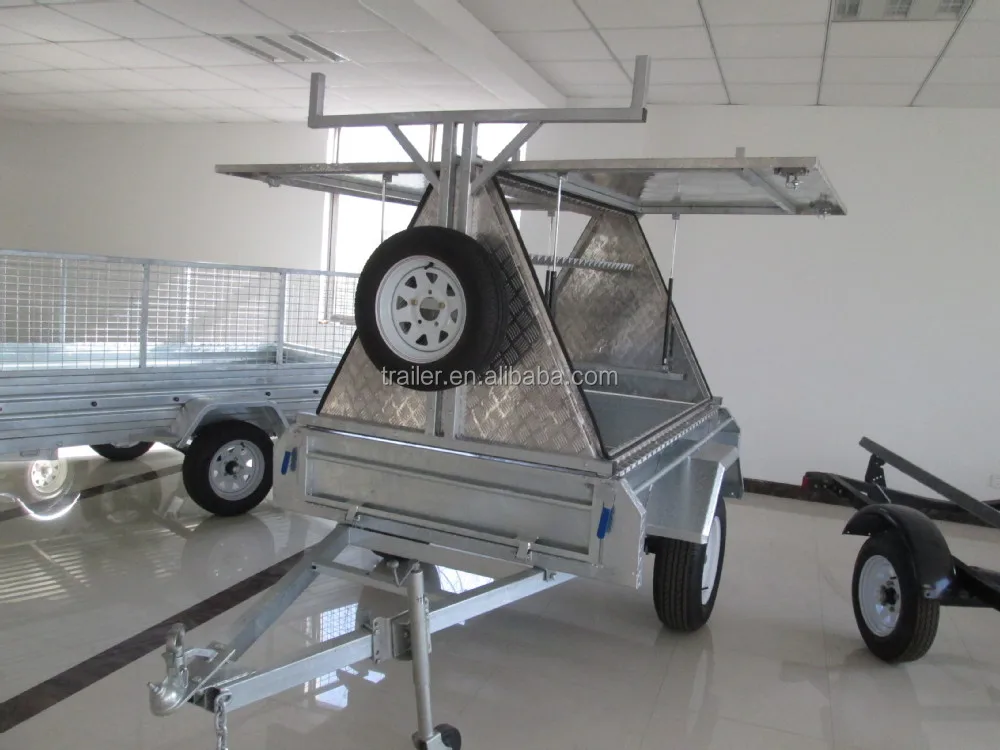

YQ Heavy Duty Utility Tradesman Tool box Trailer

1.Chassis size: 2180x1580mm, Square section(50x50x2.5mm)

2. Inner box size: 2100x1500x300mm

3.Drawbar: 70*50* 2.75mm 1.2m long from the front gate to the top of A-frame

4.Cross member: 50*30* 2.5mm

5.Flooring: 2.5m checker plate

6.Side panels: 300mm height, 2.5mm checker plate

7.Coupler: AU standard 2000kg coupler with stronger safety chain (other country standard coupler can be choiced)

8.Jack wheel:6" jack/nose wheel with side/top winds

9.Tyre:165/70R13 (14 inch tyre can be choiced)

10.Spring: 3 leaf springs

11.Axle: 50*50*5mm square tube

12.Surface treatment: hot dipped galvanized

13.Load capacity:0.5T

14:Min order: 10 sets

15.Lights: LED lights with DOT, Emark

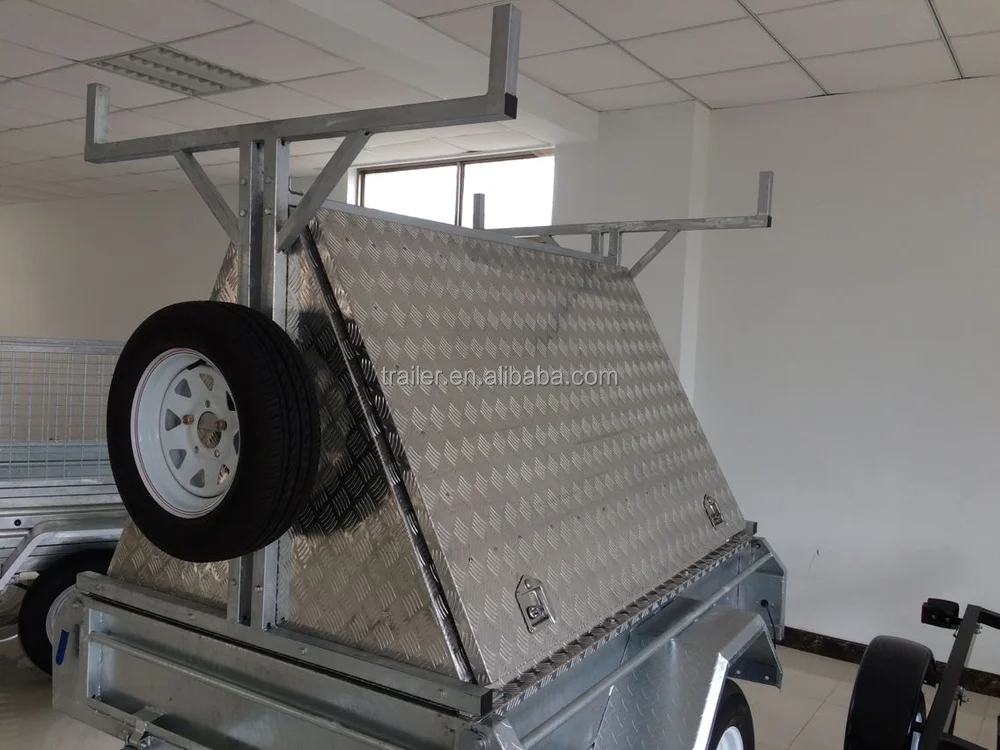

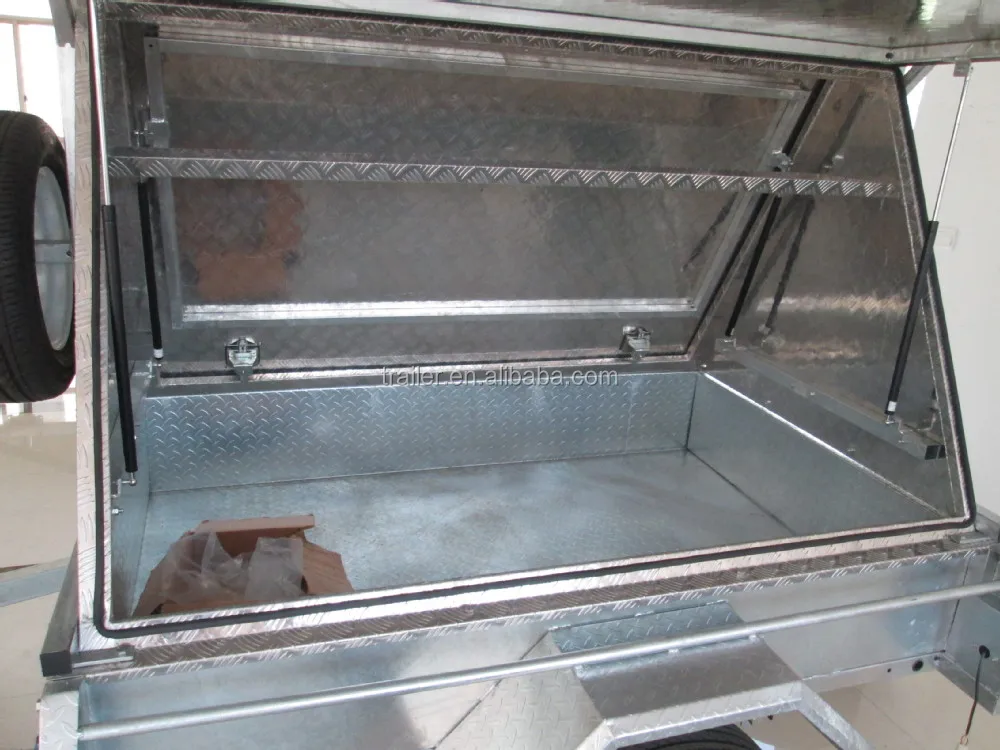

Tradesman Top Toolbox with Aluminium Chequer Plate

1. Material: 1.5mm chequer plate, Mild Steel Sheet is available.

2. Thickness: 2.0~3.0mm available.

3. Dimension: 1800x1200x1000mm

4. High quality welding

5. For Austraian Market

6.Normal Spray Painted

7.Stag packing required

8. Descriptions:

A. All seams securely welded to delivery strength and protection.

B. Stainless steel piano hinge.

C. Twin gas struts support the lid when opened.

D. One push button locks on the lids. Sure, locks can be mounted at front to eliminate the possibility of

Leakage through the lid.

E. High grade rubber weather seal and smart design ensure a reliably dust.

F. Water resistant tool box to protect your valuable tools.

G. Sturdy handles with reinforced mounts and cushioned grips means this box can be confidently carried on

Side for easy access of tools.

9. Customize is available.
