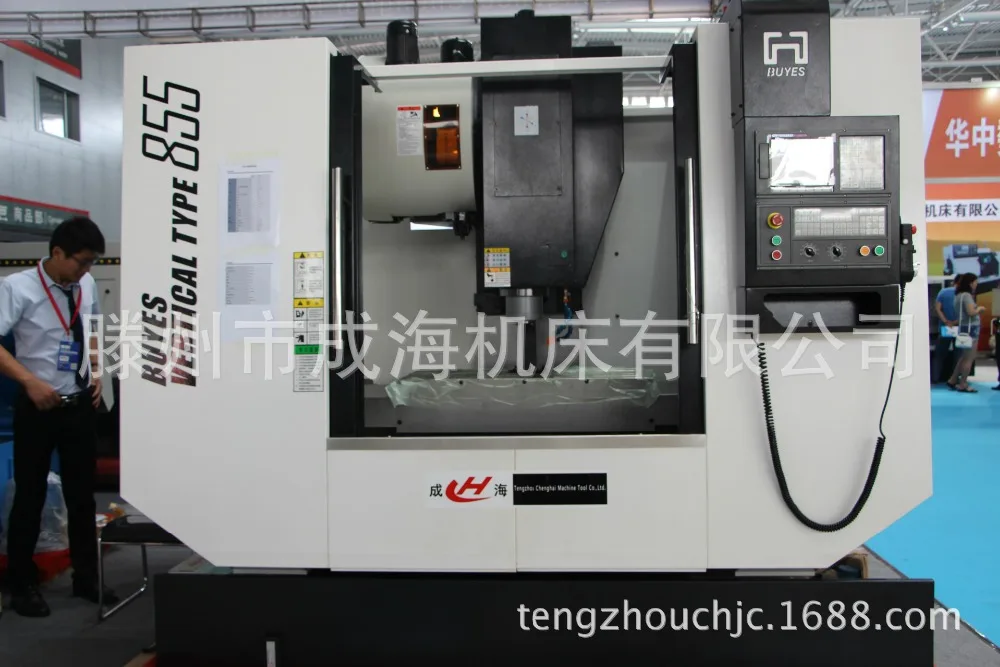

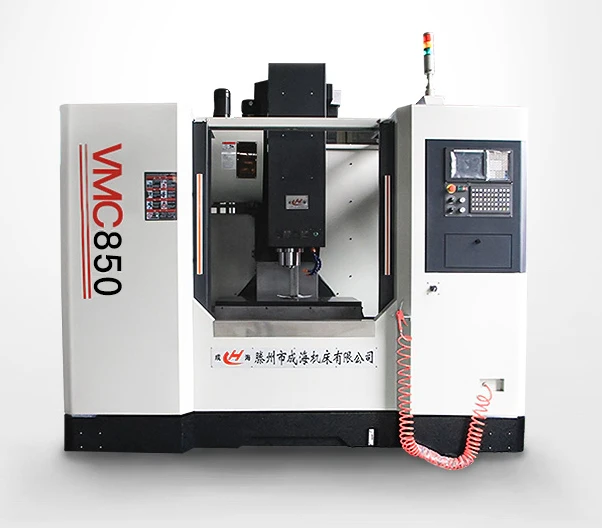

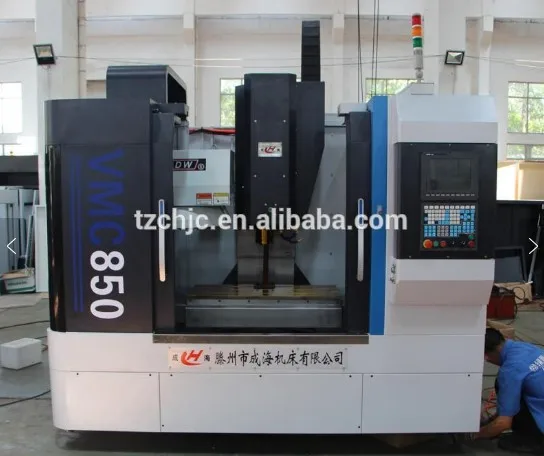

three axis VMC850 pin roller linear guide rail CNC Vertical machining center

Product Overview

Description

three axis VMC850 pin roller linear guide rail CNC Vertical machining center











CNC Vertical machining center VMC850  specification

Model number	VMC850
Table size	1000*500
Max table load kg	650
T slot (number-width-pitch)	5-18-100
Stroke(X axle mm)	800
Stroke(Y axle mm)	500
Stroke(Z axle mm)	500
Distance between spindle nose and table surface  mm	110-610
distance between spindle center and column guide surface  mm	500
Spindle taper	BT40
Max speed of spindle rpm	8000
X/Y/Zguide rail form	Linear guide rail
X/Y/Z motor connection	Direct
X/Y axle rapid movement speed m/min	36
Z axle rapid feed speed m/min	20
Rapid cutting feed  m/min	10
Spindle motor power  kw	7.5
Max tool capacity	24
Max tool length   mm	350
Max tool weight   kg	8
Rivet type	BT40 35°
X/Y/Z positioning accuracy mm	0.005
X/Y/Z repeat positioning accueacy mm	0.003
machine dimention mm	2800*2400*2250
machine weight kg	6000
Electric  capacity kva	15
System	FANUC

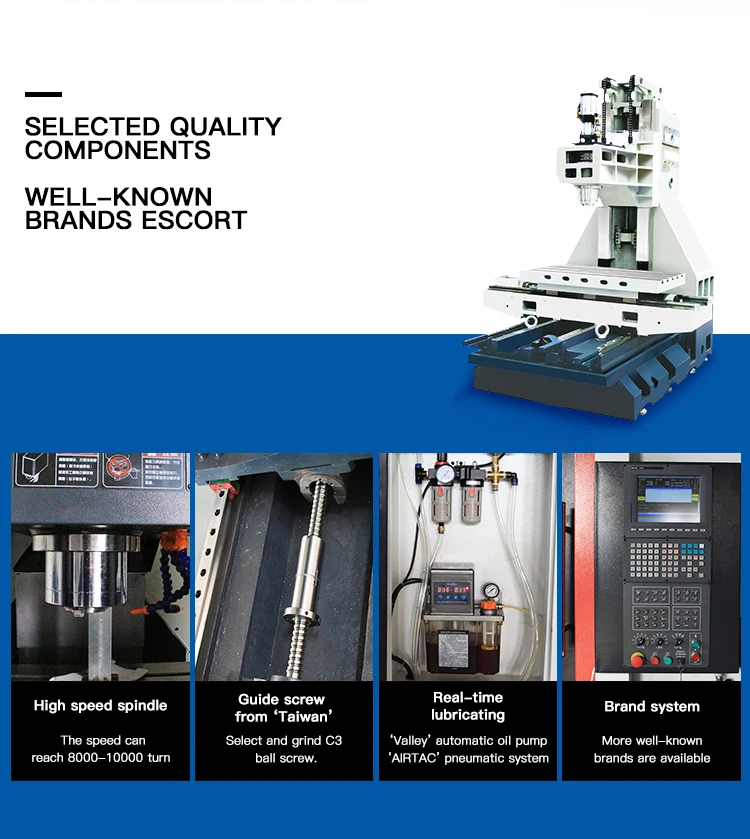

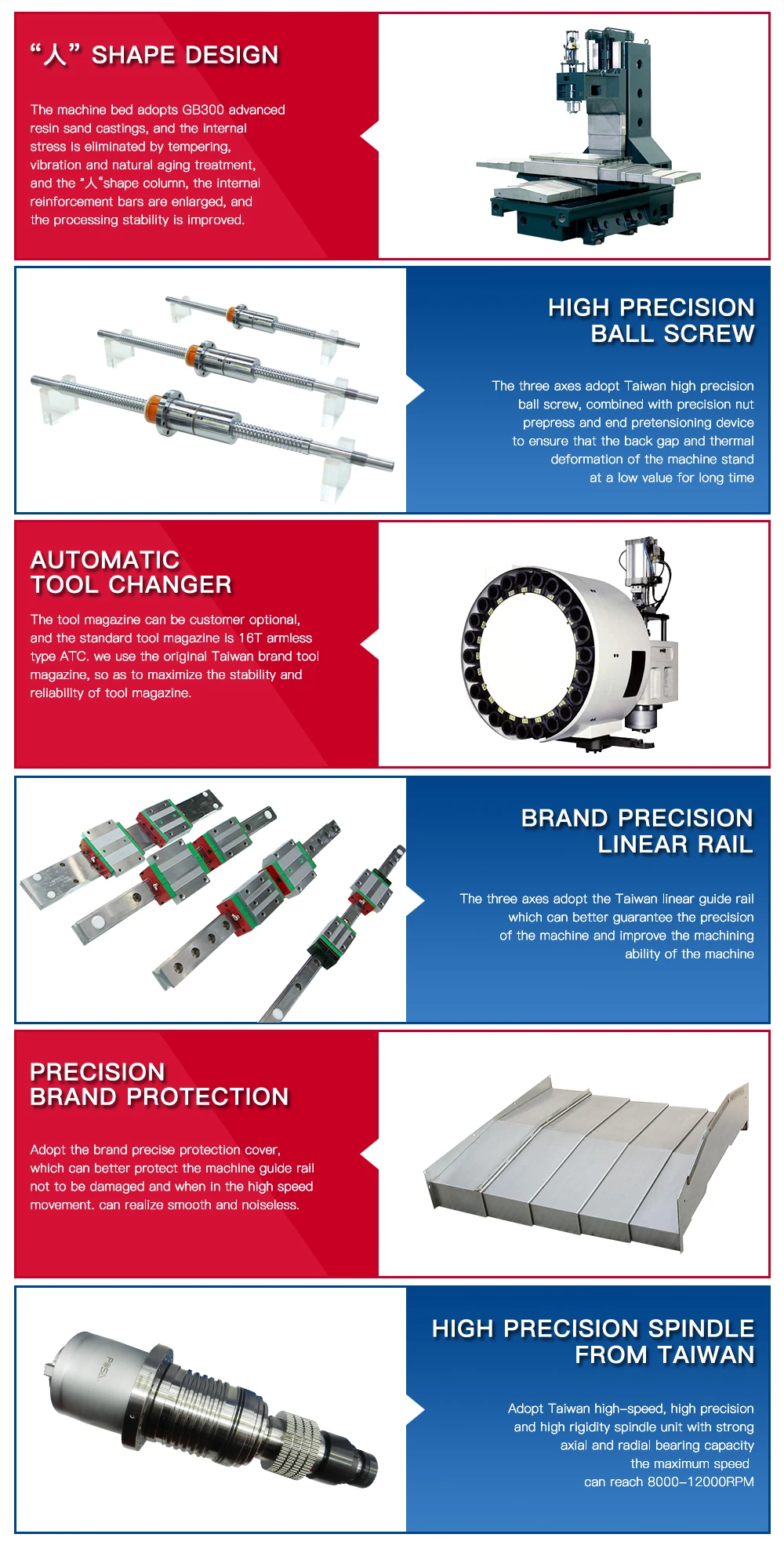

FEATURE

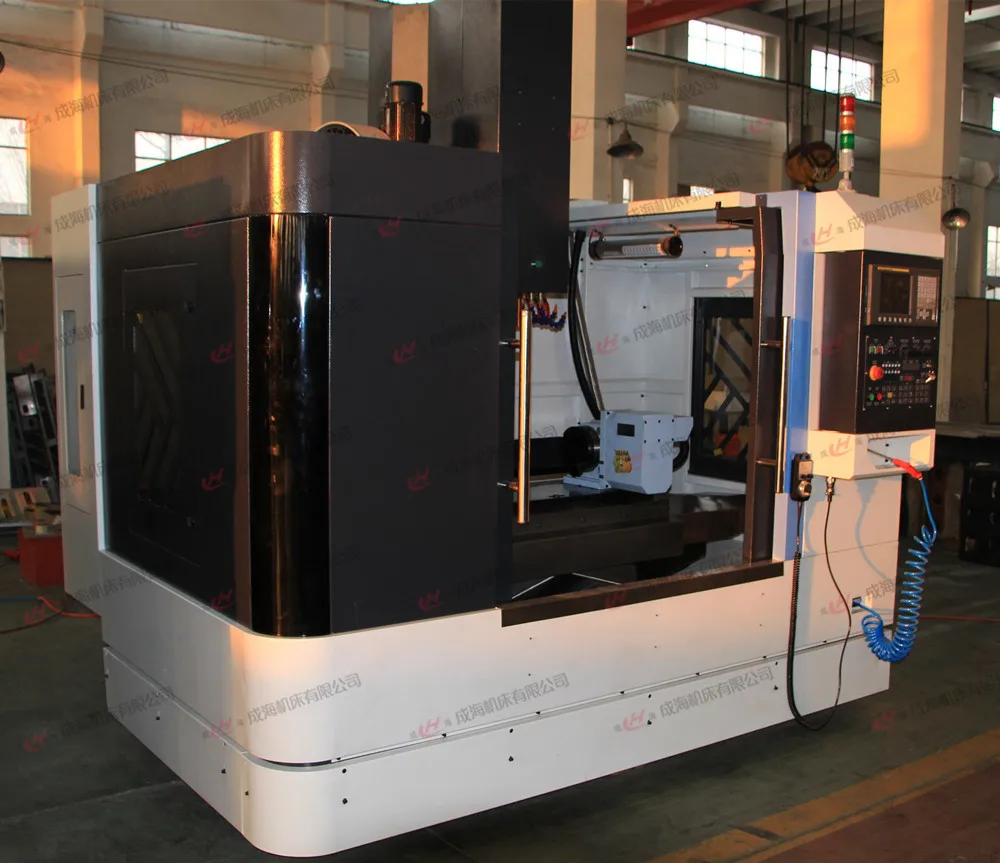

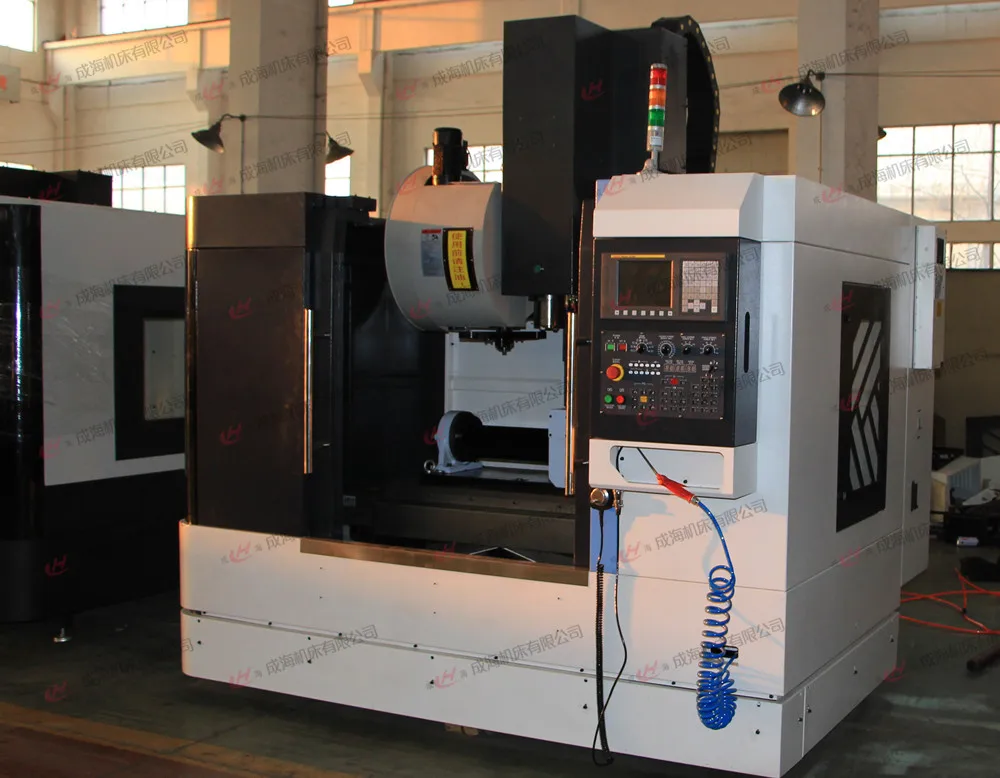

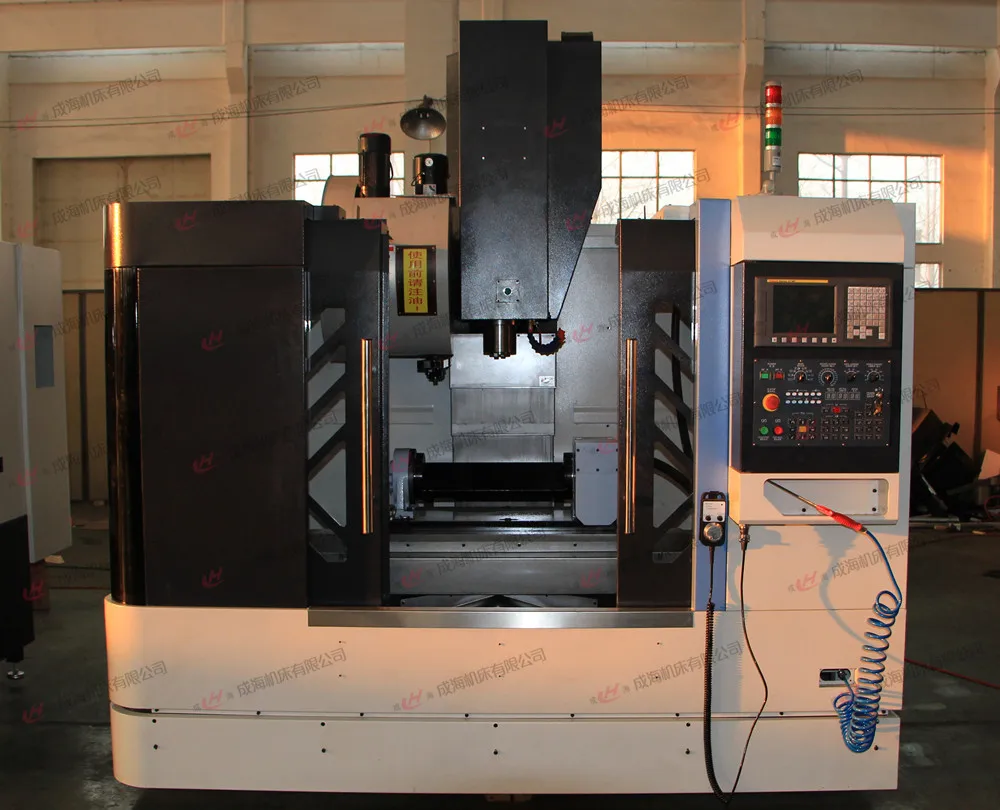

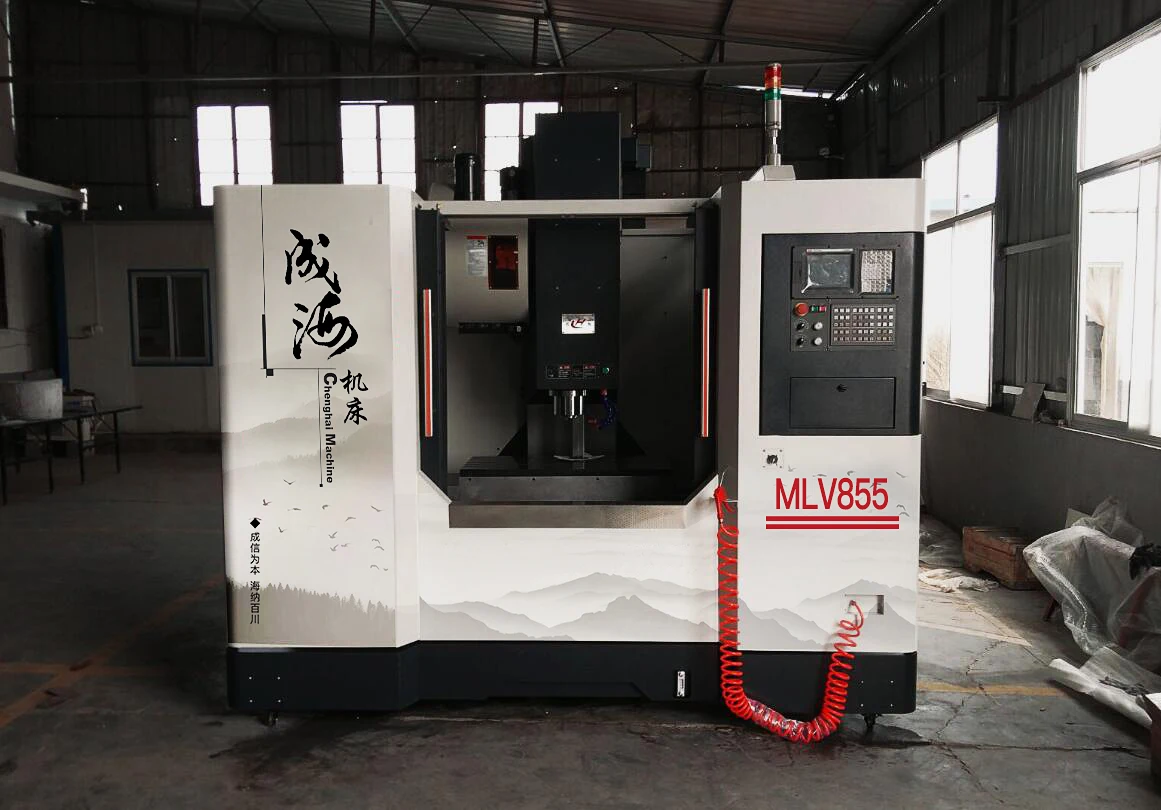

 PRODUCTION PREVIEW












SERVICES OF PRODUCTS



1.Technical support online service provided

2.Technical files service provided

3.Machine operation video provided

4.On-site training service  provided

5.Spare parts replacement and repair service provided

6.All of the questions will be replied within 8 hours

7.If you need to develp products with your own specification we can help you to work it out

8.always be honest,never lie to customer,and never declare anying we don't have.

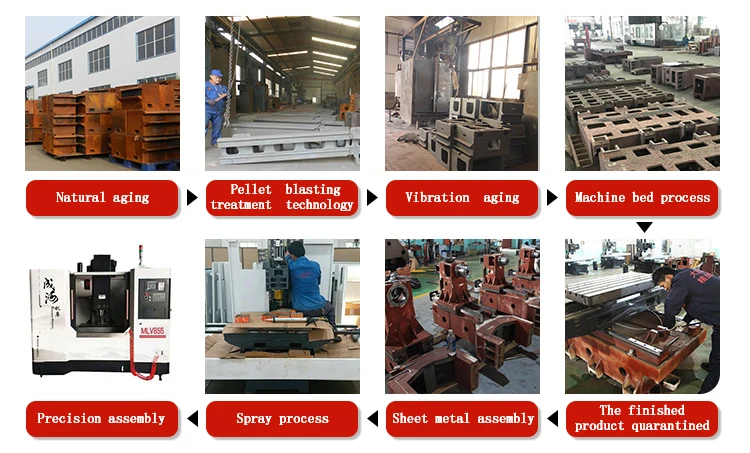

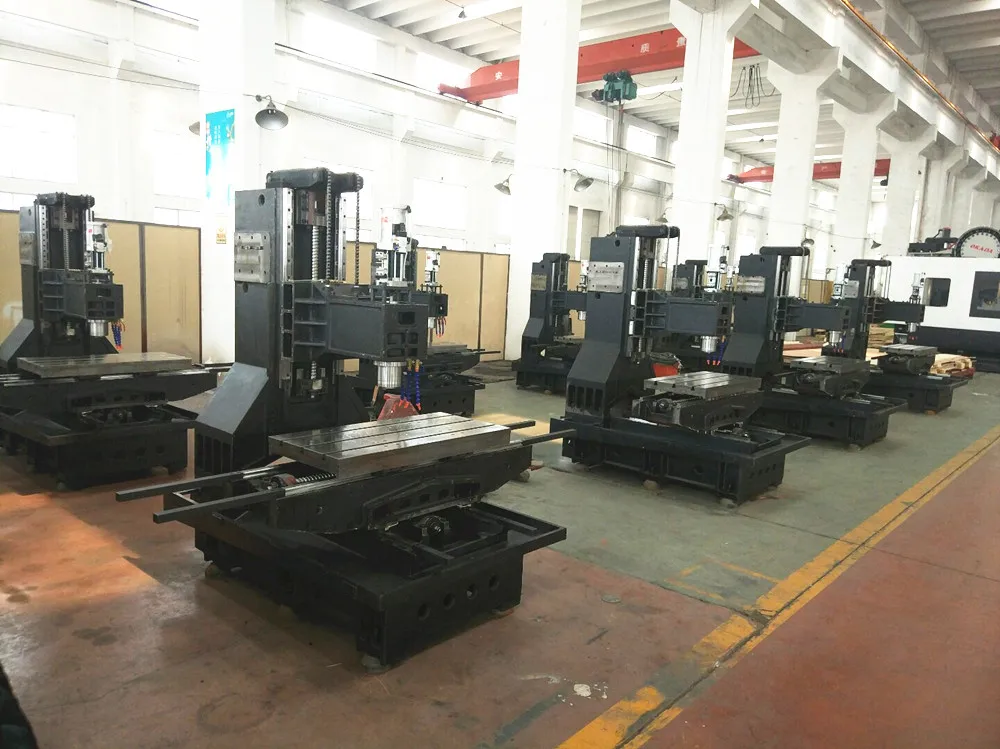

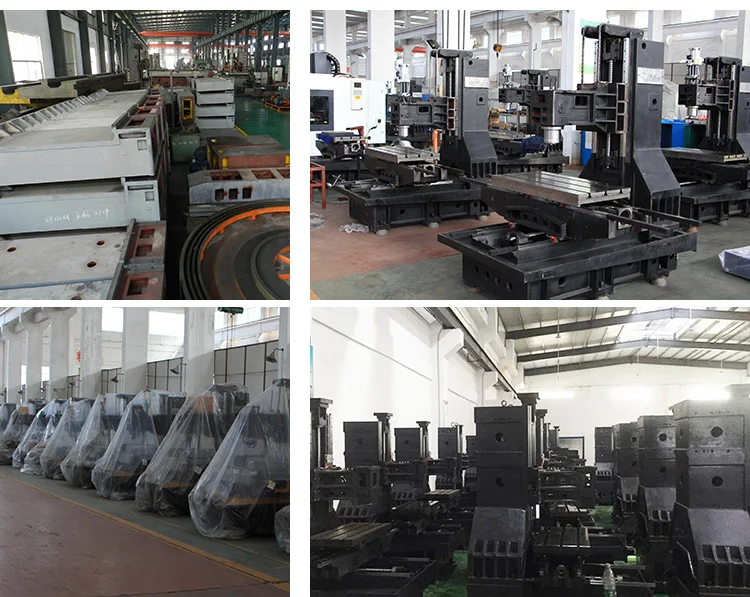

WORKSHOP SHOW



























 COMPANY  QUALIFICATION



FAQ

1.Q:How can i choose right machine and how to assure quality?

         A:You can choose machine on our Website according to your request,or you can let our seller know what is your request specification or what is your parts,so let our seller recommend suitable machine to you .We have done international trade for many years ,export machine to 100 countries,we have CE,ISO,SGS and other quality certificate.

2.Q:How soon can we get the machine?

   A:If the machine you order is standard machine ,we will gei it ready within 15 days .to special machine ,please confirm with our seller .The ship time is 30 days to europe,America.If you are from Australia,or Asia,it will be shorter .You can place order according to delivery time and ship time.

3.Q:how about warranty?

  A:The warranty is one year but we will offer lifetime service for manchine.

4Q:which trade term i can choose?

   A:you can choose FOB,CIF,DDUor other terms  .you can book ship or i can book ship for you.

5Q:what is the MOQ?

   A:1 set .(only some low cost machines will be more than 1 set.)
