Heat shrink insulation cable repair tape heat resistant electric pvc insulating tape
- Category: >>>
- Supplier: Suzhou Jiuwei Electric Made Co. Ltd.
Share on (60749659715):
Product Overview
Description
Product Description

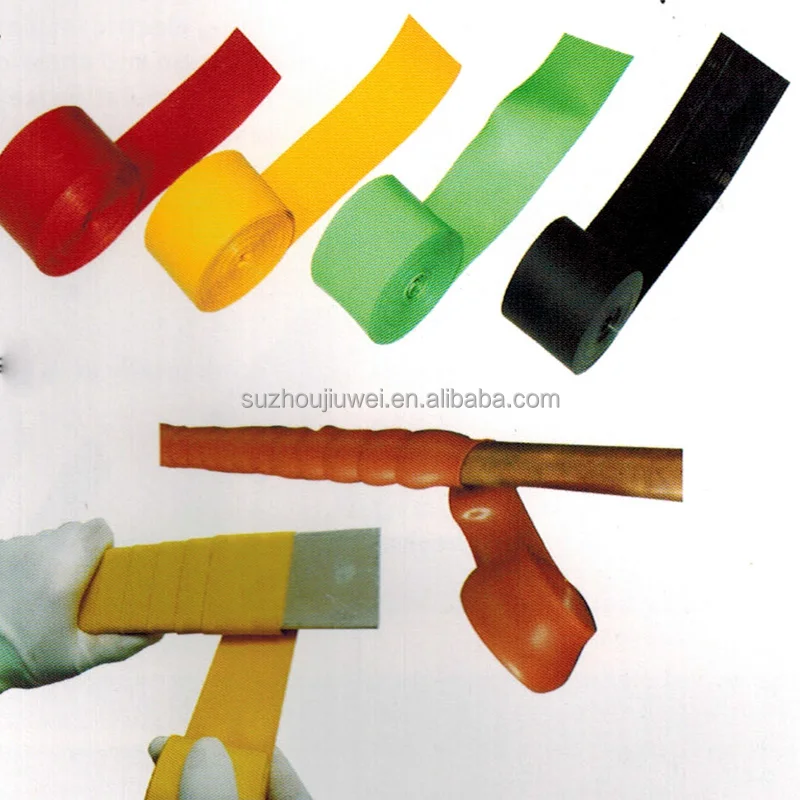

heat shrink insulation tape with hot melt adhesive
Insulating Tape Quick Details
VRSD product's lining is insulation belt with hot melt adhesive,when heated inner molten and outer shrinkable, they can adhesion layers into one,strength,and anti-aging outside.
Use:Solenoid insulation overhead;/Insulate and protect the bus row of the high and low voltage switchgear;
Repair the damage of the power cable sheath;
Other electric power equipment of the insulation and repair; take precautions against pipeline's corrosion .
Temperature shrinkage:120°C-130°C.
Notes: wormings package need lapping more than 50%.
Attached:Special specifications and color is available upon request.

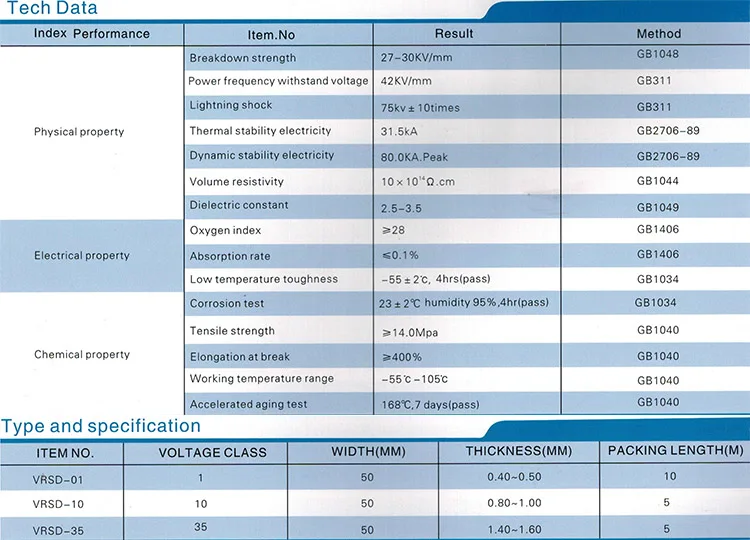

Insulating Tape Specification
Index Performance
| Item | Result | Method |
Physical property | Breakdown strength | 27-30KV/mm | GB1048 |
Power frequency withstand voltage | 42KV/mm | GB311 | |
Lightning shock | 75KV±10times | GB311 | |
Thermal stability electricity | 31.5KA | GB2706-89 | |
Dynamic stability electricity | 80.0KA.Peak | GB2706-89 | |
Volume resistivity | 10×1014Ω.cm | GB1044 | |
Dielectric constant | 2.5-3.5 | GB1049 | |
Electrical property | Oxygen index | ≥28 | GB1406 |
Absorption rate | ≤0.1% | GB1406 | |
Low temperature toughness | -55±2°C, 4hrs(pass) | GB1034 | |
Chemical property | Corrosion test | 23±2°C humidity 95%, 4hr(pass) |
|
Tensile strength | ≥14.0Mpa | GB1040 | |
Elongation at break | ≥400% | GB1040 | |
Working temperature range | -55°C-105°C |
| |
Accelerated aging test | 168°C, 7 days(pass) | GB1040 |
Our Advantages
Company Information
EXHIBITION
Factory Equipment
APPLICATION SCENE
Packaging & Shipping
Packaging
Normal package, Packed in Roll, Plastic film winding, Standard export carton, Or based on your demands.
Shipping
Sea freight: Shanghai portis best or up to you. CRF is best.
Air freight:suggest CRF Or CIF
Express:We have a cooperation with several international express,so can offer a good price.Or can send to you by your own express.
FAQ
1.About Sample.
Less than 50USD,We won't charge you the samples fee,you Just offer your express number or pay for the express fee.
Within 2-3days normally, special products( custom-made ) maybe 7 days.
2.About Order.
Time of delivery is 15-20days based on your Qty,Special products maybe 20-25days.Jan,Feb,The before and after of Chinese New Year ,Maybe need longer time.
3.About Payment.
Payment,.First time,T/T 30% pre-payment and 70% paid off before shipment.
And if we cooperate for a long time,We can make the contract of Quarter settlement Or Haf-year settlement.
4.About Service.
Technical Support.If need Technical personnel on-site guidance,You just need pay for the traveling allowance.
If the products have quality problems,We will replacement double Qty for you with your next order.But if the problem is caused by yourself,we won't be responsible for that.
5.About Worktime.
Beijing time From 8am- 23pm * 5 .12am-1pm 5pm-8pm is out. You can leave message or email 24 hours.
