LS 60 48 1.25A 48V output 60W Ultra thin LED driver Switch Power Supply with CE ROHS

Share on (60749693297):


Price:

Quantity:


Product Overview

Description





Product Description

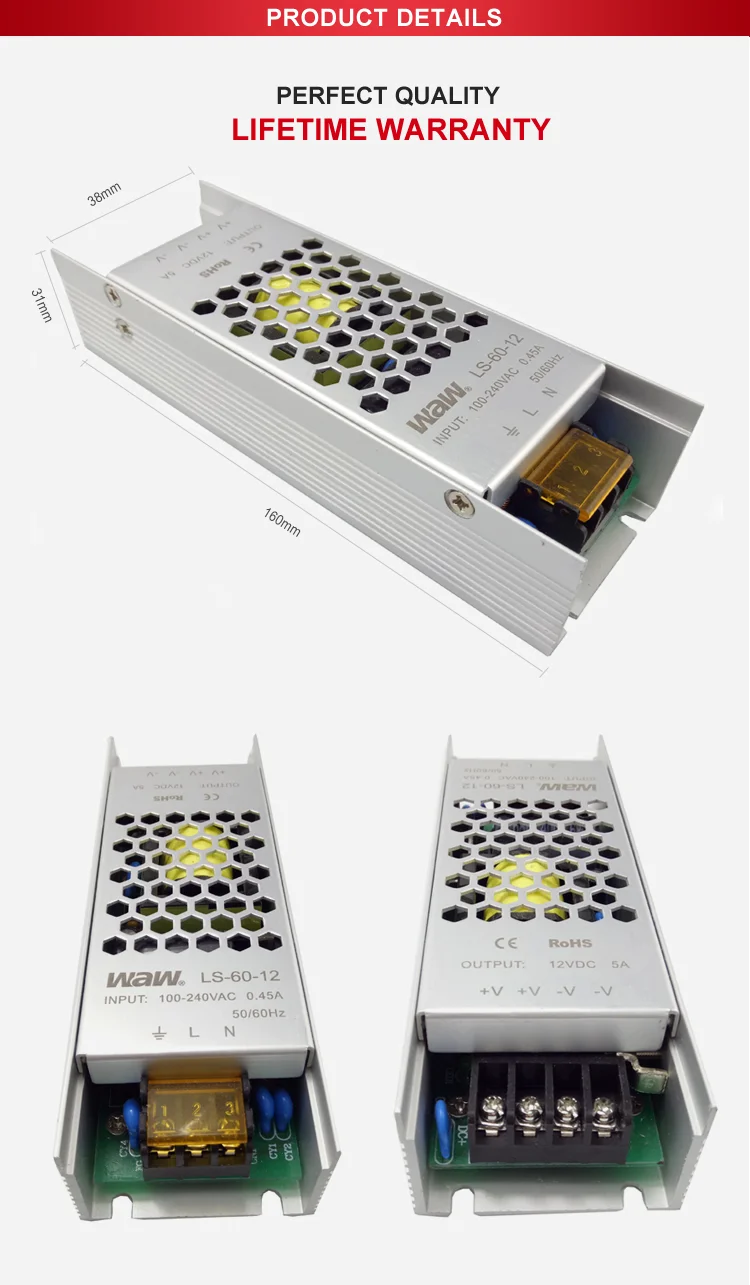

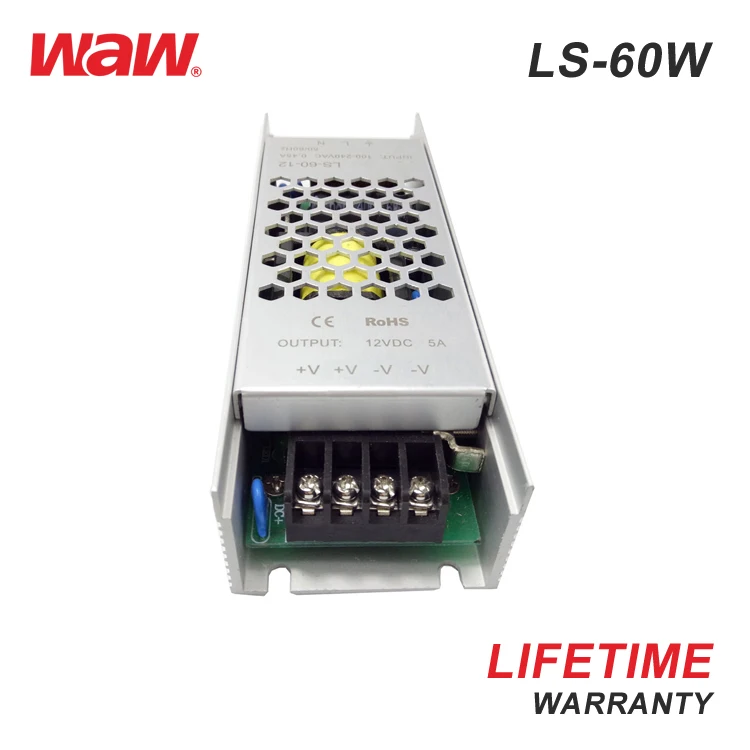

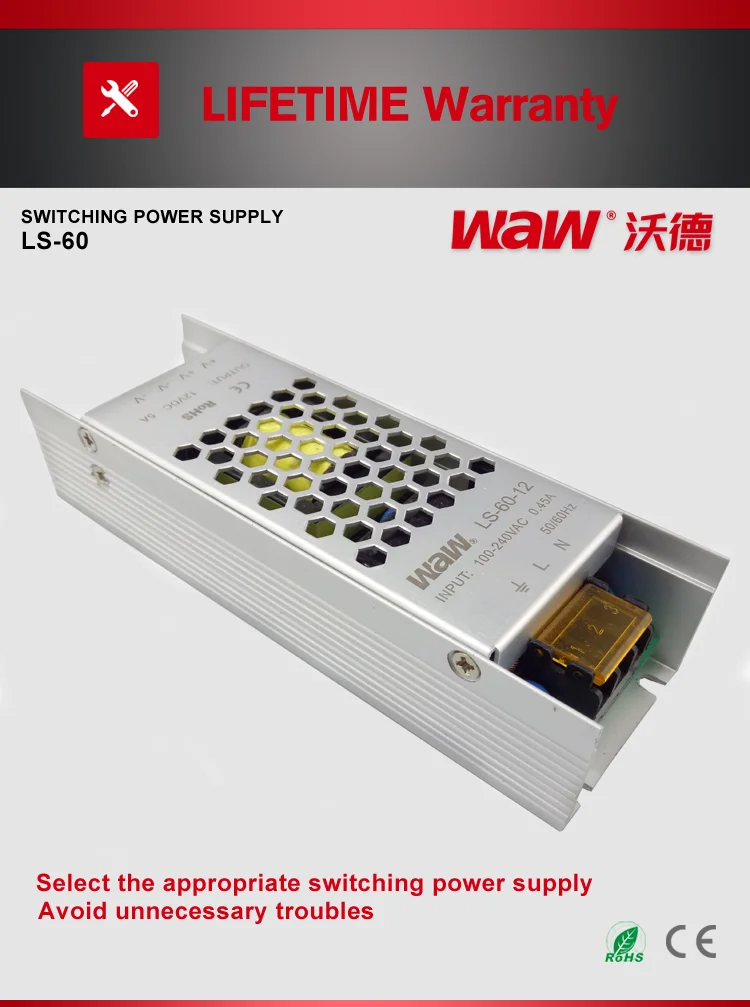

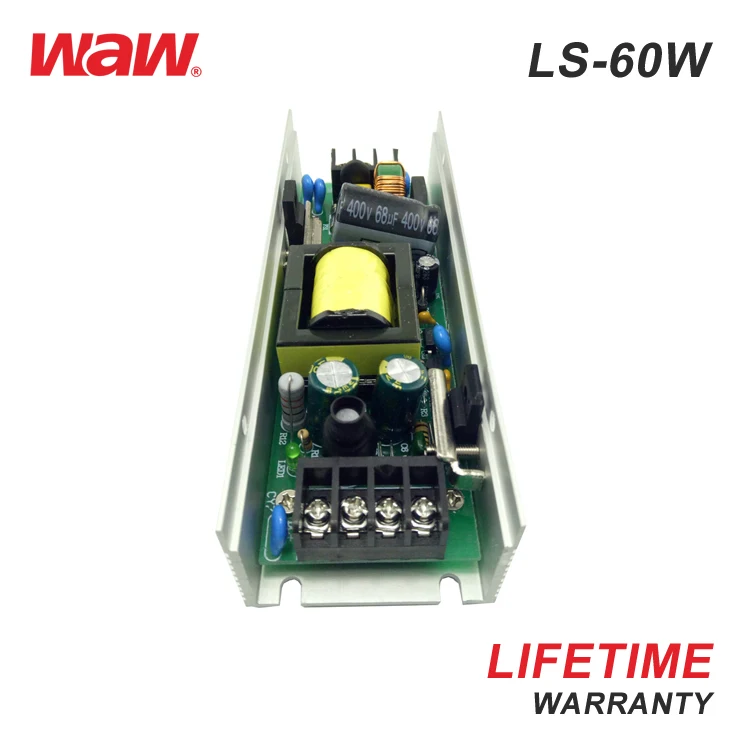

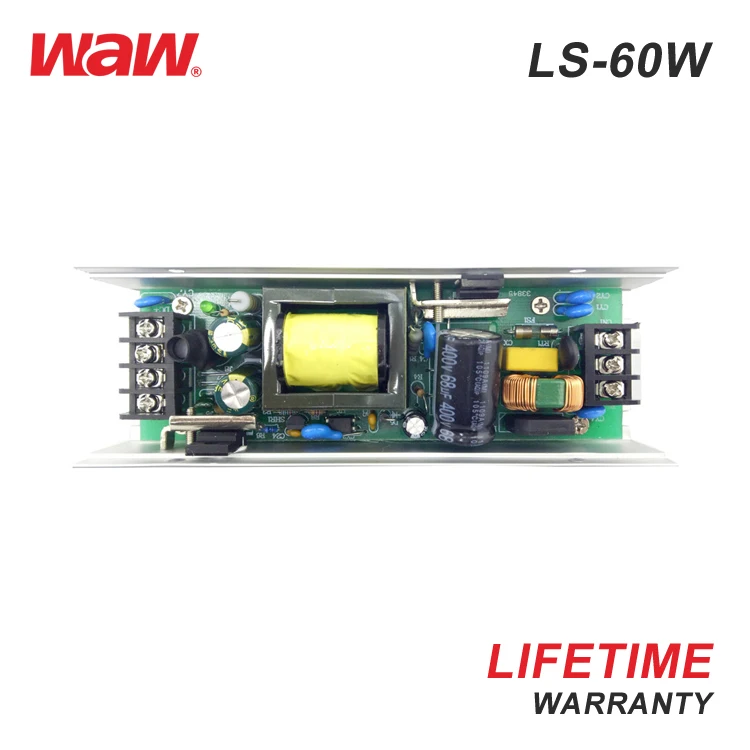

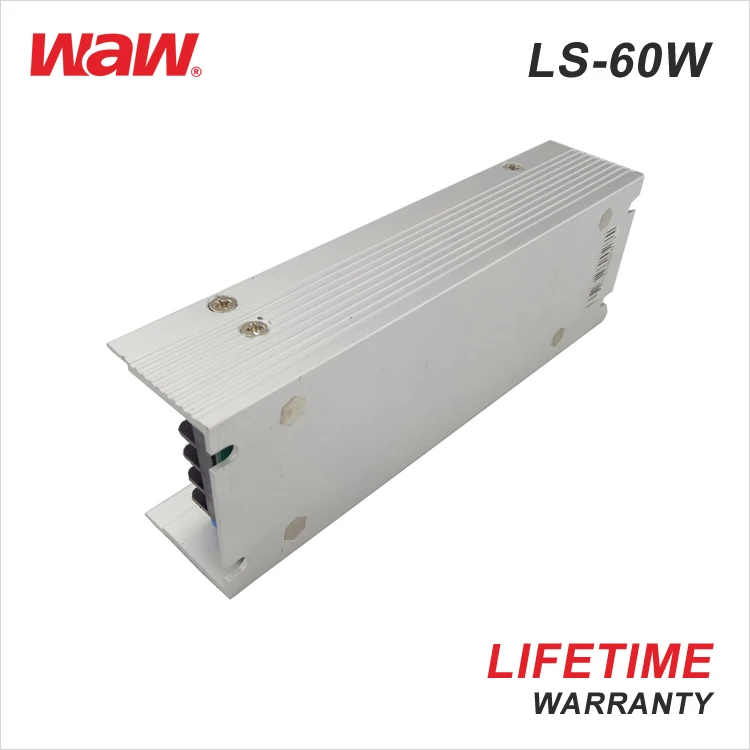

1.25A 48V 60W Ultra-thin LED Switch Power Supply


We become the Manufacturer from 2005, whose products include switching power supply, Adaptor, LED driver and transformer. With our decades experience, there are some tips maybe you have interest.


1) We could provide lifetime warranty for all of our power supply. The broken power supply will be replaced to new one with your next order. So you never need to worry about after sale problems. Still have questions? Contact me to know more details about this good policy.


2) We have passed the certification of CE/ROHS/BIS/FCC etc and update every some time according to updated standard of each country. You can contact me to get the newest version.


3) There are no MOQ limit for our power supply with our common plain packing. If you like to use your own LOGO or packing way, please contact me to talk about the details.


4) Power supply showed on E-shop is the common type. Actually it could be customized according to your special demand. So if you didnt find the right specification you want, please try to contact me then we can talk.


5) Lead time is up to the quantity normally. Some items are in stock and most items need some time to be produced and tested. Generally to say, goods needs from several days to several weeks to finish. Please contact me and tell me your demand.


6) Our power supplies are divided into several items by different usage scene. Based on shapes, some are small, some are slim, and some are linear. Based on application, some are for machine, some are for LED stripe, some are for LED screen, some are for outdoor, some are for indoor, and some have UPS function etc. So, please contact me if you are trapped into choice dilemma.


7) Our price may be not the cheapest one but competitive enough based on similar quality. Its quite hard to compare our product with whose price far way from us. Thats totally different products. We think a product with long lifespan are worthy than cheaper but easy broken ones. If you have a big quantity demand, please contact me and we can talk about the win-win way together.


8) Products may be modified according to actual situation. Please forgive we have no capability to inform each one in time. Please always check with me before you order.


9) If there is any other questions that not clear, why not click me now? :) We also can use email  or constant software like Whatsapp/Wechat ( 0086-13969772105 ) or Skype ( wode.smps) to communicate more freely. I am Stephen Wan, product manager of WODE electrical.





LS series


1) IP20 type with line type, can be used for LED stripe indoor


2) Aluminium case for better heat sink


3) High efficiency with stable performance


4) Built-in EMI filter in each power supply


5) 100% full load burn-in aging test before shipment


6) Low output ripple and noise level


7) Multiply Protection: Over load /Over voltage /Short circuit





*** Please note: We maybe modify the products according to different situation without informing.




































































































































































































Model  Specification



LS-60-5



LS-60-12



LS-60-24



LS-60-36



LS-60-48



OUTPUT



DC  voltage



5V



12V



24V



36V



48V



Rated output current



12A



5A



2.5A



1.67A



1.25A



Output current range



0~12A



0~5A



0~2.5A



0~1.67A



0~1.25A



DC power



60W



60W



60W



60W



60W



Voltage adj.range



±10%



±10%



±10%



±10%



±10%



Voltage tolerance



±2%



±1%



±1%



±1%



±1%



Ripple and noise



70mVp-p



100mVp-p



100mVp-p



100mVp-p



100mVp-p



Line Regulation



±0.5%



±0.5%



±0.5%



±0.5%



±0.5%



Load stability



±0.1%



±0.5%



±0.5%



±0.5%



±0.5%



INPUT



AC voltage range



AC85~265V wide range 47~63Hz



Current



0.7A/115V  0.42A/230V



Efficiency



80%



85%



86%



86%



86%



AC Inrush current



Cold-start current 20A/115V  40A/230V



Leakage current



<0.5mA/240VAC



PROTECTION



Overload



110 ~ 150% rated output power



Protection type : Constant current limiting, recovers automatically after fault condition is removed



Over-voltage



Protection type : Shut down o/p voltage, re-power on to recover



5.75-6.9V



13.8-16.2V



28.8-33.6V



41.4-48.6V



55.2-64.8V



Short Citcuit



Protection type : shut off



SAFETY



Setup rise hold up time



200ms,100ms,20ms



Vibration



10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES



Withstand voltage



Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC



Isolation resistance



Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms



ENVIRONMENT



Temperature coefficient



 ±0.03%/°C (0~50°C )



Working temperature and humidity



 -20~+60°C,20~90%RH



Store temperature and humidity



 -40°C~+85°C,10~95%RH



OTHER



Overall dimension



140*47*30m  90pcs/Carton ( common packing )



Weight



0.18Kg



CERTIFICATE



CE EMC Authenticate



EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008



EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009



CE LVD Authenticate



EN61347-1:2008T A1:2001 EN61347-2-13:2006



EN60950-1:2006+A11:2009+A1:2010+A12:2001



ROHS Authenticate



EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996



EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
