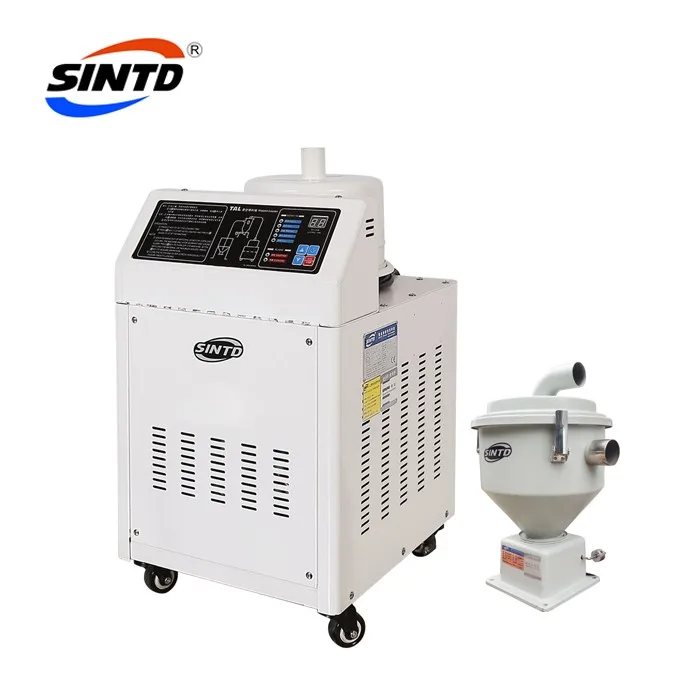

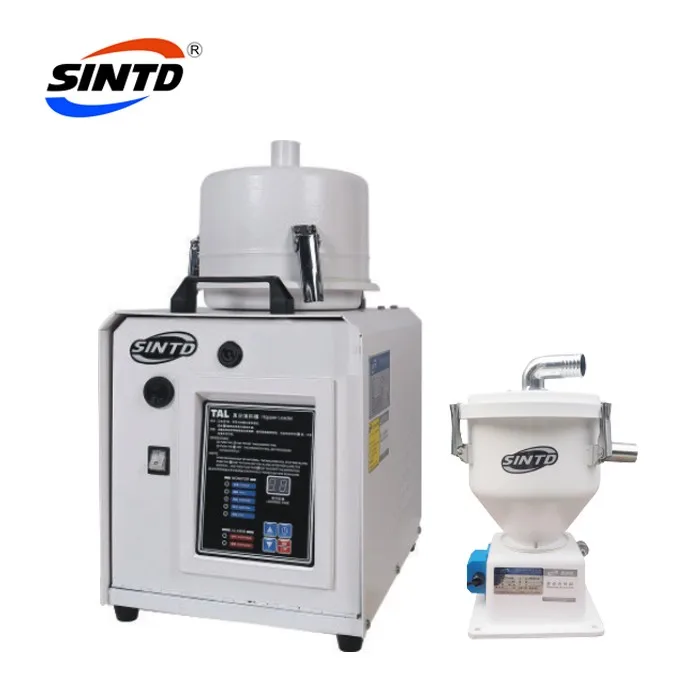

Separate Vacuum Hopper Loaders

        Sperate-vacuum hopper loaders are suitable for conveying material over long distance. The material hopper is installed away from the main unit and use of a stainless steel hopper eliminates material contamination. Superior suction power is continuously available from the high efficient vacuum blower. Each model is completed with motor overload protector to prolong its life, and is also fitted with a material shortage alarm.

Main Features:

1) Separate design of main unit and hopper receiver allows a great level of convenience when use.
2) Stainless steel hopper receiver to eliminate contamination.
3) Microprocessor controlled is easy to use and it controls accurately with a number of warning lights.
4) Digital display clearly shows operating status.
5) Motor overload protector ensures long motor life.
6) Audible material shortage alarm makes the operator get rid of it in time.
7) Filter designed for easy cleaning
8) Observation window to check air filter status conveniently and periodicly clean.

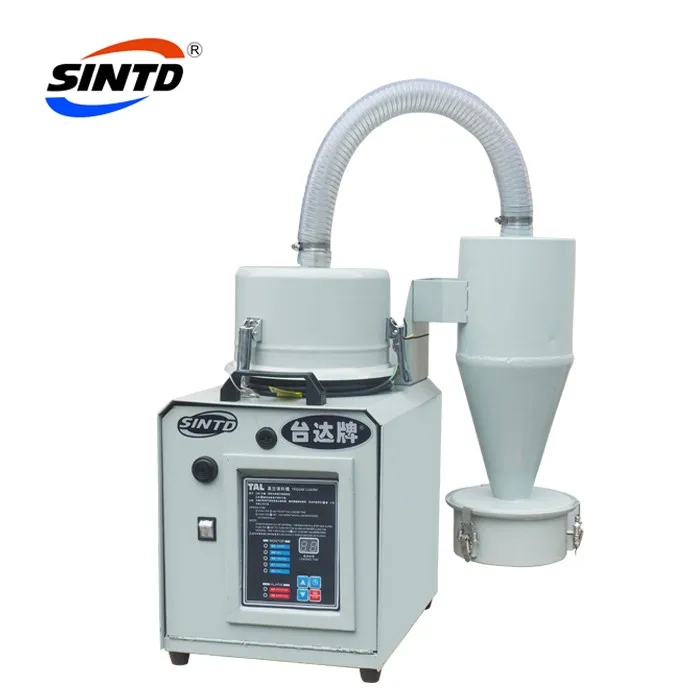

9) The cyclone cleaner can be selected to reduce the cleaning times of filters, which is suitable for comminuted transportation.
10) It can be equipped with two proportioning proportional valve, which is used for mixing new materials and comminution materials or recycling materials immediately.
11) ●Vacuum hopper receiver(TMH type) can be mounted directly to the hopper of the forming machine.
       ●Electric eye hopper receiver(TVH type) can be mounted directly to the feeding port of the forming machine.

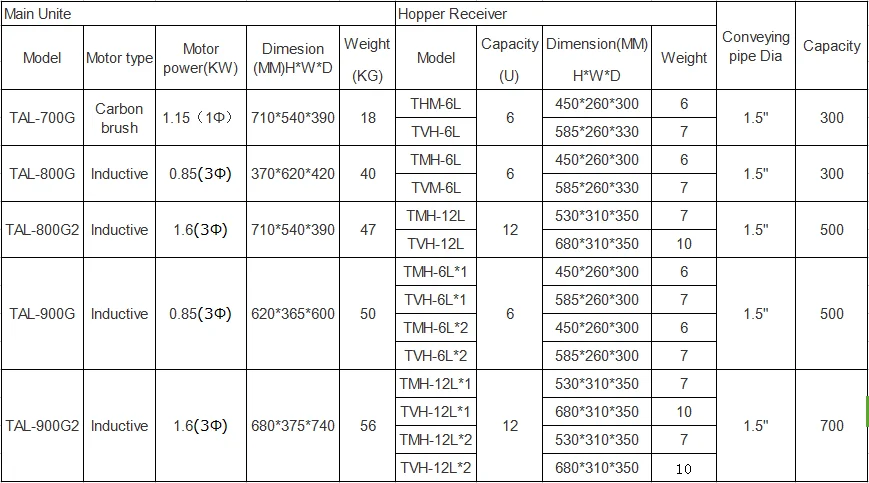

Specification:

Note:

1) "2" stands for 2HP blower.
2) "G" stands for separate design of hopper receiver(s) and main unit.
3) "TMH" stands for vacuum hopper receiver, "TVH" stands for electric eye hopper receiver.
4) Test condition of conveying capacity: vertical conveying height: 4m.
5) Power supply: 3Φ,400V,50Hz for all models except TAL-700G (1Φ,230V,50Hz)
