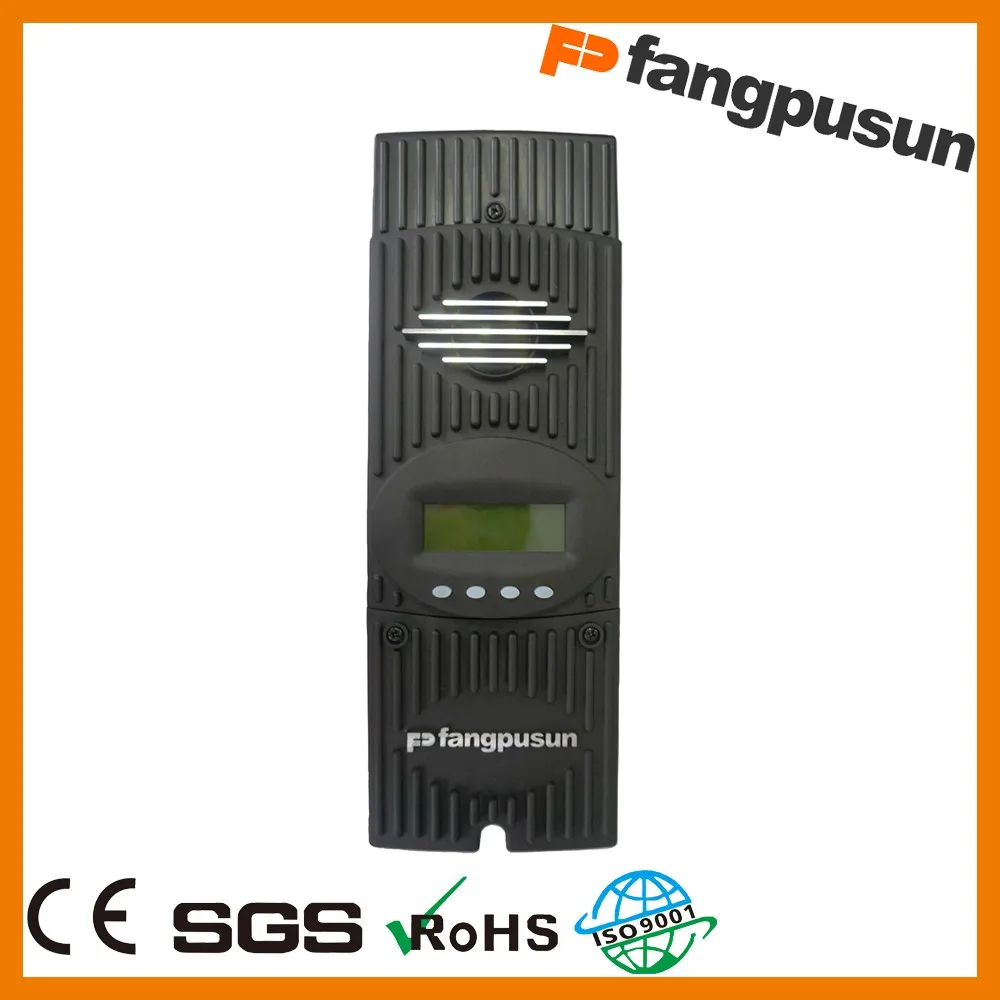

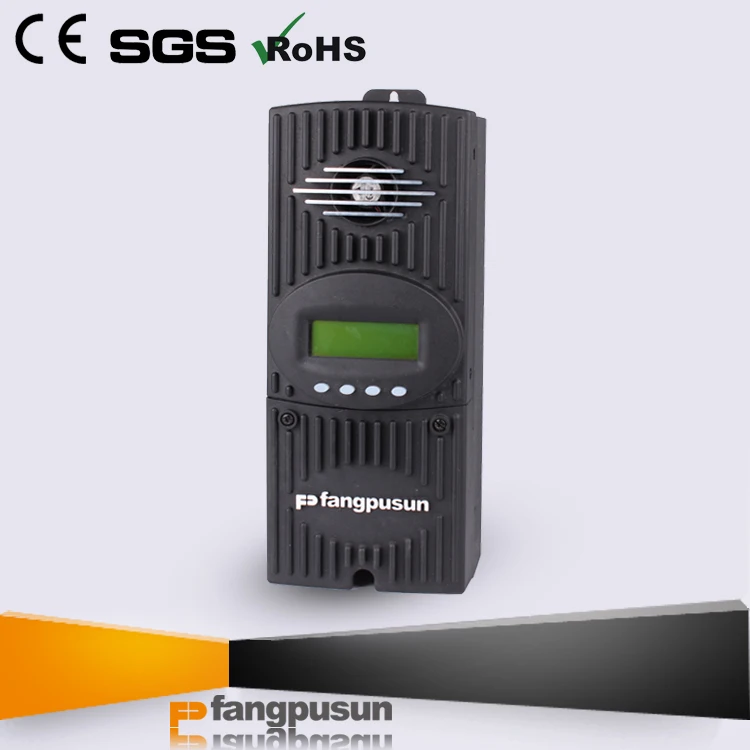

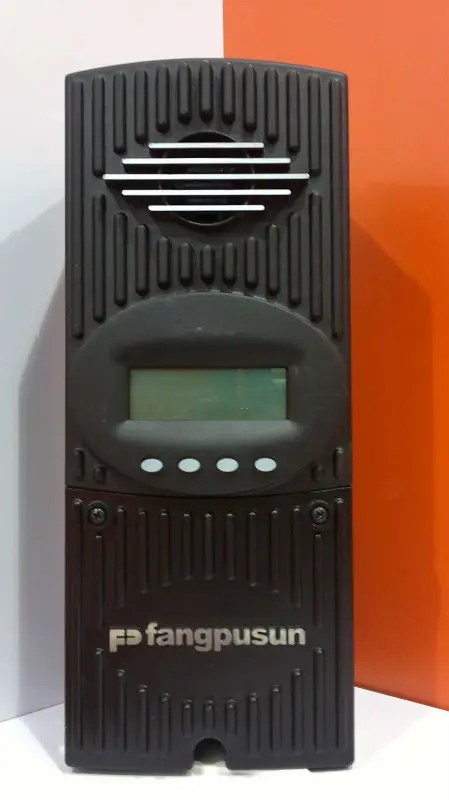

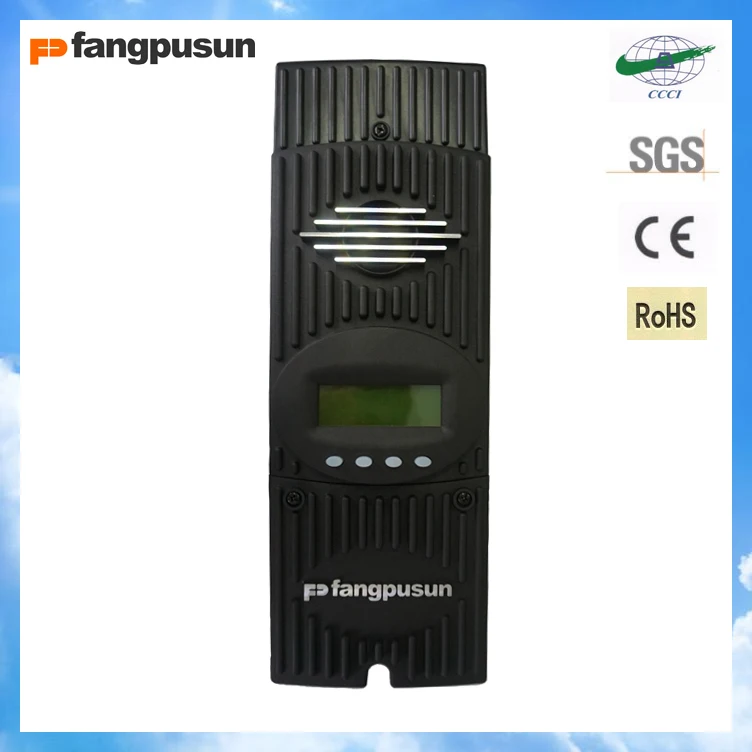

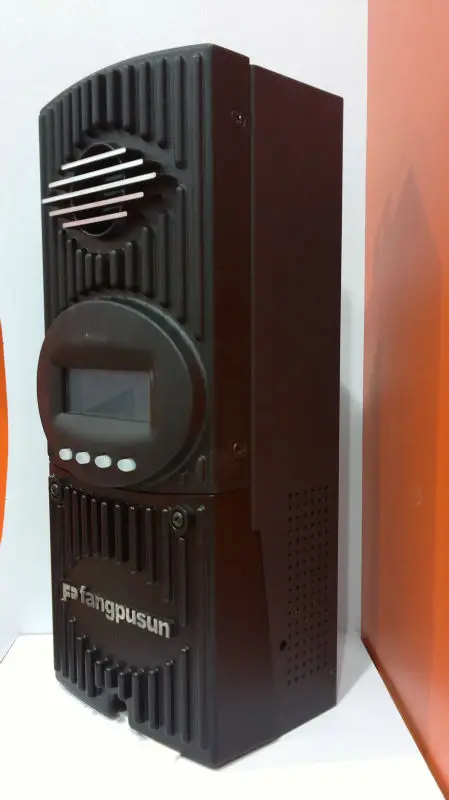

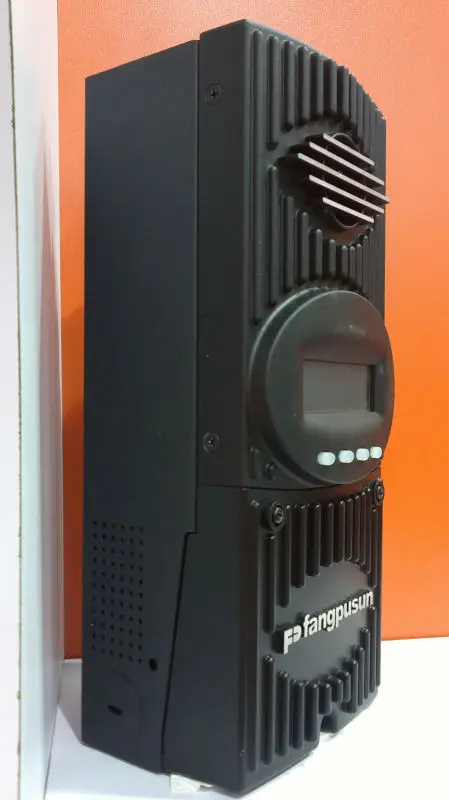

FLEXmax MPPT 80 MPPT Solar Charge Controller 80 Amp

The FLEXmax MPPT family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from fangpusun. The innovative FLEXmax MPPT software algorithm is both continuous and active , increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers . Thanks to active cooling and intelligent thermal management cooling , both FLEXmax charge controllers can operate at their full maximum current rating , 60 Amps or 80 Amps respectively , in ambient temperatures as high as 104 F (40 C).


Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun , including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank . A built-in,backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button . The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled completes integration .


FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance , efficient and versatile charge controller for your advanced power system .

Product Introduction
Product Parameters
\t
\t

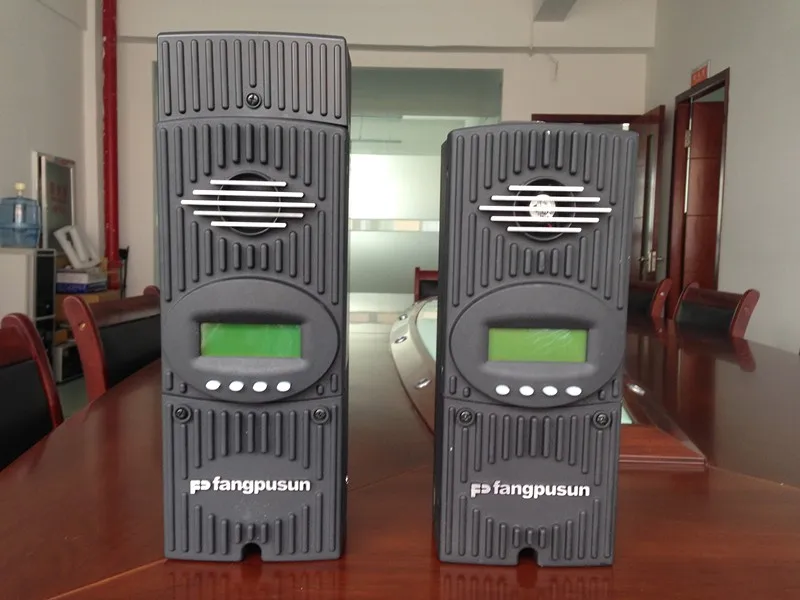

FLEXmax MPPT 60
\t
FLEXmax MPPT 80
\t
Nominal Battery Voltage
\t

12 , 24 , 36 , 48 or 60 VDC

\t
Maximum Output Current
\t
60 amps
\t
80 amps
\t

Maximum Solar Array STC Nameplate
\t
12 VDC systems 900 Watts
24 VDC systems 1800 Watts
48 VDC systems 3600 Watts
60 VDC systems 4500 Watts
\t
12 VDC systems 1250 Watts
24 VDC systems 2500 Watts
48 VDC systems 5000 Watts
60 VDC systems 7500 Watts
\t
NEC Recommended Solar Array STC Nameplate
\t
12 VDC systems 750 Watts
24 VDC systems 1500 Watts
48 VDC systems 3000 Watts
60 VDC systems 3750 Watts
\t
12 VDC systems 1000 Watts
24 VDC systems 2000 Watts
48 VDC systems 3750 Watts
60 VDC systems 5000 Watts
\t
PV Open Circuit Voltage (VOC)
\t
150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
\t
Standby Power Consumption
\t
Less than 1 Watt typical
\t
Power Conversion Efficiency
\t
98.1 % @ 60Amp in at 48VDC System voltage - Typical
\t
97.5 % @ 60Amp in at 48VDC System voltage - Typical
\t
Charging Regulation
\t
Five Stages : Bulk , Absorption , Float , Silent and Equalization
\t
Voltage Regulation Set points
\t
10 to 80 VDC user adjustable with password protection
\t
Equalization Charging
\t
Programmable Voltage Setpoint and Duration - Automatic Termination when completed
\t
Battery Temperature Compensation
\t
Automatic with optional RTS installed / 5.0 mV per C per 2V battery cell
\t
Voltage Step-Down Capability
\t
Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input
\t
Programmable Auxilary Control Output
\t
12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
\t
Status Display
\t
3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total
\t
Remote Display and Controller
\t
Optional Mate or Mate 2 with RS232 serial Communications Port
\t
Network Cabeling
\t
Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
\t

Data Logging
\t
Last 128 days of Operation - Amp Hours , Watt Hours , Time in Float , Peak Watts , Amps , Solar Array Voltage , Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours , and Kw Hours of production
\t
Hydro Turbine Applications
\t
Consult factory for approved Turbines
\t
Positive Ground Applications
\t
Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)
\t
Operating Temperature Range
\t
Minimum -40 to maximum 60 C (Power capacity of the controller is automatically derated when operated above 40 C)
\t
Options
\t
Remote Temperature Sensor (RTS) , HUB 4 , HUB 10 , MATE , MATE 2
\t
Menu Languages
\t
English & Spanish
Product Details Show
FAQ


Q1. What’s Certificates you have?
A: CE, ROHS, ISO9001, IEC , SGS certificates

Q2. How many years warranty?
A: All of products warranty 2 years. If have any quality problem, could return to us exchange new one or repair ir free. Use our company DHL account, free freight.

Q3. What’s the payment term?
A: 100% T/T (large order, accept 30% T/T prepay 70% balance before shipping), Western Union, Paypal.

Q4. How’s the delivery time?
A: Usually 2 hours after receive full payment. OEM order need 10-15 days.

Q5. Are you Steca/ Xantrex/ Outback factory or supplier?
A: No! We just copy Steca solar charge controller, Copy Outback Flex Max MPPT solar charge controller and copy Xantrex power inverter. Same construction, same function and same quality as Steca/ Xantrex/ Outback, but lower price than Steca/ Xantrex/ Outback. Good choose for customers.

Q6. What’s Government tender you get?
A: FP-S-300W and FP-S-600W inverter get Indonesia tender, Solarix MPPT2010 controller get Bulgaria tender, PR2020 solar controller get Ecuador tender, PR3030 solar charge controller get Mexico tender and so on.

Q7. Would you supply OEM/ ODM service?
A: Yes! Our company supply OEM service.
Ⅰ. MOQ 100Pcs or 200Pcs per model, blank box packing, standard export carton.
Ⅱ. MOQ 500Pcs per model, customer’s design color box packing, standard export carton.

Q8. How to distinguish solar charge controller with MPPT function?
A: input voltage more than output voltage, charging current less than loading current.


Q9. Why your unit price is higher than other supplier?
A: Alto and Audi are cars, also four wheels cars. Why Audi price higher than Alto? The same token, our Fangpusun solar charge controller unit price higher than other suppliers, so products quality higher than other supplier. We believe in the right balance between quality and price, we offer competitively priced systems while maintaining our high standard of quality.

Q10. What type of battery to connect Fangpusun solar charge controller?
A: GEL and AGM battery are all available. Solsum E, Solsum F, Solarix PRS, SOlarix MPPT these these 4 series also could setting for Li battery.

Q11. Engineering expertise
A: In Fangpusun we know that every project is different. Our solar experts with 10 years experience. will conduct a solar site analysis using the latest tools in the industry to ensure the maximum performance of your solar system. Give you the best suggestion, recommend suitable model for you.

Q12. What about your sale service?
A: Developing long-lasting relations with our customers is of utmost importance to us. We are committed to providing you with excellent all-round services, before, during and after the installation of your renewable energy syste.

Why Choose Us

About us

We are specializing in researching , developing , manufacturing and marketing of solar energy products .The company has a group of senior professional technical and management personnel , formed a set of science , industry and trade as one of the operating system.

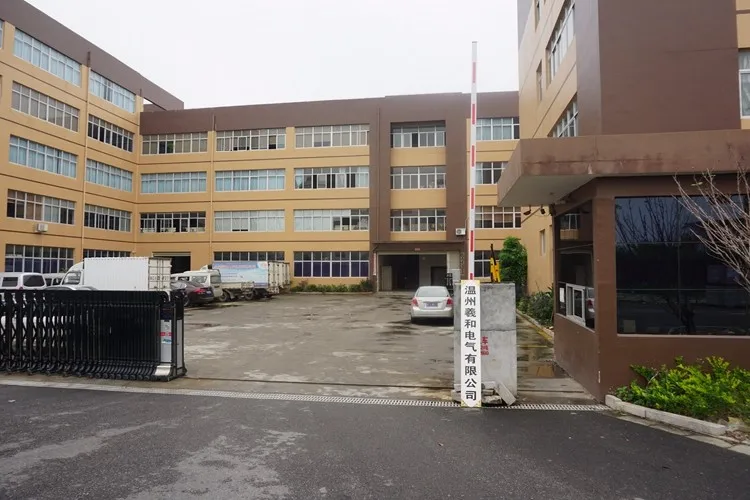

Equipment & technology

Our company owns modern production lines and high technology quality controlling equipment , with scientific adminstration , professional engineers , highly trained technicians and skilled workers produc high quality solar system items yearly , such as Solar charge controller , Off-grid Inverters , Grid-connected Inverters and special power units etc.,

Service

A) 2 Years Warranty .
B) More than 15 years experience in the solar energy field .
C) Help you plan your solar system , Solve the problem of your installation.
D) OEM Service , can help you design your own Brand .

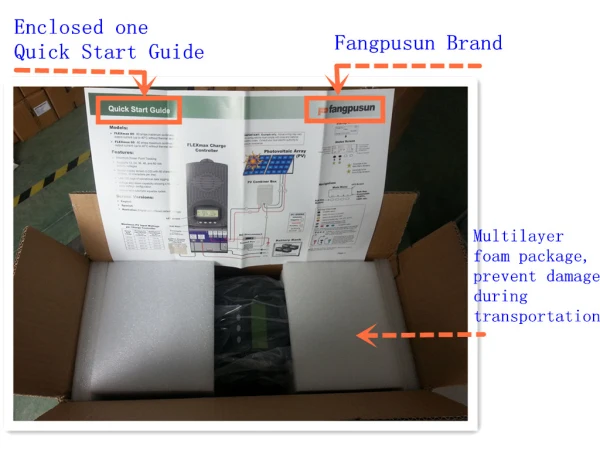

Product Packing
