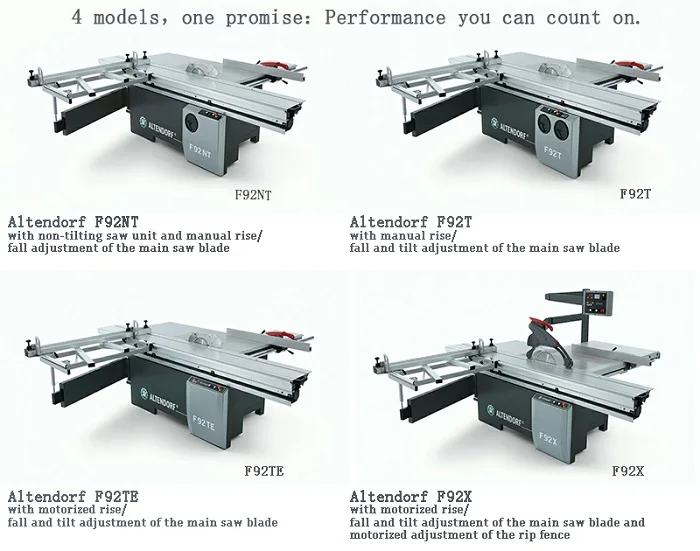

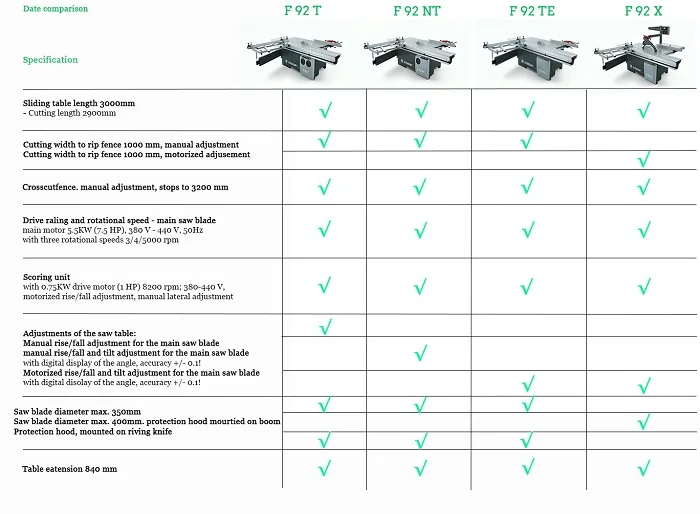

Altendorf F92X Precision Sliding Table Saw Machine
Model | Altendorf F92X |
Material | Carbide alloy |
Adjustable angle of sawing seat | 45-90 degrees |
Processing size | 2700 X 2700 mm |
Slide sliding table length | 2000/2600/3000/3200mm |
Motor power | 5,5KW |
Main saw shaft speed | 3000/4000/5000 rpm |
The maximum outer diameter of the main blade | 350mm |
Groove spindle speed | 9000 rpm |
Adjustable angle baffle ruler maximum extension | 3200mm |
Mechanical footprint | 6110 X 4170 mm |
Ergonomic: The Altendorf WA 8 X
with three motorised axes.

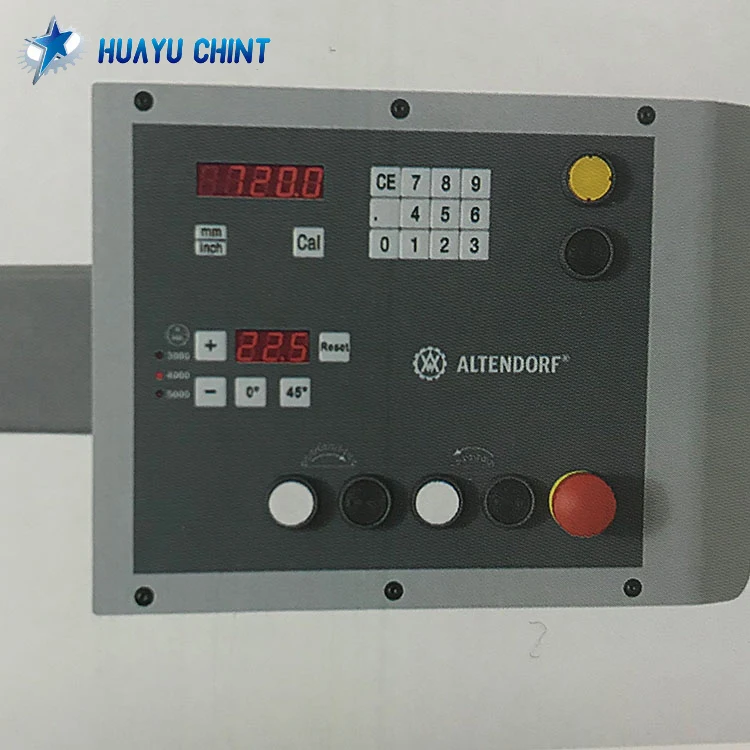

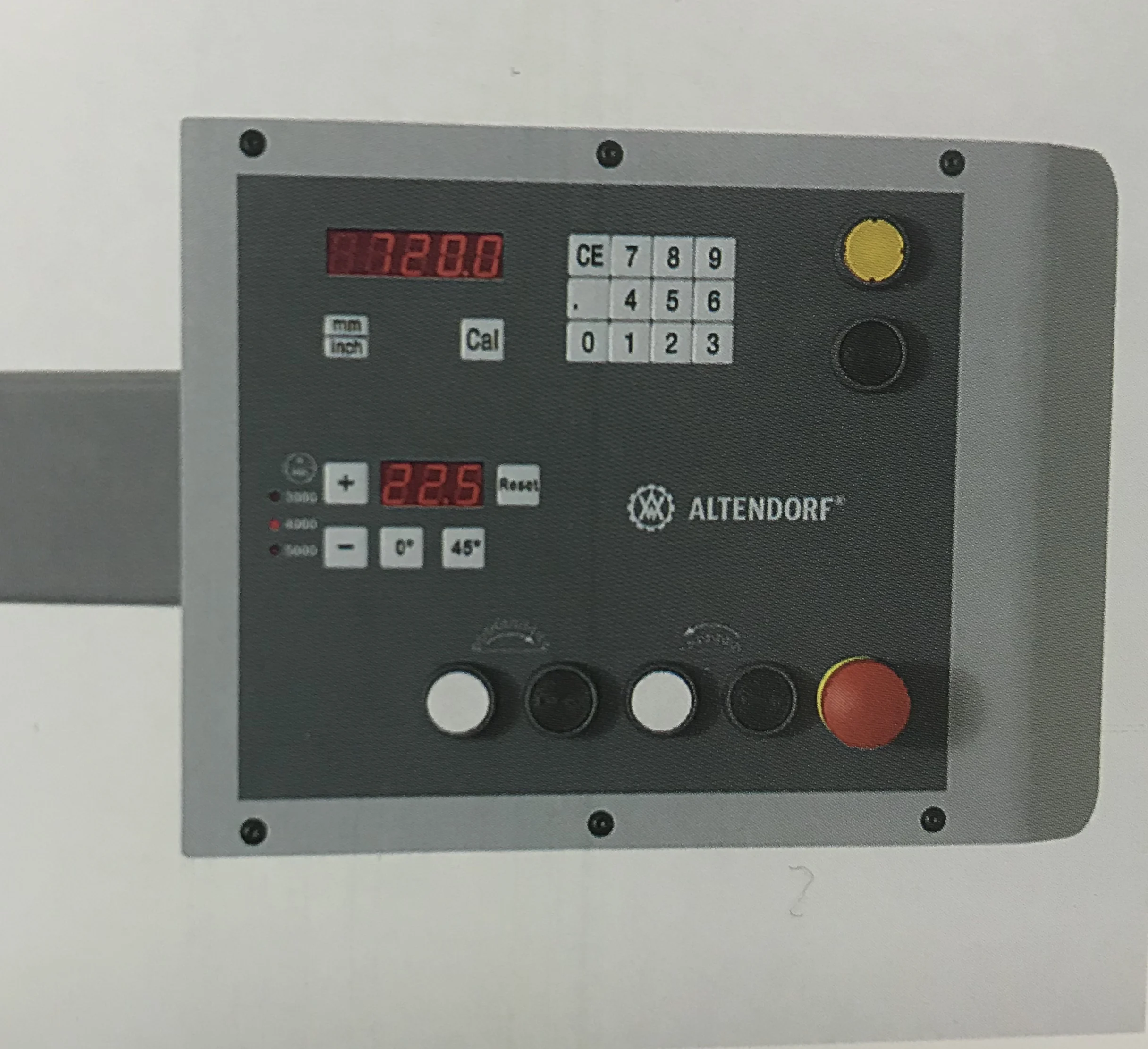

Eye-level operating panel:
All major control functions are always visible.
The panel pivots into the most convenient position and is accessible from both sides of the machine.

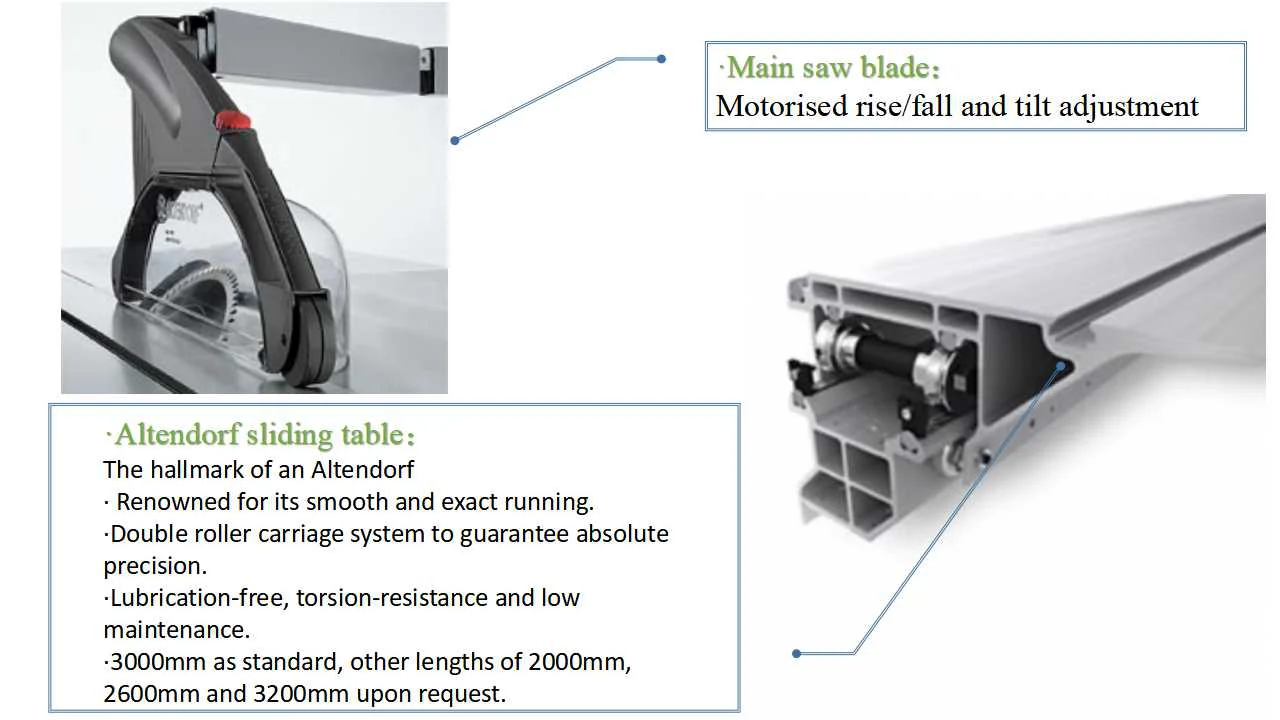

Adjustment of both the
saw blade and the rip fence are motorised.
saw blade and the rip fence are motorised.

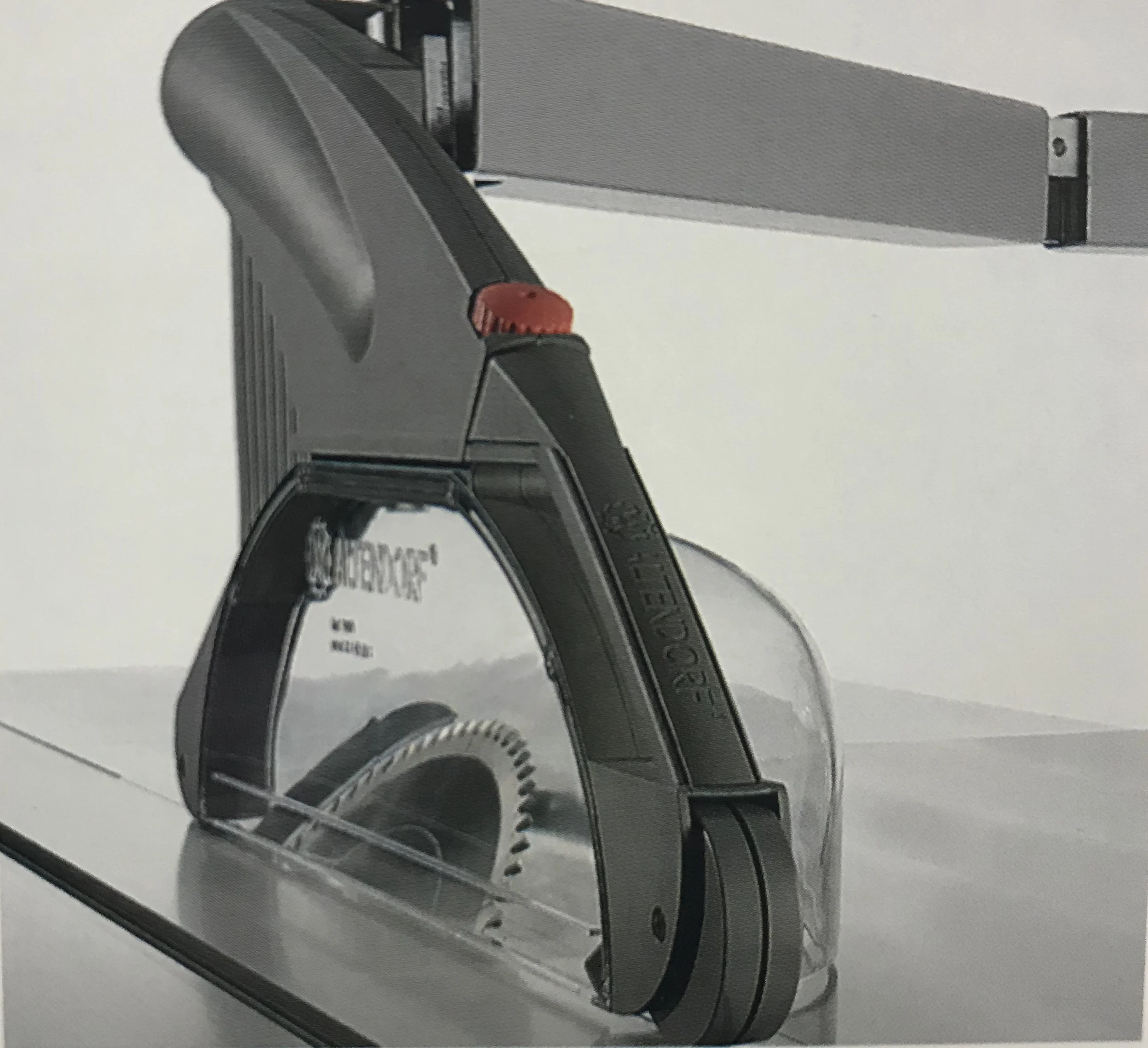

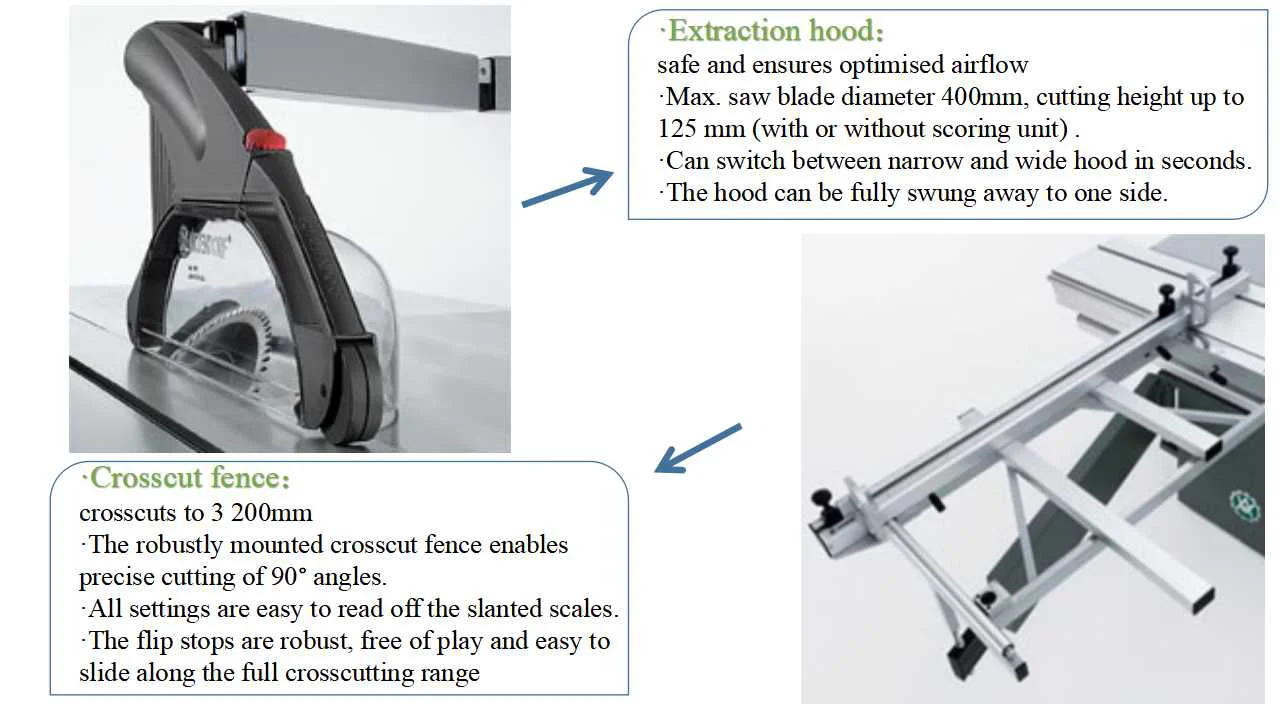

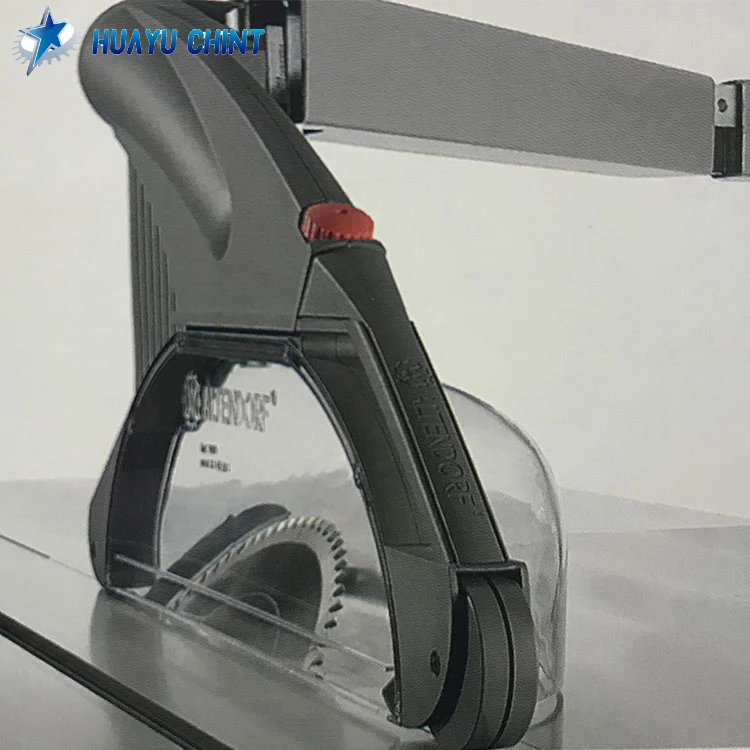

Extraction hood:
The large Altendorf extraction and safety hood system boasts a design which ensures optimised airflow.
You can switch between narrow and wide hoods in seconds.
The hood allows cutting heights of up to 125 mm (with or without scoring unit) and can be swung away fully to one side.

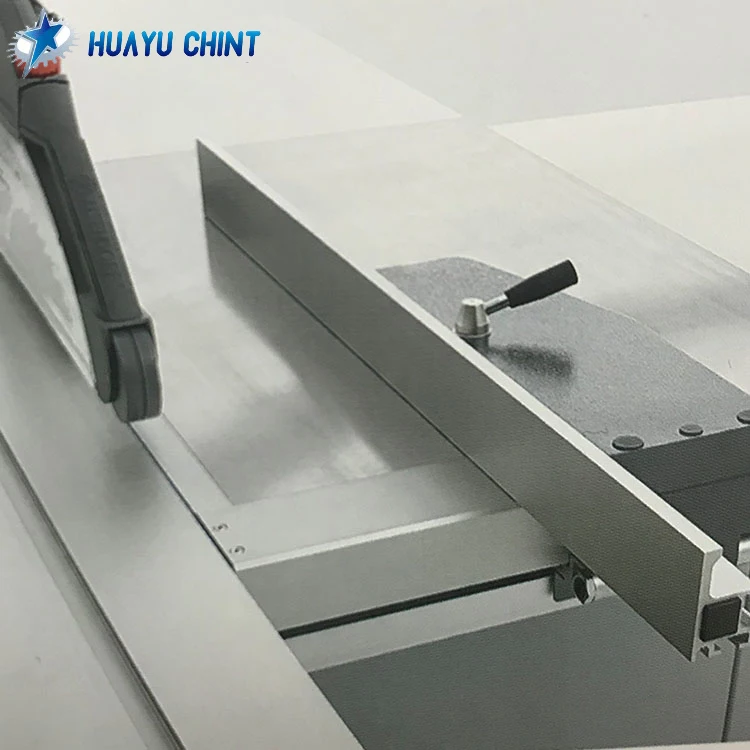

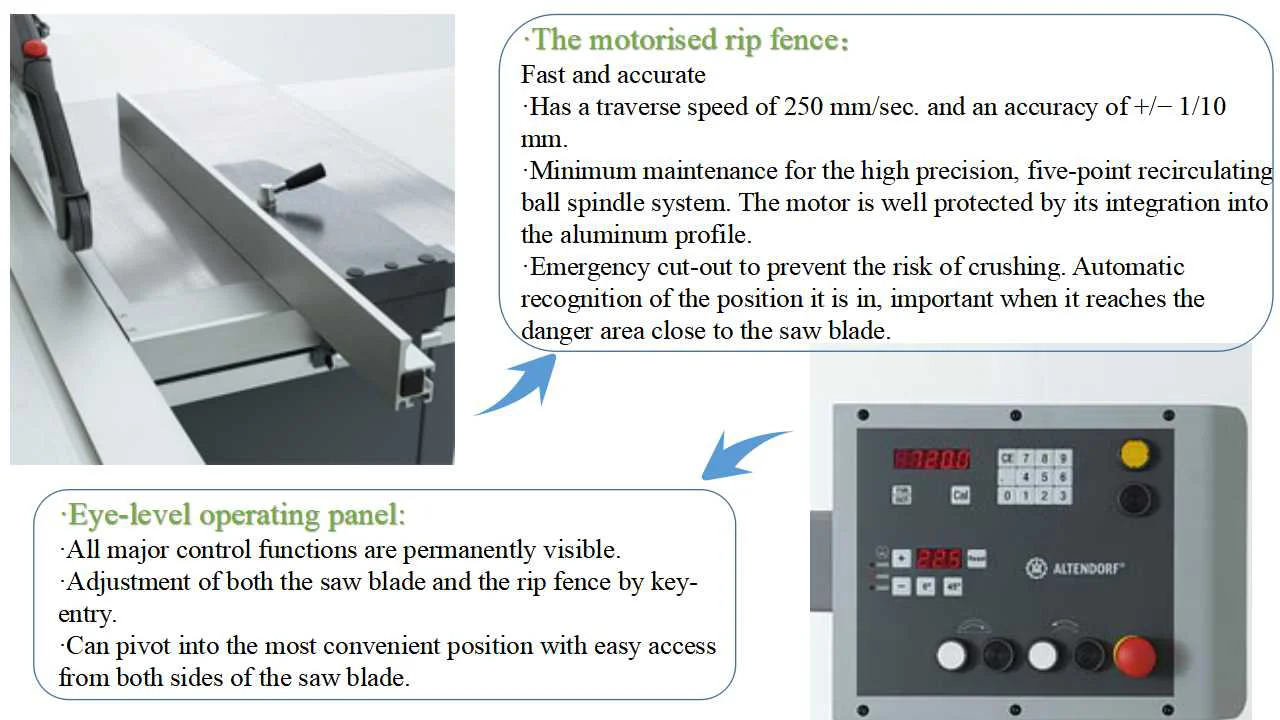

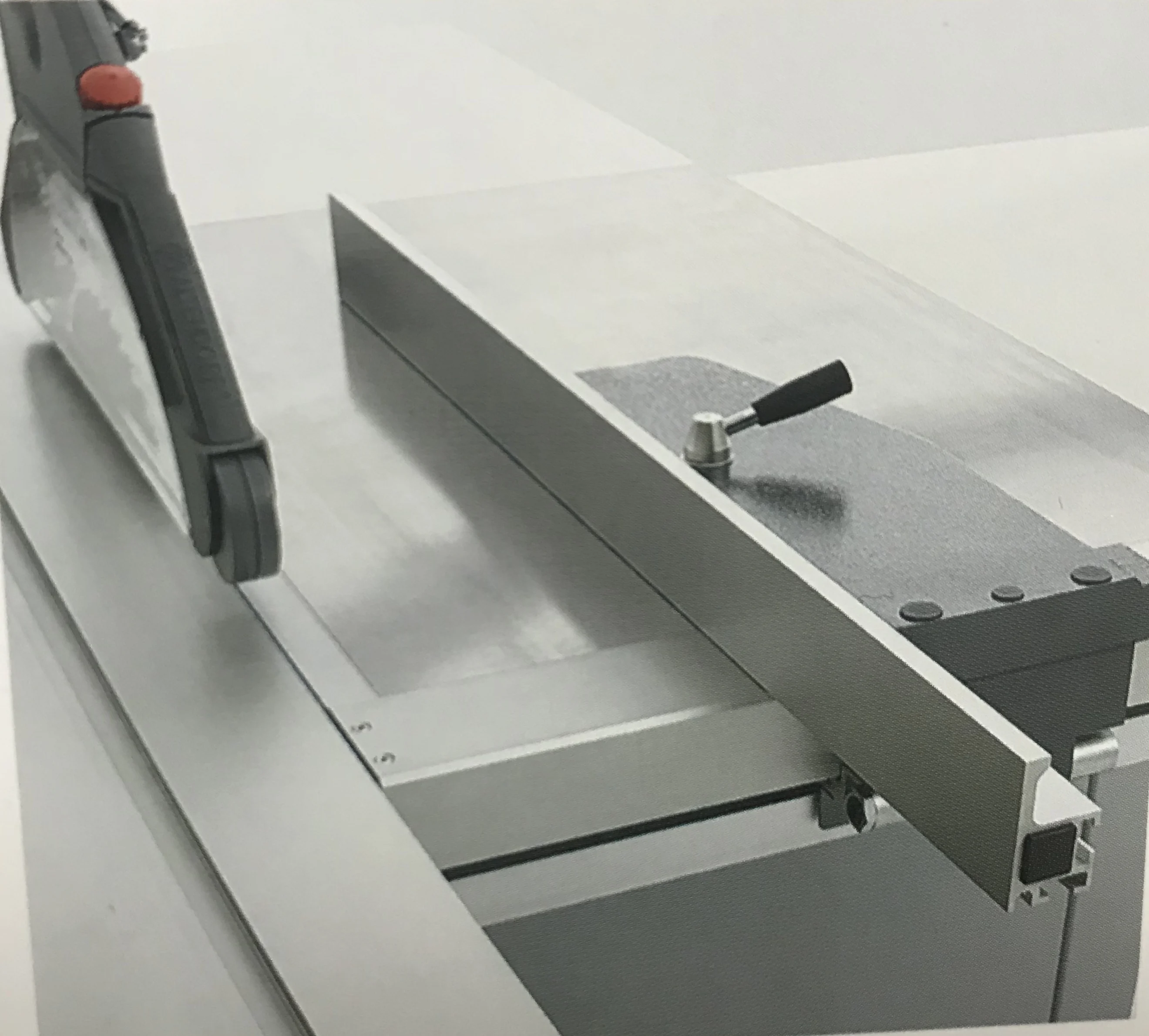

Motorised rip fence:
The motorised rip fence has a traverse speed of 250 mm/sec. and an accuracy of +/− 1/10 mm.
The high precision five-point recirculating ball spindle system needs little maintenance and, along with the motor, is well protected by its integration into the aluminium profile.
The fence automatically recognizes the position it’s in, especially when it reaches the danger area around the saw blade.It has an emergency cut-out to prevent the risk of crushing

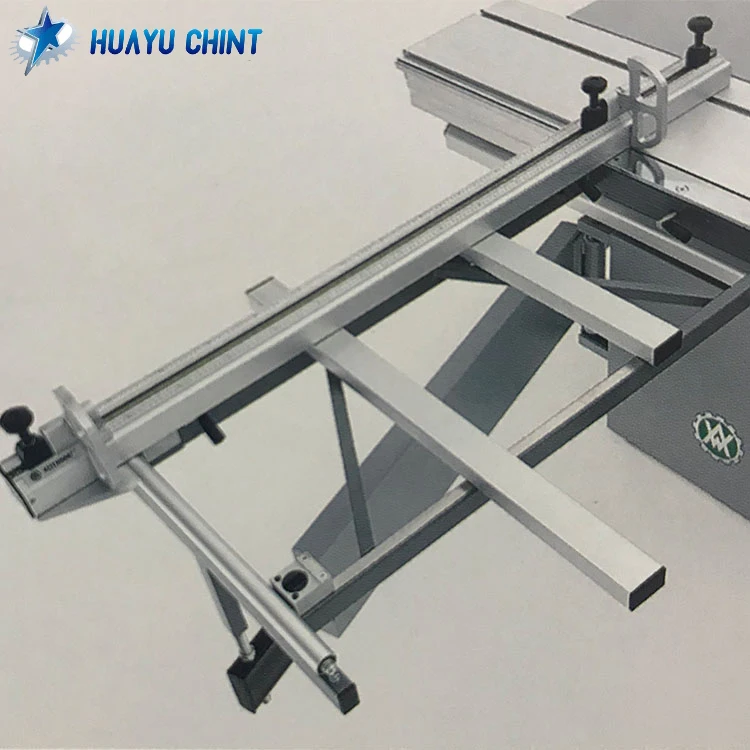

Crosscut fence:
The robustly mounted crosscut fence enables precise cutting of 90° angles.
All settings are easy to read off the slanted scales.
The flip stops are robust, free of play and are easy to slide individually along the full crosscutting range.
Details Images
High performance cuts in any material.

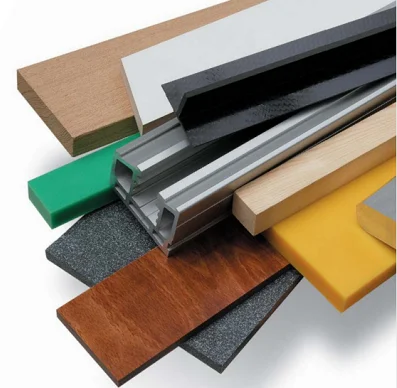

Wood, plastic, non-ferrous metals: The Altendorf WA 8 is ready for anything.
The WA 8 not only achieves perfect cutting results in wood and wood-based products but also in a large range of other materials.
Whether it’s cutting to size large panels made of polyethylene or plexiglas or crosscutting very thick plastics, the WA 8 is efficient and precise.
Non-ferrous metals such as aluminium extrusions are also cut cleanly and accurately by the WA 8. This is of course, in addition to typical applications such as sizing panels, squaring and mitre cuts, and the straight line edging and rip cutting of solid wood, all of which are carried out economically and efficiently with the WA 8.
