Product Overview
Description

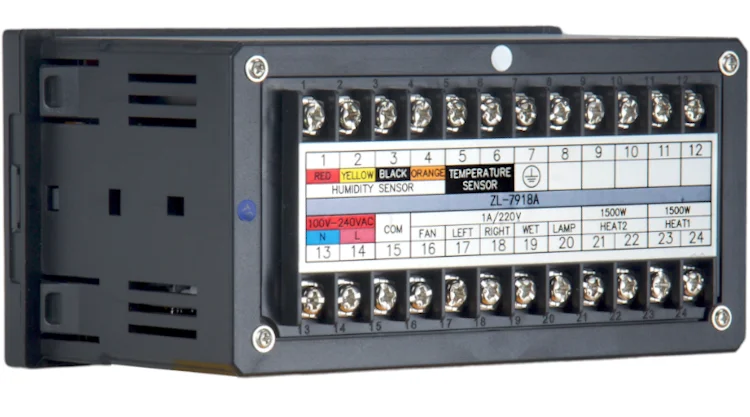

ZL-7918A
Incubator Controller
Incubator Controller
ZL-7918A is an intelligent temperature and humidity controller for incubator and similars.
Power supply: 100 ~ 240Vac, 50/60Hz
One temperature sensor (L = 2.0 meter)
One humidity sensor (L = 2.0 meter) Setting range: Humidity 10 ~ 80% RH; Temperature 1 ~ 65℃ Display range: Humidity 0 ~ 99% RH; Temperature -9.9 ~ 99℃ Measuring accuracy: Humidity ±3%@25℃; Temperature ±1%@25℃ Output control: 7 outputs
One humidity sensor (L = 2.0 meter) Setting range: Humidity 10 ~ 80% RH; Temperature 1 ~ 65℃ Display range: Humidity 0 ~ 99% RH; Temperature -9.9 ~ 99℃ Measuring accuracy: Humidity ±3%@25℃; Temperature ±1%@25℃ Output control: 7 outputs
(main-heater, aux-heater, lamp, humidity, egg-right-turning, egg-left-turning, fan)
Output load: heater ≤ 1500W; Lamp ≤ 100W; Humidity, egg-turning and fan ≤ 1A/250Vac
Hatched day counter: the maximum value is 99 days
Egg turn control:
Turn period: 1 ~ 999 minutes
Turn driving time: 0 ~ 999 seconds
Turn times counter: 0 ~ 999 times
Air exhaustion control: Period: 1 ~ 999 minutes; Exhausting time: 0 ~ 999 seconds
Lamp control: Period: 1 ~ 999 minutes; Illuminating time: 0 ~ 999 seconds
Operation environment: -10 ~ 45℃; less than 90% RH without dew
Device dimension: 160 * 80 * 95 mm
Installation drilling size: 151.5 * 76.5 mm

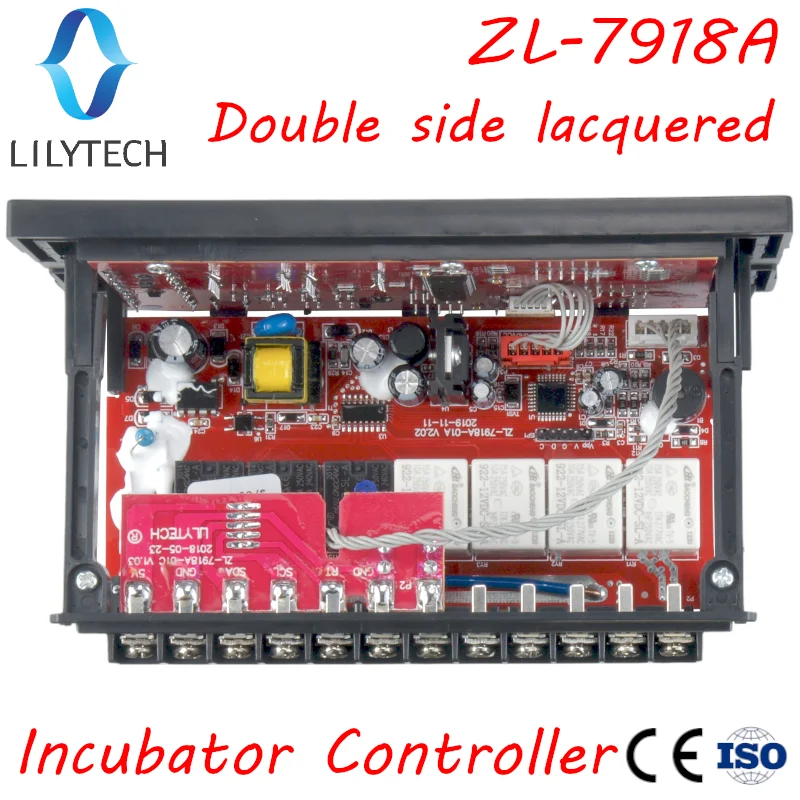

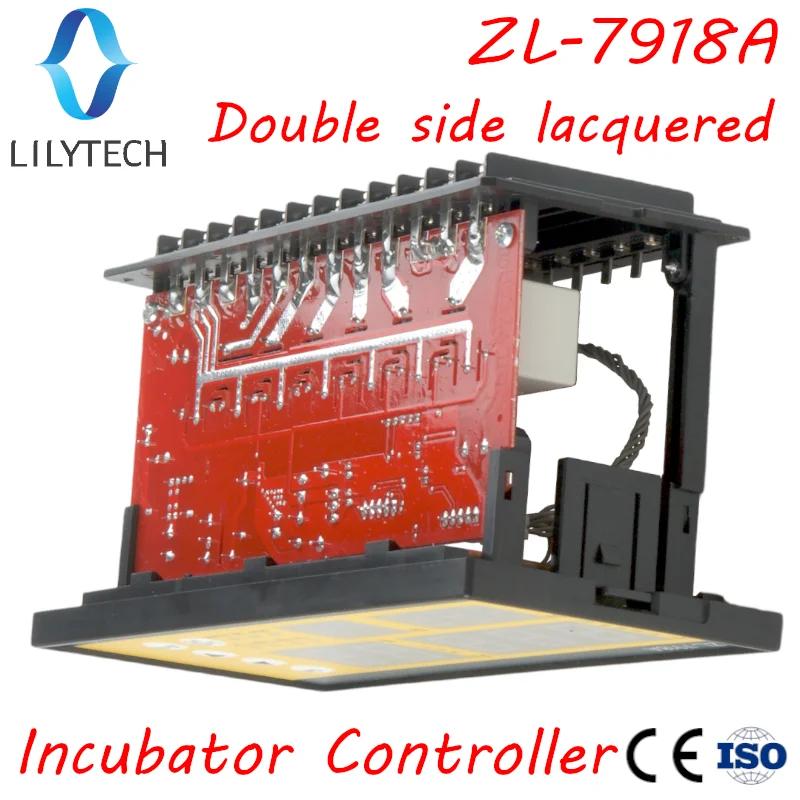

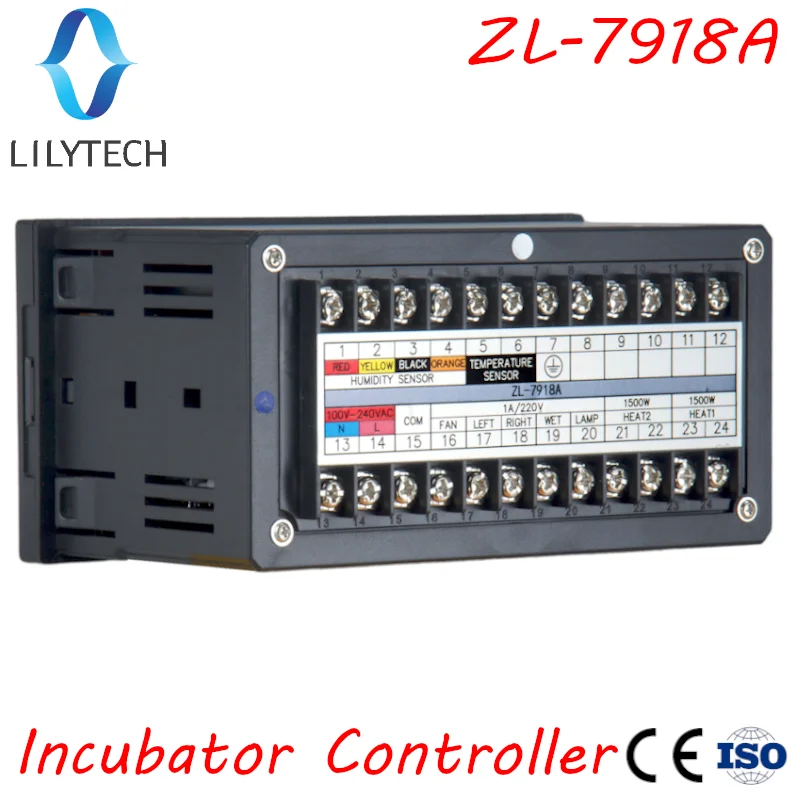

Details Images
Product packaging

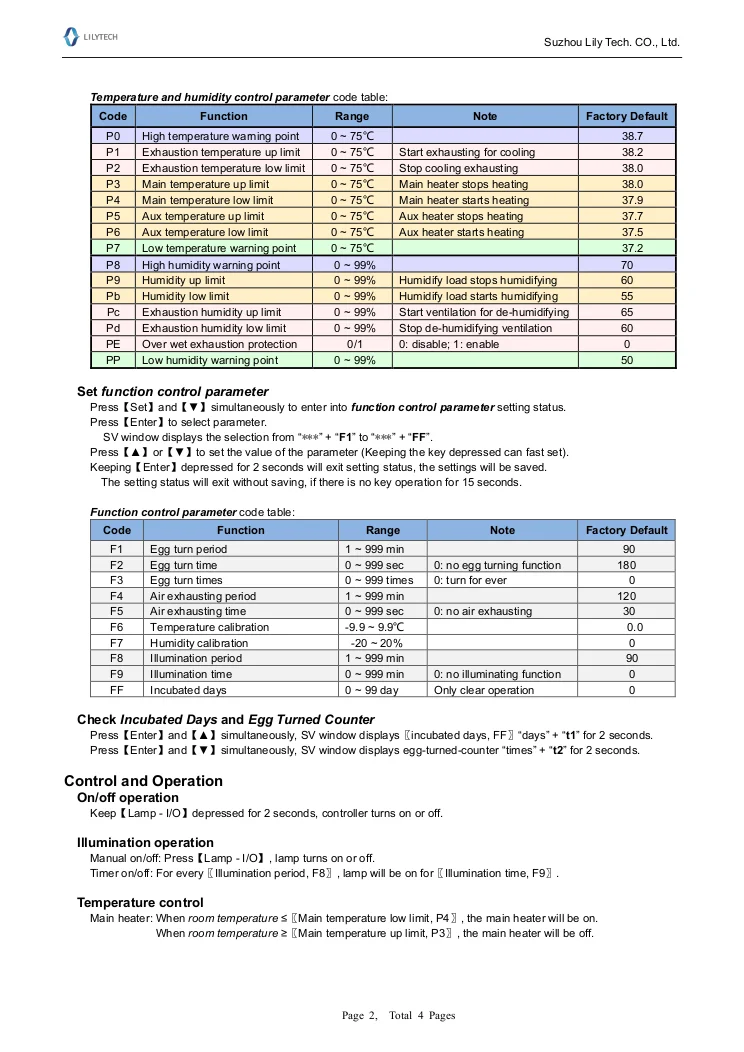

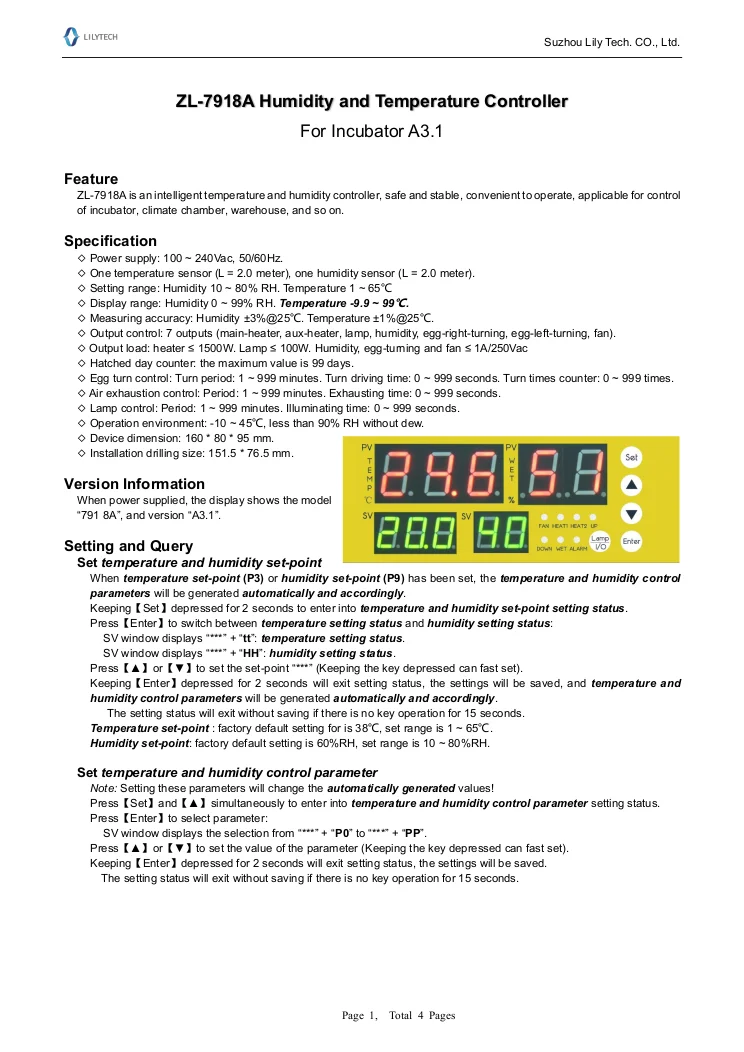

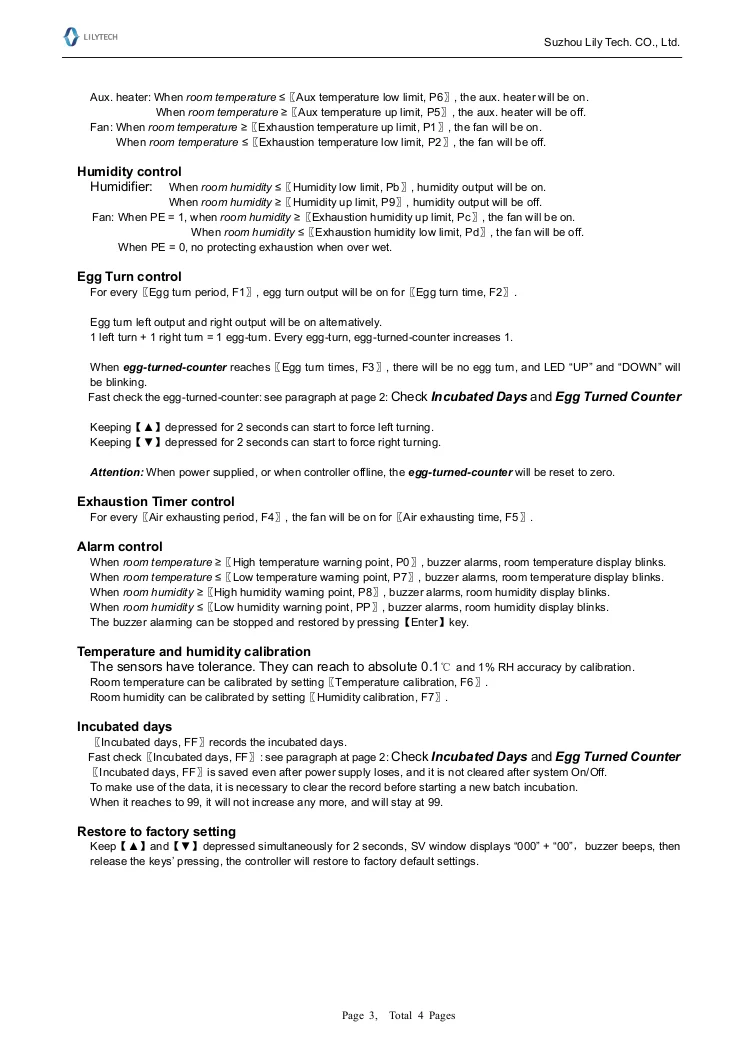

Manual
Manual (copy and paste to browser address to view and downlaod):
www.suzhoulily.com/pdf/ZL-7918A_en_V3.1.pdf
The content of pdf file could be copied to web for translation.
The content of pdf file could be copied to web for translation.
Contact and Service
Certifications
Recommend Products
Traditional "XM-18"

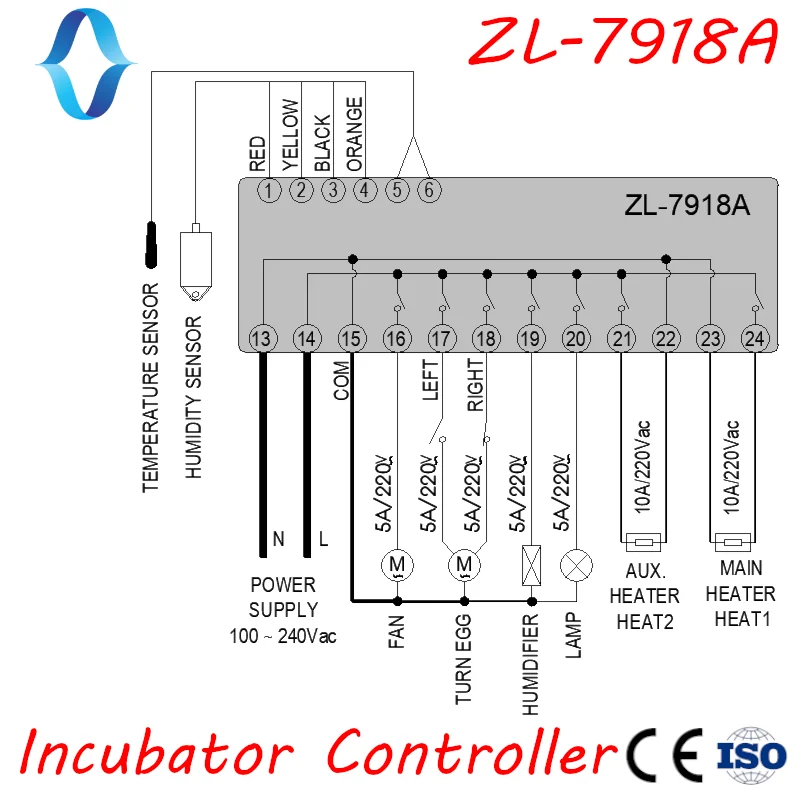

All outputs are wet outputs. They are internally connected to power supply. And the voltage of outputs are same as power supply.
