Features: Camera can identify any shape and any color Mark Point, Dual Heads Design to Cut & Write or Cut & Score or Emboss & Cut or Engrave & Cut or Draw & Emboss with one step 2mm small Lettercutting no sawtooth & 5M Paper cutting no deviation. 4.3 Large Touch Screen for visualized fine-funing operation Auto Contour Cutting, High accuracy Auto Calibrating, Auto Repeat Cutting Real USB( NO USB Driver), U Disk Connection Adjust Cutting Force or Cutting Speed during work time 32-bit ARM7 CPU, 8M Cache Memory, One-Key Remote Upgrading 160 Setting adjustable, Cutting Force 2000g Max, Alumimum alloy Housing & High Precision Steel Axes Colorful LED light bar design Feed material way: steel roller+pinchwheel English/Italian/Spanish/Japanese/Portuguese/Finnish/French/German.
Tech Data
Tech Data
Model

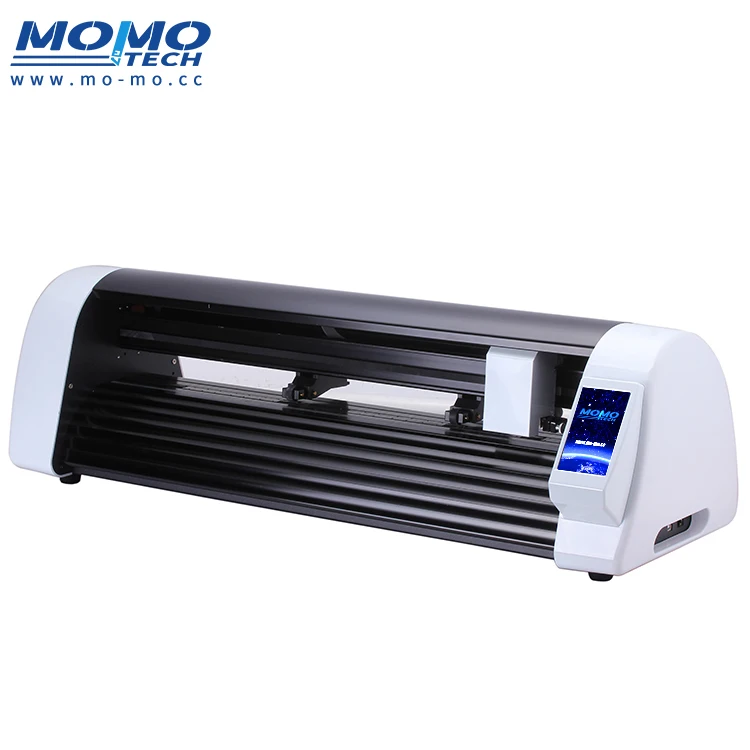

MM-VAD24-B (24 inch Dual heads cutter plotter with Bracket)
Acceptable media width
720mm
Max cutting width
550mm
24 inch

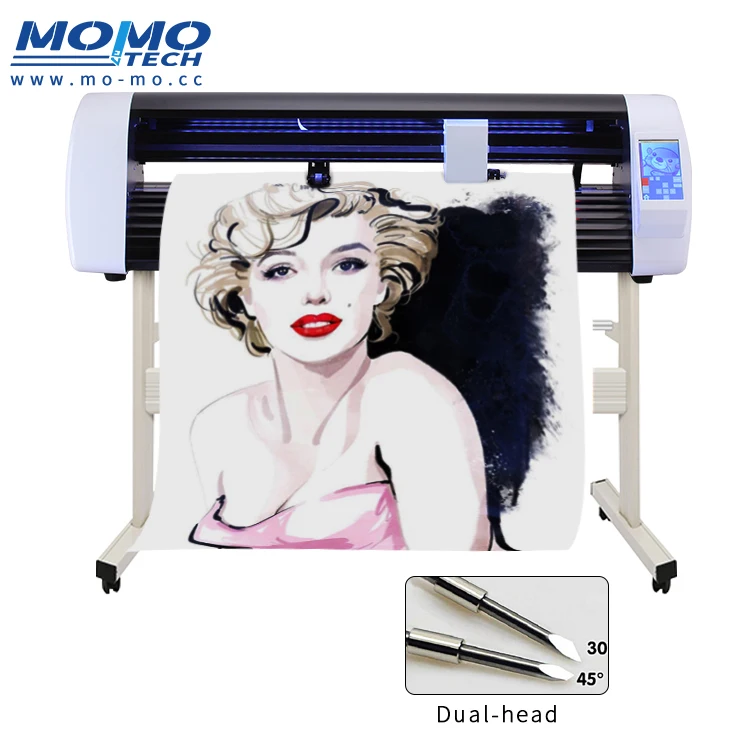

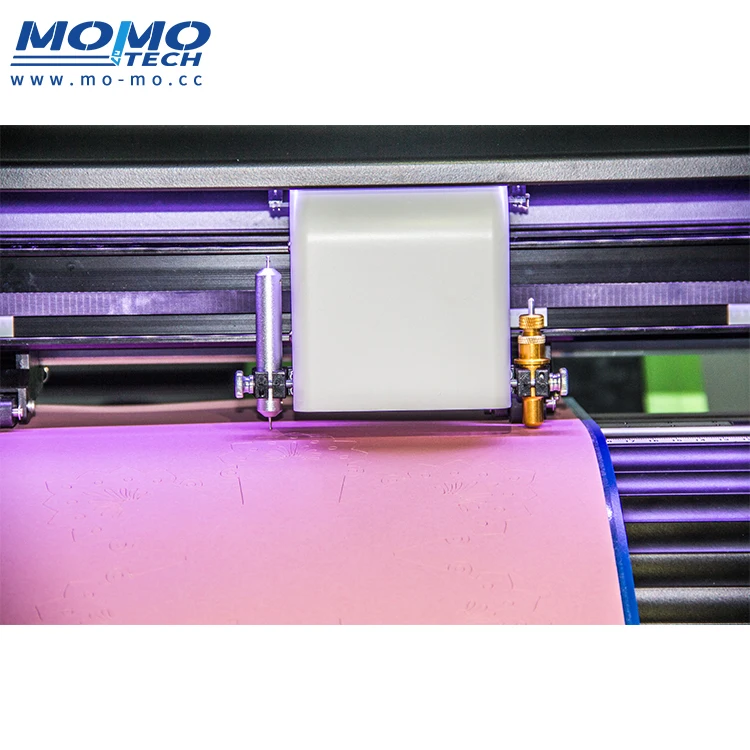

Cutting head
Dual
Camera
Support
Auto Contour cutting
Fast ,automatically and high precision contour cut by using camera.
Operation
4.3" TFT LCD Large touch screen
Interface
HD large screen full-color APP information function display

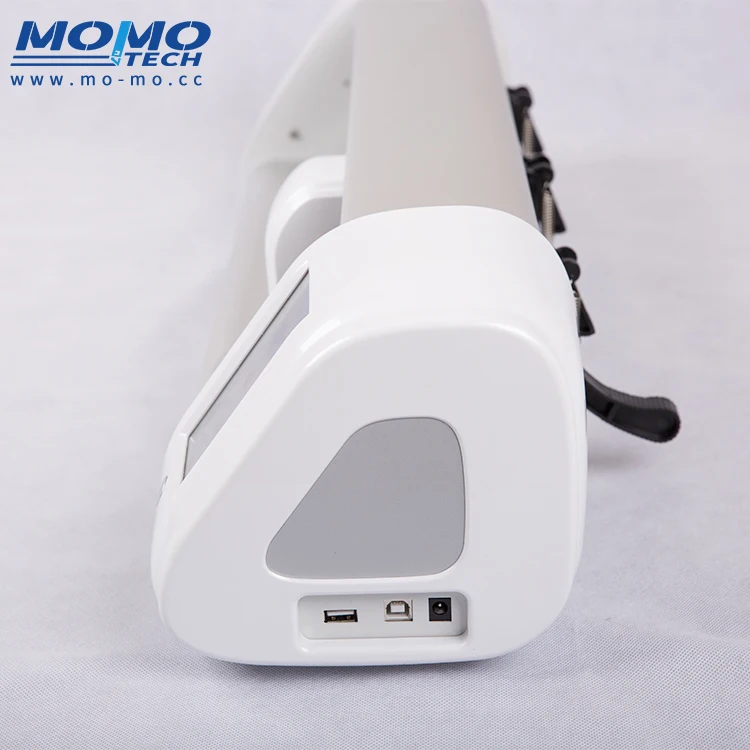

Connector
USB cable,USB flash drive
Contour cutting & calibration
Easy use and high precision calibrate
Mainboard
32bit ARM cortex M4 MCU,8M memory. Support remote and one key update.
Location mode
Bound system. set origin freely
Driver
Digital DC stepper motor,microstep driving
Command
HP-GL, DMPL
Max moving speed
960mm/s
Max cutting speed
750mm/s
Max cutting thickness
1mm
Force
Dual head:50g~2000g ( 160 setting adjustable ) (independent setting of each head)
