TZBOT 24V 750W 210mm Hydraulic Motor Assembly Forklift Parts with Controller 1212p
- Category: >>>
- Supplier: Zhejiang Tongzhu Technology Co. Ltd.
Share on (60749770853):
Product Overview
Description
Product Overview

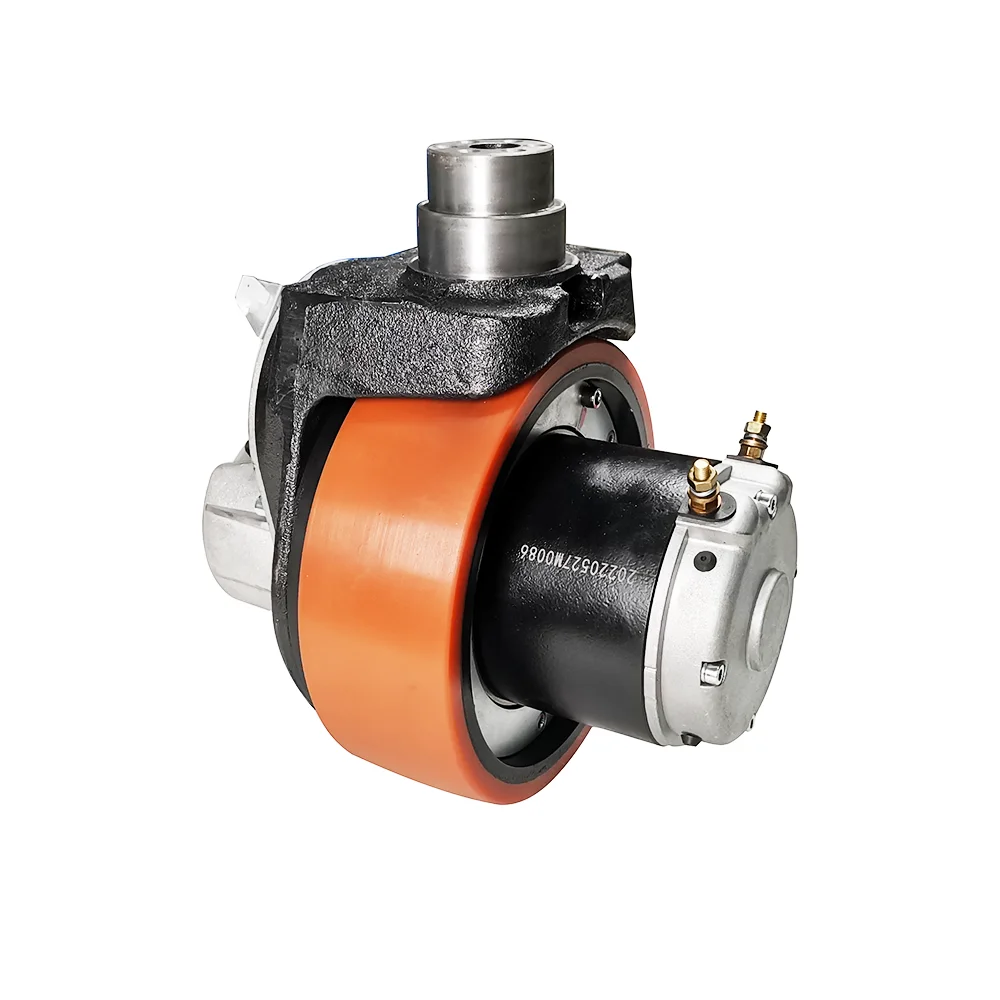

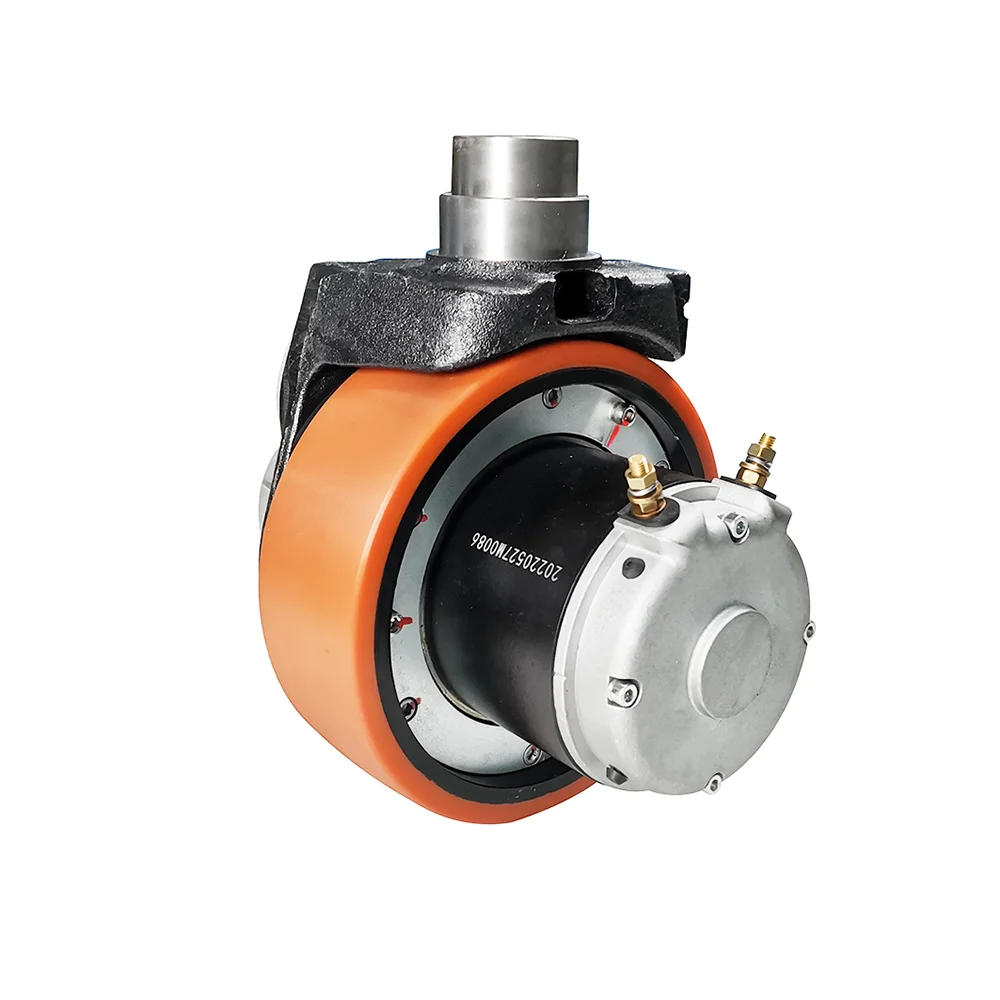

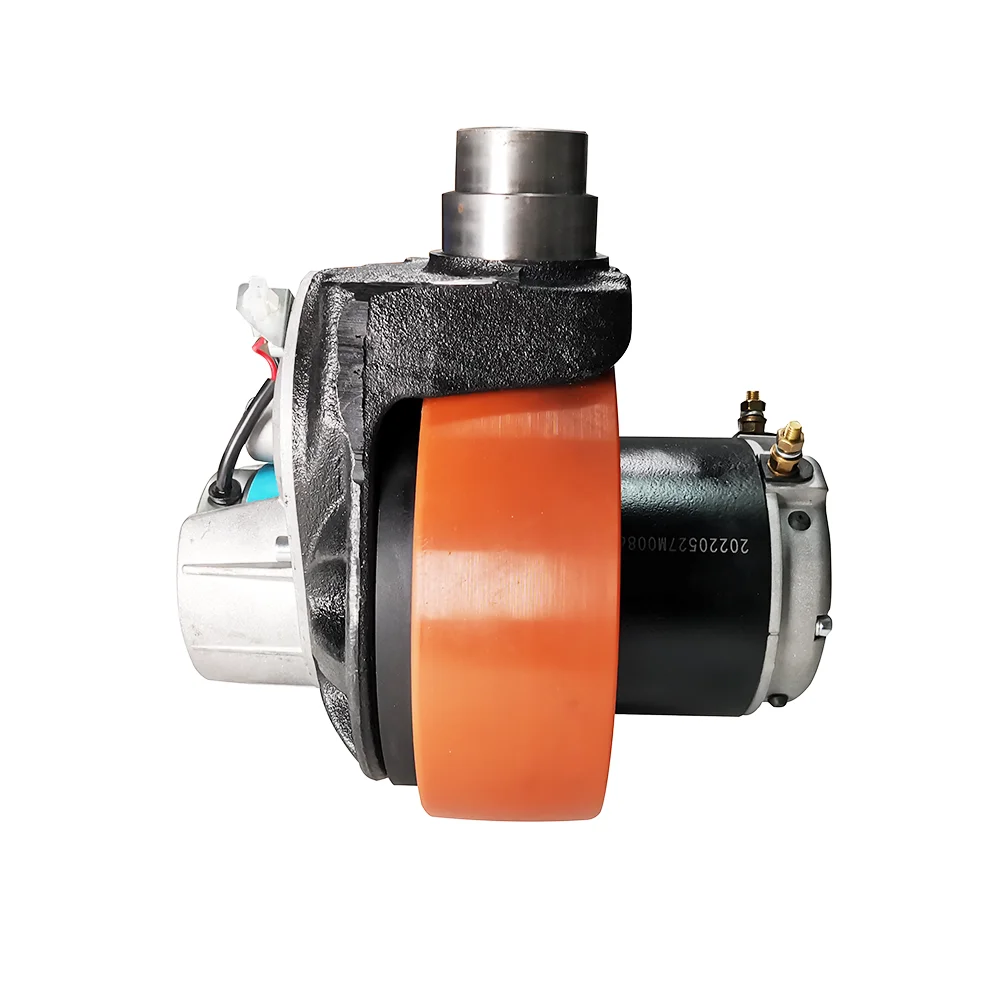

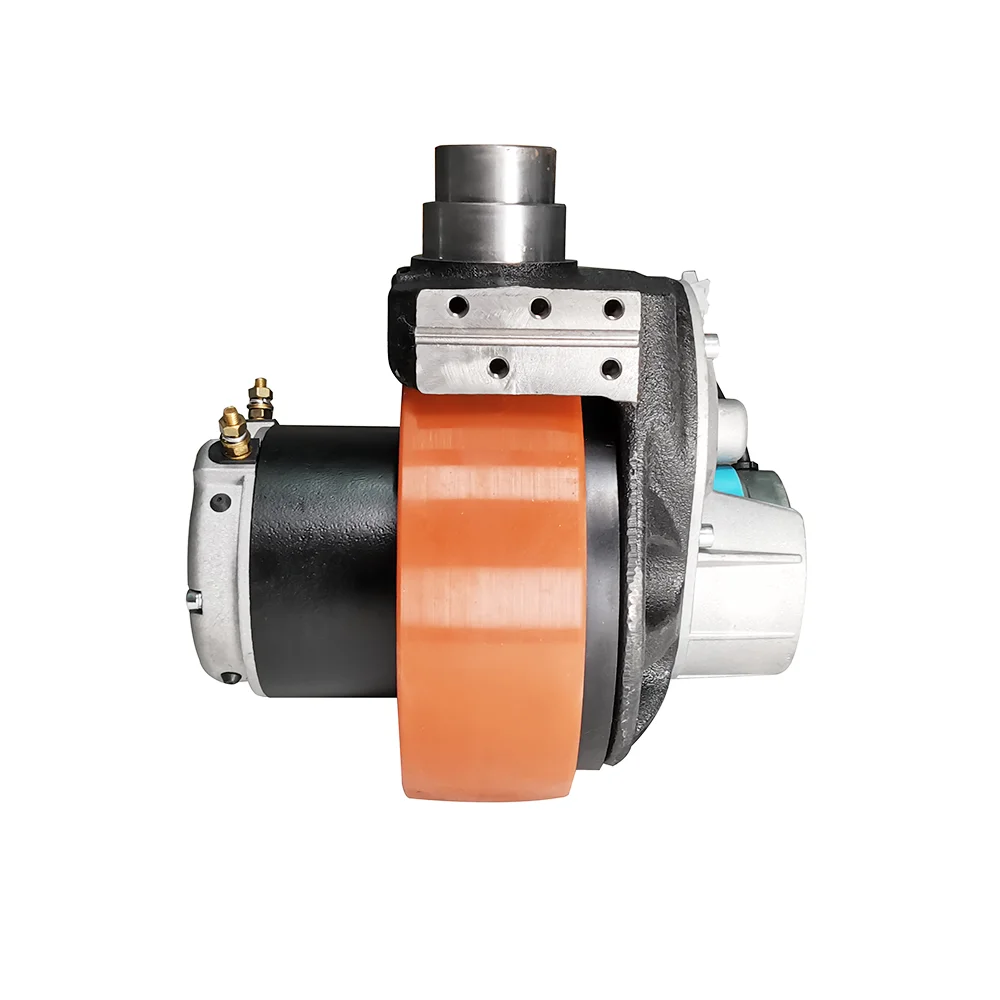

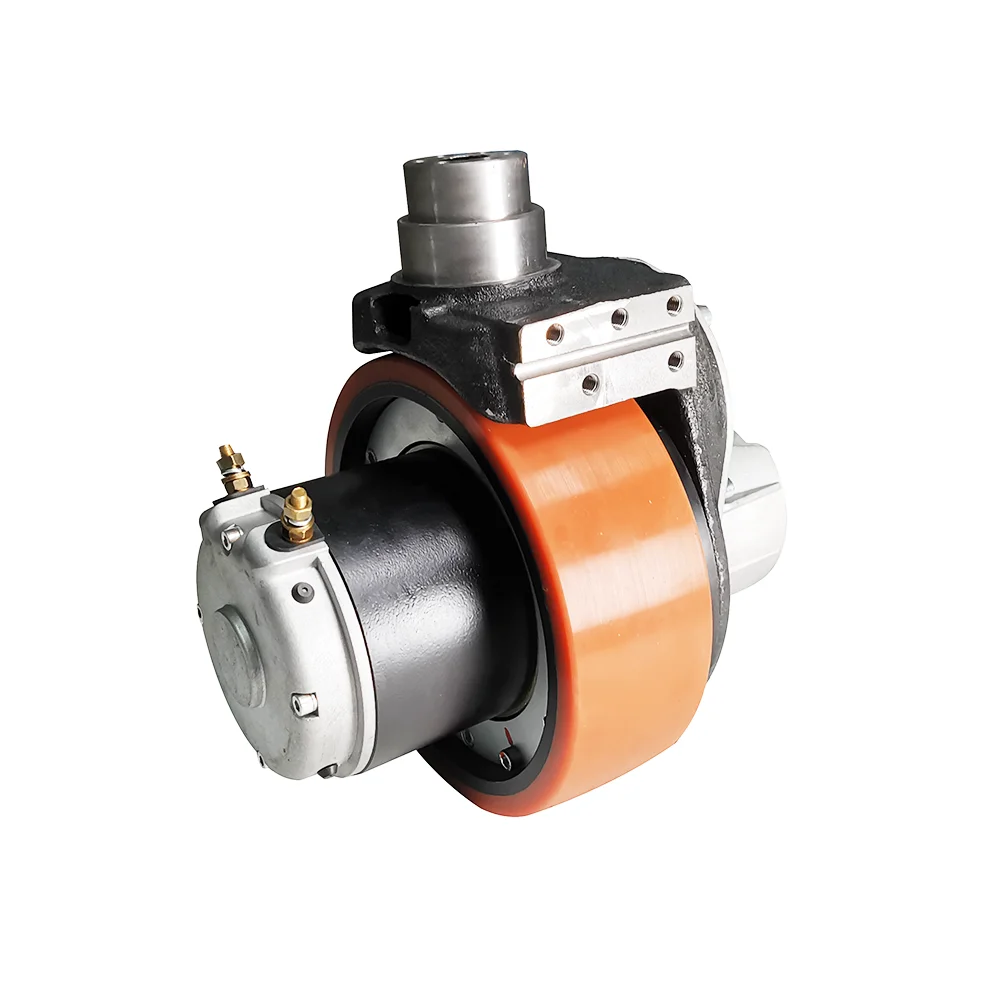

TZ09-D075 Drive Wheel With Rod Bearing
This product is a horizontal wheel, which is widely used in industry. It can be applied to AGV vehicles, forklifts and other trucks. Application scenarios can be warehouses, logistics centers, etc., which can save a lot of manpower to move heavy objects.
PRODUCT SPECIFICATIONS
Item | Motor Data | |
Model | TZ09-D075 | |
Brand | TZBOT | |
Traction Data | ||
Power S2-60 min9(W) | 750 | |
Rate Voltage(V) | 24 | |
Rate Speed(r/min) | 2650 | |
Rate Torque(Nm) | 2.6 | |
Rate Current(A) | 41 | |
Drive Speed(Km/h) | 4.17 | |
Gear Ratio(i) | 24.68 | |
Max Wheel Load(KG) | 1000 | |
Wheel Diameter(mm) | 210 | |
Brake Torque（Nm） | 6 | |

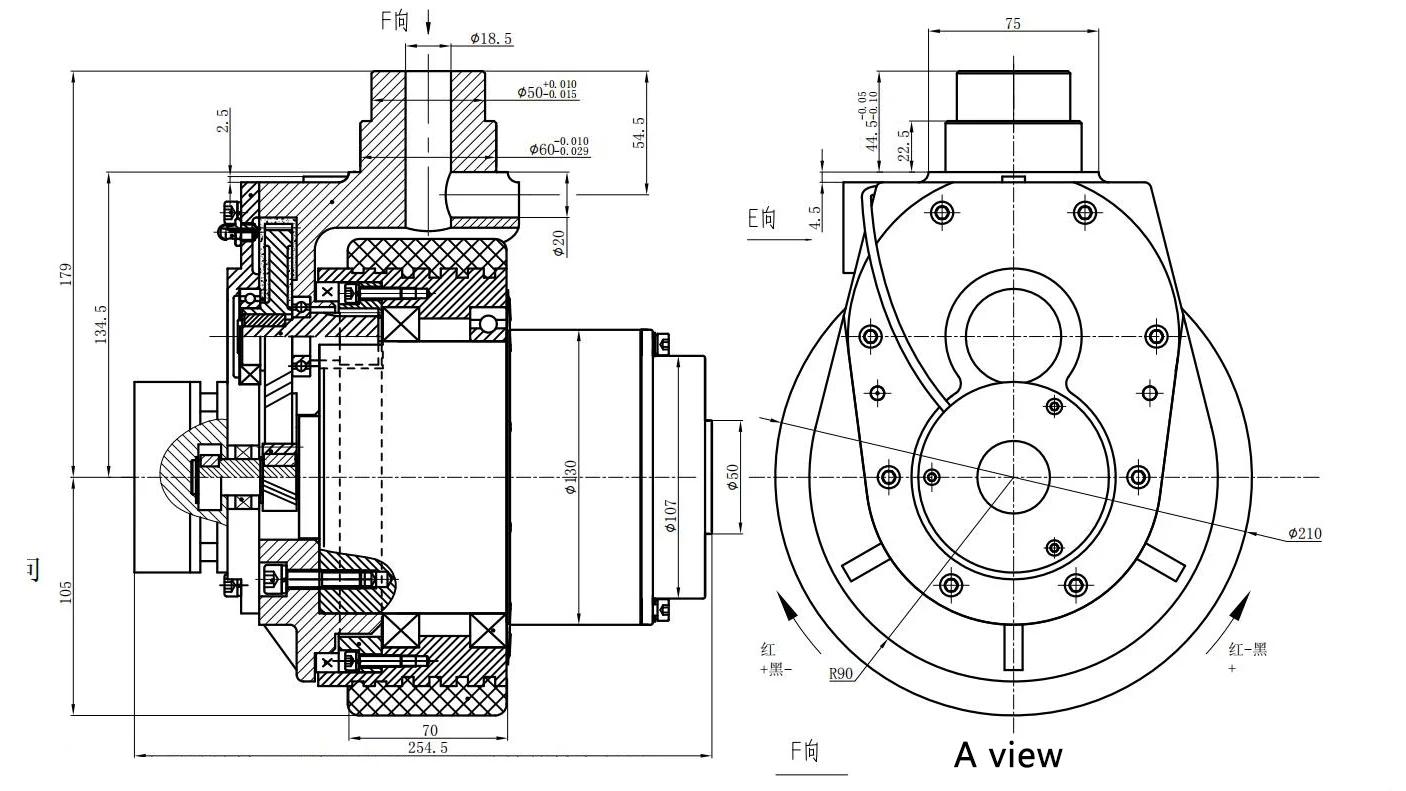

Dimensions
Features
With Rod Bearing
Easier to mount on forklifts
Heavy load
The load capacity can reach 1000kg.
Compact Structure
Small size, high energy.
Part of the structure is built-in, shortening the length of the wheel
Related Products
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
