NFC Ferrite Sheet For RFID/PCB anti metal magnetic sheets
- Category: >>>
- Supplier: Shenzhen PH Functional Materials Co. Ltd. [Guangdong China]Shenzhen
Share on (60749772482):
Product Overview
Description
Product Details

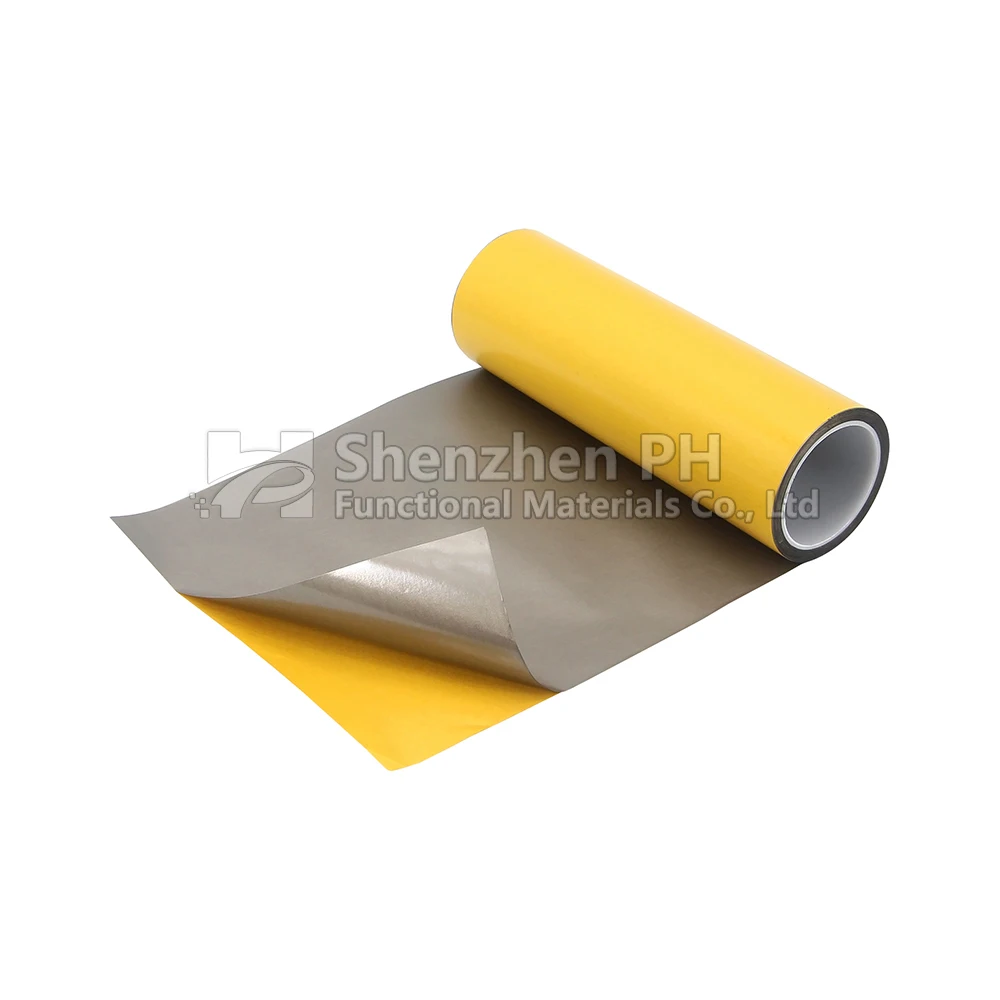

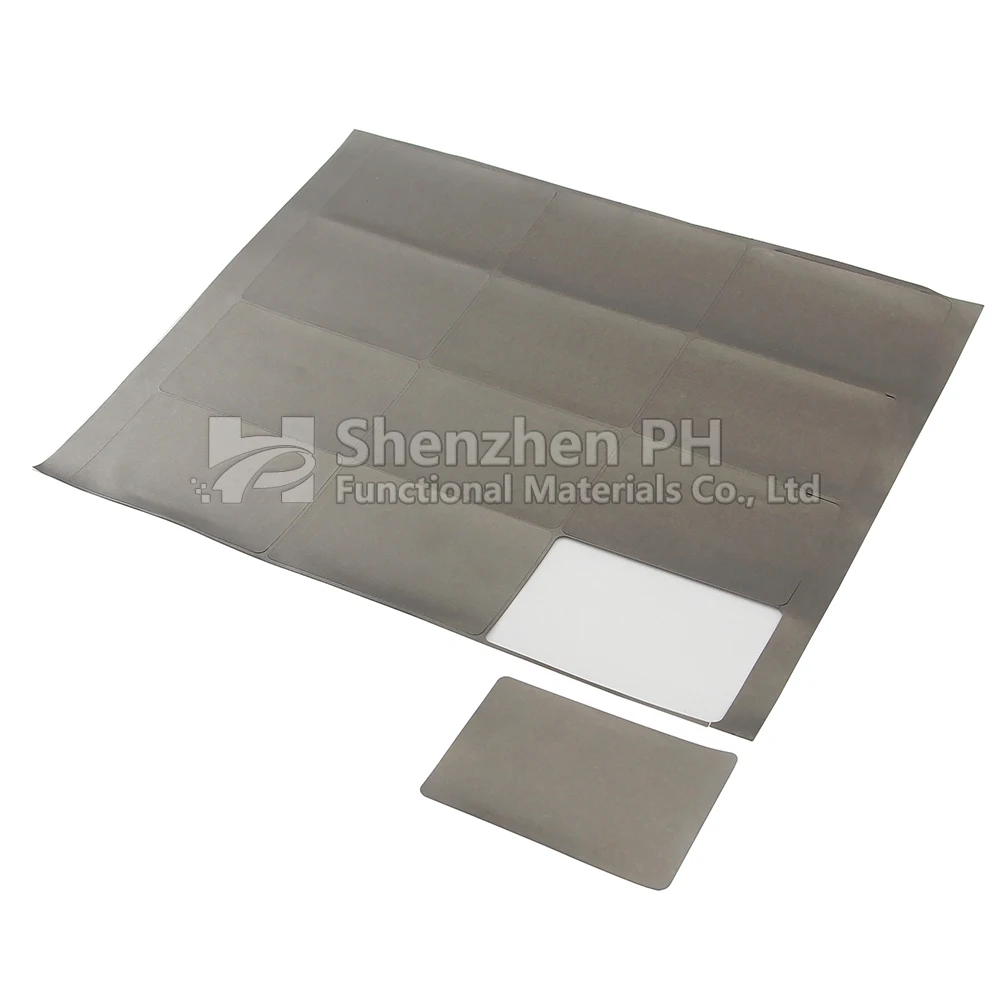

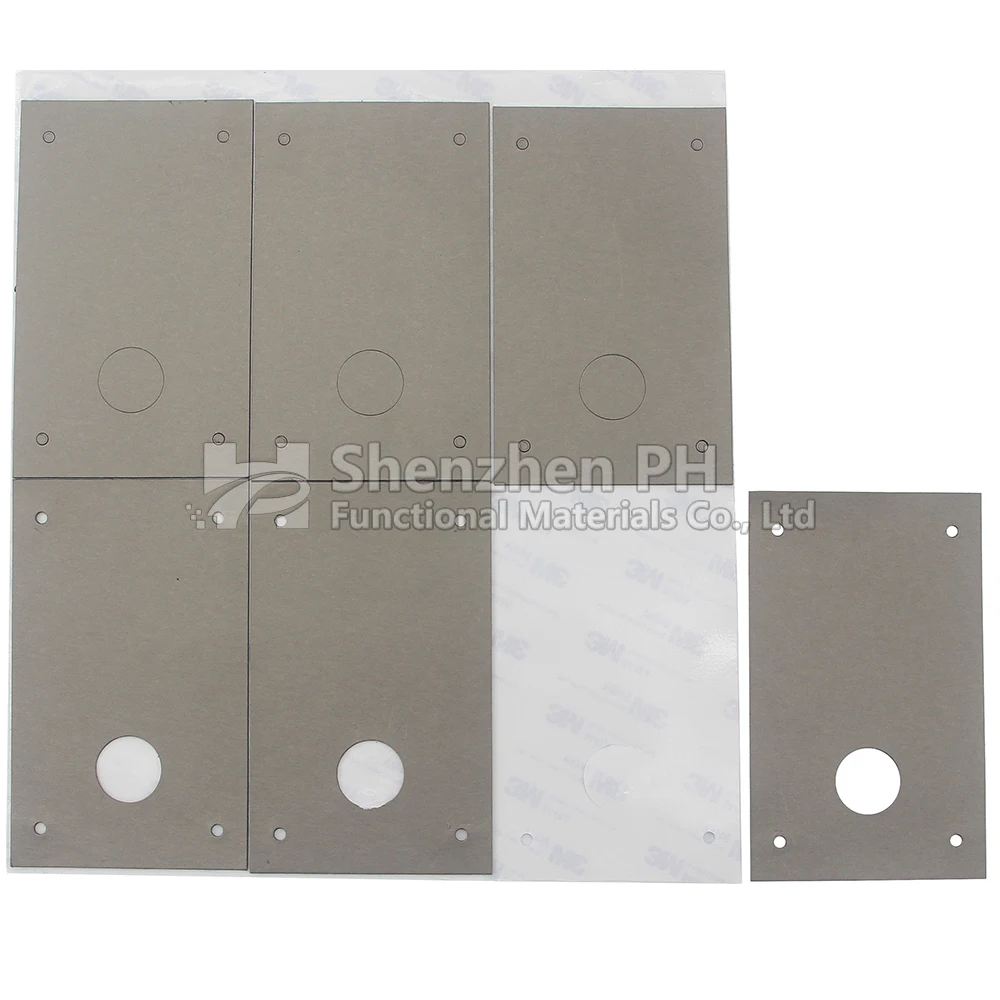

SZPH NFS40 series NFC ferrite sheet anti-metal sheet
Technical Specification

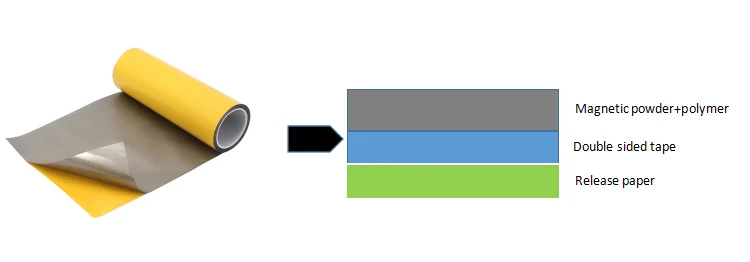

◆Material appearance and structure
◆Performance characteristics of NFS40 series
1.Improving the read and write failure of rf electronic product (such as the RFID electronic tag, antenna, reader and writer device, IC card,bus card) while encounter metal, play a role in metal interference, act best when the frequency is 13.56MHz;
2.High surface resistance can be used in more complex circuits;
3.High viscosity laminating effect leads to Higher reliability in application;
4.Passed ROHS and HFcertification, with flame retardant and aging characteristics
◆Technical parameter of NFS40 series
| Category | NFS40 series RF/NFC anti-metal sheet | ||||
| Item No | NF4010 | NFS4020 | NFS4030 | NFS4050 | NFS40100 |
| Basis | Ferrite magnetic powder + resin | ||||
| Frequency | 0~6GHz | ||||
| Standard Double-sided Tape | thickness: 0.03mm | thickness: 0.08mm | 3M9448A | ||
| Material Thickness | 0.1mm | 0.2mm | 0.3mm | 0.5mm | 1.0mm |

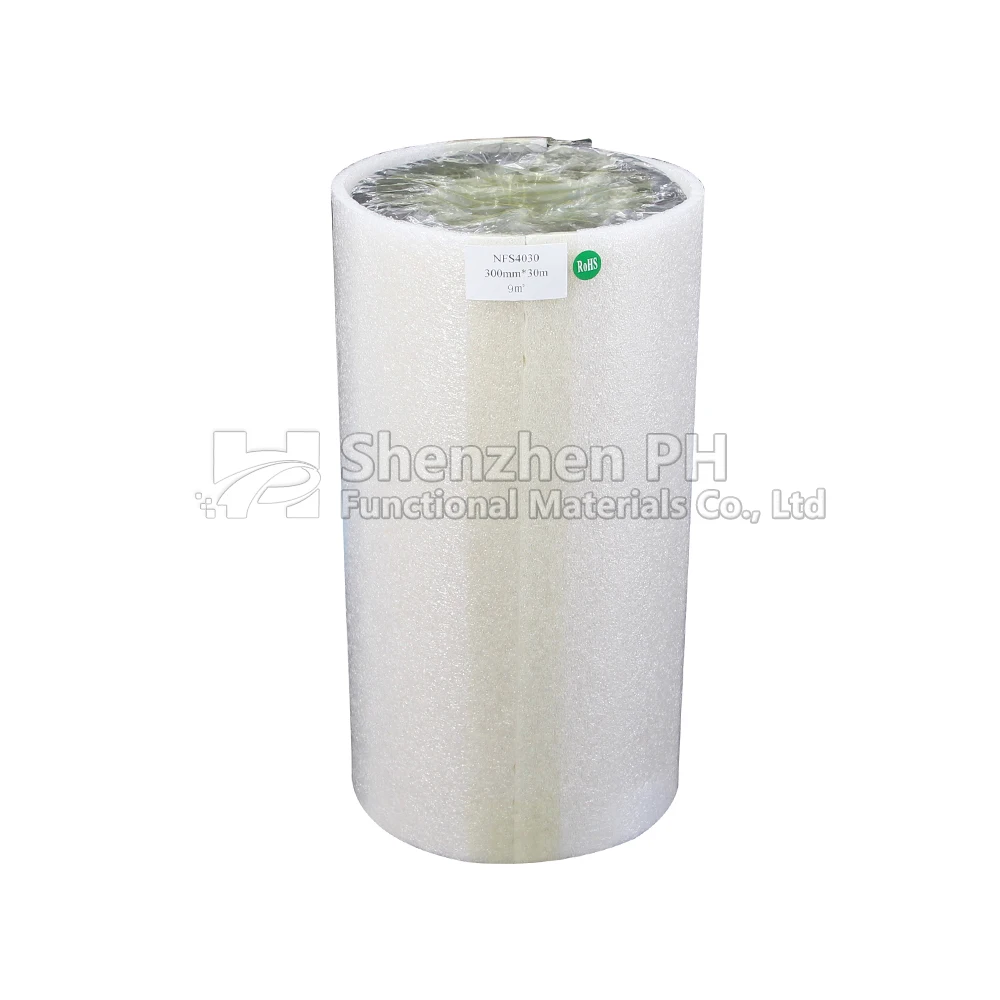

| （mm/Standard Size） | 20m(L) x 300mm(W)/50M(L) x 300mm(W) | ||||
| Permeability | 40 | ||||
| Surface Resistance | ≥1.0*106 | ||||
| Density | 3.6 | ||||
| (Enviroment Requirements) | ROHS、HF、REACH、FDA | ||||
| Temperature Limitation | -40～120℃ | ||||
| Tensile Strength | 5.4 | ||||
| kgf/inchkgf/inch/Adhesion Strength | ﹥1.0 | ||||
| Thermal Conductivity | 0.8 | ||||
| Flame Retardant | UL-94V2 | ||||
| Remark:Our material can has customized additional shielding layer, can change the double-sized tape or has double-sized tape on both side. | |||||
◆The principle and performance diagram
◆ Application of RF/NFC anti metal material
Anti-magnetic sheet for iphone phone cases.
Anti-metal sheet used for FPCB

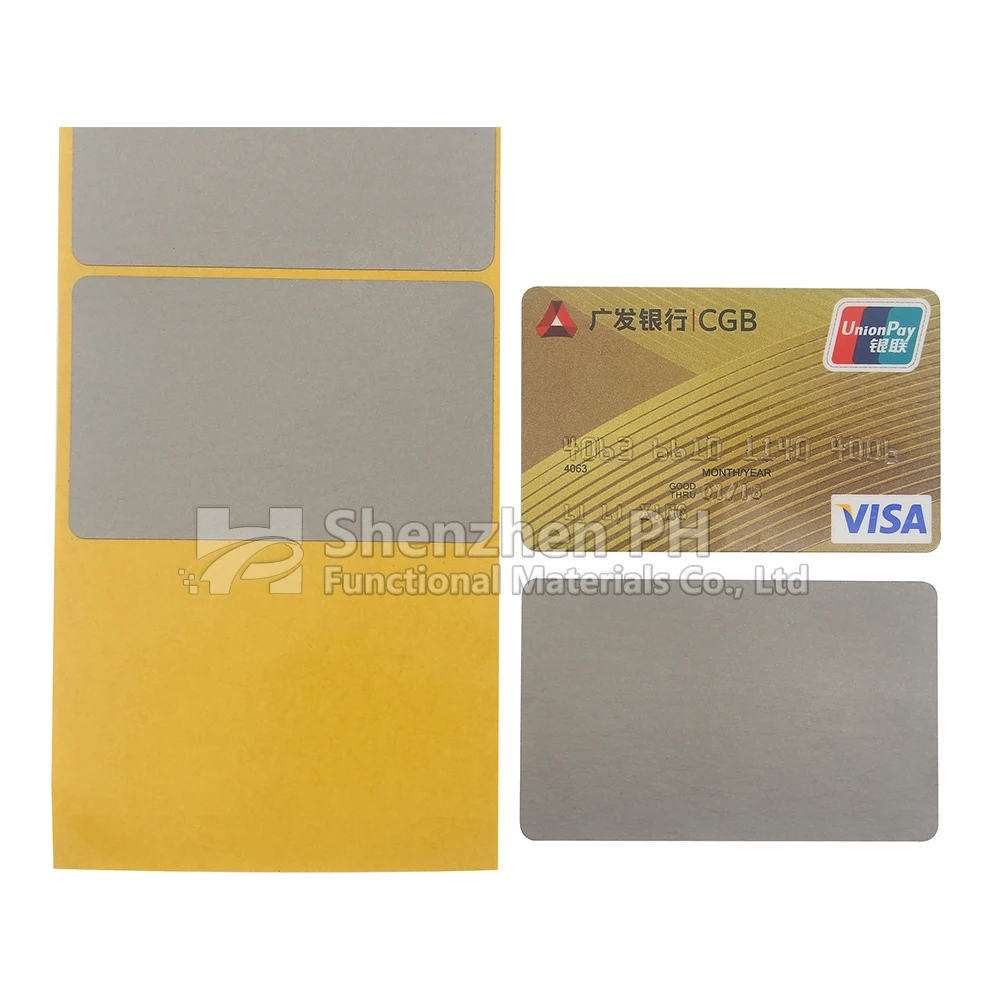

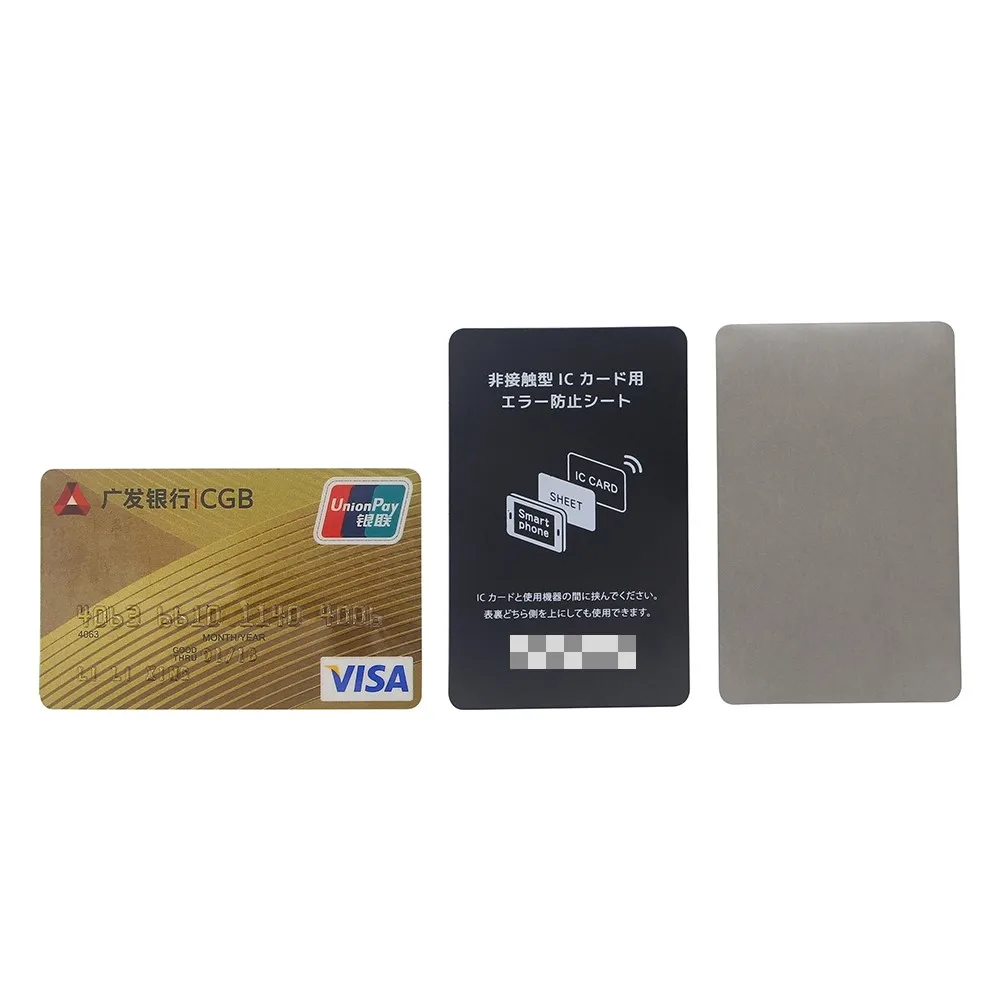

Anti-metal sheet for glue card

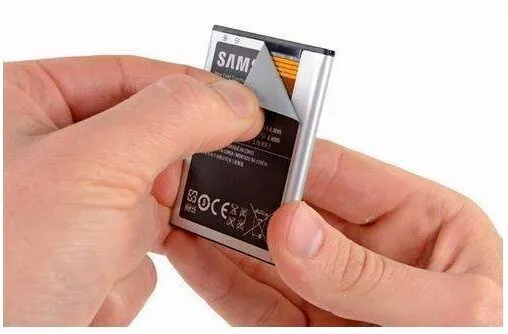

Anti-metal sheet for NFC cell phone battery
Anti-metal sheet for RFID tag
◆Our advantage
◆Notice
1.This product should be kept under normal temperature, avoid direct sunlight, avoid high temperature and high humidity;
2. The data above is taken from the average test data of our company, our company ownes the final right to intepret.
3.The purchaser shall determine whether the product is suitable for your particular purpose and application, many factors can affect the product performance in the specific use, if you have any doubts about our products, please feel free to contact us, so that we can serve you better.
