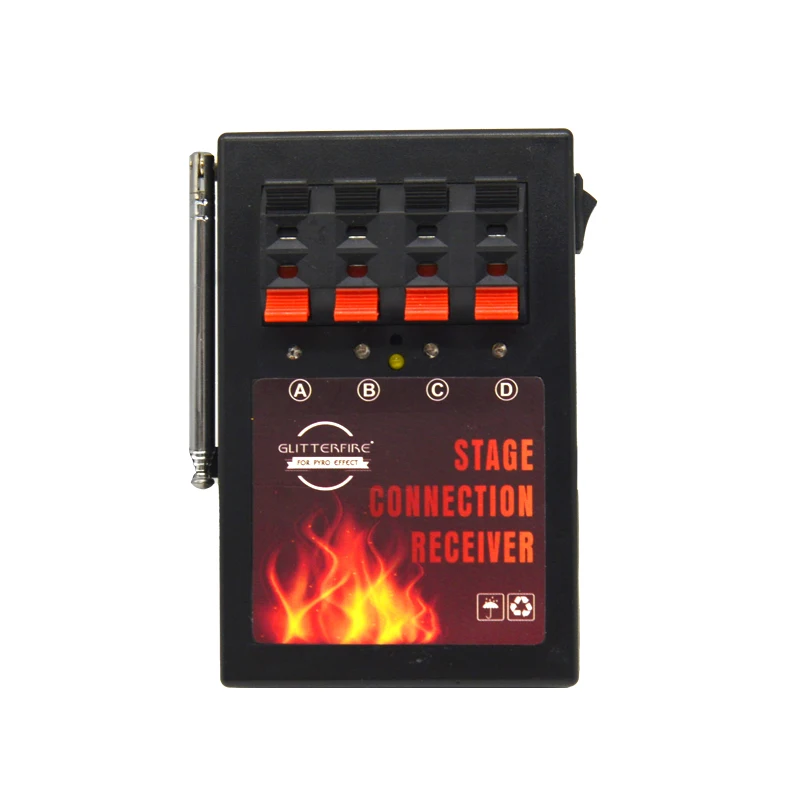

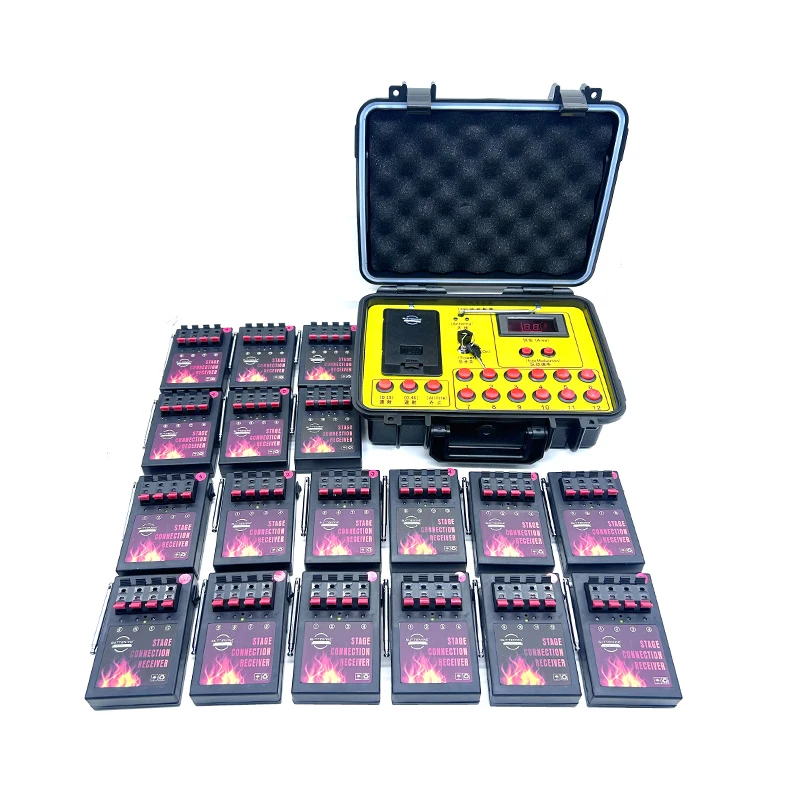

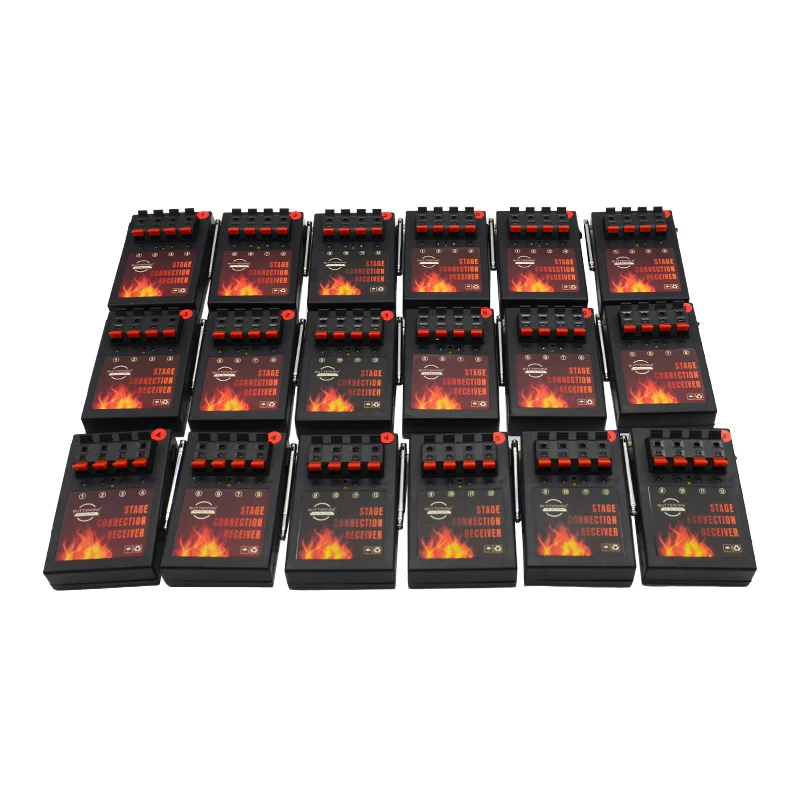

72 Channel with 18 receivers 4 cue cake fireworks firing system 1200 group transmitter control professional ignition system
- Category: >>>
- Supplier: Hunan Glitter Stage Effects Co. Ltd.
Share on (60749801815):
Product Overview
Description
72 Channel with 18 receivers 4 cue cake fireworks firing system 1200 group transmitter control professional ignition system
Product Description

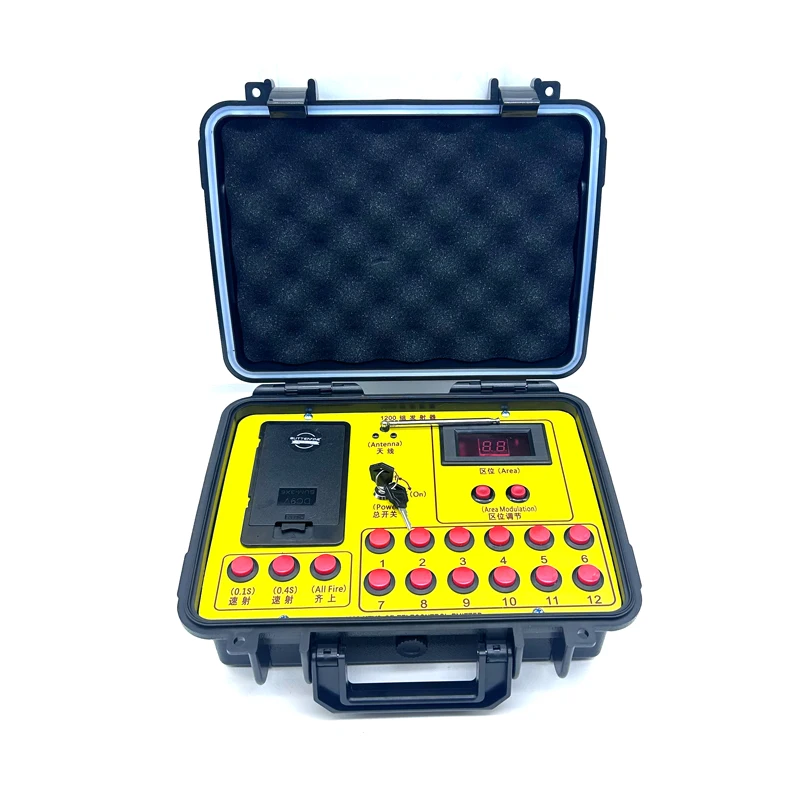

1.1200 Group of transmitters contains 100 zones (0-99), with LED display, and each zone controls 12 groups (1-12).

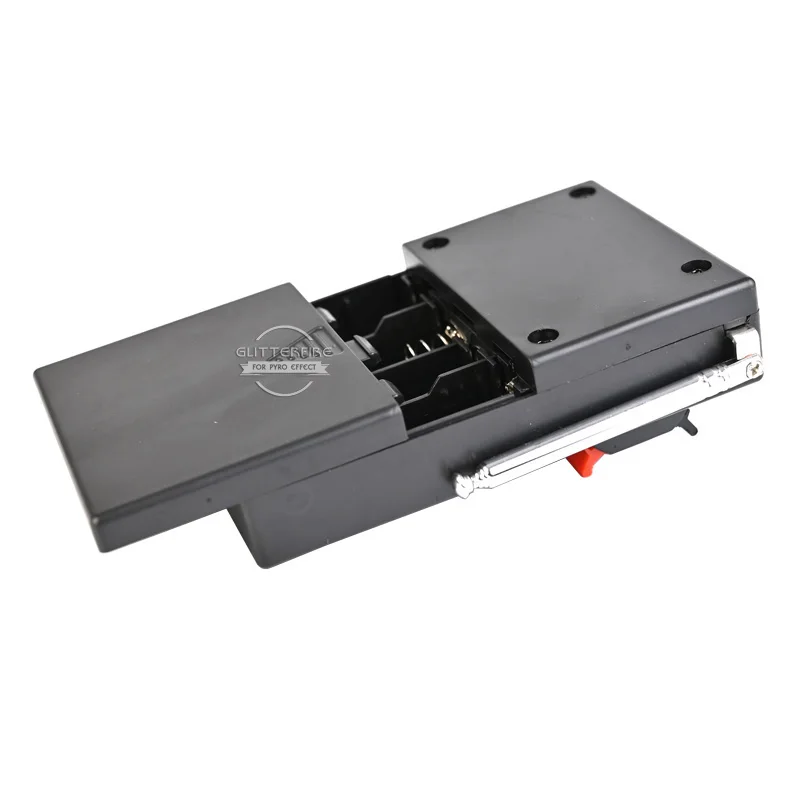

2. Powered by 4pcs AA batteries for each receiver, each with a voltage of 1.5V, total 6V.
3. This remote control is a learning type remote control, equipped with a specific receiver box with rapid shooting function.
4. Receiving box is match freely, can connect at most 300 pcs receivers with one transmitter.
Using steps as following:
1.put the battery inside of the machine , turn on the power switch , the light of each channel will be bright , it means the battery is normal.
2.press the button of the remote , the indicate light extinguish , it means this channel is normal and can be controlled by this remote.
3.turn off the power and connecting the igniter with the firing system, then turn on the power, the cue light will be more bright ,it means connecting is normal.
4.make sure the button of the remote not be pressed (if the remote has on/off switch, you can turn off it at first),far away the fireworks at least 50 M, use the remote to fire.
5.setting the control number by remote (do not connect the products):
with the little stick to press the button of the electrical board, when the light (yellow) of the electrical board flashing, relax
the stick first then press A of the remote, the indicate light both of Channel A and study button, then press from A to D, the
receiver from A to D extinguish ,setting control number succeed.
2. Powered by 4pcs AA batteries for each receiver, each with a voltage of 1.5V, total 6V.
3. This remote control is a learning type remote control, equipped with a specific receiver box with rapid shooting function.
4. Receiving box is match freely, can connect at most 300 pcs receivers with one transmitter.
Using steps as following:
1.put the battery inside of the machine , turn on the power switch , the light of each channel will be bright , it means the battery is normal.
2.press the button of the remote , the indicate light extinguish , it means this channel is normal and can be controlled by this remote.
3.turn off the power and connecting the igniter with the firing system, then turn on the power, the cue light will be more bright ,it means connecting is normal.
4.make sure the button of the remote not be pressed (if the remote has on/off switch, you can turn off it at first),far away the fireworks at least 50 M, use the remote to fire.
5.setting the control number by remote (do not connect the products):
with the little stick to press the button of the electrical board, when the light (yellow) of the electrical board flashing, relax
the stick first then press A of the remote, the indicate light both of Channel A and study button, then press from A to D, the
receiver from A to D extinguish ,setting control number succeed.
Product Name | 72 Channel with 18 receivers 4 cue cake fireworks firing system 1200 group transmitter control professional ignition system |
Receiver Power | 6V 4pcs AA battery for each receiver |
Control Mode | Manual transmitter |
Remote Distance | Above 300 meters |
