Video Conferencing Solutions USB PTZ Camera for Small Business
- Category: >>>
- Supplier: Valuehd Corporation
Share on (60749837571):
Product Overview
Description
Product Description
Main Features | ||
Completely New Look: Designed with worm gear transmission, completely new look, mini size. | ||
Full Function USB interface: USB 3.0. | ||
Built in micphone(optional) | ||
1080P Full HD: 1920X 1080 high resolution. | ||
Ultra-high Frame Rate: 60fps in 1080P. | ||
72.5° Wide-angle lens + 16x digital zoom | ||
Low-light: High SNR of CMOS sensor combined with 2D and 3D noise reduction. | ||
Remote Control: Using RS232/USB interface, all the parameters of the camera can be remotely controlled. | ||
Specifications
Camera | ||||||
Sensor | 1/2.7", CMOS, Effective Pixel: 2.07M | Video S/N | ≥55dB | |||
Scanning Mode | Progressive | Shutter | 1/30s ~ 1/10000s | |||
Lens | 12X, f3.5mm ~ 42.3mm, F1.8~F2.8 | Backlight Compensation | Support | |||
Digital Zoom | 16X | Image Freeze | Support | |||
White Balance | Auto, Indoor, Outdoor, One Push, Manual | Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) | |||
Digital Noise Reduction | 2D,3D digital noise reduction | Horizontal Angle of View | 72.5° ~ 6.9° | |||
Pan Speed Range | 1.7° ~ 100°/s | Vertical Angle of View | 44.8° ~ 3.9° | |||
Tilt Speed Range | 0.7° ~ 28°/s | Horizontal Rotation Range | ±170° | |||
H & V Flip Image Freeze | Support | Vertical Rotation Range | -25° ~ +25° | |||
Number of Preset | 255 | Preset Accuracy | 0.1° | |||
Input / Output Interface | ||||||
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |||||
USB | 1xUSB3.0: Type B female jack | |||||
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |||||
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||||||
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | ||||||
Power Jack | JEITA type (DC IN 12V) | |||||
USB Features | ||||||
Operate System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux | |||||
Color System / Compression | YUV 4:2:2 / H.264 / MJPEG | |||||
Video Format | USB3.0: 1080p/60(Optional), 1080p/50(Optional), 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 | |||||
Audio on USB | Support | |||||
USB Video Communication Protocol | UVC 1.0 ~ UVC 1.5 | |||||
UVC PTZ | Support | |||||
Generic Specification | ||||||
Input Voltage | DC 12V | |||||
Current Consumption | 1.0A (Max) | |||||
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | |||||
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | |||||
Power Consumption | 12W (Max) | |||||
MTBF | >30000h | |||||
Size | 128.5x118x156.2mm | |||||
Net Weight | 0.91K g | |||||
Detailed Images
Our Company
ValueHD Corporation
ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded 9 years, the company has been focusing on the high-definition video camera and its accessories. Its products range from high-definition video conferencing PTZ camera, high-definition camera module with zoom lens for video surveillance, high-definition network camera, high-definition network camera with intelligence analysis capabilitie, MCU, All-in-one camera, microphone and etc.
ValueHD Corporation has successfully developed a variety of camera products. The technology and maturity of the product are among the leading group in this field. The company’s R & D model has gradually developed from integration at the module level to integration at the chip level. The latest types support 1080P60, WDR, and have high S/N ratio. The successful R&D works has proved that the company has mastered core techniques required for developing high-definition cameras, such as the ISP algorithm, video codec algorithm. Like many large company in the industry,we have also paid more attention on the reliability of hardware and software.
The company's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
The company welcomes customers to purchase products and services, as well as all forms of technology and product collaboration!

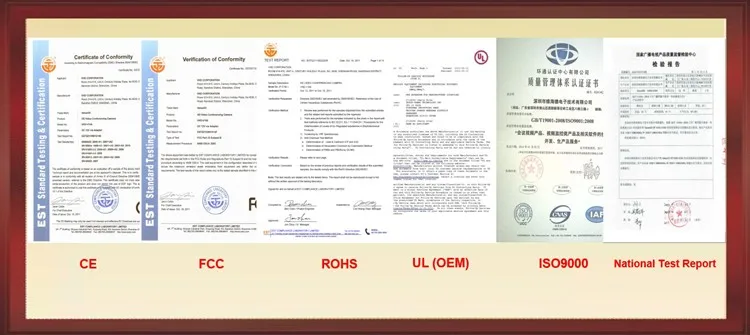

Certifications
Applications
Industry Applications include Video conferencing, Education, Tele-Medicine, Governmental projects, broadcast, office meetings etc.
