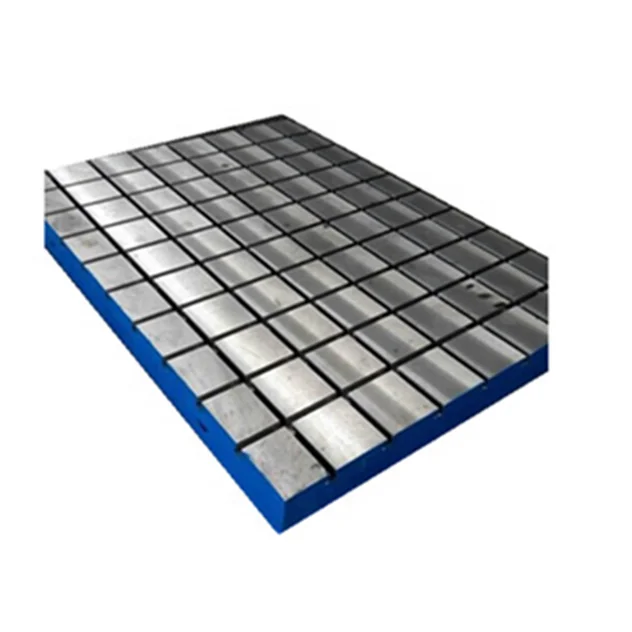

(1) The material of our surface plate/table is cast iron HT200-350
(2) Working surface hardness is HB170-240
(3) Low inaccuracy error and good in grinding resistance.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
Specification (mm)
Flatness tolerance (um)
Grade1
Grade2
Grade 3
Finihs plane
400x400
12
24
600x400
14
28
800x500
16
32
80
900x600
16
32
80
1000x750
18
36
90
1000x1000
20
39
96
1500x1000
25
48
120
2000x1000
26
52
129
2000x1500
56
140
2000x2000
60
152
230
2500x1500
68
168
248
3000x1000
174
248
3000x2000
184
275
3000x3000
210
300
4000x1000
210
300
4000x2000
219
310
4000x3000
240
360
5000x2000
255
375
5000x3000
287
420
6000x2000
293
430
6000x3000
308
460
8000x2000
370
520
8000x3000
382
570
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Nocie for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave. 2: Keep the plate clean, prevent be wroned by iron scrap, sand ... 3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately. 4: Do not do any hammer work on the surface plate . 5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

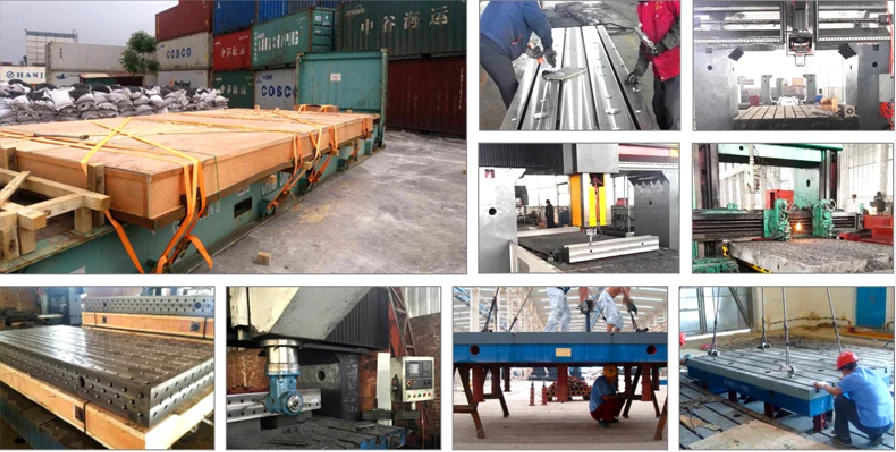

our factory
Packaging & Shipping
Our Services
1.Guarantee:
A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.
B: Space parts will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
2.Commissioning:
1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.
3.Payment terms
- 30% by TT in advance
- 70% is paid before the shipment by TT
4.Delivery time: 30 days after the down payment is received
Company Information

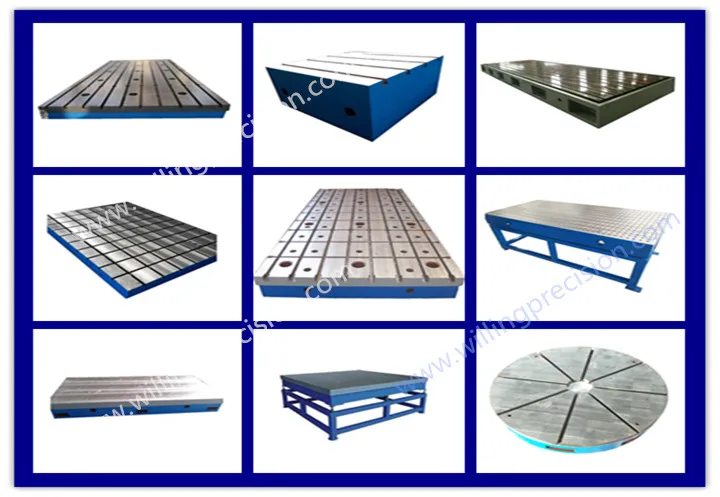

Our company supply granite surface plate, granite measuring table, granite flatness plate, granite measuring tools,cast iron surface plate, cast iron t slot plate,aluminum magnesium alloy measuring tools, cast iron measuring tools and so on.
