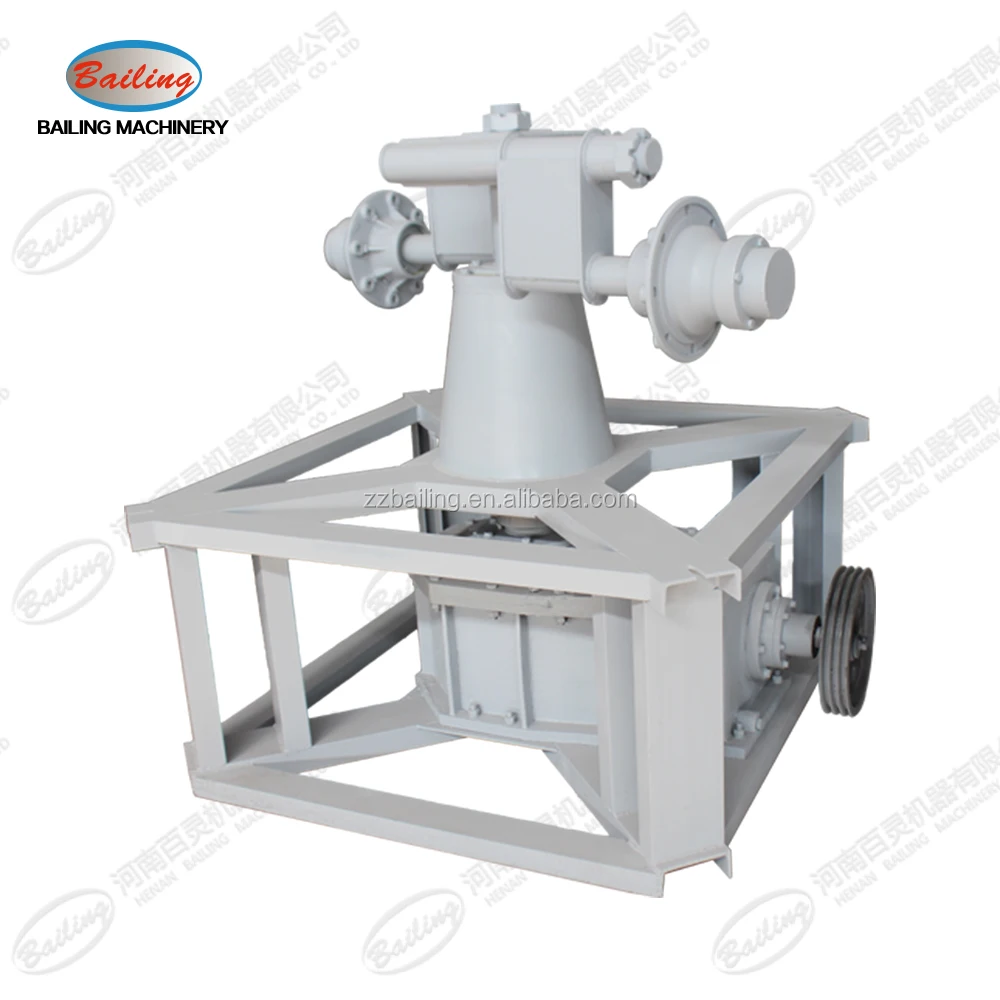

High quality China gold refining machine roller mill for sale

High quality China gold refining machine roller mill for sale

Category: >>>
Supplier: Henan Bailing Machinery Co. Ltd.

Price:$26,888.00

Quantity:

Product Overview

Description

Product Description

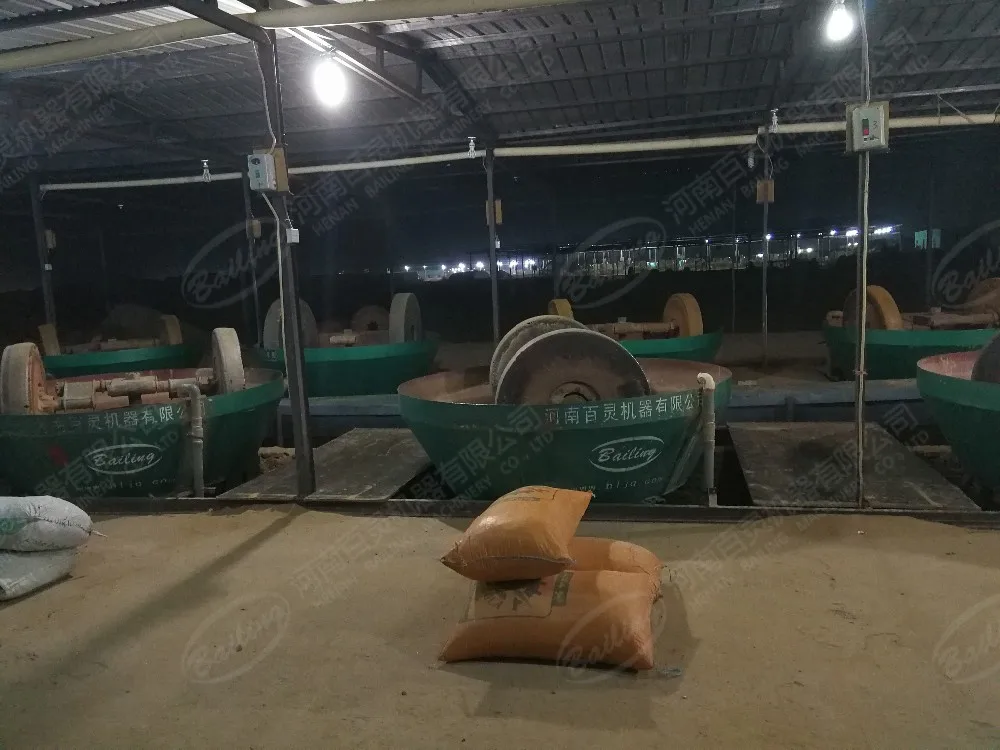

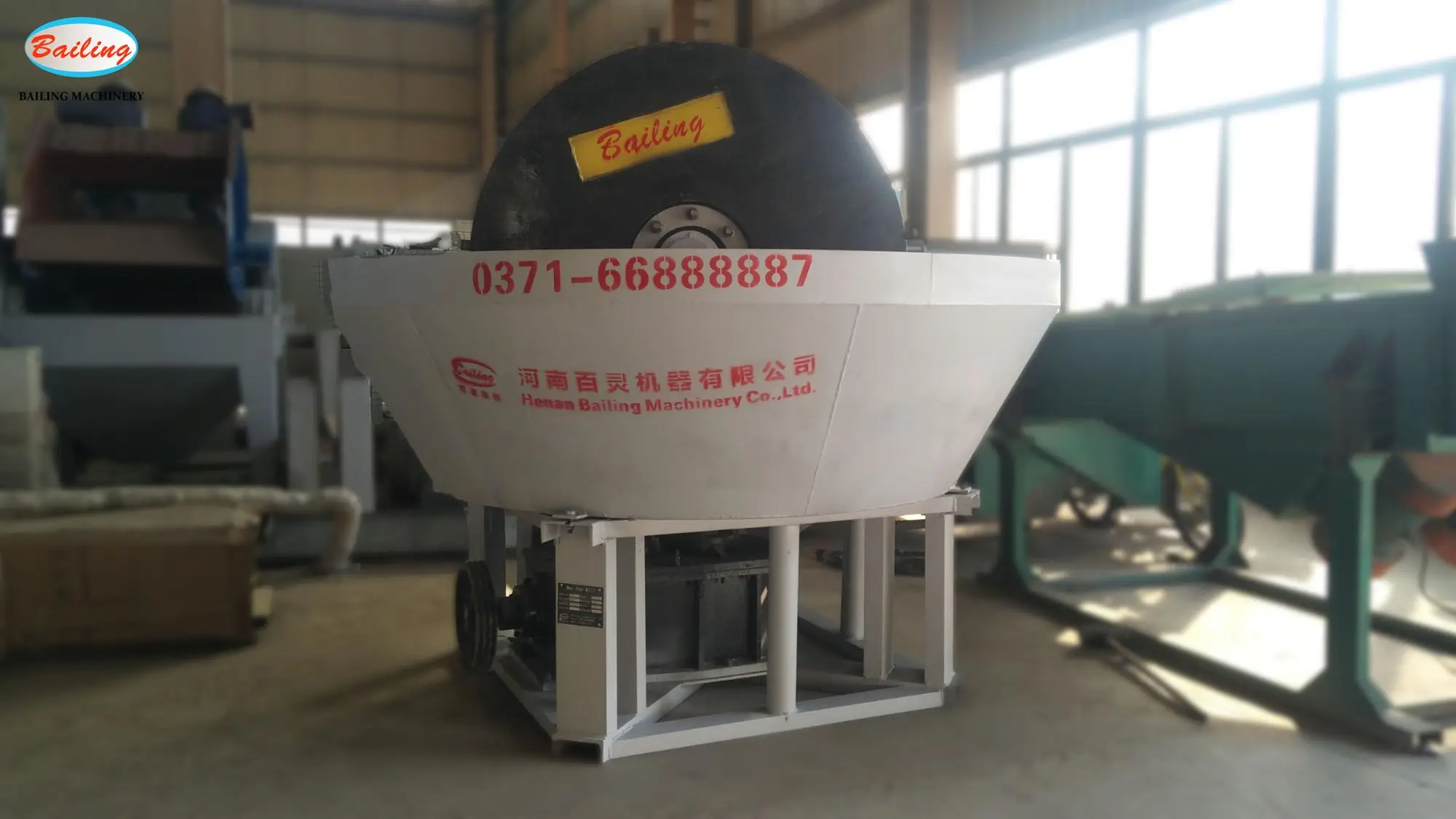

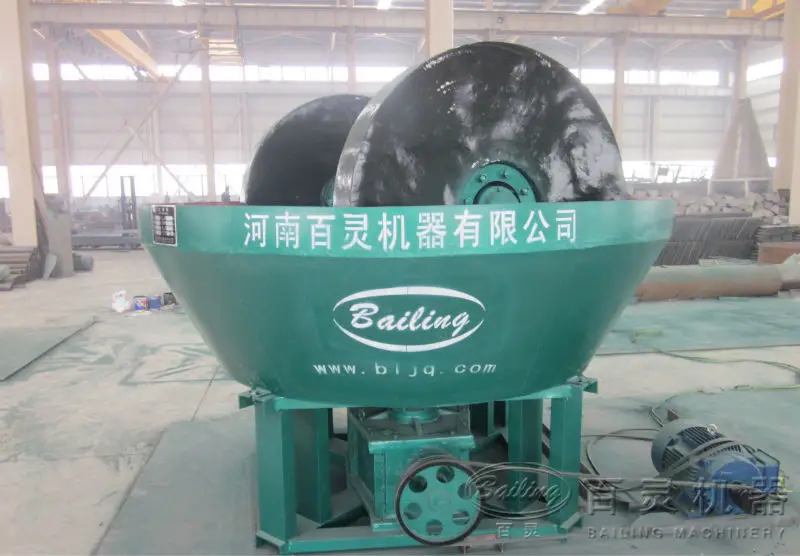

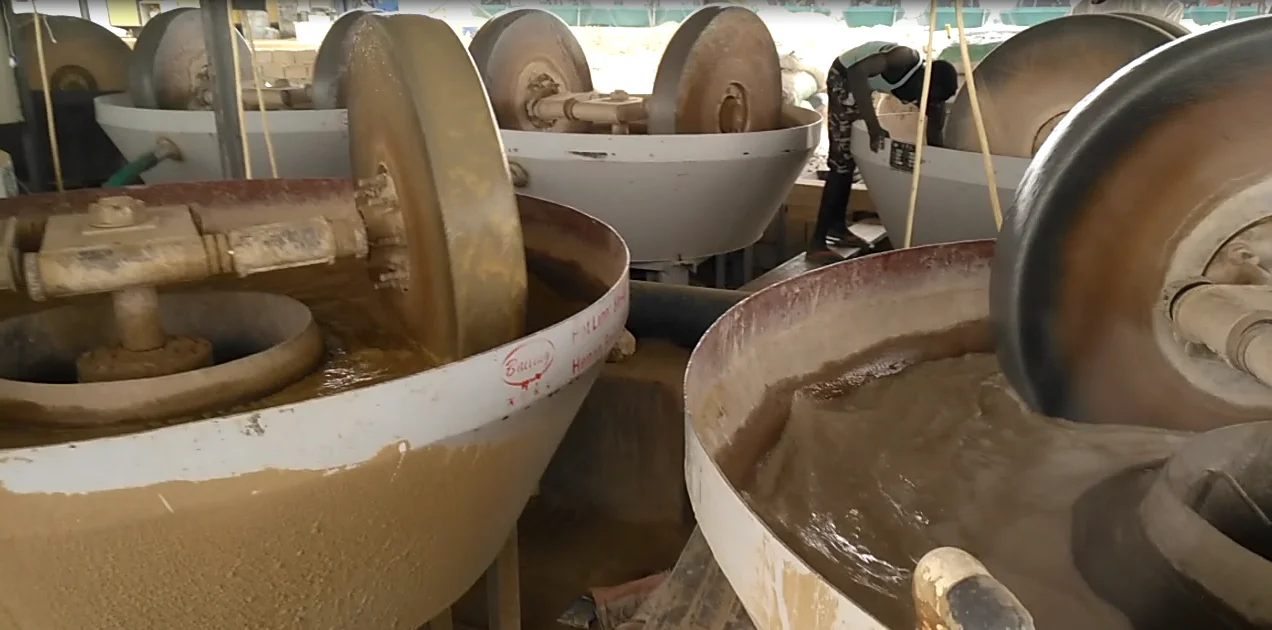

Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc. It grinds ores by wheel driving force: firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise. The wheels can revolve around the vertical shaft of the pan mill, at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are then pressed, rubbed and grinded repeatedly.

SPECIFICATIONS FOR WET PAN MILL
Model	Specification(mm)	Feed size(mm)	Speed(r/min)	Power(kw)	Weight(t)
1600A	1600×400×200×500±20	<25	20-22	6-30	14.3
1500A	1500×350×200×460±20			20-22	6-22	13.3
1500B	1500×350×150×460±20			20-22	6-22	12.3
1500C	1500×300×150×420±20			20-22	6-22	11.3
1400A	1400×250×150×350±20			16-18	6-18.5	8.5
1400B	1400×250×150×350±20			21-23	6-18.5	8.5
1350A	1350×250×150×350±20			16-18	6-18.5	8
1350B	1350×250×150×350±20			21-23	6-18.5	8
1300A	1300×250×150×350±20			16-18	6-15	7.5
1300B	1300×250×150×350±20			21-23	4-15	7.5
1200A	1200×200×80×250±20			17-19	6-7.5	5.5
1200B	1200×200×80×250±20			23-25	6-7.5	5.5
1100A	1100×200×80×250±20			17-19	6-7.5	5
1100B	1100×200×80×250±20			23-25	4-7.5	5
1000	1000×200×80×250±20			13-15	6-7.5	4.5

Gold grinding mill working principle

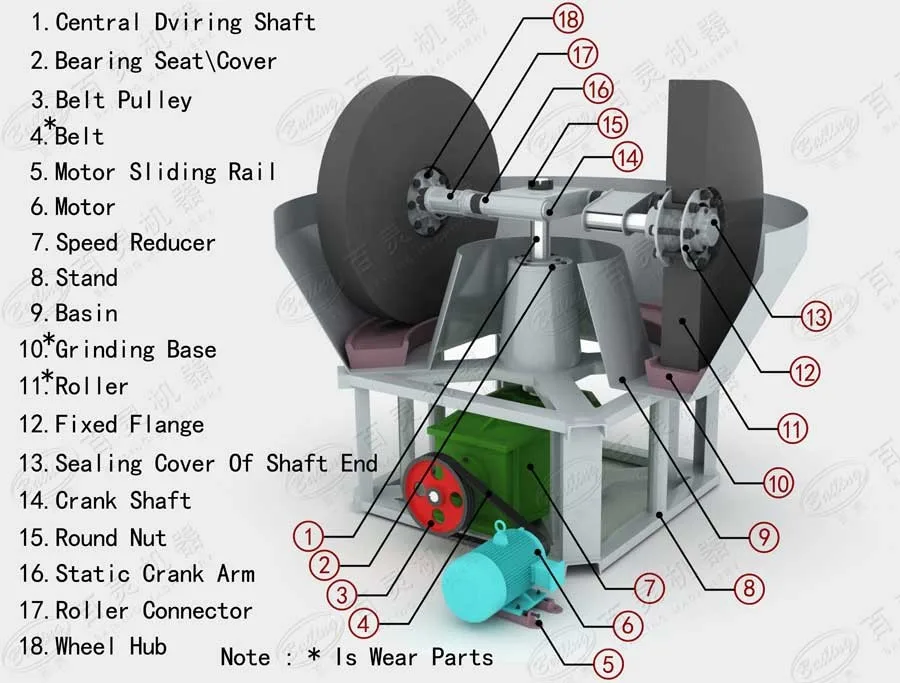

Main parts of gold grinding mill are frame, basin, grinding roller, grinding base, speed reducers, motor and etc. Firstly, motor transmits power to speed reducer, then center driving shaft transmits into horizontal shaft, finally grinding roller will move counterclockwise and material will be ground into fine particle in the gold grinding mill.

Detailed Images

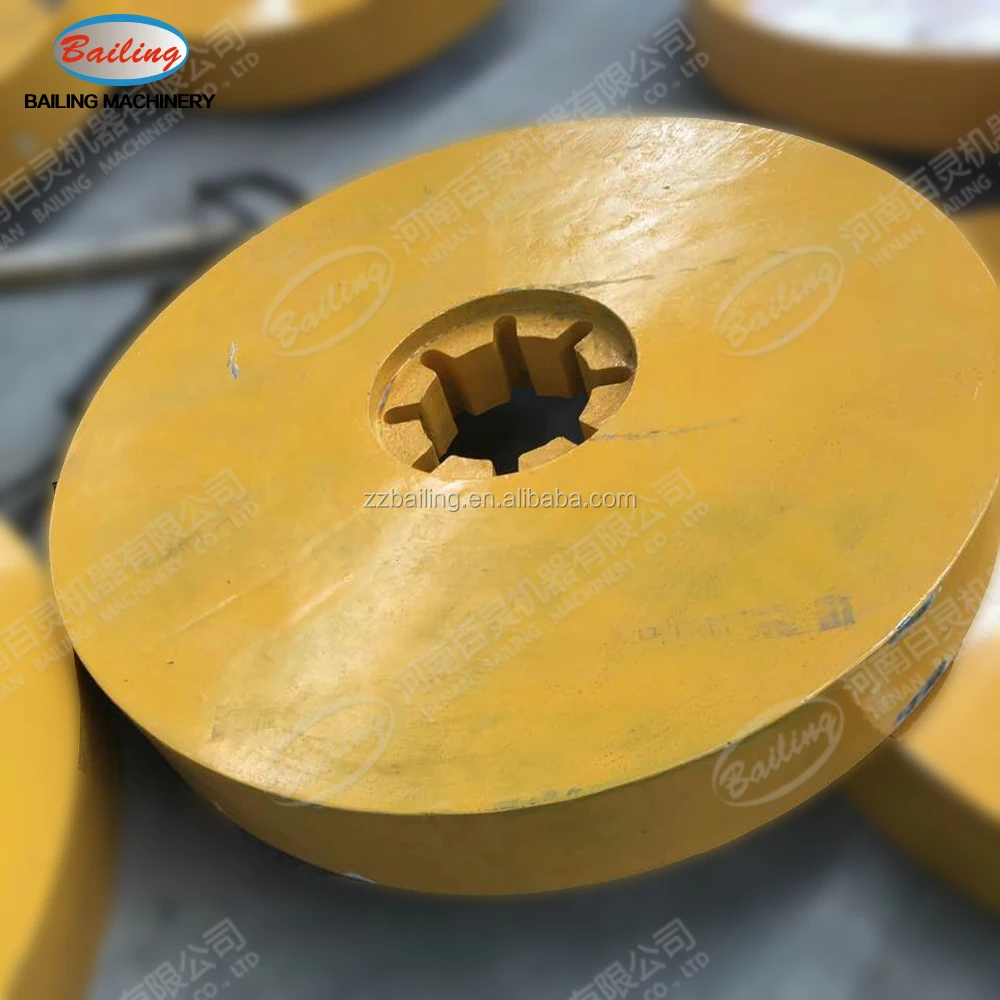

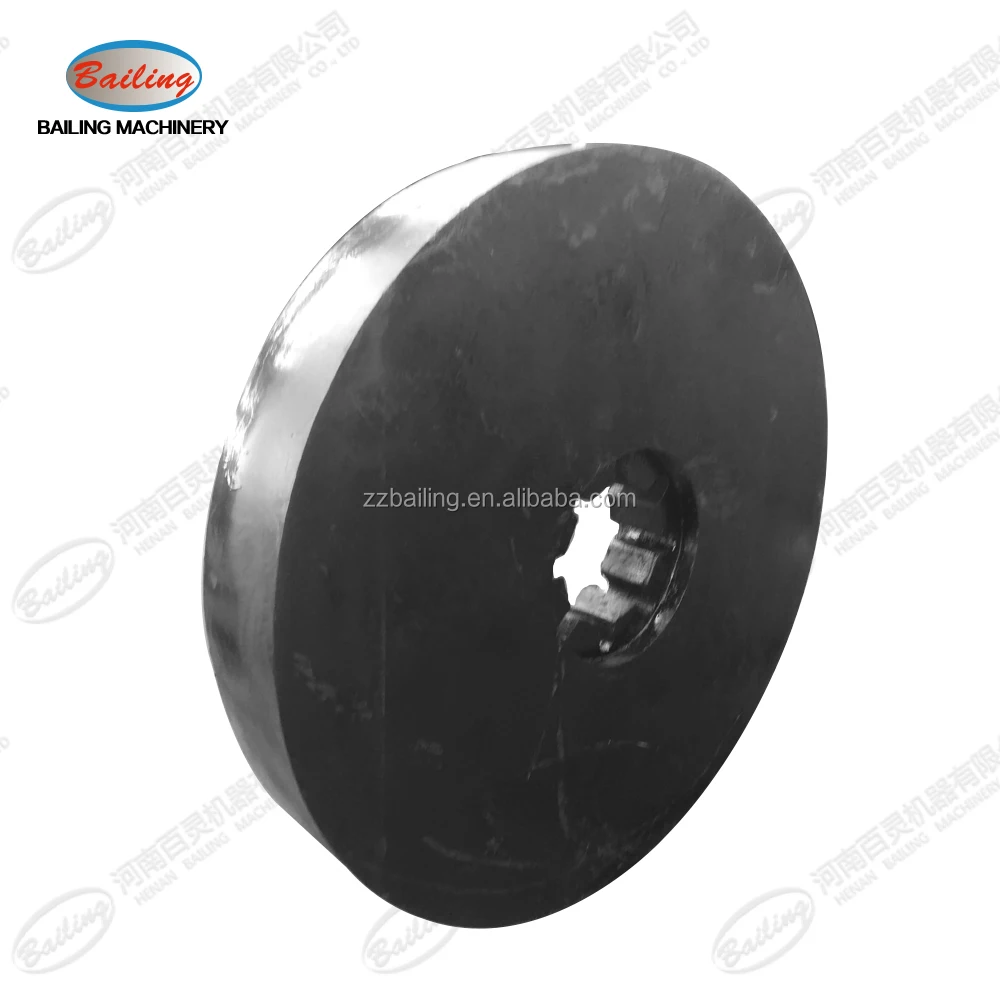

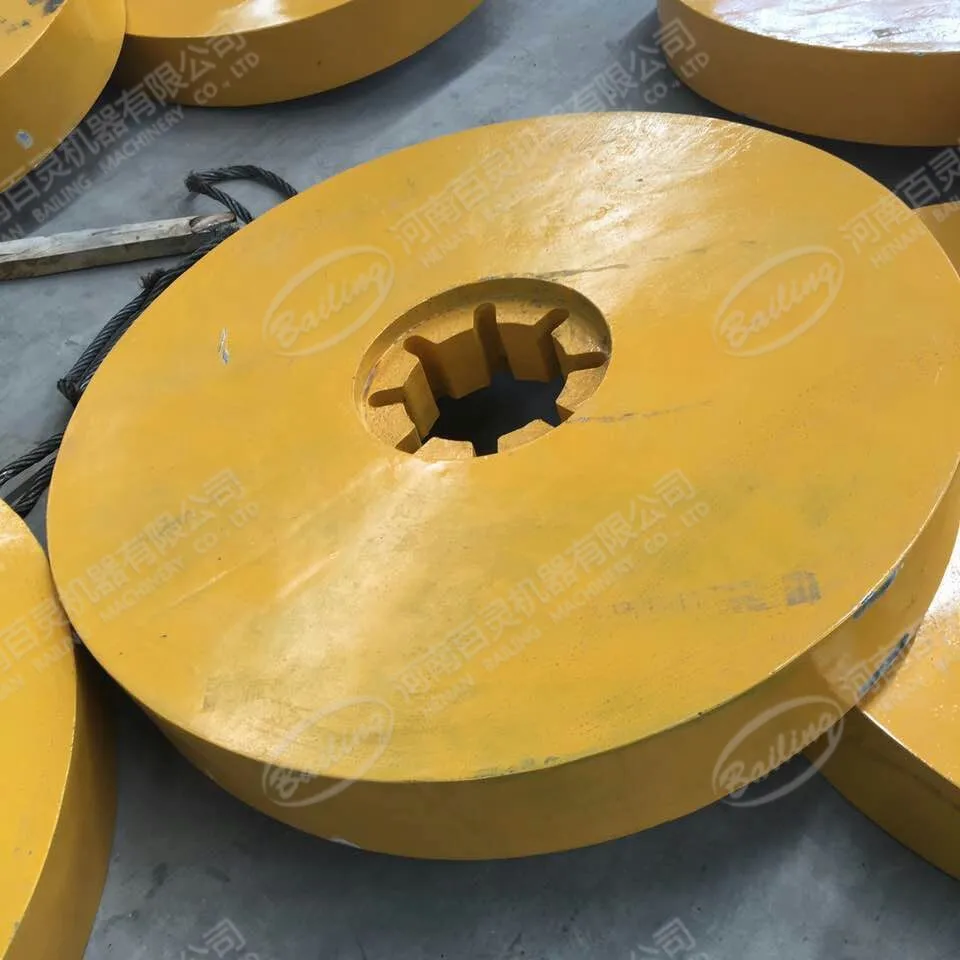

Name: Grinding roller

Brand: Bailing

Original: China

Thickness of grinding roller: optional 180mm and 200mm.

Material: High grade casting iron or casting steel.

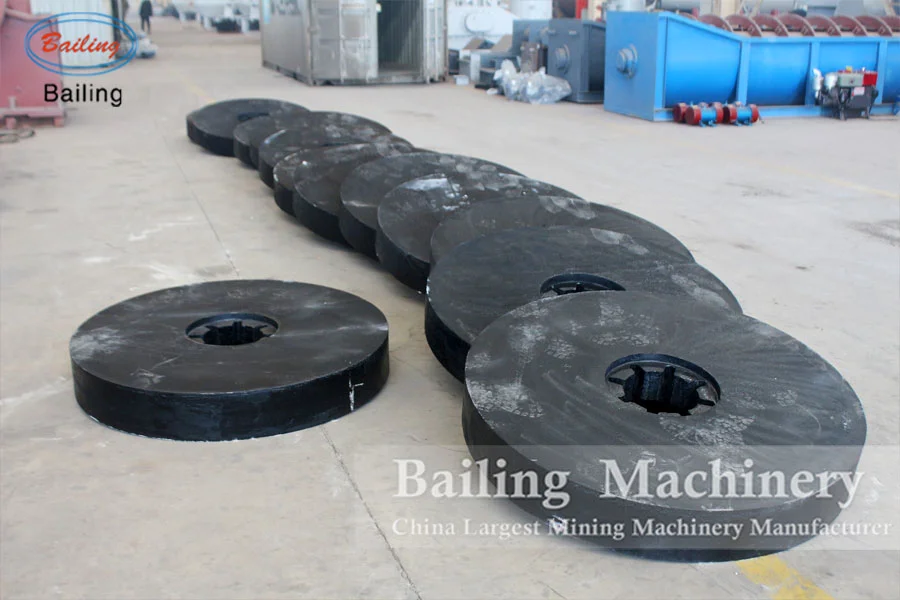

Name: Grinding roller
Brand: Bailing
Original: China
Thickness of grinding roller: optional 180mm and 200mm.
Material: High quality manganese alloy

The material can be chose as your demand.

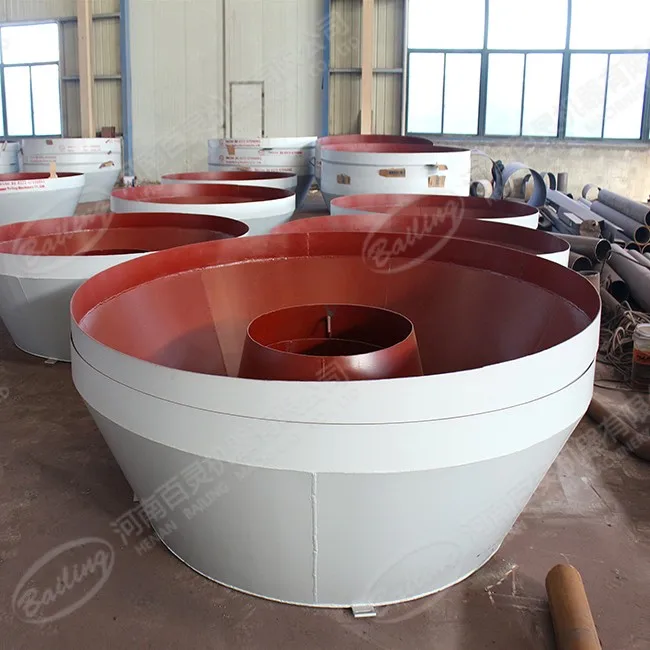

Name: Wet pan
Brand: Bailing
Original: China
Material: Optional casting steel, casting iron and manganese steel.

Thickness: Standard 5mm

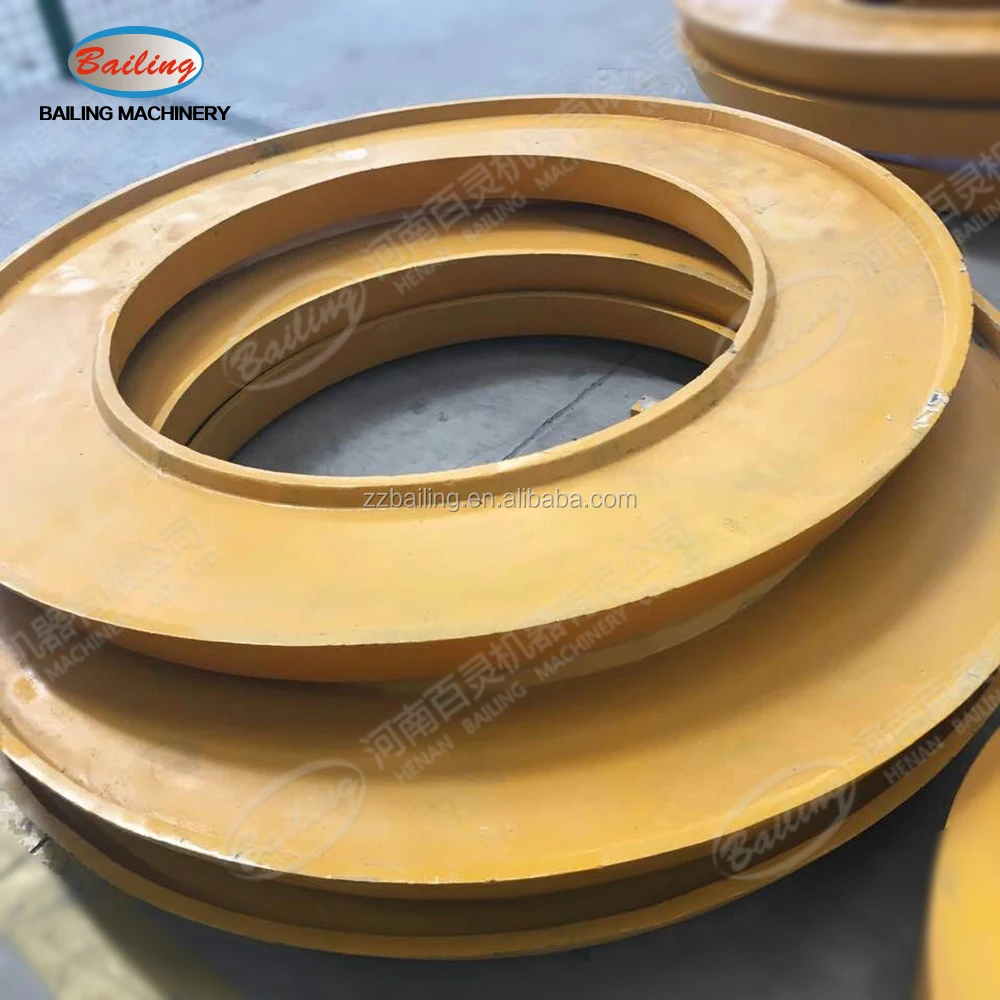

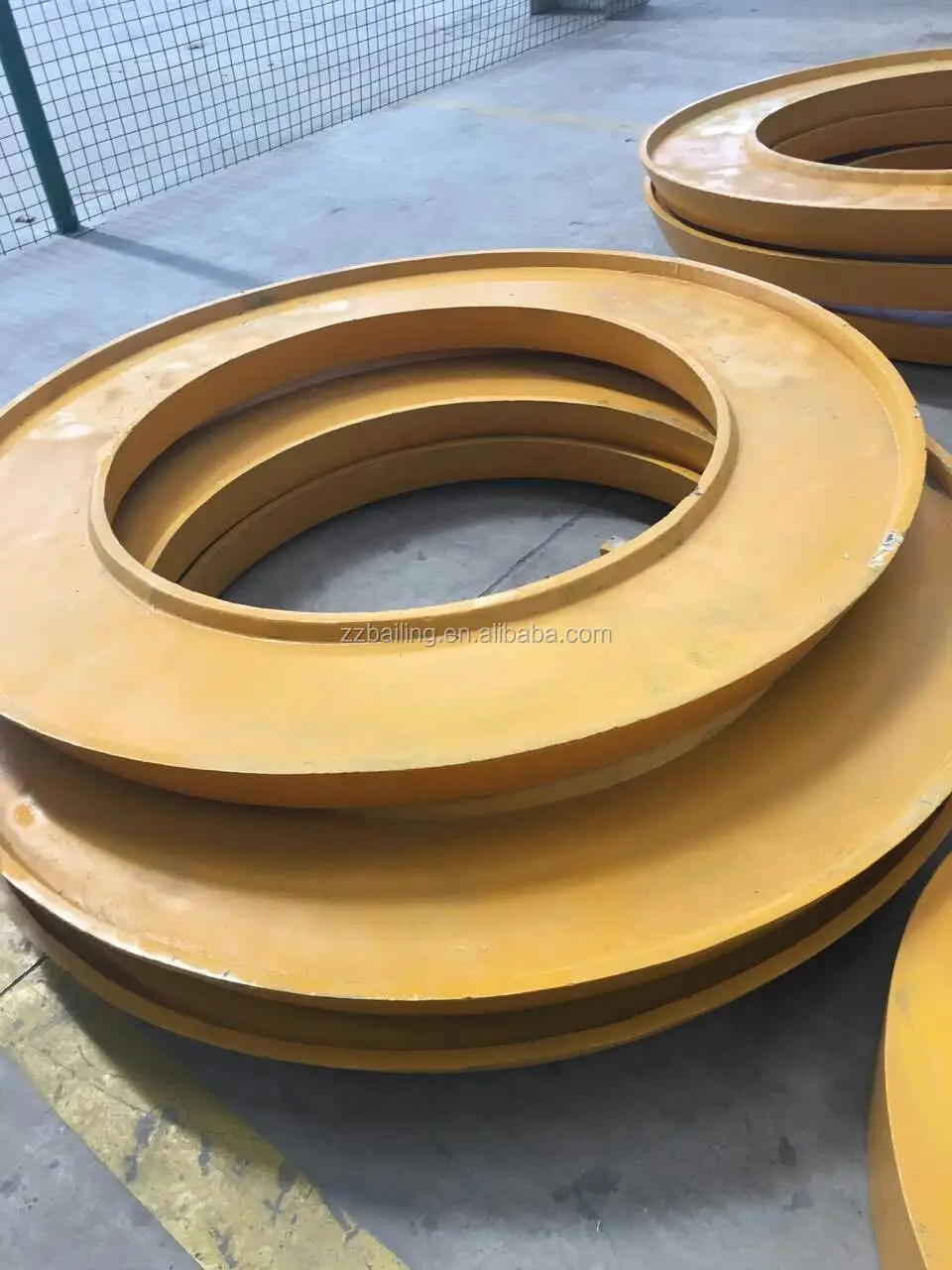

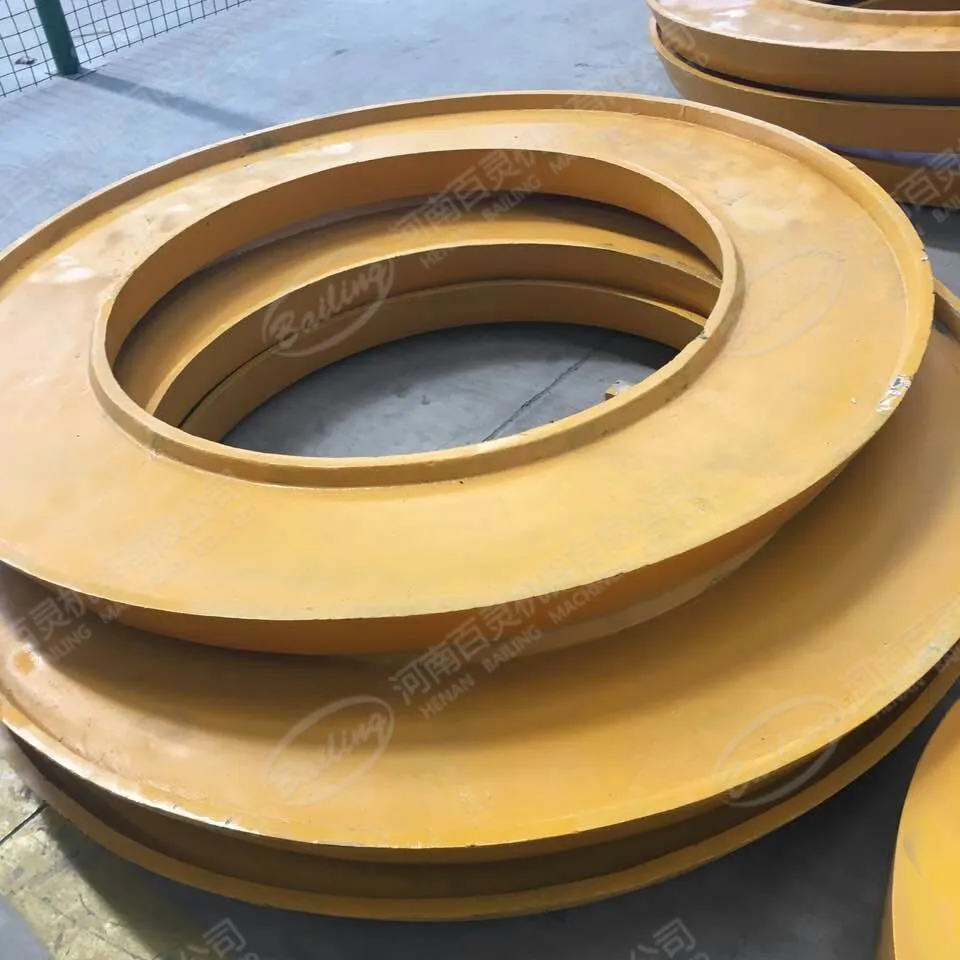

Name: Grading base
Brand: Bailing
Original: China
Material: Optional casting steel, casting iron and manganese steel.
Thickness: Standard 85mm
