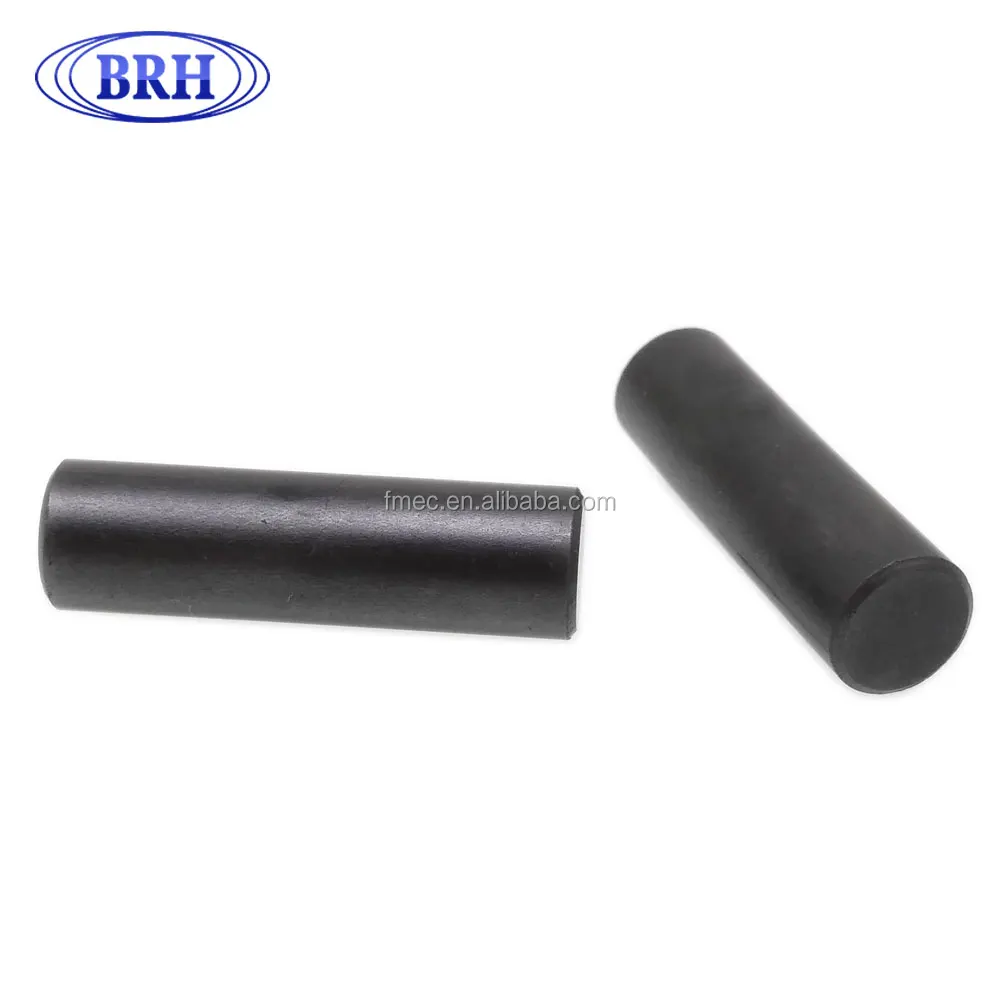

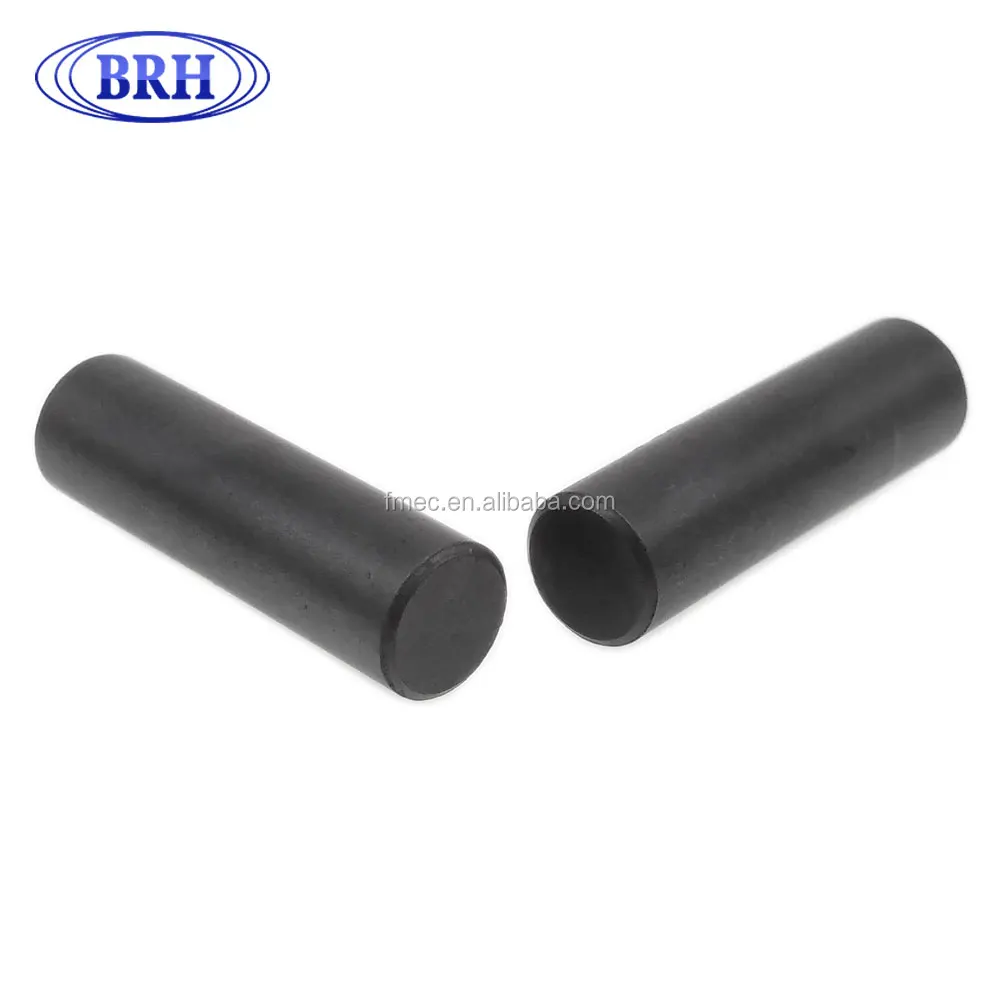

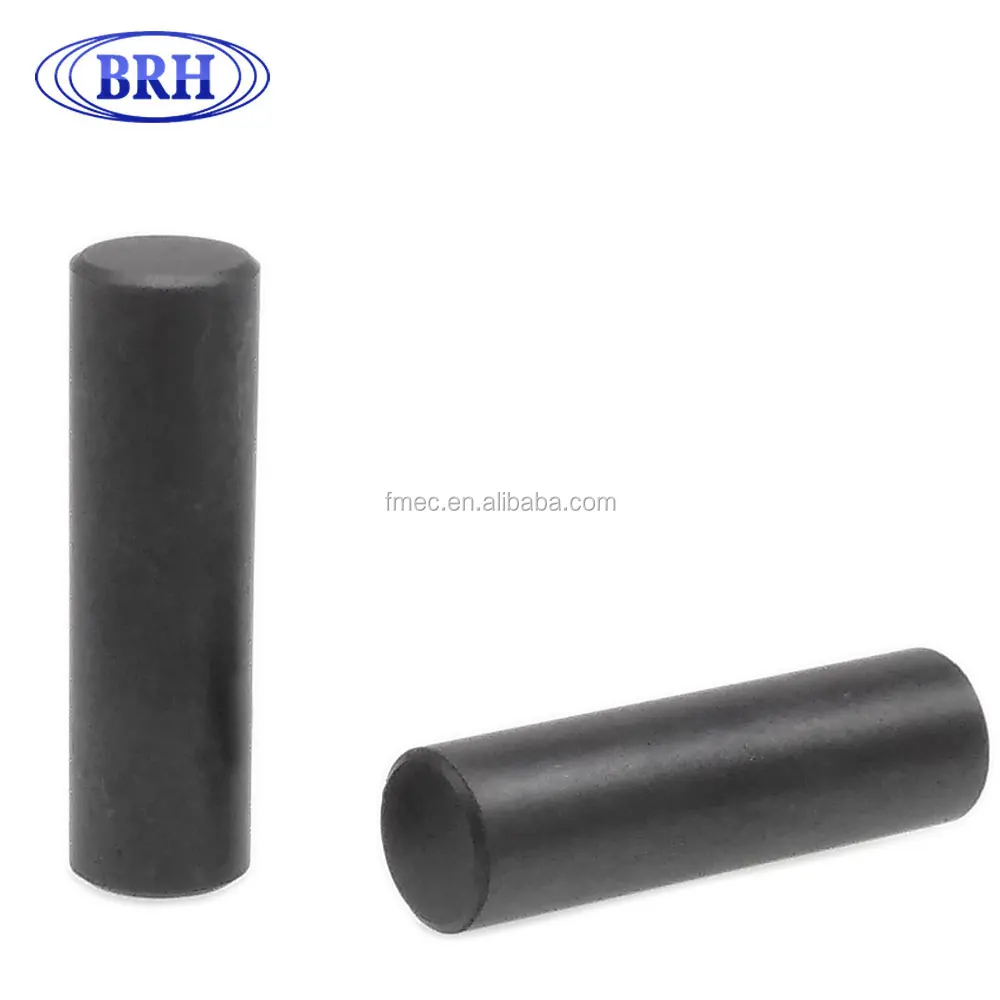

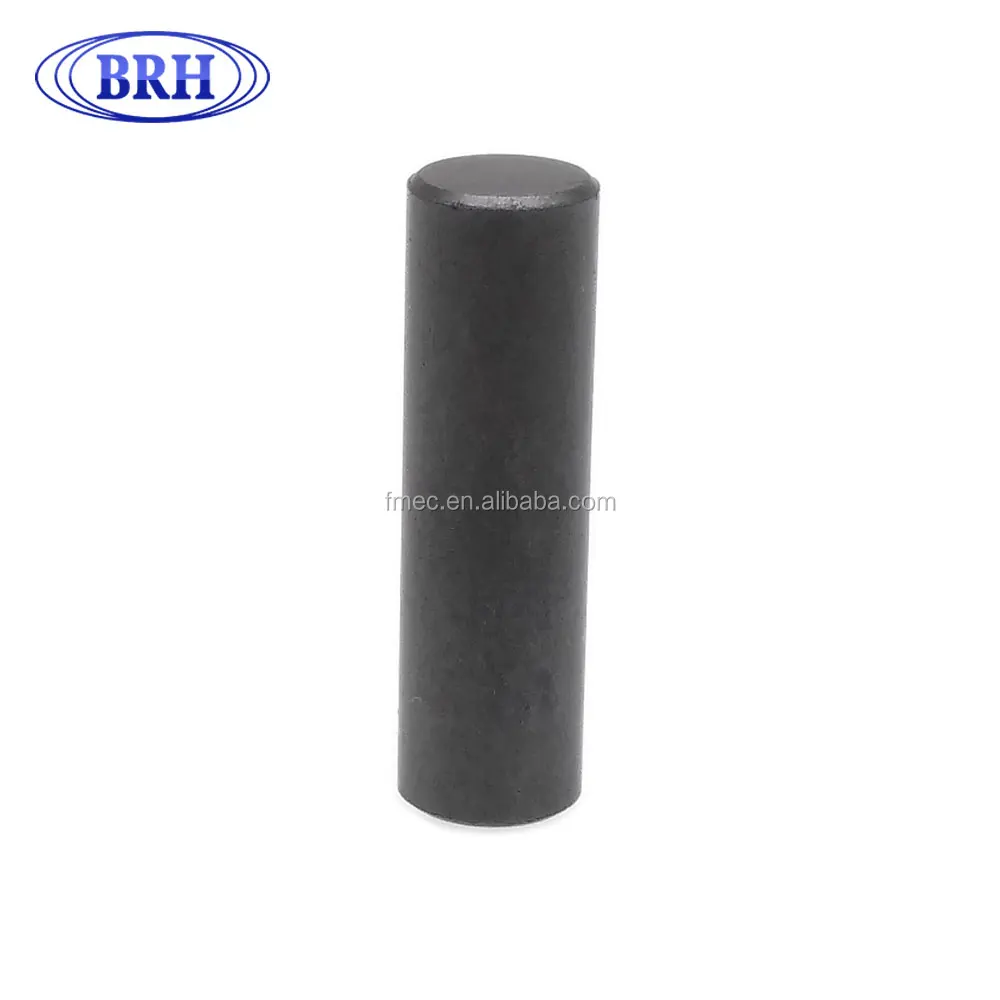

R6X20 high Permeability soft ferrite antenna Cylindrical Bar
R6X20 high Permeability soft ferrite antenna Cylindrical Bar
R6X20 high Permeability soft ferrite antenna Cylindrical Bar
R6X20 high Permeability soft ferrite antenna Cylindrical Bar
R6X20 high Permeability soft ferrite antenna Cylindrical Bar
R6X20 high Permeability soft ferrite antenna Cylindrical Bar

R6X20 high Permeability soft ferrite antenna Cylindrical Bar

Share on (60749873412):


Price:

Quantity:


Product Overview

Description


Description
\t

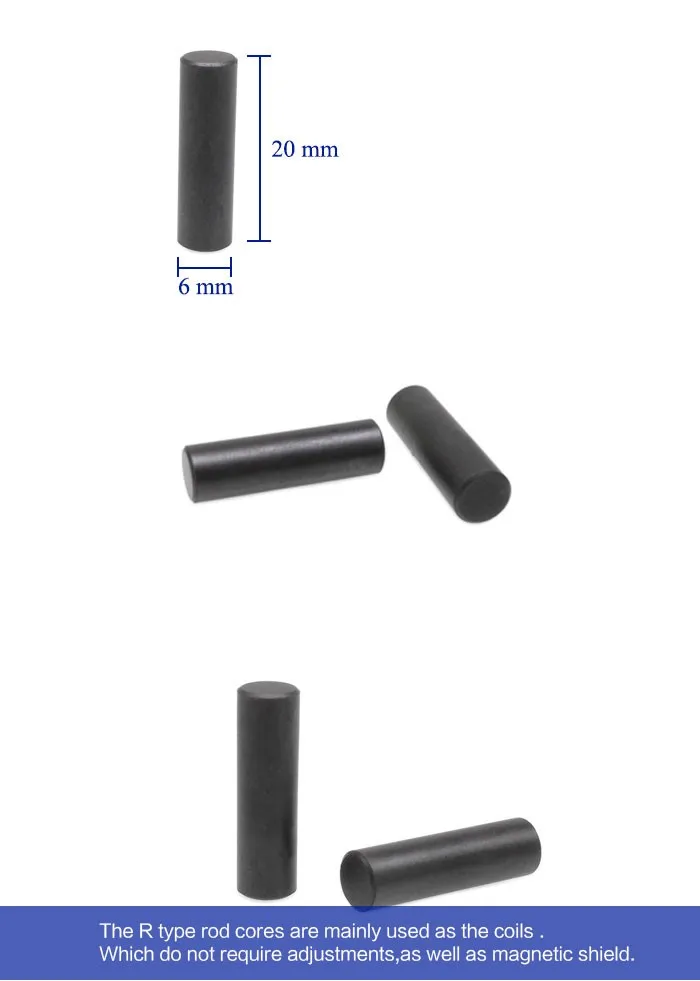

SIZE CODE （mm)
\t
A
\t
B
\t
A2 R 6*20
\t
6.0±0.50
\t
20.0±0.60
Parameter
\t
Electrical Requirements
\t
SIZE CODE （mm)
\t
A2 R 6*20
\t
L（µH）
\t
2.95µH ± 25%
\t
TEST FREQ
\t
100KHz / 0.25V
\t
WIRE
\t
10.5 TS
\t
TEST INSTRUMENTS
\t
TH 2817A
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS.
Item
\t
L（µH）
AT100KHz
\t
A
m/m
\t
B
m/m
\t
Suggest
\t
2.95µH ± 25%
\t
6.0±0.50
\t
20.0±0.60
\t
1
\t
2.92
\t
6.02
\t
19.92
\t
2
\t
2.95µH ± 25%
\t
6.03
\t
20.05
\t
3
\t
2.93
\t
6.02
\t
19.98
\t
4
\t
2.91
\t
6.99
\t
20.02
\t
5
\t
2.89
\t
6.01
\t
20.03
\t
6
\t
2.91
\t
5.97
\t
20.01
\t
7
\t
2.89
\t
6.02
\t
19.95
\t
8
\t
2.91
\t
6.01
\t
20.03
\t
9
\t
2.87
\t
6.03
\t
20.11
\t
10
\t
2.92
\t
6.05
\t
19.97
\t

\t

\t

\t

\t
X-bar
\t
2.62
\t
6.12
\t
20.01
\t
R
\t
0.06
\t
1.02
\t
0.19
\t
The above test data for reference，Actual results may differ due to different production batches
