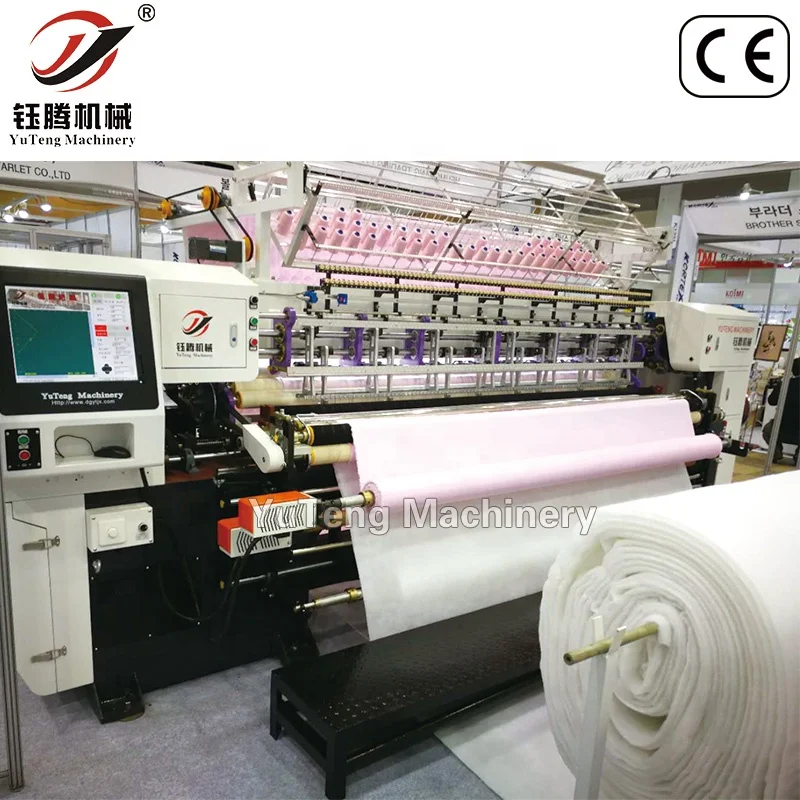

YuTeng Machinery computerized quilting embroidery machine

Product Overview

Description

 ♦ Technical parameters :

Model	YGC96-2-3	YGC96-3-5	YGC96-3-6
Dimension(L*W*H)	4900mm*1200mm*1800mm	4900mm*1200mm*1800mm	4900mm*1200mm*1800mm
Quilting Width	2450mm	2450mm	2450mm
Needle rows	2	3	3
Space between needle rows	3"(inch)	3"+2"(inch)	3"+3"(inch)
Space between needle	25.4mm	25.4mm	25.4mm
X-axis movement displacement	254mm	304.8mm	304.8mm
Thickness of quilting	25mm	25mm	25mm
Stitch length	2-8mm	2-8mm	2-8mm
Speed of operation(m/hour)	20-120(m/hour)	20-120(m/hour)	20-120(m/hour)
Model of needle	16#,19#	16#,19#	16#,19#
Quilting Speed(r/min)	300-800(r/min)	300-800(r/min)	300-800(r/min)
Voltage(AC)	380V/50HZ,220V/60HZ,3P	380V/50HZ,220V/60HZ,3P	380V/50HZ,220V/60HZ'3P
Total power	5.5KW	5.5KW	5.5KW
Gross weight	4500kg	4500kg	4500kg

* Can be customized according to customer requirements









 ♦ Product main features :

1,Computerized speed governing , max.800r/min.
2,Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3,Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4,Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.

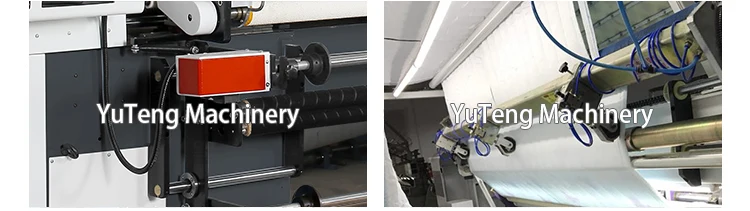

 ♦ Detailed Images :



1,Routine two rollers structure

2,New aluminum alloy needle bar frame structure

3,The stand of bottom cloth separate from moving saddles

4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)









 ♦ Purpose :

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

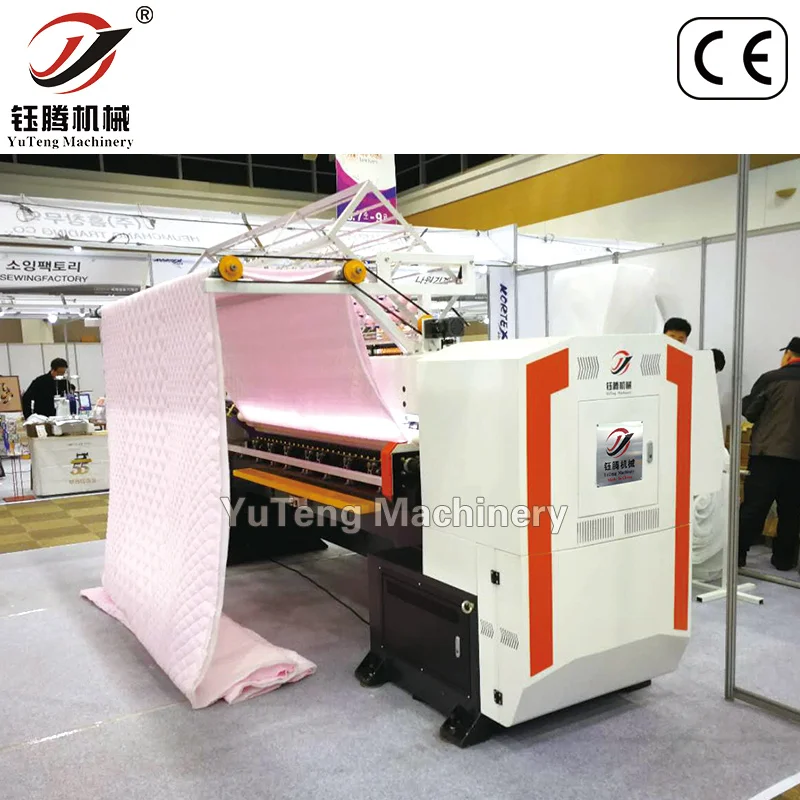

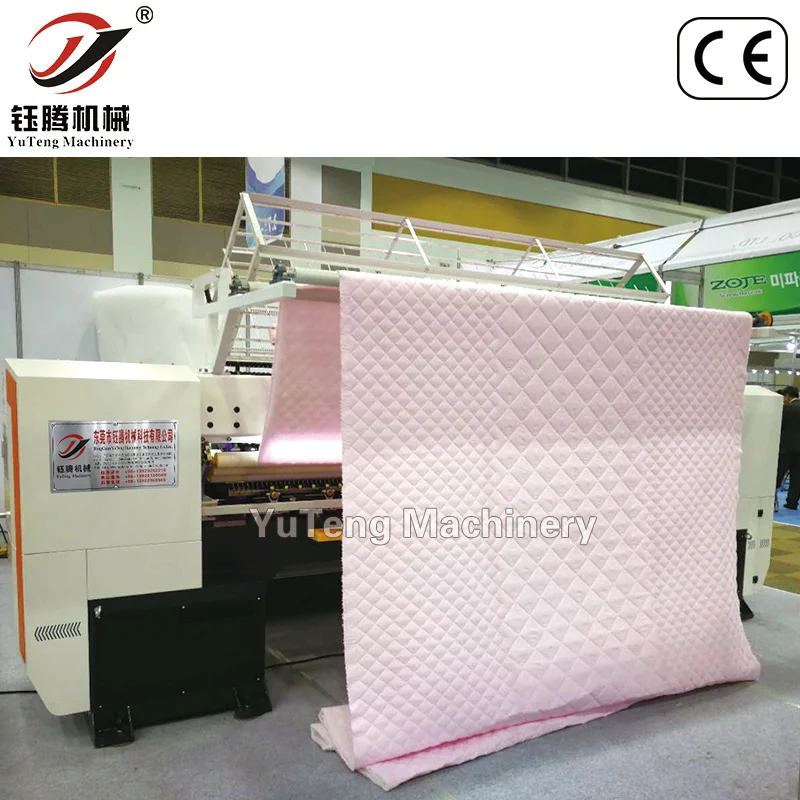

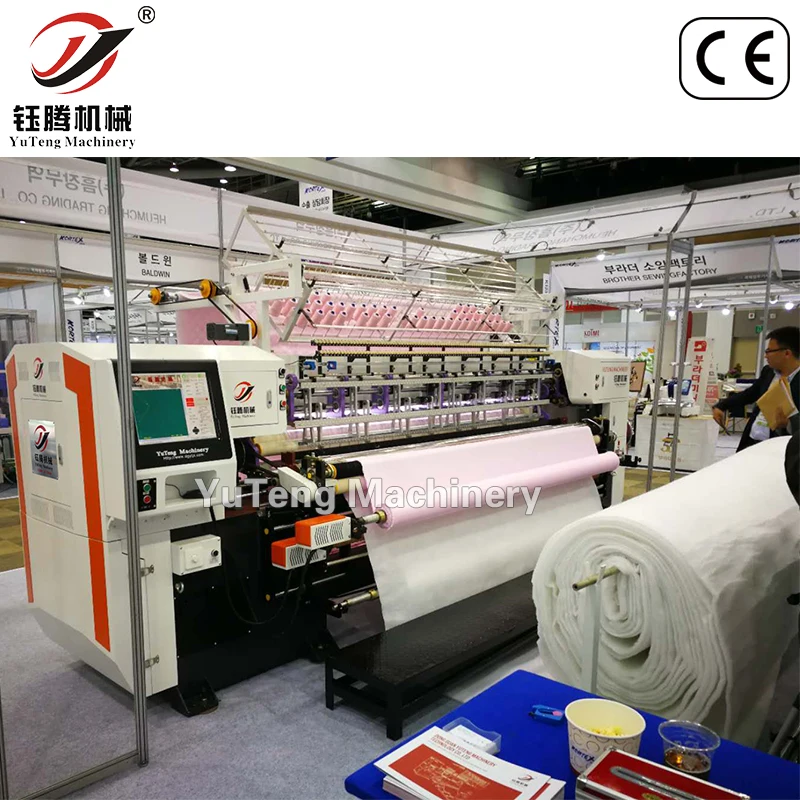

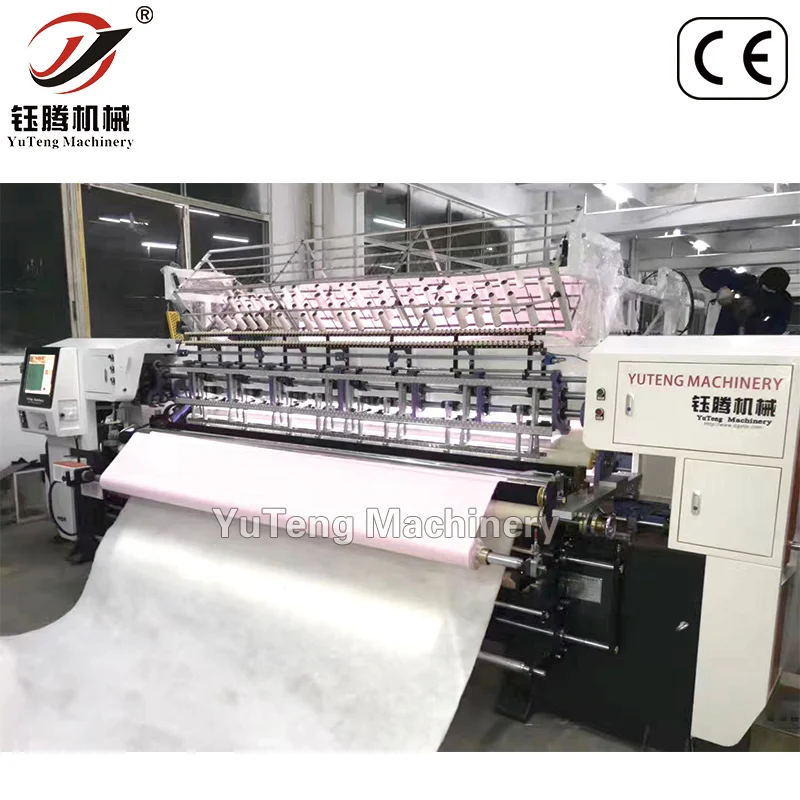

 ♦ Quilting Machine Pictures :















 ♦ Certificate :



1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.

2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.

3. Delivery Terms: FOB, CIF, CFR, etc.

4.Warranty: One year.
5.Overseas engineers can be sent to install machines and teach you how to use them.
6.We provide both Before-sale service and After-sale service.
