CKY Needel Loom Double Layer Label Machine 1025
- Category: Belt Making Machines >>>
- Supplier: Quanzhou Chongkinyuan Precision Machinery Co. Ltd.
Share on (60749928253):
Product Overview
Description
production informati

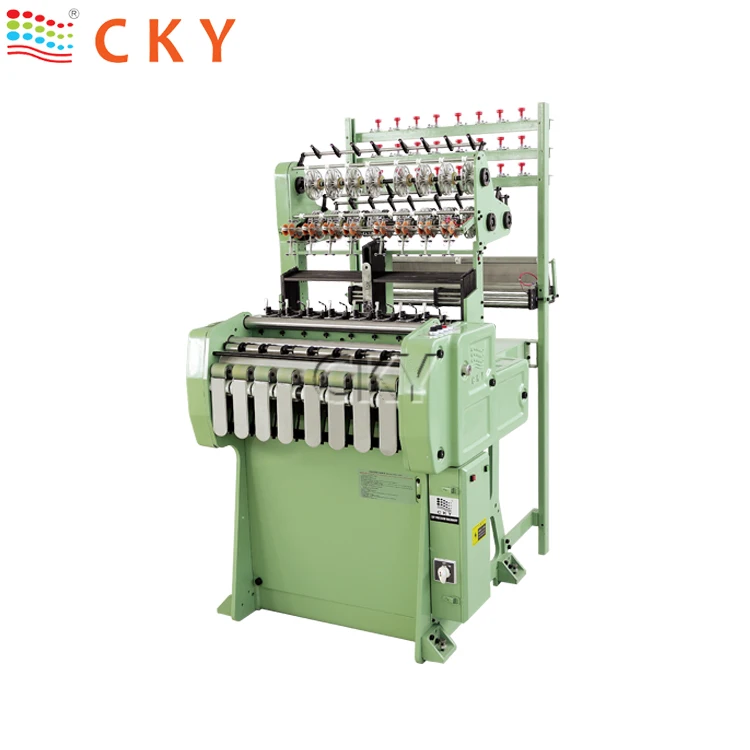

CKY 8/45DL

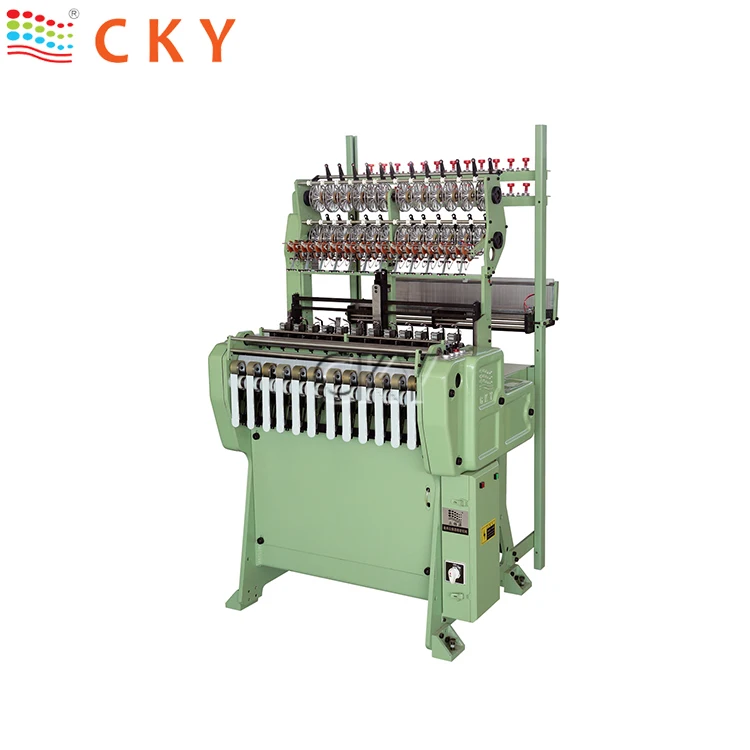

CKY 12/25DL

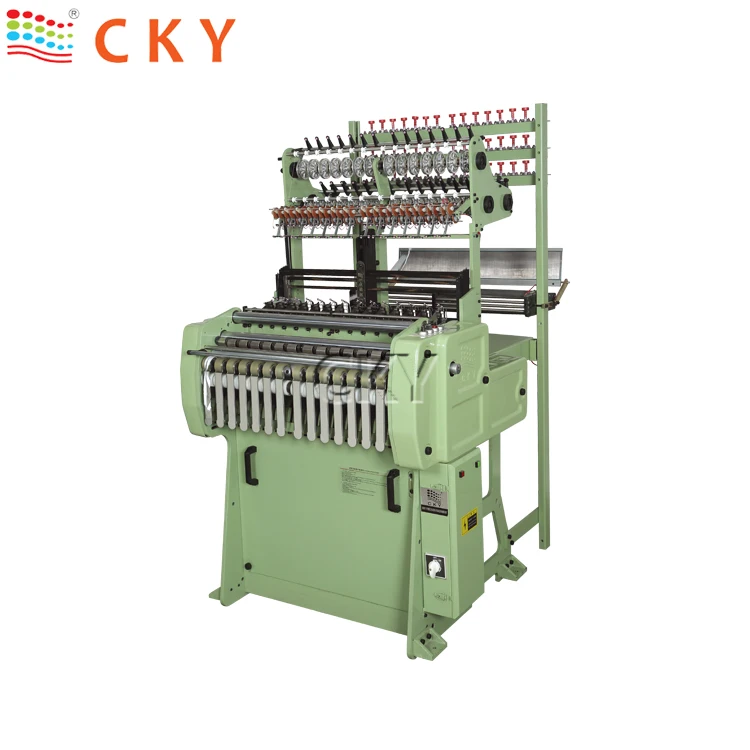

CKY 14/20DL
Technical Parameters:
| Model | Head | Tape | Reed Width Max.(MM) | Weft Density (CM) | Pattern Chain Cycle | Heald Frame (PCS) | Moter (KW) | Speed R.P.M |
| CKY 6/45 | 6 | 12 | 45 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 8/30 | 8 | 16 | 30 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 8/45 | 8 | 16 | 45 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 10/25 | 10 | 20 | 25 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 10/30 | 10 | 20 | 30 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 12/25 | 12 | 24 | 25 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
| CKY 14/20 | 14 | 28 | 20 | 3.5-36.7 | 8-48 | 12-16 | 1.1 | 900-1300 |
Details:
- Used for the production of light narrow fabrics like ribbon, webbing, shoulder strap, elastic tape and some for special purpose; Productive, fast and double layer output; The latest design makes the weaving angle more reasonable and operation more user-friendly; Output tapes vary from 6 to 20, maxium width from 3mm to 45mm.
Products Display:
- Used for the production of unelastic narrow fabrics like luggage belt, plain elastic belt, pp belt, cotton belt and so on;
