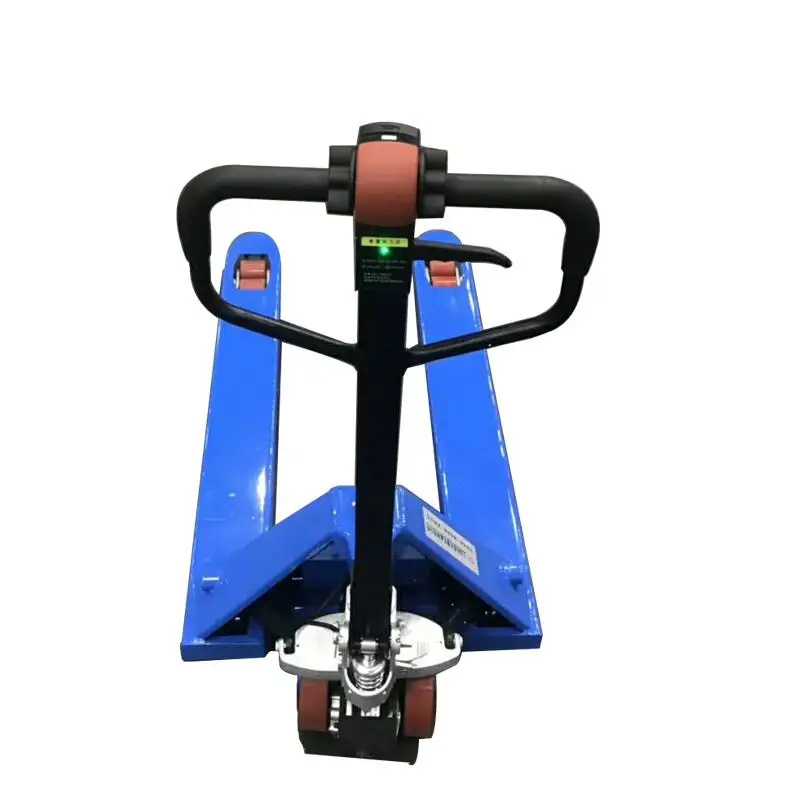

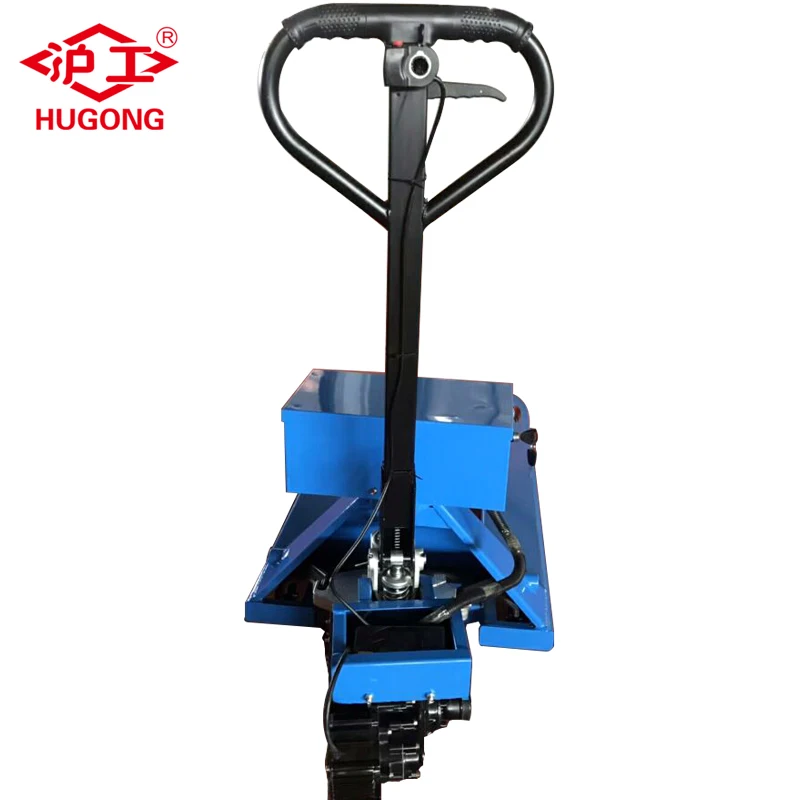

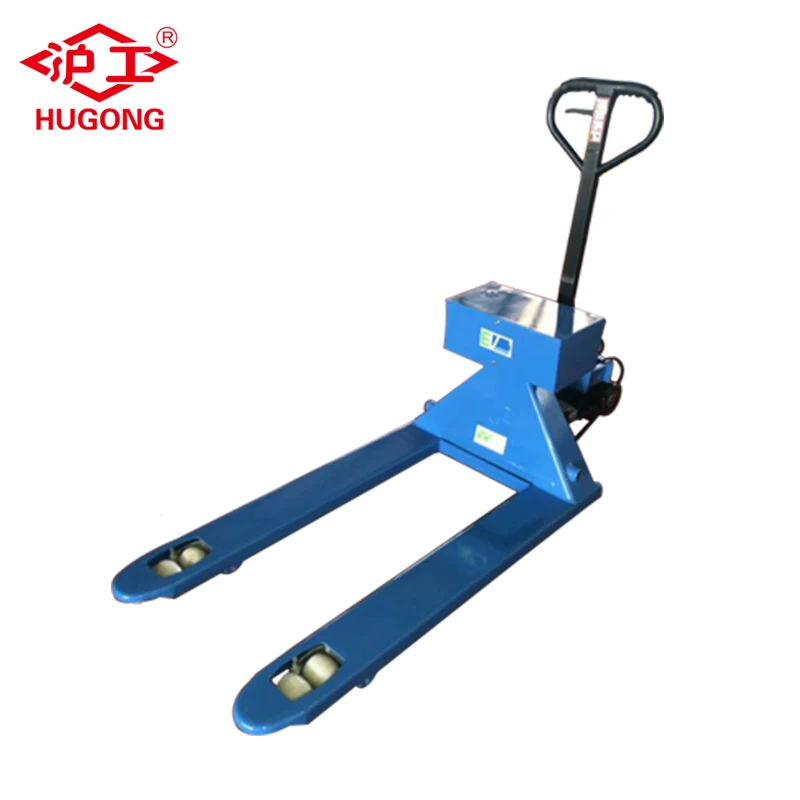

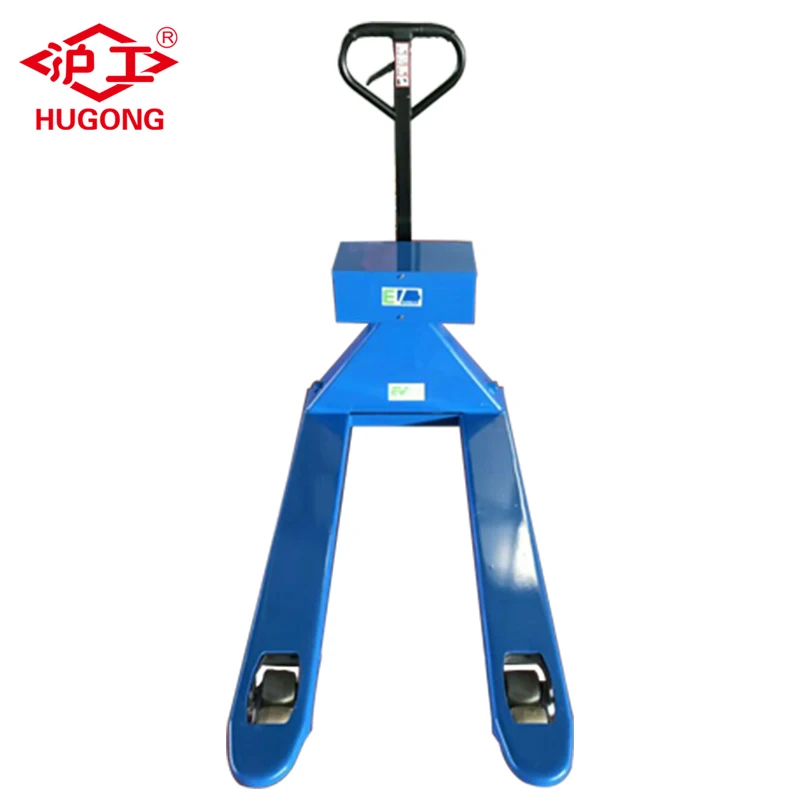

Hand lifter hydraulic small mini electric pallet truck

Hand lifter hydraulic small mini electric pallet truck

Category: Pallet Jack >>>
Supplier: Hebei Hugo Machinery Crane Group Co. Ltd.

Price:$525.00 - $533.00

Quantity:

Product Overview

Description

Hand lifter hydraulic small mini electric pallet truck

Product Description

.jpg

mini electric pallet truck parameter size

Capacity	Minimum height (mm)	Max lift height (mm)	Length(mm)	Width(mm)	Wheel type	Load wheel size(mm)	Steer wheel size(mm)
2	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
3	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
3	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50

mini electric pallet truck introduction

AC integrated casting pump

1.Good sealing performance:Overall seal, avoid leaking
2.Each piston rod with chromium plating treatment
3.Overflow valve has overload protection
4.Whole overflow valve in view,so can be fixed easy
Notice:The min lifting height is 85mm

DF welding pump
Reduce the whole pallet truck costs, affordable,

with the following advantages:
1.  Oil pump with manual slow down control valve, high safety
2.  Three adjustable handle for easy operation
3.  In the front of fork is cambered, easy to insert the pallet
4.  C-type fork can support heavy load, durable
5.  The fork can be manually adjusted to control

the minimum height of the fork

Notice:The min lifting height is 75mm

The difference between the two:
AC oil pump is a pump, one-time casting molding.

DF oil pump is split pump is separate welded, the advantages of an integral pump is raised after loading effort,
The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.
