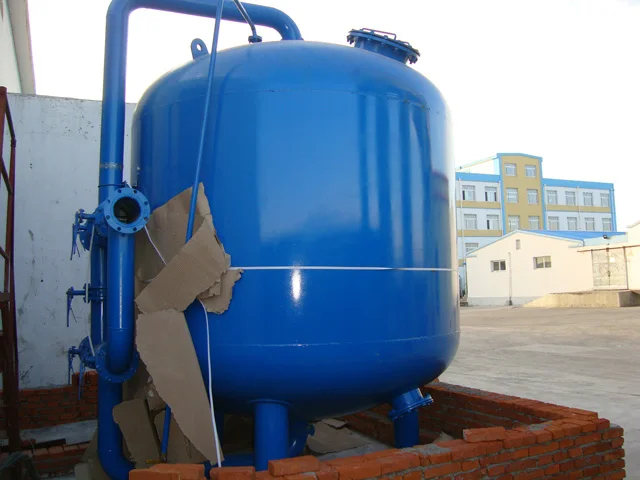

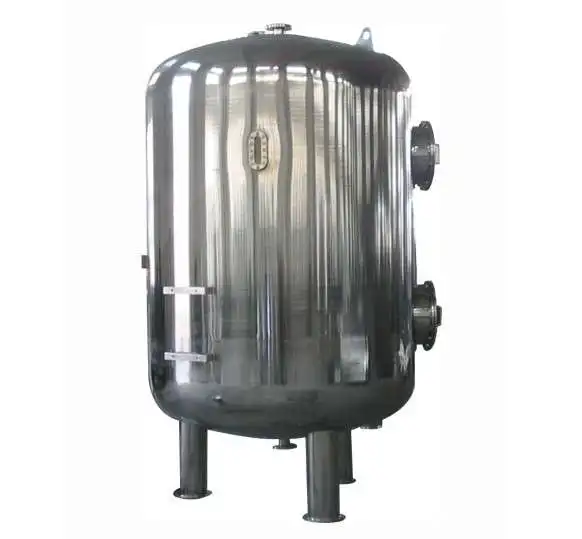

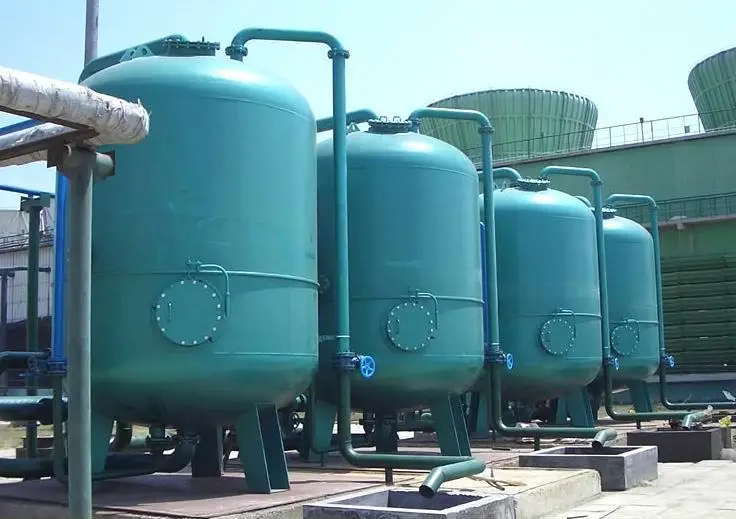

ACTIVE CARBON FILTER

Product Overview

Description

Professional automatic chemical feed dosing system device

Applications:

     GTL type activated carbon filter is to remove some dissolved organic matter which can not be removed by other filters by the adsorption process of activated carbon, such as phenol, aldehyde, textile dye, insecticide, etc., generally used as end water treatment equipment, or the removal and final decolorization of pollutants that are difficult to degrade after biochemical treatment. It is widely used in the deep treatment of water supply and drainage engineering.

Working Principle

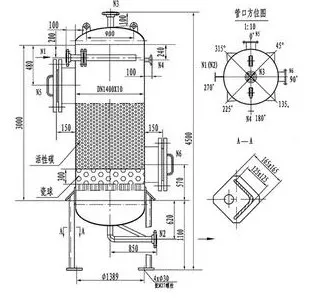

The filter is mainly composed of activated carbon layer and supporting layer. Activated carbon has developed pores, large specific surface area and high adsorption capacity. Because of this characteristic of activated carbon, it is widely used in the deep treatment of water, such as domestic water supply, sewage (purified water) deep treatment. After a period of use, activated carbon has absorbed a large amount of adsorbate, gradually tends to saturation, and loses working capacity. In case of serious situation, it will penetrate the filter layer, so regeneration or replacement of activated carbon should be carried out. The main function of the supporting layer is to prevent the loss of activated carbon from the equipment, and to play a certain uniform distribution in water and flushing.
