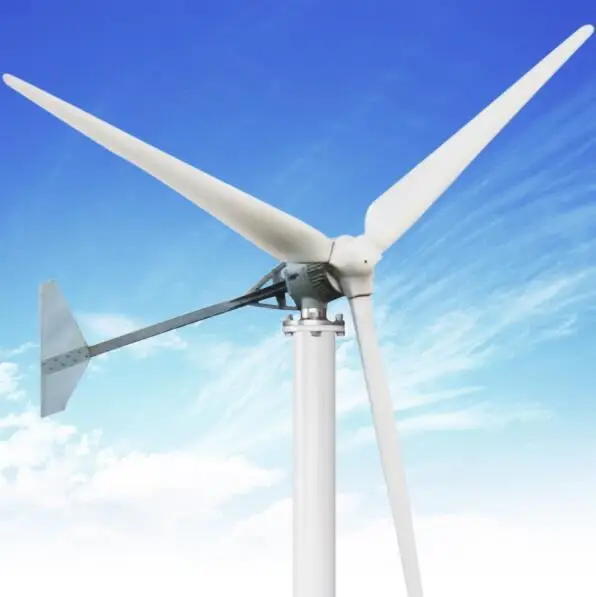

10kW wind generator turbine
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60749977074):
Product Overview
Description
Product Introduction
Features:
1. Our products adapt NdFeB as magnets, to ensure the product is effective in 20years
2. High electric conductivity coil: high quality, low capacity
3. Stator: three coil winding, method of star connection, easier to generate electricity
4. Blade adopts fixed-pitch structure, simplify structure, decline low cost, longing service life
5. Swirl vane design: peaceful, exquisite, light and handy
6. Wind wheel partial side automatic speed control, auto brakes in loud wind, protecting the fan
7. Spoiler adjustment: automatically adjust windward direction
Product Parameters
| Model | LS-10kw G |
| Rated power | 10kW |
| Maximum power | 12kW |
| Rated voltage | 96/120/220/360V |
| Start up wind speed | 2.5m/s |
| Rated wind speed | 11m/s |
| Survival wind speed | 45m/s |
| Top net weight | 850kg |
| Wheel diameter | 7.8m |
| Blades number | 3 |
| Blades material | Reinforced glass fiber |
| Generator | Three phase permanent magnet ac generator |
| Magnetic steel | NdFeB |
| Generator case | Die-casting aluminum |
| Control system | Electromagnet/ wind wheel yaw |
| Speed regulation | Automatically adjust windward |
| Working temperature | -40 to 80℃ |
| Lubrication | Grease injection |
| Design life | 20 years |
| Certifications | CE, ISO14001, ISO 9001 |
