Item# CBP48 China Box and pan hand manual press brake

Product Overview

Description

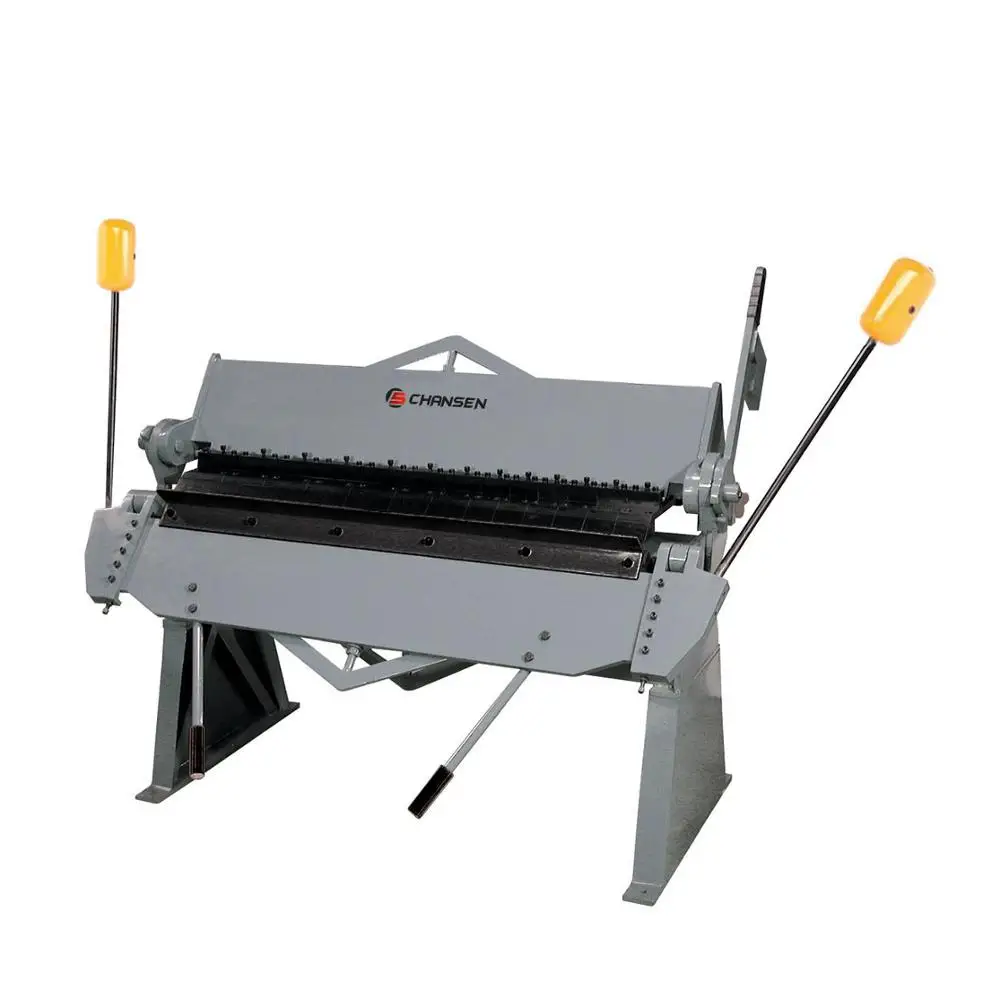

Floor Type Box&Pan Hand Brake

Item# CBP48



Description

The CBP48 Floor Type Box&Pan Hand Brake features 1220mm(48") bending width, 2.5mm bending capacity, welded steel plate structure, hardened precision steel fingers, and heavy-duty cast iron counter weights. The bending angle is set up to 135° and suitable for many multiple metal forming applications. Large counter balanced brake handle provides ease of use for continuous operations. With the maximum life and durability, it’s built for all day jobs.



Features

• 1220mm(48") bending width and 2.5mm thickness


• Welded structural steel frame


• Hardened precision steel fingers


• Sectioned fingers are easily removed for box bending and special forming operations


• Wide assortment of finger widths allow greater forming versatility


• Left & right beam control levers


• Heavy-duty cast iron counter weights


• Large counter balanced brake handle provides ease of use for continuous operations


• Brakes from 0 - 135°


• Spring loaded handle allows fast and easy action


• Easy for all day working





Specifications

• Bending capacity: 2.5mm


• Bending width: 1220mm (48")


• Removed finger number: 13 pcs


• Finger width: 5 x 5", 6 x 3", 2 x 4"


• Bending range: 0 - 135°


• Max. depth of box: 150mm (6")


• Machine weight: 520 kgs
