Mini cold freezer transport truck 5 tonne GVW Refrigerated Box Vans for sale

Mini cold freezer transport truck 5 tonne GVW Refrigerated Box Vans for sale

Refrigerator truck:
Refrigerated truck is a full sealed van used to transport the frozen food or fresh goods, and is also kind of special transportation vehicle               equipped with refrigeration unit device and polyurethane thermal insulation box.
Transportation category:
Refrigerator truck is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug etc.
Construction:
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.
For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.

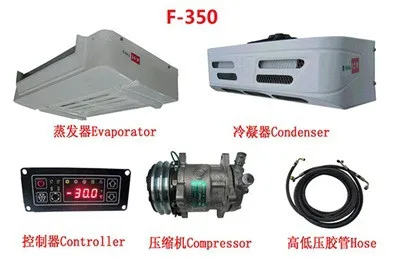

Refrigeration unit classification:
non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using external refrigerator,
for a few mini refrigerated truck,using internal refrigerator.
Choice for insulated body:
good thermal insulation property,light weight,not easy to be damaged.
Vehicle classification:
According to the different chassis model, we have minitype,middle-sized,large-scale etc refrigerator trucks for your choise with different brands.
Vehicle steering direction:
RHD or LHD is available.

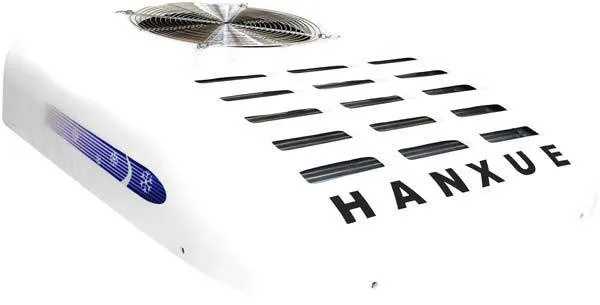

Refrigerator Brand Display:

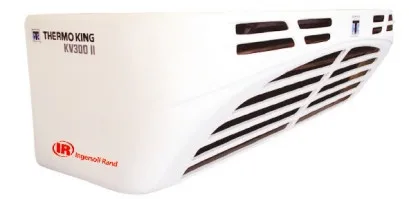

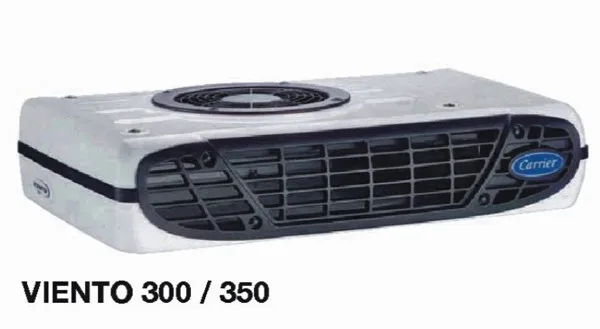

American Carrier, Thermo King, Hanxue, Huatai

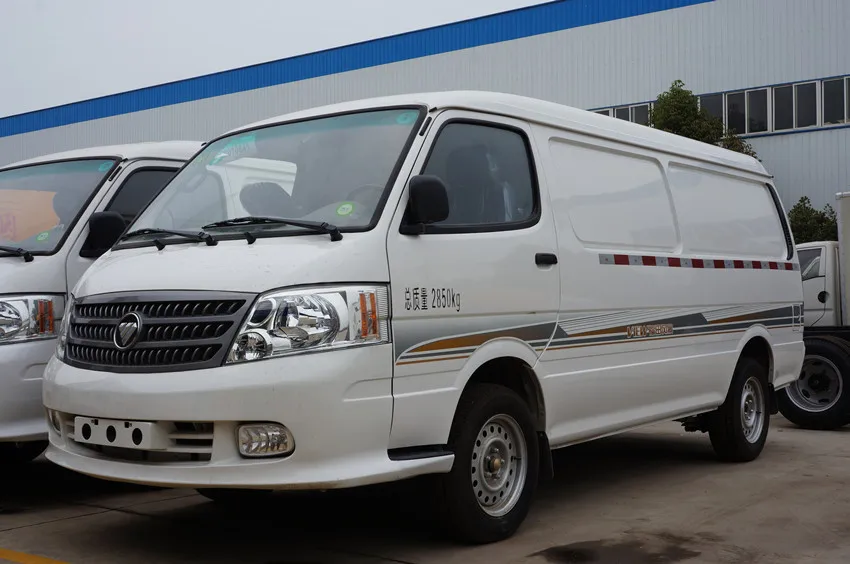

Foton 1.5tons payload refrigerated      truck

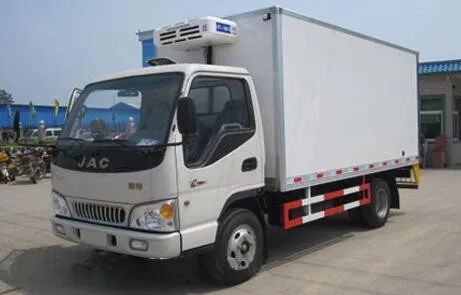

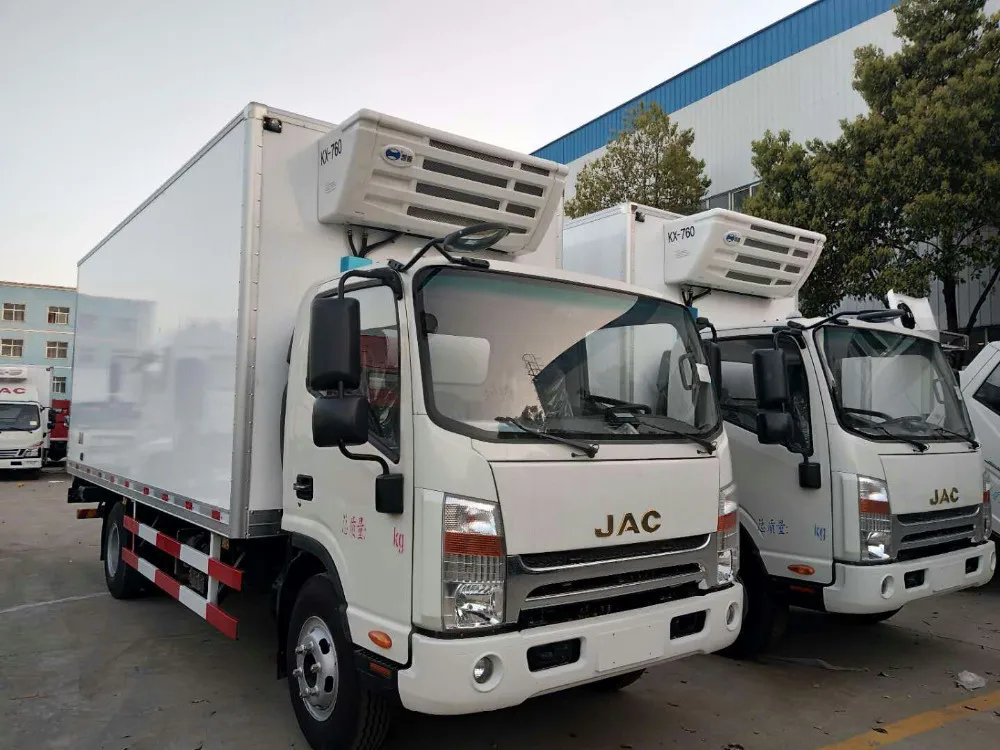

JAC 3tons payload refrigerated    truck

1 Box Size: 3650×1800×1750 mm,
2 Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 80mm;bottom 80 mm.
3 Working temperature is minus 15 celsius degree. Chinese  famous brand refrigeration unit.

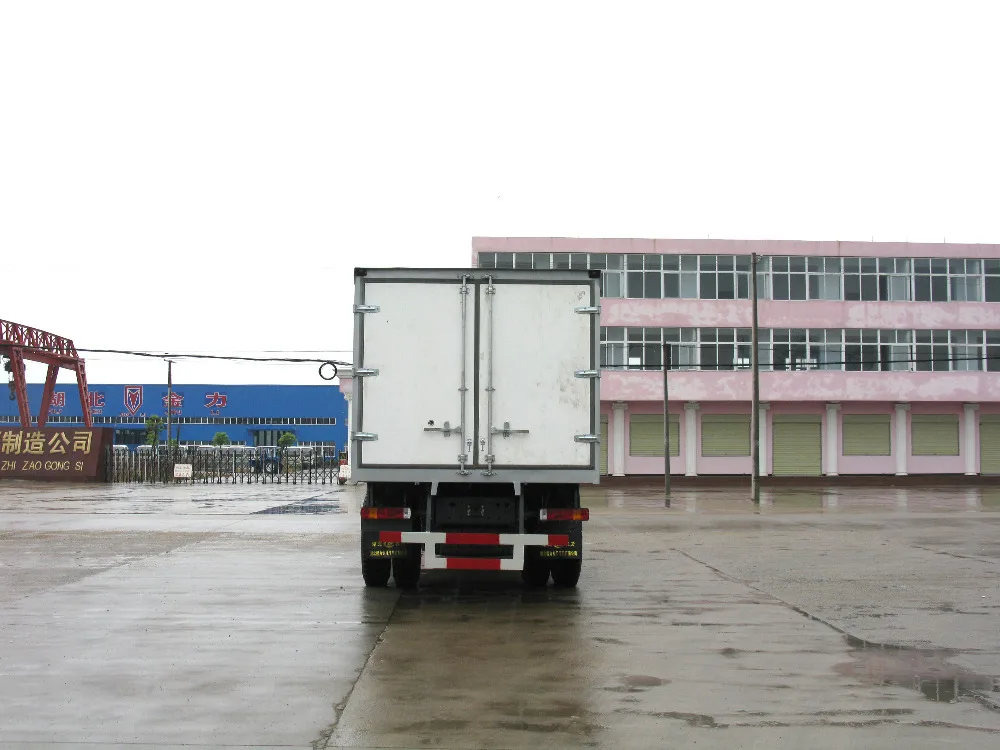

4 Rear door open

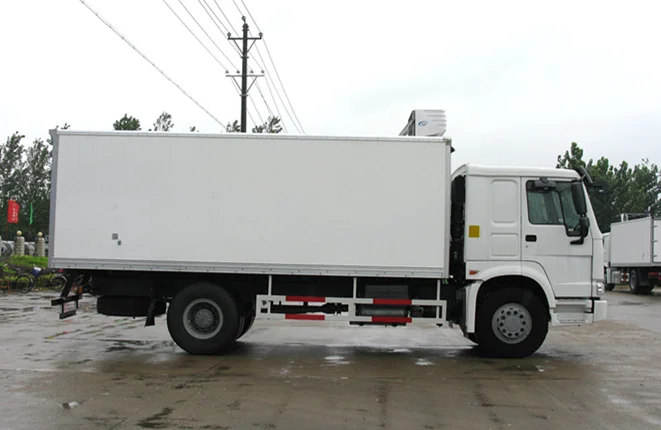

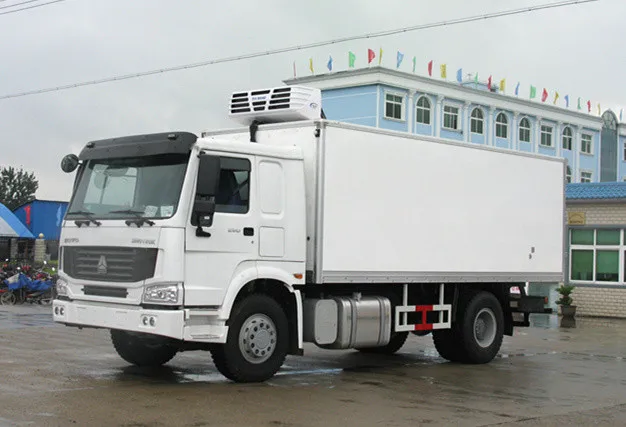

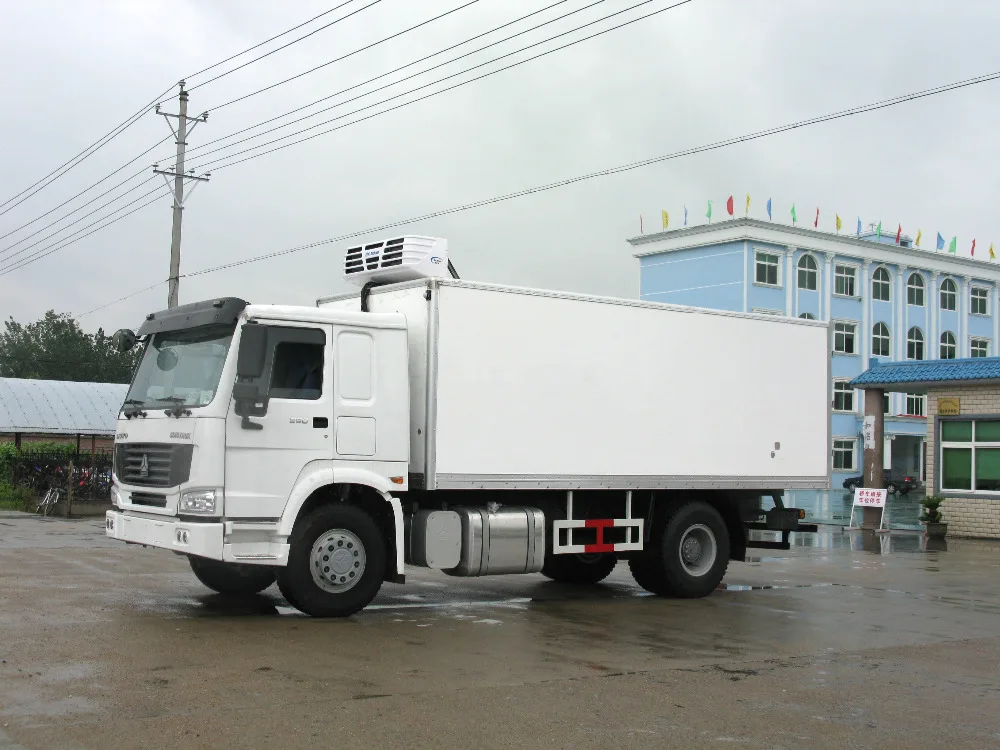

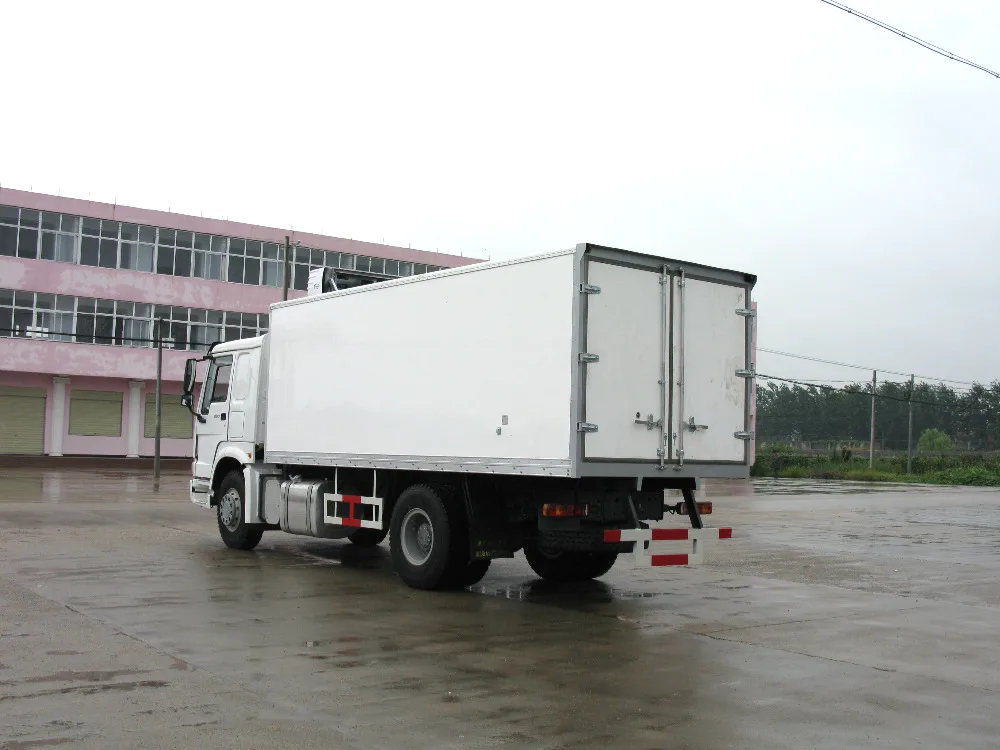

HOWO 6-8tons payload                   refrigerated truck

Van Box Size\t4850×2300×2150
Tank Material\tStrong Fiberglass Inner and Outer Wall,
with 80mm Middle Polyfoam Insulation.
Refrigerator\tHigh Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 15 centi-degree (negative 608 Fahrenheit degree)

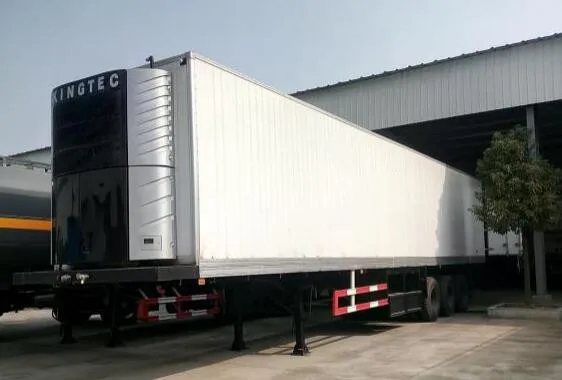

Refrigerated cooling van truck semi trailer

General Description
\tSize\t40 feet
2\tOverall Dimension\t13820×2330×2410 mm
3\tKerb weight\t11,460 Kg
4\tRated Payload\t50,000kg
5\tWheel base (mm)\t7980+1310+1310 mm
8\tTire\t9.75-22.5 wheel rim, 12+1 pieces
Refrigerator cabinet Description
1\tMaterial of van box\tColor steel plate outsied, Foam inside.
2\tThickness of cabinet \t80 mm
3\tCooling capacity\t4550 W
4\tVolume of cabinet (m3)\t50
6\tMinimum temperature\t-18 C D27(Perfect for transfer food )

1.You are factory or trading Company?

We are oversea sales department of XiaGong ChuSheng automobile. You are welcomed to visit our factory.


2.Could your company modify the standard product depends on my request?

Yes. Our company is specialized in researching and designing various of special purpose vehicle and          spare parts. We can provide the product that meet with your personalized demand.


3. Could your company totally customize products for me?

We can provide the customized-designing product meeting with any of your demand.


4. Could you provide certification that we need?

We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.


5. How about the after-sale service?

We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
