LED Depaneler LED lamp assembly equipment Aluminum Fiber PCB separating cutting machine

Product Overview

Description

LED strip cutter Aluminum fiber PCB cutting machine PCB separator machine

Product features: fast split board, no burr, no deformation. After dividing the board, it can be reconnected with the original board, no gap!

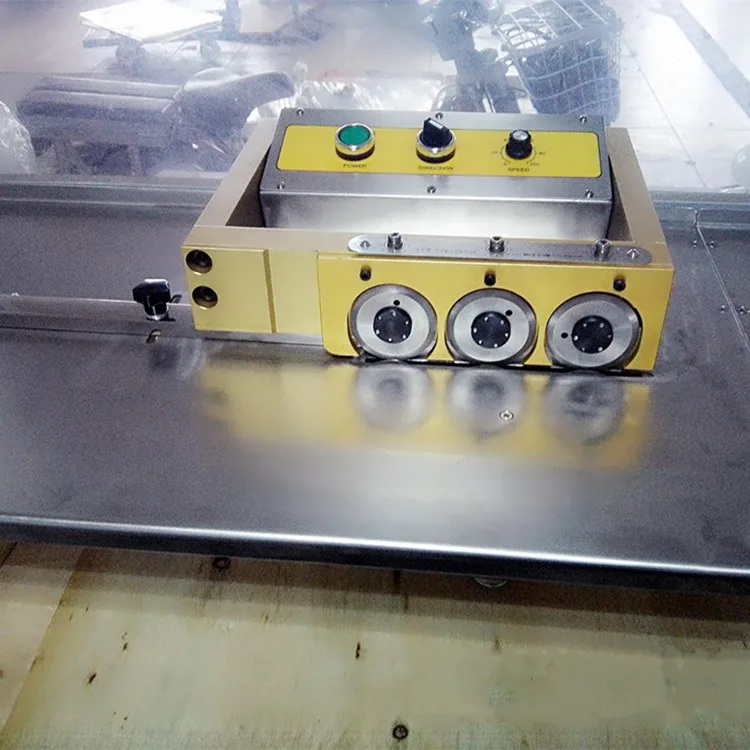

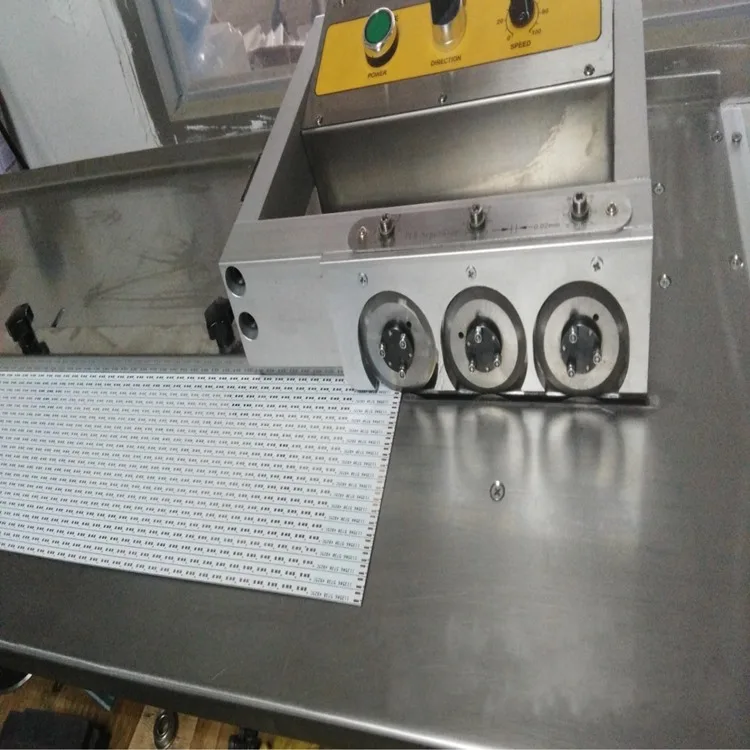

1. cutter machine adopts unique cutting method, cutting the circuit board composed of six blades, on the two as a group, to form a cutting unit. They are A, B, C, three groups. The cutting process is divided into three stages, the first cutting blade group A circuit board 40%, too then run again from the A B blade knife through the slot, once again completed 40% of the volume cutting, and finally by the C group of the last 20% blade cutting and finishing, because each cutting amount is very small, so the cutting process should have a more traditional way off force decreased by more than 80%, segmentation the edge of the circuit board smooth smooth, the surface is very smooth, not twisted. Alice is currently on the market can not guarantee the cutting of aluminum after deformation of the machine.
2, because of many times of cutting, the cutting process is very stable, greatly improving the positioning ability of the V-CUT slot. Even if the V-CUT slot is very shallow, there will be no V-CUT slot jumping out of the guide knife, avoiding the bad.
3, all cutting blades are calibrated by an excitation dual frequency laser interferometer, ensuring that the rear knives can continue to cut accurately in the groove cut through the rake. The tool tip runout is no more than 0.02mm., ensuring the perfect cutting quality.

Model	WANBO8000
Power Supply	AC 220V, 50Hz, 40W
Applicable material	Aluminum PCB, fiber PCB
Max cutting lenth	200-1500mm
Cutting thickness	0.5-2mm
Cutting speed	80, 120, 200, 300mm/s
Working temperature	10~35℃
Machine size	830*400*240mm
Plate installed size	2600*400*240mm
Blade material	Japan SKH7 HSS
Blade bearing	Japan SKD-11
Motor	ZD.5GN-20K, 51K 60RGN-CF
Electrical	SSR-25DA
Weight	36kg
